Introduzione
The AKG N60 Noise Canceling Headphones are designed to deliver a world-class acoustic signature with active noise-cancelling technology, minimizing disruptive sounds for an immersive listening experience. Crafted with premium materials such as aluminum, memory foam, and leather, these lightweight headphones offer both superior sound quality and comfort. This manual provides detailed instructions for setting up, operating, and maintaining your AKG N60 headphones.
Cosa c'è nella scatola
- 1 pair of AKG N60 headphones
- Borsa per il trasporto
- Adattatore di volo
- Cavo di ricarica USB
- 3.5mm detachable cable with universal mic/remote
Prodotto finitoview
The AKG N60 headphones in black, showcasingrazie al loro design elegante e al fattore di forma on-ear.
A user wearing the AKG N60 headphones, demonstrating their compact and comfortable fit for daily use.
The headphones in use during travel, highlighting their effectiveness in noisy environments like an airplane cabin.
Un dettagliato view of the active noise-cancelling (NC) switch located on the earcup, indicated by a green light when active.
A close-up of the earcup, featuring the AKG logo and the perforated design for acoustic performance.
Detail of the headband adjustment mechanism, allowing for a customized and comfortable fit.

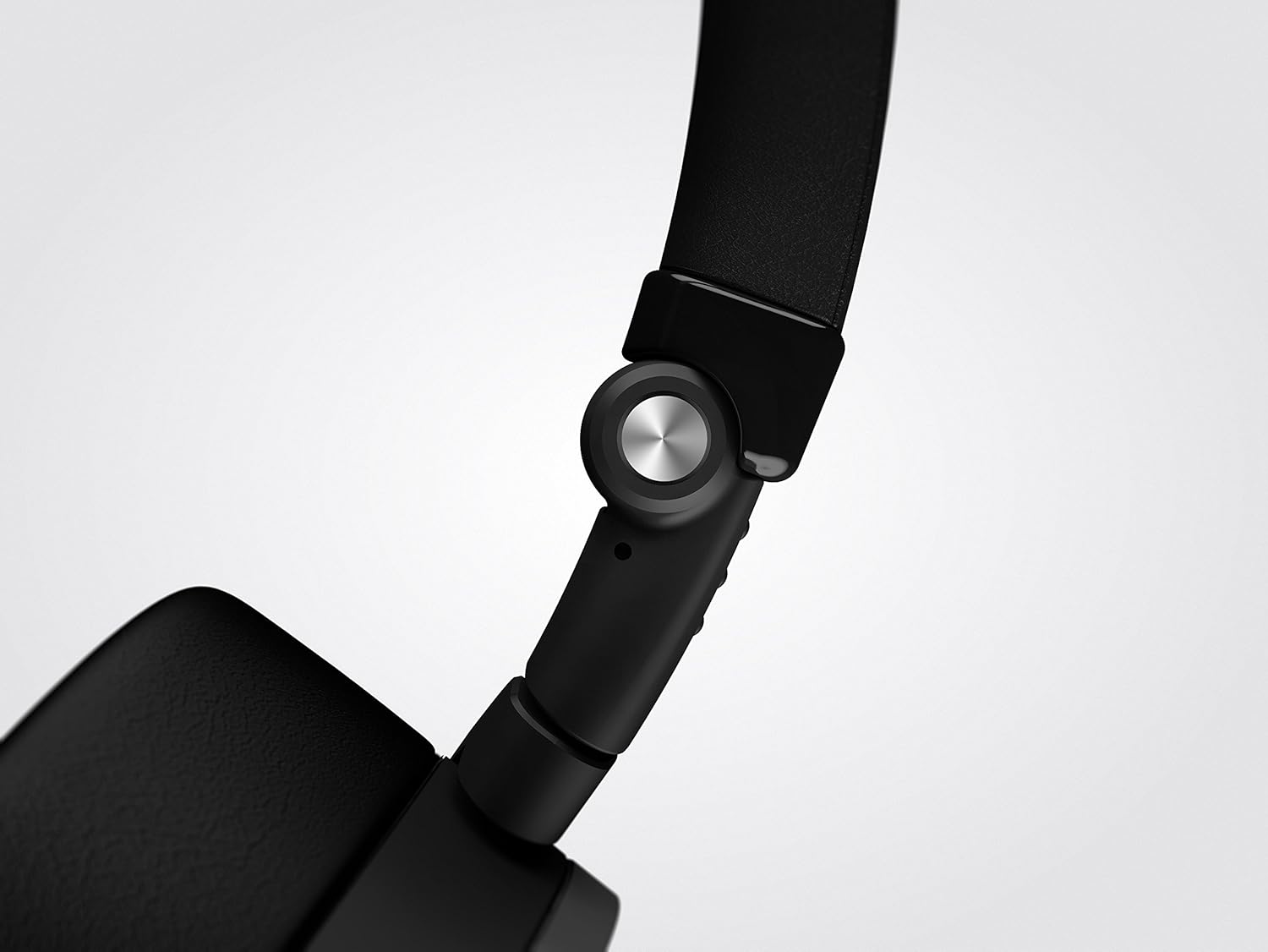

The robust folding hinge, enabling the headphones to collapse for easy storage and portability.
Impostare
- Carica iniziale: Before first use, fully charge your AKG N60 headphones using the provided USB charging cable. Connect the micro-USB end to the headphone's charging port and the USB-A end to a powered USB port (e.g., computer, wall adapter). A full charge provides up to 30 hours of battery life with noise-cancelling active.
- Collegare il cavo audio: Insert the 3.5mm detachable audio cable into the headphone's audio jack. Connect the other end to your audio source (smartphone, tablet, computer, etc.). The headphones can be used in passive mode even if the battery is depleted.
- Regola la vestibilità: Extend or retract the headband to ensure the earcups sit comfortably over your ears. The on-ear design should provide a snug fit without excessive pressure.
Istruzioni per l'uso
- Powering On/Off Noise Cancelling: Locate the NC (Noise Cancelling) switch on the earcup. Slide the switch to the 'ON' position to activate active noise cancellation. A green indicator light will illuminate. Slide the switch to 'OFF' to deactivate.
- Riproduzione audio: Once connected via the 3.5mm cable, audio will play from your source device.
- Using the Universal Remote/Mic Cable: The included cable features a one-button universal remote and microphone.
- Press once to Play/Pause audio or Answer/End a call.
- Premere due volte per passare alla traccia successiva.
- Premere tre volte per passare alla traccia precedente.
- Controllo del volume: Adjust the volume directly from your connected audio source device.
- Flight Adaptor: Use the flight adaptor with the 3.5mm cable to connect to in-flight entertainment systems.
Ricarica
The AKG N60 headphones are equipped with a rechargeable Lithium Polymer battery. To charge, connect the supplied USB charging cable to the micro-USB port on the headphones and a standard USB power source. The battery provides up to 30 hours of active noise cancellation playback. The headphones can still be used in passive mode (without noise cancellation) even if the battery is fully depleted.
Manutenzione
- Pulizia: Per pulire le cuffie, utilizzare un panno morbido e asciutto. Non utilizzare detergenti liquidi o spray.
- Magazzinaggio: When not in use, store the headphones in the provided carrying pouch to protect them from dust and scratches. The 3D-axis folding mechanism allows for compact storage.
- Evitare condizioni estreme: Non esporre le cuffie a temperature estreme, umidità o luce solare diretta.
- Cura del cavo: Handle the detachable cable gently. Avoid sharp bends or excessive pulling.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessun suono | Cable not fully connected; Audio source volume too low; Audio source not playing. | Ensure 3.5mm cable is securely plugged into both headphones and audio source. Increase volume on audio source. Verify audio is playing from source. |
| Noise Cancelling not working | NC switch is off; Battery is depleted. | Slide the NC switch to the 'ON' position. Charge the headphones using the USB cable. |
| Le cuffie non si caricano | USB cable not connected properly; USB power source not active. | Ensure USB cable is firmly connected to headphones and power source. Try a different USB port or power adapter. |
| Scarsa qualità del suono / Distorsione | Cable connection issues; Audio source quality; Damaged cable. | Check cable connections. Test with a different audio source or audio file. If possible, try a different 3.5mm cable. |
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del modello | N60 |
| Tecnologia di connettività | Cablato |
| Presa per cuffie | 3.5 mm Jack |
| Risposta in frequenza | Frequenza di campionamento: |
| Impedenza | 32 Ohm |
| Controllo del rumore | Cancellazione attiva del rumore |
| Durata della batteria | 30 Hours (with NC) |
| Peso dell'articolo | 5.3 once |
| Dimensioni del prodotto | 2.6 x 7.01 x 8.46 pollici |
| Materiale | Alluminio |
| Colore | Nero |
| Codice UPC | 028292269776 |
Garanzia e supporto
For warranty information, technical support, or service inquiries regarding your AKG N60 headphones, please visit the official AKG webo contattare l'assistenza clienti. Conservare la prova d'acquisto per eventuali reclami in garanzia.
