KitchenAid 2.0 cu. ft. Over-the-Range Microwave with Sensor Cooking User Manual

Introduzione

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your KitchenAid 2.0 cu. ft. Over-the-Range Microwave with Sensor Cooking. Please read all instructions carefully before using the appliance and retain this manual for future reference.

Immagine: Frontale view of the KitchenAid 2.0 cu. ft. Over-the-Range Microwave in Stainless Steel.

Importanti istruzioni di sicurezza

Quando si utilizzano apparecchi elettrici, è necessario adottare le seguenti precauzioni di sicurezza di base, tra cui:

• Leggere tutte le istruzioni prima di utilizzare l'apparecchio.
• Non utilizzare il forno se lo sportello o le guarnizioni dello sportello sono danneggiati.
• Do not heat liquids or other foods in closed containers as they are liable to explode.
• Non tentare di tampnon intervenire o effettuare regolazioni o riparazioni sullo sportello, sul pannello di controllo, sugli interruttori di sicurezza o su qualsiasi altra parte del forno.
• Consentire ai bambini di utilizzare il forno senza supervisione solo se sono state fornite loro istruzioni adeguate, in modo che siano in grado di utilizzare il forno in modo sicuro e comprendano i pericoli di un uso improprio.
• Non utilizzare prodotti chimici o vapori corrosivi in ​​questo apparecchio.
• Assicurare sempre una ventilazione adeguata durante il funzionamento.

Impostare

Disimballaggio e posizionamento

Carefully remove all packaging materials. Ensure the microwave is placed on a flat, stable surface or properly installed over a range. Refer to the separate installation instructions for detailed mounting procedures. Ensure adequate clearance around the appliance for proper ventilation.

Image: KitchenAid microwave installed above a range in a kitchen setting.

Installazione del giradischi

Place the turntable support ring in the center of the microwave oven cavity. Position the glass turntable plate securely on the support ring. Ensure the turntable rotates freely.

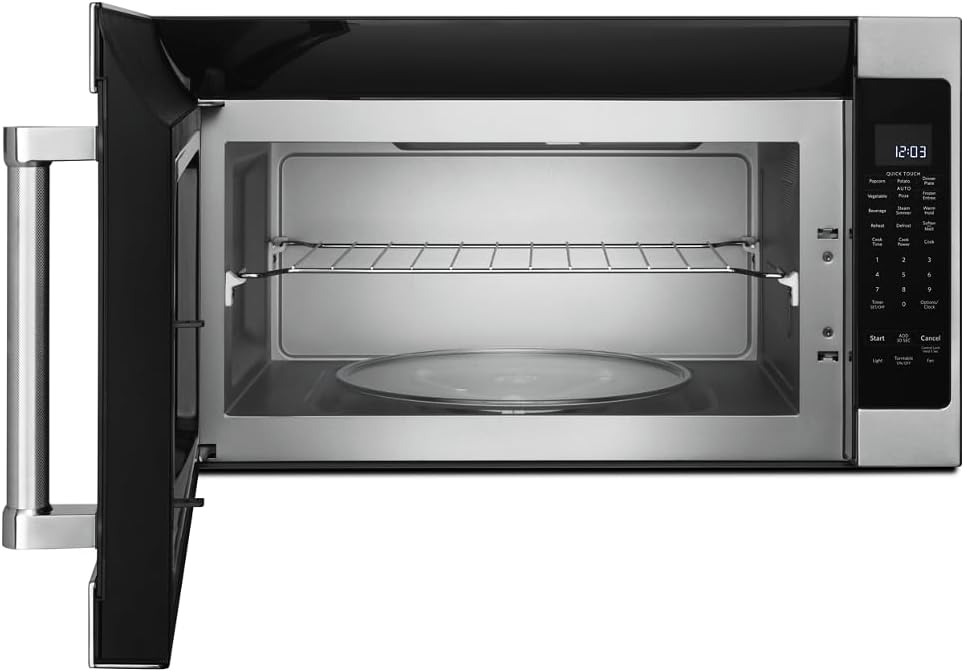

Immagine: Interno view of the microwave showing the glass turntable and support ring.

Istruzioni per l'uso

Funzionamento di base

• Impostazione dell'orologio: Press 'Options/Clock', then enter the current time using the number pad. Press 'Options/Clock' again to confirm.
• Avvio rapido: Press 'Start' to begin cooking immediately for 30 seconds at 100% power. Press 'Add 30 Sec' to add 30 seconds to the cooking time.
• Tempo di cottura: Press 'Cook Time', enter the desired cooking time, then press 'Start'.
• Cook Power: After setting 'Cook Time', press 'Cook Power', enter the desired power level (1-10, 10 being 100%), then press 'Start'.

Immagine: dettagliata view of the microwave's control panel with various cooking options.

Quick Touch Functions

The microwave features several one-touch cooking options:

• Popcorn: For automatic popcorn popping.
• Patata: Per cuocere le patate.
• Pizza: Per riscaldare le fette di pizza.
• Bevanda: Per riscaldare le bevande.
• Riscaldare: Per riscaldare vari alimenti.
• Scongelare: Per scongelare gli alimenti in base al peso o al tempo.

Cottura tramite sensore

The sensor cooking feature automatically adjusts cooking time and power levels based on the food's moisture content. Select the desired sensor cooking option (e.g., 'Vegetable', 'Frozen Entree', 'Dinner Plate') and press 'Start'. The microwave will detect when the food is cooked.

Image: Interior of the microwave showing food items on the turntable and a removable rack.

Caratteristiche speciali

• Steam Simmer: For steaming or simmering foods.
• Tenuta calda: Keeps cooked food warm for an extended period.
• Ammorbidire/sciogliere: For softening butter, melting chocolate, or other similar tasks.
• Leggero: Controls the under-cabinet light.
• Giradischi acceso/spento: Allows you to stop the turntable rotation for larger dishes.
• Fan: Controlla la velocità della ventola di scarico.

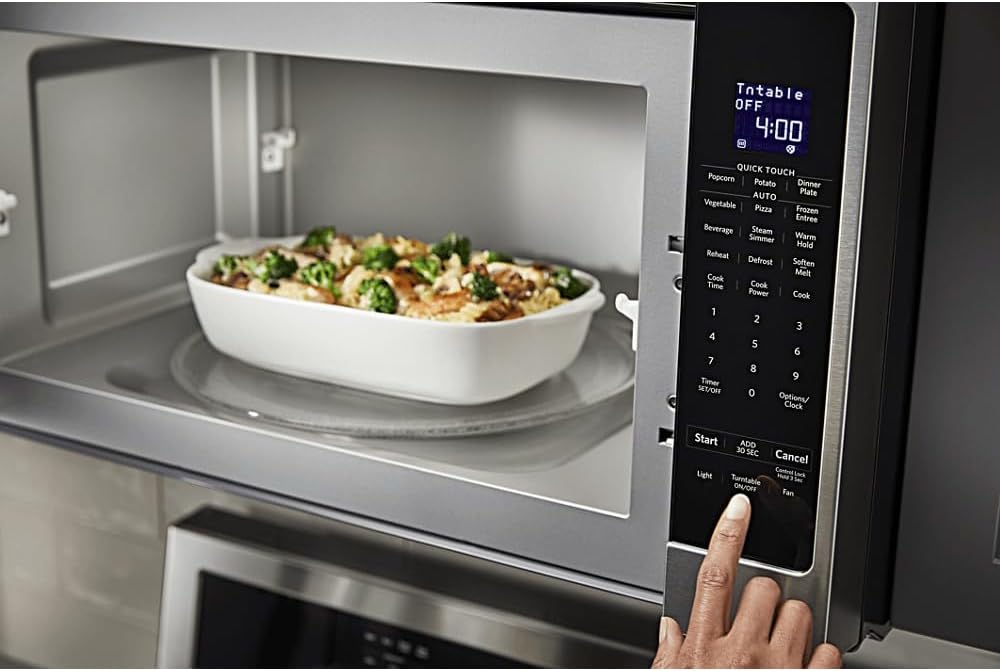

Image: A person's hand operating the control panel of the KitchenAid microwave.

Manutenzione

Pulizia degli interni

Clean the interior of the microwave regularly with a mild detergent and a soft cloth. For stubborn food splatters, place a bowl of water with lemon slices inside and microwave for a few minutes to loosen residue, then wipe clean.

Pulizia dell'esterno

Wipe the exterior surfaces, including the control panel and door, with a soft cloth and mild detergent. For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain.

Manutenzione del filtro

The microwave is equipped with grease filters and may have a charcoal filter. Clean the grease filters monthly by washing them in hot, soapy water or in a dishwasher. Replace the charcoal filter (if present) approximately every 6 to 12 months, depending on usage.

Risoluzione dei problemi

If you experience issues with your microwave, consult the following common problems and solutions:

Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.

Specifiche

Garanzia e supporto

Informazioni sulla garanzia

This KitchenAid appliance comes with a limited warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.

Assistenza clienti

For technical assistance, service, or to order replacement parts, please contact KitchenAid Customer Service. Contact details can typically be found on the manufacturer's websito o sulla scheda di registrazione del prodotto.

Supporto online: Visit the official KitchenAid website for FAQs, product registration, and service scheduling.

Supporto telefonico: Refer to your product documentation for the appropriate customer service phone number in your region.
