Sugar Valley Oxilife oX2 Water Treatment System User Manual

1. Introduzione

The Sugar Valley Oxilife oX2 system provides an advanced method for pool water disinfection. Its operating principle is based on the cleavage of hydrogen (H) and oxygen (O) atoms within the water molecule (H2O). This process generates highly effective active substances for disinfection, which are more potent than traditional chlorine. Additionally, a small amount of salt is utilized to maintain a residual chlorine level in the pool, ensuring continuous water purity.

2. Caratteristiche principali

• Advanced Disinfection: The Oxilife system produces OH, ozone, oxygen, and hydrogen peroxide through the action of electricity on water (from 500 mS) for comprehensive water disinfection.
• Flexible Salt Concentration: Operates effectively with a salt concentration ranging from 1.5 to 100 grams of NaCl per liter.
• Low Salt Requirement: Requires only 1 to 1.5 grams of salt per liter for optimal performance.

3. Impostazione

Proper installation of the Sugar Valley Oxilife oX2 system is crucial for its safe and efficient operation. It is highly recommended that installation be performed by a qualified professional to ensure compliance with all local electrical and plumbing codes.

Fasi di installazione (indicazioni generali):

1. Selezione del sito: Choose a dry, well-ventilated area, protected from direct sunlight and extreme temperatures, close to the pool's filtration system.
2. Collegamento idraulico: Integrate the Oxilife cell into the pool's return line after the filter and heater. Ensure proper flow direction as indicated on the unit.
3. Collegamento elettrico: Connect the control unit to a dedicated, properly grounded electrical circuit as per the electrical diagram provided with the unit.
4. Salt Addition: Once the system is plumbed and wired, add the required amount of salt to the pool water to achieve the recommended concentration (1 to 1.5 g/L). Allow the salt to dissolve completely before starting the system.
5. Avvio iniziale: Follow the specific start-up procedures outlined in the detailed installation guide provided with your unit.

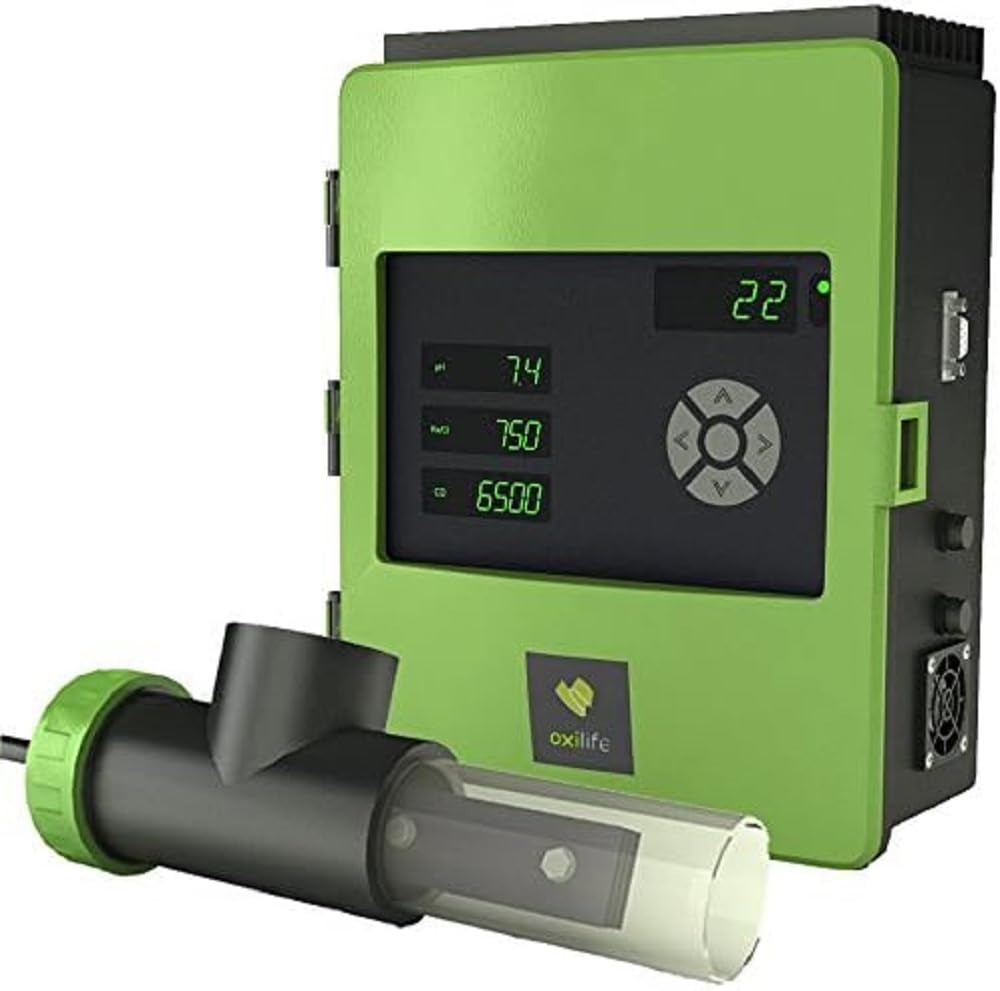

Image 1: The Sugar Valley Oxilife oX2 Water Treatment System. This image shows the compact design of the unit, typically installed near the pool's filtration equipment. It features various ports for water input/output and electrical connections, indicating its role as an integrated component of the pool's water circulation and purification system.

4. Istruzioni per l'uso

The Sugar Valley Oxilife oX2 system is designed for automated operation, continuously monitoring and treating your pool water. Once properly installed and configured, the system will maintain optimal water quality with minimal user intervention.

Funzionamento di base:

• Accensione: Ensure the main power switch for the unit is in the 'ON' position.
• Stato del sistema: Refer to the control panel or display (if available) for system status indicators. These typically show operational mode, salt levels, and any alerts.
• Disinfection Cycle: The system will automatically initiate disinfection cycles based on its programming and sensor readings.
• Circolazione dell'acqua: The Oxilife oX2 requires continuous water circulation through the pool's pump to function effectively. Ensure your pool pump operates for sufficient periods daily.

For detailed programming and advanced settings, consult the comprehensive user manual provided with your specific Oxilife oX2 model.

5. Manutenzione

Regular maintenance ensures the longevity and efficiency of your Oxilife oX2 water treatment system. Adhere to the following guidelines:

• Ispezione delle celle: Periodically inspect the electrolytic cell for scale buildup. If scale is present, clean the cell according to the manufacturer's instructions, typically using a diluted acid solution.
• Salt Level Monitoring: Regularly test your pool's salt concentration. Maintain the recommended level (1 to 1.5 g/L) by adding salt as needed. Low salt levels can reduce disinfection efficiency and potentially damage the cell.
• Chimica dell'acqua: Continue to monitor other pool water parameters (pH, alkalinity, cyanuric acid) and adjust as necessary to ensure overall water balance.
• Pulizia del sistema: Keep the exterior of the control unit clean and free from dust and debris. Ensure ventilation openings are unobstructed.
• winterization: Follow specific winterization procedures for your region and system model if the pool is closed during colder months. This typically involves draining the cell and storing the control unit.

6. Risoluzione Dei Problemi

If you encounter issues with your Oxilife oX2 system, consider the following common troubleshooting steps:

• System Not Operating: Check the power supply, circuit breakers, and all electrical connections. Ensure the pool pump is running.
• Low Disinfection Output: Verify the salt level in the pool. Low salt is a common cause. Inspect the electrolytic cell for scale buildup and clean if necessary. Ensure adequate water flow through the cell.
• Codici di errore: If the control unit displays an error code, refer to your detailed product manual for specific interpretations and corrective actions.
• Unbalanced Water Chemistry: Even with the Oxilife system, other water parameters like pH and alkalinity need to be balanced. Test your water and adjust as required.

If problems persist after attempting these steps, contact Sugar Valley customer support or a certified pool technician for assistance.

7. Specifiche

8. Garanzia e supporto

Warranty information for the Sugar Valley Oxilife oX2 system is typically provided at the time of purchase or included with the product packaging. Please refer to these documents for details regarding warranty coverage, terms, and conditions.

For technical support, service, or inquiries regarding spare parts, please contact Sugar Valley directly through their official website or the contact information provided in your product documentation. Ensure you have your model number (TA115) and purchase details ready when contacting support.
