Introduzione
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your TOYOTOMI KS-67H Convection Kerosene Heater. Please read this manual thoroughly before using the appliance and keep it for future reference.
The TOYOTOMI KS-67H is a high-power convection kerosene heater designed to provide warmth for spaces up to 24 tatami (concrete) or 17 tatami (wooden structures). It features a far-infrared heating element for even warmth, a double tank structure for enhanced safety, and an automatic shut-off device in case of impact or earthquake. Its unique 'Deru Deru Core' system maximizes wick life, and the 'Odor Save Extinguishing' function minimizes unpleasant smells during shut-off. Additionally, the combustion process naturally adds moisture to the air, contributing to a more comfortable indoor environment.
Informazioni sulla sicurezza
La tua sicurezza e quella degli altri sono fondamentali. Rispetta sempre le seguenti linee guida di sicurezza:
- Ventilazione: Ensure adequate ventilation when operating the heater. Kerosene heaters consume oxygen and produce carbon dioxide. Insufficient ventilation can lead to carbon monoxide poisoning.
- Tipo di carburante: Utilizzare solo cherosene as fuel. Never use gasoline, benzene, or other volatile fuels, as this can cause fire or explosion.
- Posizionamento: Place the heater on a stable, level surface, away from flammable materials such as curtains, furniture, and paper. Maintain a safe distance from walls and other objects. Avoid placing it in high-traffic areas where it could be easily knocked over.
- Spegnimento automatico: The heater is equipped with an anti-earthquake automatic shut-off device that activates upon strong impact or earthquake. Do not attempt to bypass or disable this safety feature.
- Double Tank Structure: The double tank design helps prevent oil spills in case of accidental tipping. However, always handle the heater with care, especially when filled with fuel.
- Bambini e animali domestici: Tenere bambini e animali domestici lontani dalla stufa per evitare ustioni o ribaltamenti accidentali.
- Rifornimento: Always turn off the heater and allow it to cool completely before refueling. Refuel outdoors or in a well-ventilated area to avoid inhaling fumes and to minimize spill risks.
- Magazzinaggio: Store kerosene in a designated, approved container in a cool, dry, and well-ventilated place, away from direct sunlight and heat sources.
Prodotto finitoview
The TOYOTOMI KS-67H is designed for efficient and safe heating. Key features include:
- Accensione facile: Simple rotary knob ignition.
- Deru Deru Core: Extends wick life by allowing three 2mm adjustments to restore heating power as the wick wears down.
- Odor Save Extinguishing: Minimizes odor by burning off uncombusted gases during shut-off.
- Anti-earthquake Automatic Shut-off Device: Enhances safety by automatically extinguishing the flame upon impact.
- Double Tank Structure: Reduces the risk of kerosene spills if the unit is accidentally tipped.
- Moisturizing Heating: Kerosene combustion releases water vapor, which helps humidify the room.
- Riscaldamento a infrarossi lontani: Provides gentle and even warmth throughout the room.
- Cooking Functionality: The top plate can be used for boiling water or cooking. Note: Use pots and kettles that do not protrude from the top plate. A dedicated trivet (KSGT-1, sold separately) is recommended for optimal use and to prevent scratches.
Immagine: Principale view of the TOYOTOMI KS-67H Convection Kerosene Heater, highlighting its design and heating capacity for concrete (24 tatami) and wooden (17 tatami) rooms.
Image: Diagrams illustrating key functions of the TOYOTOMI KS-67H, including the 'Deru Deru Core' for extended wick life, easy ignition, odor-reducing extinguishing, double tank structure for spill prevention, and automatic shut-off upon impact.
Impostare
- Disimballaggio: Estrarre con cautela la stufa dall'imballaggio. Conservare il materiale di imballaggio per un eventuale stoccaggio o trasporto futuro.
- Posizionamento: Select a firm, level surface for the heater. Ensure there is ample clear space around the unit (at least 30 cm from walls and flammable objects) to allow for proper heat circulation and safety. Avoid placing it near windows or in drafty areas.
- Fare il pieno:
- Ensure the heater is completely off and cool.
- Aprire il tappo del serbatoio del carburante.
- Using a clean, approved kerosene container or pump, carefully fill the fuel tank with fresh kerosene. Do not overfill; leave some space for expansion.
- Wipe away any spilled kerosene immediately.
- Chiudere bene il tappo del serbatoio del carburante.
- Note: The fueling port is designed for standard kerosene pumps. Electric pumps with overly thick tips may not fit.
- Saturazione dello stoppino: After filling the tank, allow at least 20-30 minutes for the wick to fully saturate with kerosene before attempting to ignite the heater. This prevents damage to the wick.
- Installazione della batteria: The ignition system requires 4 D-size batteries (sold separately). Install them according to the polarity markings in the battery compartment.
Istruzioni per l'uso
- Accensione: Turn the ignition knob clockwise to the 'ON' position. You should hear a click as the igniter sparks, and the wick will rise. The flame should appear shortly after.
- Regolazione della fiamma: After ignition, allow a few minutes for the flame to stabilize. Adjust the flame height using the control knob or lever to achieve the desired heat output. A stable, blue flame with orange tips is ideal. Avoid excessively high flames.
- Wick Adjustment ('Deru Deru Core'): If the flame becomes weak due to wick wear, operate the designated lever or knob to raise the wick by approximately 2mm. This can be done in three stages to restore heating power and extend the wick's lifespan.
- Cooking (Optional): The top surface of the heater can be used for boiling water or slow cooking. Ensure any cookware used does not extend beyond the heater's top plate. For best results and to protect the heater's surface, consider using the optional KSGT-1 dedicated trivet.
- Estinzione: To turn off the heater, turn the control knob counter-clockwise to the 'OFF' position. The 'Odor Save Extinguishing' mechanism will activate, burning off residual gases to minimize odor. Ensure the wick fully retracts and the flame is completely extinguished.

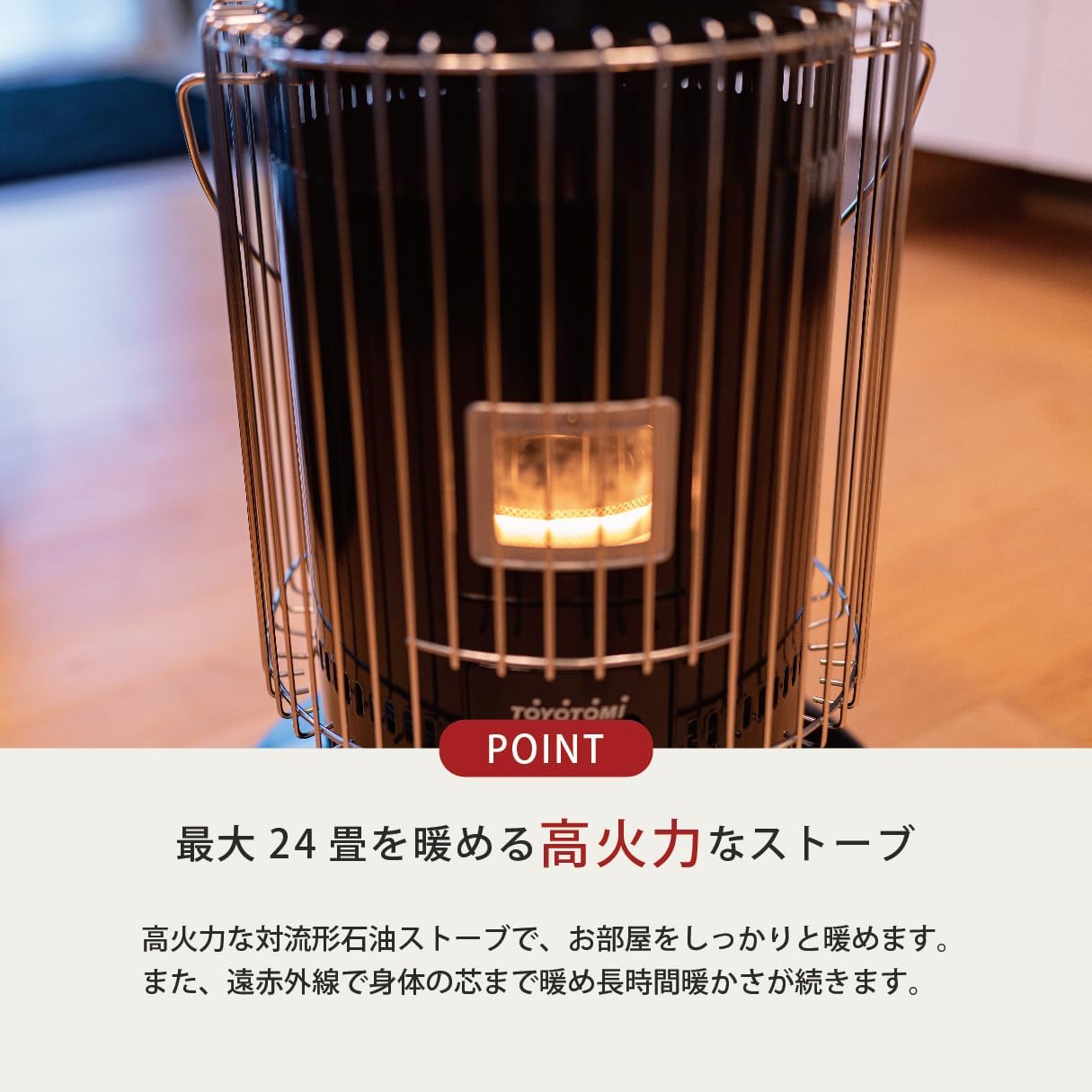

Immagine: Primo piano view of the TOYOTOMI KS-67H Kerosene Heater's flame, demonstrating the high power output and far-infrared heating element.
Image: The TOYOTOMI KS-67H Kerosene Heater with a pot placed on its top surface, illustrating its capability for boiling water or cooking. A dedicated trivet (sold separately) is shown for enhanced stability and protection.
Manutenzione
Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata della stufa.
- Cura dello stoppino: The 'Deru Deru Core' system helps maintain wick performance. However, if the wick becomes excessively charred or hard, it may need cleaning or replacement. Refer to the detailed wick replacement instructions in the full product manual (if provided separately by the manufacturer).
- Pulizia:
- Ensure the heater is off and completely cool before cleaning.
- Pulire le superfici esterne con un panno morbido, damp panno. Non usare detergenti abrasivi o solventi.
- Periodically check the burner area for dust or debris and carefully remove it.
- Serbatoio carburante: Drain any remaining kerosene from the tank at the end of the heating season or if the heater will not be used for an extended period. Store the heater with an empty tank.
Risoluzione dei problemi
If you encounter issues with your TOYOTOMI KS-67H heater, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il riscaldatore non si accende | No kerosene, wick not saturated, dead batteries, igniter malfunction. | Check fuel level, allow wick to saturate, replace batteries, contact support if igniter fails. |
| Weak or unstable flame | Wick wear, low fuel, poor quality kerosene. | Use 'Deru Deru Core' function to raise wick, refuel, use fresh, clean kerosene. |
| Strong odor during operation or extinguishing | Insufficient ventilation, wick not properly adjusted, old/contaminated kerosene. | Ensure adequate ventilation, adjust wick, use fresh kerosene. The 'Odor Save Extinguishing' function minimizes odor, but some residual smell is normal. |
| Il riscaldamento si spegne inaspettatamente | Automatic shut-off activated (impact/earthquake), low fuel. | Check for impacts, ensure stable placement, refuel. |
If the problem persists after attempting these solutions, please contact TOYOTOMI customer support or a qualified service technician.
Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | TOYOTOMI |
| Numero di modello | KS-67H(W) |
| Potenza termica | 6.66 kW |
| Applicable Room Size (Wooden) | Up to 17 tatami (approx. 28.0 m²) |
| Applicable Room Size (Concrete) | Up to 24 tatami (approx. 39.5 m²) |
| Dimensions (H x W x D, including stand) | Dimensioni: 583 x 482 x 482 mm |
| Peso | 11 kg |
| Continuous Burning Time | Circa 9.7 ore |
| Batterie richieste | D-size x 4 (sold separately) |
| Colore | Bianco |
| Altre funzioni | Efficienza energetica |
| Uso interno/esterno | Al chiuso |
Garanzia e supporto
For detailed information regarding product specifications, functions, and usage, please consult the manufacturer directly. Kerosene products may have specific return policies; please verify your order before purchase to avoid discrepancies.
In the event of a product malfunction, for your safety, please contact the manufacturer for assistance. Information regarding the manufacturer's warranty can be found on the warranty card included with your product. Always prioritize safety by thoroughly reading and understanding the instruction manual before using the appliance.
For further assistance, please visit the official TOYOTOMI websito o contattare il loro servizio clienti.
