1. Prodotto finitoview
The Telemecanique XUB9APANM12 is a polarized retroreflective photoelectric sensor designed for non-contact object detection in various industrial applications such as packaging, conveying, and assembly lines. This sensor integrates both the transmitter and receiver into a single unit and requires a separate reflector for operation.

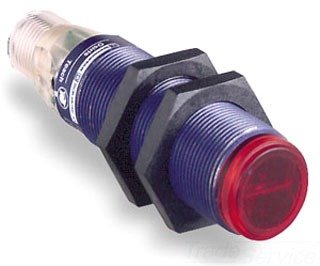

Figure 1: Telemecanique XUB9APANM12 Polarized Reflex Photoelectric Sensor. A close-up view of the Telemecanique XUB9APANM12 polarized retroreflective photoelectric sensor. It features an 18-mm plastic barrel body with a clear section showing internal components and a red lens at the detection end. Two black hexagonal nuts are visible for mounting.
Caratteristiche principali:
- Detects objects without physical contact.
- Polarized retroreflective detection system for reliable sensing, even with reflective targets.
- Emits a visible laser through a polarized filter for precise detection.
- Plastic 18-mm barrel body for robust industrial environments.
- DC input power supply.
- 3-wire PNP output wiring with normally open (NO) contacts.
- M12 micro-connector for easy and secure electrical connection.
2. Configurazione e installazione
2.1 Precauzioni di sicurezza
- Scollegare sempre l'alimentazione prima di procedere all'installazione, al cablaggio o alla manutenzione.
- Garantire una messa a terra adeguata per evitare rischi elettrici.
- Non superare il volume specificatotage e le valutazioni correnti.
- Avoid direct exposure to the sensor's light beam, although it is a low-power visible laser.
- L'installazione deve essere eseguita da personale qualificato, nel rispetto delle normative e dei codici elettrici locali.
2.2 Montaggio
The XUB9APANM12 sensor features an 18-mm threaded barrel for easy mounting. Use the provided hexagonal nuts to secure the sensor in place. Ensure the sensor is mounted rigidly to prevent vibration, which could affect detection accuracy. Position the sensor and the reflector (sold separately) so that the sensor's detection face is perpendicular to the reflector's surface for optimal performance.
2.3 Cablaggio
This sensor uses a 3-wire PNP output configuration with an M12 micro-connector. Refer to the following general wiring guide:
- Pin 1 (Brown): +DC Power Supply (e.g., +24V DC)
- Pin 3 (Blue): 0V DC / Ground
- Pin 4 (Black): PNP Output (Normally Open)
Connect the M12 micro-connector securely to the sensor. Ensure all connections are tight and properly insulated to prevent short circuits.
3. Funzionamento
3.1 Principio di rilevamento
The XUB9APANM12 operates on the polarized retroreflective principle. The sensor emits a polarized light beam towards a reflector. When an object passes between the sensor and the reflector, it interrupts the light beam, causing the sensor's output to change state. The polarization filter helps to prevent false detections from highly reflective objects or shiny backgrounds, ensuring reliable operation.
3.2 Alignment and Adjustment
After mounting and wiring, ensure proper alignment between the sensor and the reflector. The sensor typically has an indicator LED (often green or yellow) that illuminates when a stable detection is achieved (i.e., when the light beam is successfully returned by the reflector). Adjust the sensor's position until this indicator is stable. If the sensor has a sensitivity adjustment potentiometer, fine-tune it to ensure reliable detection of the target object while avoiding interference from background elements.
4. Manutenzione
4.1 Pulizia
Regularly clean the sensor's lens and the reflector's surface to ensure optimal performance. Use a soft, lint-free cloth and a mild, non-abrasive cleaning solution. Avoid using harsh chemicals or abrasive materials that could scratch the lens or reflector.
4.2 Ispezione
Periodically inspect the sensor, wiring, and mounting for any signs of damage, wear, or loose connections. Ensure the sensor is securely mounted and that cables are not pinched or frayed. Replace any damaged components immediately.
5. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il sensore non rileva gli oggetti. | Misalignment between sensor and reflector; dirty lens/reflector; incorrect wiring; power supply issue; reflector not present. | Check and adjust alignment; clean lens and reflector; verify wiring connections; confirm power supply; ensure reflector is in place. |
| Rilevamento intermittente. | Vibration; unstable power supply; ambient light interference; highly reflective background objects. | Secure mounting to reduce vibration; check power supply stability; shield sensor from strong ambient light; adjust sensor position or use a different reflector. |
| Output always ON/OFF. | Sensor damaged; wiring error; short circuit in output. | Verify wiring according to diagram; check for short circuits; if problem persists, sensor may be faulty and require replacement. |
6. Specifiche tecniche
| Parametro | Valore |
|---|---|
| Dimensioni del prodotto | 3 x 1 x 2 pollici |
| Numero modello articolo | XUB9APANM12 |
| Peso | 1 libbre |
| Produttore | Sensori Telemecanique |
| Tipo di rilevamento | Retroriflettente polarizzato |
| Tipo di uscita | 3-wire PNP, Normally Open (NO) |
| Connessione | M12 Micro-Connector |
| Materiale del corpo | Plastica |
| Diametro della canna | 18-mm |
7. Garanzia e supporto
7.1 Informazioni sulla garanzia
Telemecanique Sensors products are manufactured to high-quality standards and are typically covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Telemecanique Sensors directly.
7.2 Supporto tecnico
For technical assistance, product inquiries, or support regarding the XUB9APANM12 sensor, please contact Telemecanique Sensors customer support. You can find contact information and additional resources on the official Telemecanique Sensors website or through their authorized distributors. Visit the Telemecanique Store on Amazon per ulteriori informazioni.
