1. Prodotto finitoview

The Tuttnauer 2540MK Manual Autoclave is designed for efficient and reliable sterilization, offering a balance of speed and capacity. This unit is particularly suited for environments requiring quick instrument turnaround or handling a high volume of sterilization cycles. It operates on a voltage range da 220V a 235V.

Figura 1: Fronte view of the Tuttnauer 2540MK Manual Autoclave, showing the control panel and door handle.

Caratteristiche principali:

• Rapid Cycle Times: Total cycle time from a cold start is approximately 12 minutes, and from a hot start, it is approximately 9 minutes.
• Spegnimento automatico: The unit automatically shuts off at the completion of both sterilization and dry cycles, enhancing safety and convenience.
• Maggiore sicurezza: Features a double safety locking device to prevent the door from opening while the chamber is pressurized.
• Protezione contro il surriscaldamento: Equipped with a dual safety thermostat to protect against overheating.
• Certificazioni internazionali: Meets various international safety and performance standards.

2. Configurazione e installazione

2.1 Disimballaggio e ispezione

Carefully unpack the autoclave and inspect it for any signs of shipping damage. Retain all packaging materials for future transport or service needs.

2.2 Posizionamento

Place the autoclave on a stable, level surface capable of supporting its weight (approximately 106 pounds). Ensure adequate ventilation around the unit to prevent overheating. Avoid placing it near heat sources or in direct sunlight.

2.3 Collegamento di alimentazione

This autoclave requires a voltage between 220V and 235V for proper operation. Connect the power cord to a grounded electrical outlet with the correct voltage and current rating. If necessary, a buck/boost transformer (0.5kVA) may be required to ensure the correct voltage fornitura.

2.4 Initial Water Fill

Before first use, fill the water reservoir with distilled water. Never use tap water as it can lead to mineral buildup and damage the unit. Refer to the water level indicator for proper filling.

3. Istruzioni per l'uso

3.1 Preparing Instruments

Clean instruments thoroughly before sterilization. Place instruments in appropriate sterilization pouches or trays. Do not overload the chamber.

Figure 2: The autoclave chamber with the door open, showing the internal trays for instrument placement.

3.2 Loading the Chamber

Carefully load the prepared instruments into the autoclave chamber. Ensure there is adequate space for steam circulation around all items. Use the provided trays and racks.

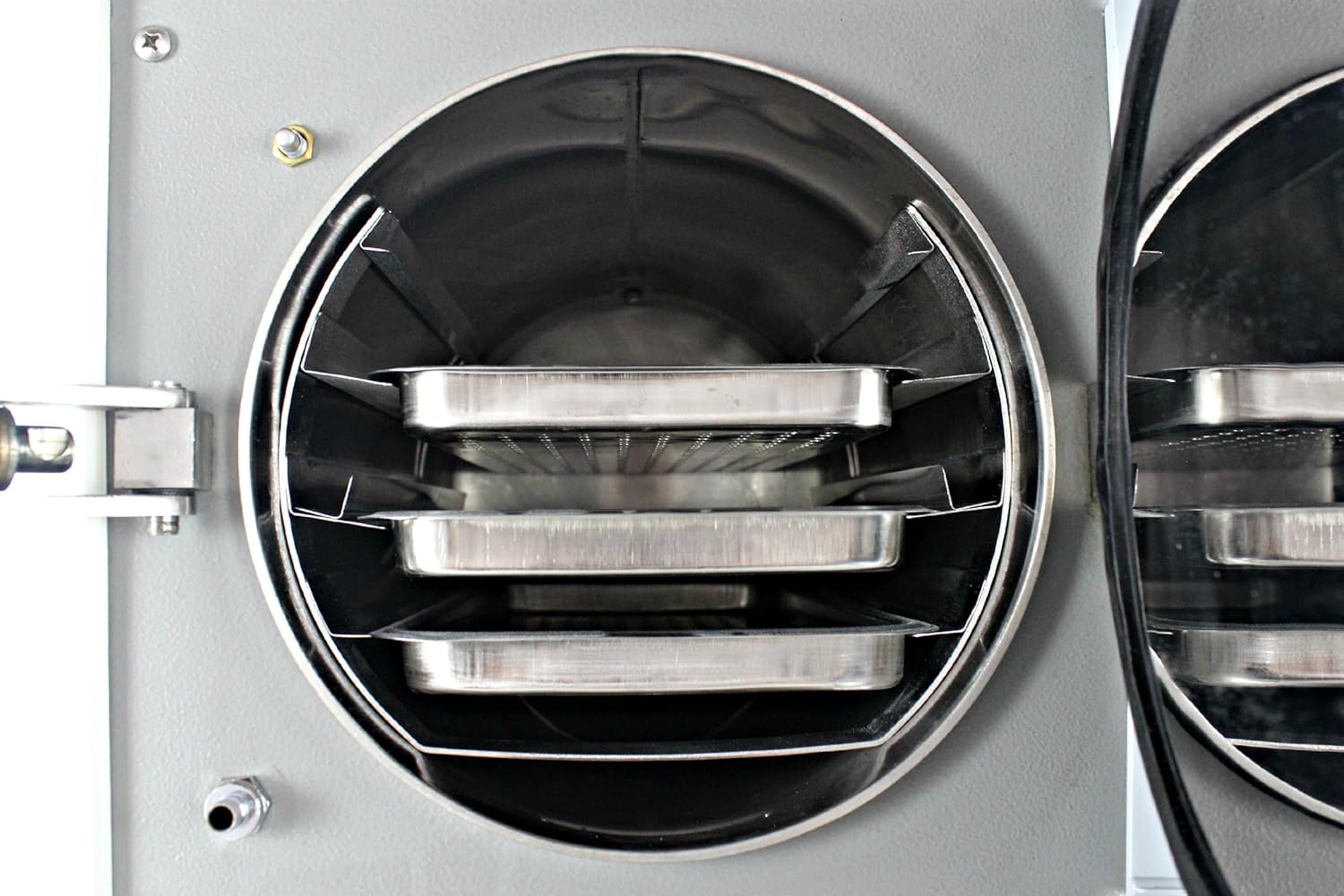

Figura 3: Un primo piano view of instruments arranged within the autoclave's sterilization trays, ready for a cycle.

3.3 Chiusura della porta

Close the chamber door firmly. Engage the double safety locking device to ensure the door is securely sealed before starting a cycle. The door cannot be opened while the chamber is pressurized.

3.4 Setting Cycle Parameters

Figure 4: The control panel of the autoclave, featuring the pressure gauge, timer, temperature selector, and cycle control knob.

1. Selezione della temperatura: Use the TEMPERATURE knob to select the desired sterilization temperature (e.g., 250°F/121°C or 273°F/134°C).
2. Impostazione del timer: Use the TIMER knob to set the sterilization time according to the instrument manufacturer's guidelines and regulatory requirements.
3. Controllo del ciclo: Turn the main control knob to the "STE" (Sterilize) position.

3.5 Avvio del ciclo

Press the "START" button to initiate the sterilization cycle. The unit will begin to heat up and build pressure. Monitor the pressure gauge to ensure it reaches the appropriate level for the selected temperature.

3.6 Drying Cycle

Once the sterilization phase is complete, the unit will automatically transition to the drying cycle or indicate completion. The "DRY" indicator light may illuminate. Allow the drying cycle to complete fully for optimal results.

3.7 Cycle Completion and Unloading

The autoclave will automatically shut off at the end of both the sterilization and dry cycles. Once the pressure has fully dissipated and the chamber has cooled, carefully open the door and remove the sterilized instruments using heat-resistant gloves.

4. Manutenzione

Regular maintenance is crucial for the longevity and proper functioning of your Tuttnauer 2540MK Autoclave. Always ensure the unit is unplugged and cooled down before performing any maintenance.

4.1 Manutenzione giornaliera

• Chamber Cleaning: Wipe the interior of the chamber with a soft, damp panno dopo ogni giorno di utilizzo per rimuovere eventuali residui.
• Guarnizione porta: Inspect the door gasket for any cracks, tears, or debris. Clean it with a damp cloth. A damaged gasket can lead to steam leaks.

4.2 Manutenzione settimanale

• Qualità dell'acqua: Drain and refill the water reservoir with fresh distilled water.
• Pulizia del vassoio: Clean the instrument trays and racks thoroughly.

Figure 5: The interior of the autoclave chamber, showing its clean, empty state, ready for maintenance or a new cycle.

4.3 Controlli periodici

• Valvola di sicurezza: Periodically check the safety valve according to manufacturer guidelines to ensure it is not obstructed and functions correctly.
• Pulizia del filtro: If applicable, clean or replace any air or water filters as recommended.

For detailed maintenance schedules and procedures, refer to the comprehensive service manual or contact Tuttnauer customer support.

5. Risoluzione Dei Problemi

This section provides guidance on common issues you might encounter. For problems not listed here or if solutions do not resolve the issue, contact qualified service personnel.

Importante: Do not attempt to repair internal components unless you are a qualified technician. Always consult the manufacturer or an authorized service provider for complex issues.

6. Specifiche

7. Garanzia e supporto

For customer support, technical assistance, or warranty inquiries regarding your Tuttnauer 2540MK Autoclave, please refer to the contact information provided with your purchase or visit the official Tuttnauer websito.

This product typically includes a 30-day easy returns policy. For specific warranty terms and conditions, please consult your purchase documentation.

Puoi anche visitare il Tuttnauer Store on Amazon per ulteriori informazioni e risorse di supporto.
