FitBike Ride 2 Exercise Bike User Manual

1. Introduzione

Thank you for choosing the FitBike Ride 2 Exercise Bike. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read this manual thoroughly before assembly and operation, and keep it for future reference.

The FitBike Ride 2 is designed for home use, offering a comfortable and quiet workout experience. It features a 5kg flywheel, 16 resistance levels, and various training programs to help you achieve your fitness goals.

2. Informazioni sulla sicurezza

• Consultare il proprio medico prima di iniziare qualsiasi programma di esercizi.
• Assicurarsi che tutti i componenti siano correttamente assemblati e serrati prima di ogni utilizzo.
• Posizionare la cyclette su una superficie piana e stabile.
• Tenere i bambini e gli animali domestici lontani dall'apparecchiatura durante l'uso.
• Non superare il peso massimo dell'utente di 125 kg (275 libbre).
• Durante gli allenamenti, indossare calzature e abbigliamento sportivo adeguati.
• Interrompere immediatamente l'esercizio se ci si sente deboli, storditi o si avverte dolore.
• Tenere mani e piedi lontani dalle parti in movimento.

3. Installazione e assemblaggio

The FitBike Ride 2 requires some assembly. Please follow the detailed instructions provided in the separate assembly guide included with your product. Ensure all bolts and nuts are securely fastened.

3.1 Regolazione del sedile e del manubrio

For optimal comfort and effective training, adjust the seat and handlebars to your body size. The seat is vertically adjustable, and the U-shaped handlebars can also be positioned for a comfortable grip. The bike accommodates users up to 180 cm (approximately 5'11").

Image: Adjustable seat mechanism. The seat can be moved up or down to suit different user heights.

Image: Seat adjustment knob. Turn this knob to loosen, adjust the seat height, and then tighten to secure.

3.2 Trasporto della bicicletta

The FitBike Ride 2 is equipped with transport wheels for easy relocation. To move the bike, slightly tilt it forward onto the wheels and roll it to your desired location.

Image: Rear stabilizer bar with transport wheels. These wheels allow for easy movement of the bike.

Image: Front stabilizer bar with transport wheels. Similar to the rear, these wheels aid in mobility.

4. Istruzioni per l'uso

The FitBike Ride 2 offers various training options and an intuitive display console.

Image: LCD Display Console. This shows workout data and features control buttons.

4.1 Funzioni della console di visualizzazione

The LCD display provides real-time workout data and control over your training. It features 6 main buttons:

• Modalità/Invio: Used to confirm selections and cycle through display modes.
• Reset: Returns to the main menu or resets current workout data.
• Avvio/Arresto: Initiates or pauses/stops a workout.
• Recupero: Starts the recovery heart rate test.
• Grasso corporeo: Initiates the body fat measurement function.
• Down-Up (Arrow Buttons): Used to navigate menus, change programs, and adjust resistance levels.

4.2 Regolazione della resistenza

The FitBike Ride 2 features 16 electronically adjustable magnetic resistance levels. You can manually adjust the resistance using the Up/Down arrow buttons on the console, or it will automatically adjust during pre-programmed workouts.

4.3 Training Programs and User Profiles

The bike includes 12 pre-programmed workouts and supports 4 user profiles for data storage. This allows multiple users to track their progress individually.

• Avvio rapido: Begin a workout immediately without any settings. Time, speed, and other data will start accumulating.
• Programma manuale: Set specific workout goals such as duration or distance.
• Programmi preimpostati: Choose from 12 integrated programs that automatically vary resistance.
• Heart Rate Program: Utilize hand sensors for heart rate measurement during your workout.
• Recovery Test: Measure your heart rate recovery after exercise.
• Misurazione del grasso corporeo: Use the dedicated function to estimate body fat percentage.

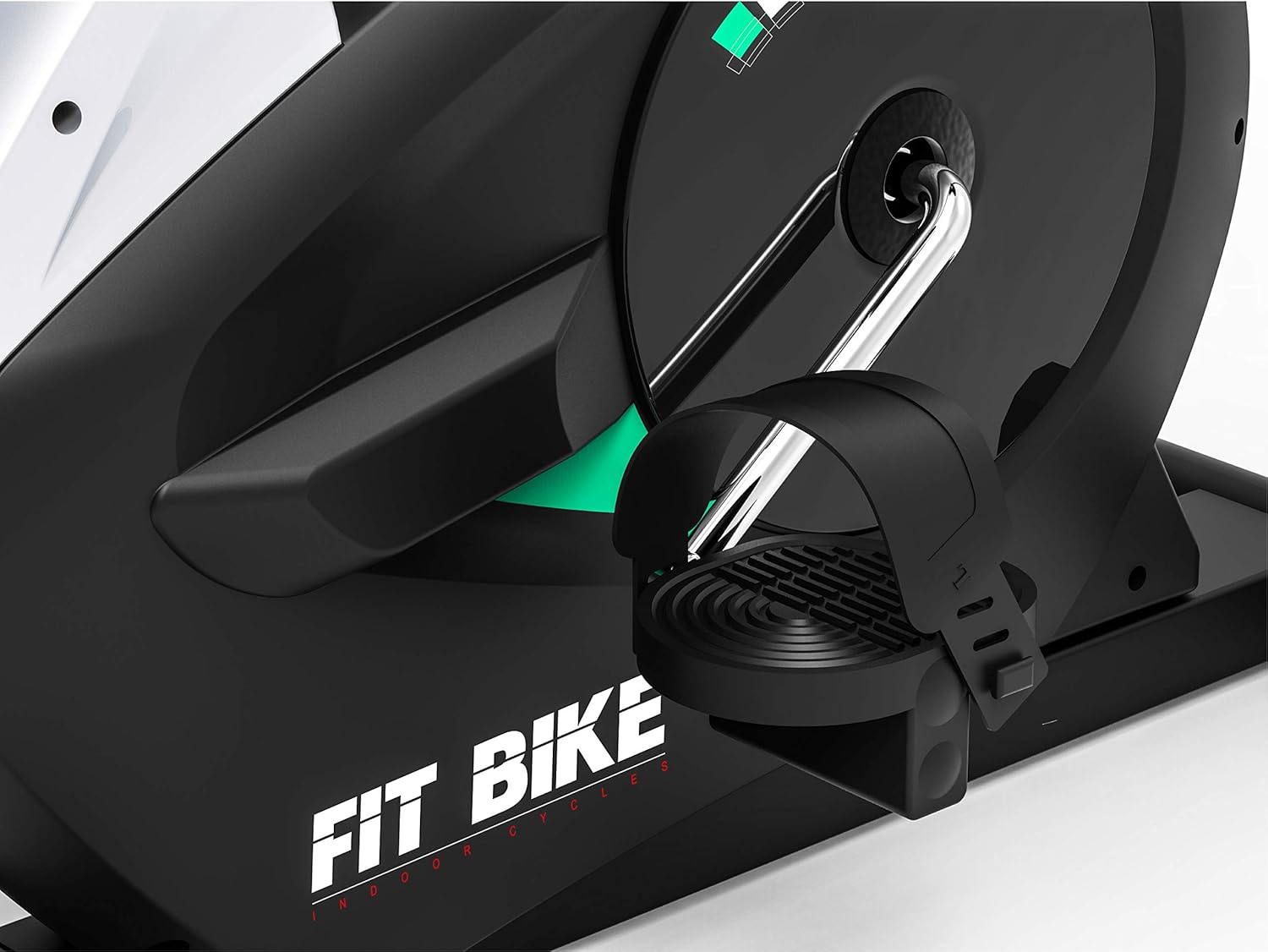

Image: Pedal and crank arm. Ensure your feet are securely placed in the pedal straps before starting your workout.

5. Manutenzione

The FitBike Ride 2 is designed for low maintenance. Regular cleaning and inspection will ensure its longevity and optimal performance.

• Pulizia: Pulisci la bici con la pubblicitàamp Dopo ogni utilizzo, rimuovere il sudore e la polvere con un panno. Non utilizzare detergenti abrasivi.
• Ispezione: Controllare periodicamente che tutti i bulloni, i dadi e le parti mobili siano ben serrati e non presentino segni di usura. Serrare eventuali elementi di fissaggio allentati.
• Magazzinaggio: Conservare la bicicletta in un luogo asciutto e fresco, lontano dalla luce solare diretta e da temperature estreme.

6. Risoluzione Dei Problemi

If you encounter any issues with your FitBike Ride 2, please refer to the following common troubleshooting tips:

• Display non funzionante: Check if the console batteries are correctly installed or need replacement. Ensure all cable connections to the console are secure.
• Resistenza non variabile: Verify that the power adapter is properly connected (if applicable) and that no cables are pinched. If using a manual adjustment, ensure the knob is functioning correctly.
• Rumori insoliti: Check for any loose parts or fasteners. Ensure the bike is on a level surface. If the noise persists, contact customer support.
• Funzionamento instabile: Ensure the bike is placed on a firm, level surface. Adjust the leveling feet if necessary.

For issues not covered here, please contact FitBike customer support.

7. Specifiche

Immagine: Lato intero view of the FitBike Ride 2, showcasing il suo design compatto.

Immagine: Fronte angolato view of the FitBike Ride 2, highlighting the handlebars and display.

Immagine: frontale diretta view of the FitBike Ride 2, showing the overall structure.

8. Garanzia e supporto

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official FitBike websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.

If you require technical assistance, have questions about assembly, operation, or maintenance, please contact FitBike customer support. Contact details can typically be found on the manufacturer's websito o la documentazione di acquisto.
