Manuale utente lavastoviglie Indesit DFG 051 EU

1. Introduzione

Thank you for choosing an Indesit appliance. This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Indesit DFG 051 EU Freestanding Solo Dishwasher. Please read this manual carefully before using the appliance and keep it for future reference.

Immagine 1.1: anteriore view of the Indesit DFG 051 EU Freestanding Dishwasher.

2. Informazioni sulla sicurezza

Quando si utilizzano apparecchi elettrici, seguire sempre le precauzioni di sicurezza di base per ridurre il rischio di incendi, scosse elettriche o lesioni personali.

• Assicurarsi che la lavastoviglie sia correttamente collegata a terra.
• Non utilizzare la lavastoviglie se è danneggiata o non funziona correttamente.
• Tenere i bambini lontani dalla lavastoviglie, soprattutto quando è in funzione.
• Utilizzare solo detersivi e brillantanti specifici per lavastoviglie.
• Non toccare l'elemento riscaldante durante o subito dopo un ciclo di lavaggio.
• Always close the dishwasher door when not in use to prevent tripping hazards.
• The anti-overflow safety system helps prevent water leaks, but regular checks are recommended.

3. Configurazione e installazione

3.1 Disimballaggio

Remove all packaging materials. Check the appliance for any transport damage. If damaged, do not install or operate it, and contact your retailer.

3.2 Posizionamento

Place the dishwasher on a level, stable floor. Ensure there is adequate space for the door to open fully. The appliance dimensions are approximately 60 x 60 x 85 cm (W x D x H).

3.3 Collegamento idrico

Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Connect the drain hose to a suitable drain pipe or sink trap, ensuring it is securely fastened to prevent leaks.

3.4 Collegamento elettrico

Collegare il cavo di alimentazione a una presa elettrica correttamente messa a terra. Assicurarsi che il volumetage la frequenza corrispondano alle specifiche riportate sulla targhetta identificativa dell'apparecchio.

Image 3.1: The Indesit DFG 051 EU Dishwasher seamlessly integrated into a kitchen setting.

4. Istruzioni per l'uso

4.1 Pannello di controllo Sopraview

The control panel is located on the top edge of the dishwasher door. It features a program selector knob, indicator lights, and start/pause button.

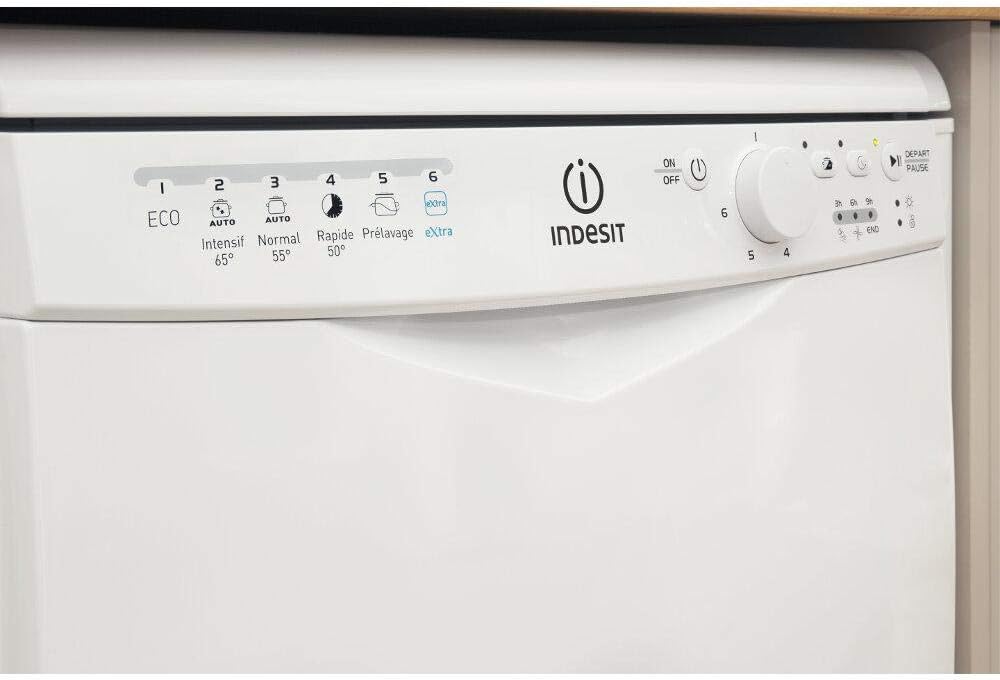

Immagine 4.1: Dettagliata view of the control panel, showing program options and indicators.

4.2 Aggiunta di detersivo e brillantante

Open the detergent dispenser and fill it with the recommended amount of dishwasher detergent. For optimal drying results, ensure the rinse aid dispenser is filled. The rinse aid indicator light will illuminate when a refill is needed.

4.3 Selezione di un programma

Your dishwasher offers 5 washing programs to suit various needs:

1. ECO: Programma standard per stoviglie quotidiane normalmente sporche, il più efficiente in termini di consumo di energia e acqua.
2. Intensivo: For heavily soiled dishes and pots, ideal for dried-on food.
3. Normale: Per stoviglie normalmente sporche.
4. Rapido: A quicker wash for lightly soiled dishes without dried-on food.
5. Prelavaggio: Un breve ciclo di risciacquo per le stoviglie che verranno lavate in seguito.

Turn the program selector knob to choose the desired program.

4.4 Avvio di un ciclo

Chiudere bene lo sportello della lavastoviglie. Premere il pulsante Avvio/Pausa per avviare il programma selezionato. La spia del programma si illuminerà.

4.5 Interrupting/Cancelling a Cycle

To interrupt a cycle, open the door slightly. To cancel, press and hold the Start/Pause button for a few seconds until the program lights reset.

4.6 Fine del ciclo

At the end of the cycle, the program indicator light will turn off, or an audible signal may sound. Open the door slightly to allow steam to escape before unloading the dishes.

5. Washing Programs Table

Note: Program durations and water/energy consumption may vary depending on water temperature, pressure, and load size.

6. Caricamento della lavastoviglie

Proper loading ensures optimal cleaning and drying results. Scrape off large food particles before loading.

6.1 cesto superiore

Ideal for delicate items like glasses, cups, and small plates. Ensure items are stable and do not obstruct the spray arms. The movable basket feature allows for flexible loading of taller items in the lower basket.

6.2 Cestino Inferiore

Designed for larger items such as dinner plates, bowls, pots, and pans. Place items facing the center of the dishwasher for best spray coverage.

6.3 Cestello per posate

Place cutlery with handles down, except for knives and other sharp objects which should be placed handles up for safety.

Image 6.1: Dishwasher interior with racks, demonstrating loading capacity.

Immagine 6.2: Es.ample of properly loaded lower rack with plates and glasses.

7. Manutenzione e pulizia

Una manutenzione regolare garantisce la longevità e l'efficienza della lavastoviglie.

7.1 Pulizia esterna

Pulire le superfici esterne con un panno morbido, damp panno. Non usare detergenti abrasivi o solventi.

7.2 Pulizia del filtro

The filter system, located at the bottom of the wash tub, should be cleaned regularly to prevent blockages and ensure effective cleaning. Remove the filter assembly, rinse it under running water, and brush away any food particles. Reassemble and replace securely.

7.3 Pulizia del braccio irroratore

Check the spray arm nozzles for blockages. If necessary, remove the spray arms and clear any debris from the holes using a toothpick or similar tool.

7.4 Salt Reservoir

If your water is hard, you may need to add dishwasher salt to the dedicated reservoir to prevent limescale buildup. Refer to your local water hardness levels to determine if this is necessary.

8. Risoluzione Dei Problemi

Prima di contattare il servizio clienti, prova le seguenti soluzioni per i problemi più comuni:

• La lavastoviglie non si avvia: Controllare che il cavo di alimentazione sia collegato, che lo sportello sia completamente chiuso e che l'interruttore automatico non sia scattato.
• Piatti non puliti: Ensure spray arms are not blocked, filters are clean, and detergent dispenser is not clogged. Check water temperature and program selection.
• L'acqua non scarica: Clean the filter system. Check the drain hose for kinks or blockages.
• Rumore eccessivo: Ensure dishes are loaded correctly and not rattling against each other. Check for foreign objects in the pump area.
• Perdite d'acqua: Verify hose connections are tight. Check the door seal for damage or debris. The anti-overflow safety system should prevent major leaks.

9. Specifiche

10. Garanzia e supporto

Your Indesit DFG 051 EU Dishwasher comes with a manufacturer's warranty. Please refer to the warranty card provided with your appliance for specific terms and conditions. For technical assistance, spare parts, or to schedule a service appointment, please contact Indesit customer support in your region. Always have your model number and serial number ready when contacting support.
