1. Introduzione

The ACDelco Gold 217-1806 Idle Air Control (IAC) Valve is a premium aftermarket replacement component designed to regulate the amount of air flowing into the engine when the throttle plate is closed. This precise control is crucial for maintaining a stable engine idle speed under various operating conditions, such as starting, deceleration, and accessory loading. This manual provides essential information for the proper installation, operation, and maintenance of your IAC valve.

Figure 1: ACDelco Gold 217-1806 Idle Air Control Valve

2. Informazioni sulla sicurezza

Always observe standard automotive safety precautions when working on your vehicle. This includes:

• Disconnecting the negative battery terminal before starting any electrical work.
• Wearing appropriate personal protective equipment (PPE), such as safety glasses and gloves.
• Ensuring the vehicle is on a stable, level surface and properly supported with jack stands if raised.
• Allowing the engine to cool down before handling components to prevent burns.
• Consulting a qualified technician if you are unsure about any procedure.

3. Prodotto finitoview

The ACDelco Gold 217-1806 IAC Valve is engineered to deliver reliable performance and durability. Key features include:

• Sostituzione professionale e di prima qualità del mercato dei ricambi.
• Provides the performance and dependability you expect from ACDelco.
• Realizzato per soddisfare le aspettative in termini di vestibilità, forma e funzionalità.

4. Linee guida per l'installazione

The IAC valve is typically located on the throttle body. While specific steps may vary by vehicle model, the general installation process involves:

1. Preparazione: Ensure the engine is cool. Disconnect the negative battery terminal.
2. Locate the IAC Valve: Identify the IAC valve on the throttle body.
3. Scollegare il connettore elettrico: Carefully disconnect the electrical connector from the old IAC valve.
4. Rimuovere le viti di montaggio: Use appropriate tools (e.g., T20 socket) to remove the screws securing the IAC valve to the throttle body. Be careful not to drop the screws.
5. Rimuovere la vecchia valvola: Gently pull the old IAC valve from its mounting position. Ensure the old O-ring is removed.
6. Installare la nuova valvola: Ensure the new ACDelco Gold IAC valve has its O-ring properly seated. Insert the new valve into the throttle body.
7. Secure New Valve: Reinstall the mounting screws and tighten them to the manufacturer's specifications (typically around 27 inch-pounds).
8. Ricollegare il connettore elettrico: Firmly attach the electrical connector to the new IAC valve until it clicks into place.
9. Ricollegare la batteria: Ricollegare il terminale negativo della batteria.

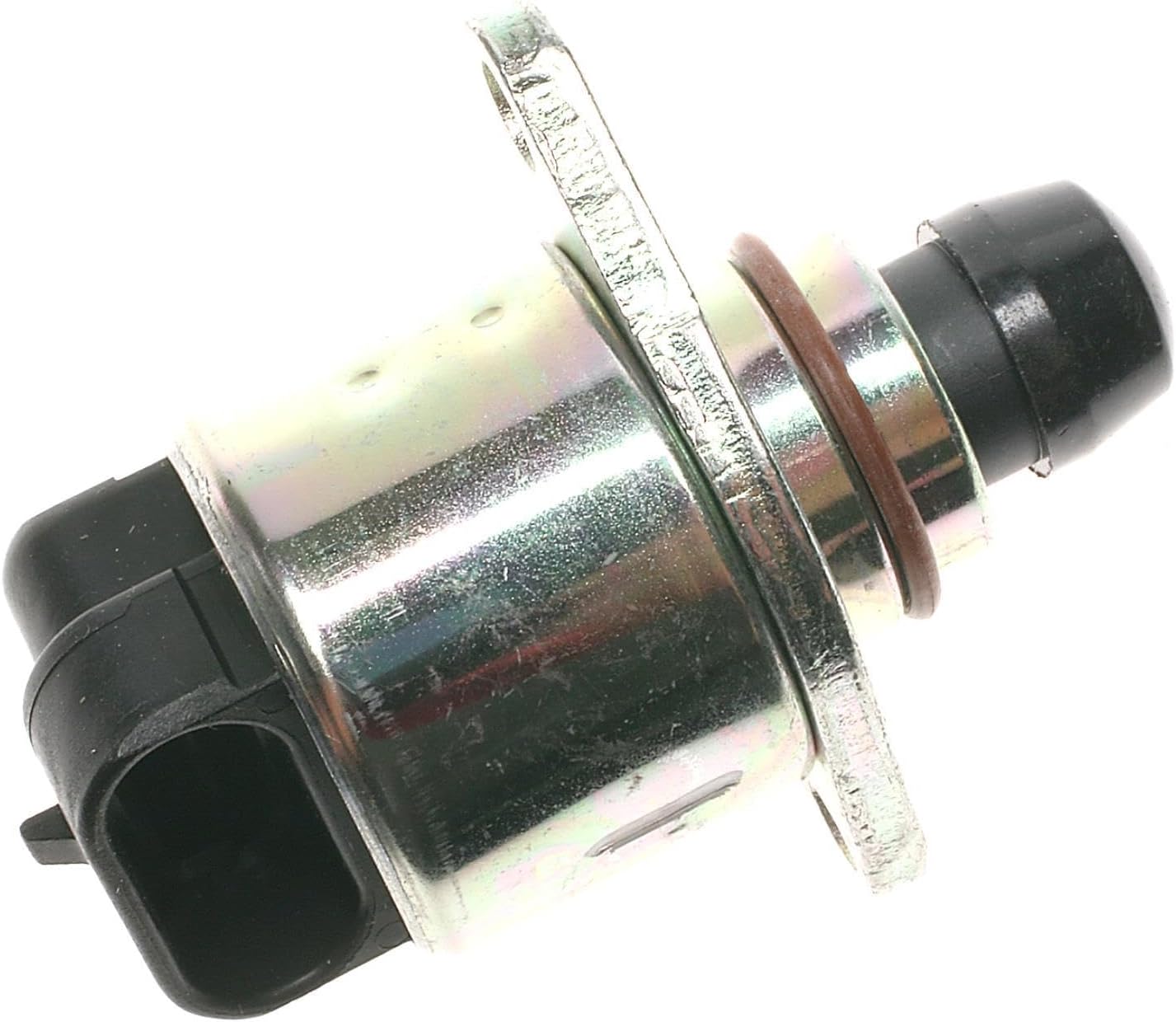

Figure 2: Electrical connector of the IAC valve.

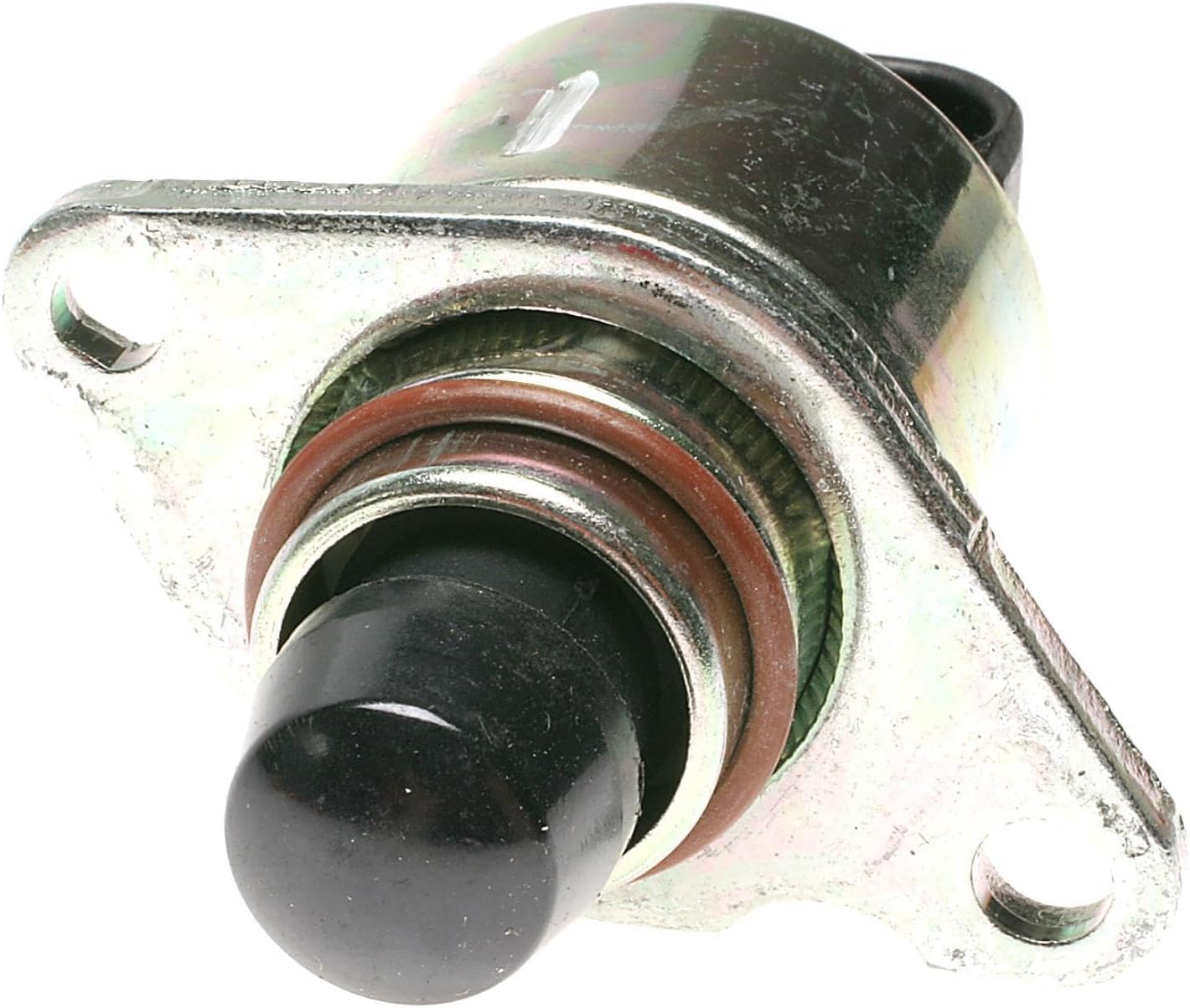

Figura 3: lato view showing mounting holes and O-ring.

5. Idle Relearn Procedure

After replacing the IAC valve, an idle relearn procedure is often necessary for the engine control module (ECM) to adapt to the new component. Follow these steps:

1. Ensure the vehicle is on a level surface, drive wheels are blocked, and the parking brake is set.
2. Start the vehicle with the air conditioning (AC) turned OFF.
3. Allow the vehicle to reach normal operating temperature.
4. Shift the vehicle into DRIVE (with your foot on the brake) and allow it to idle for 5 minutes.
5. Shift the vehicle into PARK and allow it to idle for another 5 minutes.
6. Turn the vehicle OFF for 30 seconds.
7. The idle relearn procedure is now complete.

6. Principio di funzionamento

The Idle Air Control (IAC) valve is an electronically controlled actuator that manages the engine's idle speed. It works in conjunction with the Powertrain Control Module (PCM) or Engine Control Module (ECM). When the throttle plate is closed, the IAC valve opens or closes a bypass air passage around the throttle plate. By precisely controlling the amount of air that bypasses the throttle, the PCM can adjust the engine's idle speed to compensate for varying loads (e.g., AC compressor engagement, power steering pump operation) and engine temperature, ensuring a smooth and consistent idle.

7. Manutenzione

While the IAC valve itself is not typically a user-serviceable part, regular maintenance of related engine components can prolong its life and ensure optimal performance:

• Pulizia del corpo farfallato: Periodically clean the throttle body to prevent carbon buildup, which can restrict airflow and affect IAC valve operation.
• Sostituzione del filtro dell'aria: Ensure the engine air filter is replaced at recommended intervals to maintain clean airflow to the engine.
• Manutenzione del sistema di alimentazione: Regular fuel system cleaning can help prevent deposits that might indirectly affect idle quality.

8. Risoluzione Dei Problemi

Symptoms of a faulty or failing Idle Air Control valve may include:

• Minimo irregolare o instabile: The engine idle speed may fluctuate erratically.
• Stallo: The engine may stall, especially when coming to a stop or at low speeds.
• Alta velocità al minimo: The engine may idle too high, even after warming up.
• Spia di controllo del motore: L'indicatore di malfunzionamento Lamp (MIL) may illuminate, often accompanied by specific diagnostic trouble codes (DTCs) related to idle air control.
• Difficoltà iniziale: The engine may be hard to start, particularly when cold.

If you experience these symptoms, it is recommended to have your vehicle diagnosed by a qualified technician.

9. Specifiche

10. Informazioni sulla garanzia

ACDelco Gold parts are backed by a 24-month/unlimited-mile limited warranty. For specific warranty terms and conditions, please refer to the official ACDelco warranty documentation included with your product or visit the official ACDelco websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.

11. Supporto

For further assistance, technical support, or to locate an authorized service center, please visit the official ACDelco website or contact their customer service department. You can find more information about ACDelco products and support at the Negozio ACDelco su Amazon.
