Manuale d'uso del passaverdure manuale Moulinex Classic in acciaio inox A40106

Introduzione

This manual provides comprehensive instructions for the Moulinex Classic Stainless Steel Manual Vegetable Mill, model A40106. Designed for ease of use and durability, this vegetable mill is ideal for preparing a variety of dishes, including purees, soups, and compotes. Its robust stainless steel construction ensures longevity, and its thoughtful design simplifies both operation and cleaning.

Le caratteristiche principali includono:

Utilizzo versatile: Perfect for purees, soups, and compotes.
Two Stainless Steel Grids: Allows for fine or medium grinding textures.
Foldable Non-Slip Feet: Ensures stability during use and compact storage.
Compatibile con la lavastoviglie: Simplifies cleaning.
Costruzione durevole: Realizzato in acciaio inossidabile di alta qualità.
Prodotto in Francia: Reflects quality manufacturing.

Componenti del prodotto

The Moulinex A40106 Vegetable Mill consists of several parts designed for efficient food processing.

Moulinex Vegetable Mill with two interchangeable grids and fresh vegetables — **Immagine 1:** The Moulinex Vegetable Mill shown with its main body, handle, two interchangeable stainless steel grids, and a selection of fresh vegetables (carrots, onions, leeks, potatoes) indicating its use for various ingredients.

Corpo principale: The stainless steel bowl with a handle.
Manovella: For rotating the blade and pressing food through the grid.
Lama di pressatura: Attached to the crank handle, it pushes food against the grid.
Interchangeable Grids: Two stainless steel grids (fine and medium) for different textures.
Foldable Feet: Three feet at the base for stability over bowls or pots.

Installazione e assemblaggio

Before first use, ensure all components are clean.

Disimballare: Rimuovere con cautela tutte le parti dalla confezione.
Lavare: Wash all components (main body, handle, blade, grids) with warm soapy water and rinse thoroughly. Dry completely.
Select Grid: Choose the desired stainless steel grid (fine or medium) based on the texture required for your recipe. Place the selected grid inside the main body, ensuring it sits flat at the bottom.
Inserire la lama: Position the pressing blade over the center of the grid. Insert the crank handle through the central hole of the blade and secure it into the main body's mechanism.
Preparare per l'uso: Extend the foldable feet outwards to rest the mill securely over a bowl or pot.

Assembled Moulinex Vegetable Mill with handle and feet extended — **Immagine 2:** The Moulinex Vegetable Mill fully assembled with the crank handle in place and the three foldable feet extended, ready to be placed over a container.

Istruzioni per l'uso

The Moulinex Vegetable Mill is designed for processing cooked fruits and vegetables.

Preparare gli ingredienti: Cook your fruits or vegetables until they are soft. Cut larger items into smaller pieces to facilitate processing.
Place Mill: Position the assembled vegetable mill over a sturdy bowl or pot, ensuring the foldable feet are stable.
Aggiungere gli ingredienti: Place the cooked ingredients into the main body of the mill. Do not overfill.
Begin Milling: Turn the crank handle clockwise. The pressing blade will push the ingredients against the chosen grid, forcing the pulp through the holes and leaving skins and seeds behind.
Continua l'elaborazione: Continue turning the handle until all desired pulp has passed through the grid. Scrape any remaining pulp from the underside of the mill if necessary.
Residuo vuoto: Once finished, remove the mill from the bowl. Disassemble the blade and grid to discard any remaining solids.

Moulinex Vegetable Mill on a wooden counter with a bowl of soup — **Immagine 3:** The Moulinex Vegetable Mill positioned on a kitchen counter, with a bowl of freshly milled soup next to it, demonstrating its output. Two grids are also visible on the counter.

Manutenzione e pulizia

Proper cleaning and maintenance will ensure the longevity and optimal performance of your Moulinex Vegetable Mill.

Pulizia immediata: After each use, disassemble the mill immediately. Rinse all parts under running water to remove large food particles.
Lavaggio delle mani: Wash all components with warm, soapy water using a brush to clean the grids thoroughly. Rinse well and dry completely to prevent water spots or rust.
Pulizia in lavastoviglie: The Moulinex A40106 Vegetable Mill is dishwasher compatible. Place all disassembled parts on the top rack of your dishwasher. Use a standard dishwasher cycle. Ensure parts are dry before storing.

Moulinex Vegetable Mill parts inside a dishwasher — **Immagine 4:** Disassembled components of the Moulinex Vegetable Mill, including the main body and grids, placed inside a dishwasher rack, illustrating its dishwasher compatibility.

Magazzinaggio: After cleaning and drying, fold the feet inwards for compact storage. Store the grids and handle together with the main body in a dry place.

Moulinex Vegetable Mill stored compactly in a kitchen cabinet — **Immagine 5:** The Moulinex Vegetable Mill with its feet folded, stored neatly in a kitchen cabinet alongside other kitchenware, demonstrating its compact storage design.

Risoluzione dei problemi

If you encounter issues with your Moulinex Vegetable Mill, refer to the following common solutions:

Problema	Possibile causa	Soluzione
Blade difficult to turn.	Ingredients are too hard or not cooked enough. Mill is overfilled. Grid or blade is obstructed by large pieces.	Ensure ingredients are thoroughly cooked and soft. Reduce the amount of ingredients in the mill. Check for and remove any large obstructions.
Food not passing through grid effectively.	Incorrect grid selected for ingredient type. Blade not properly seated.	Ensure the blade is correctly positioned over the grid. Consider using the coarser grid for fibrous ingredients.
Mill is unstable during use.	Feet not fully extended or placed on an uneven surface. Mill not centered on the receiving bowl/pot.	Ensure all three feet are fully extended and placed on a stable, flat surface. Center the mill over the receiving container.

Specifiche

Numero di modello	A40106
Marca	Moulinex
Materiale	Acciaio inossidabile
Dimensioni del prodotto (L x P x A)	30 x 9.5 x 21 cm (circa 11.8 x 3.7 x 8.3 pollici)
Diametro del prodotto	19 cm (circa 7.5 pollici)
Grid Diameter	10.5 cm (circa 4.1 pollici)
Peso dell'articolo	100 g (circa 0.22 libbre)
Capacità	1000 millilitri (1 litro)
Lavabile in lavastoviglie	SÌ
Paese di fabbricazione	Francia

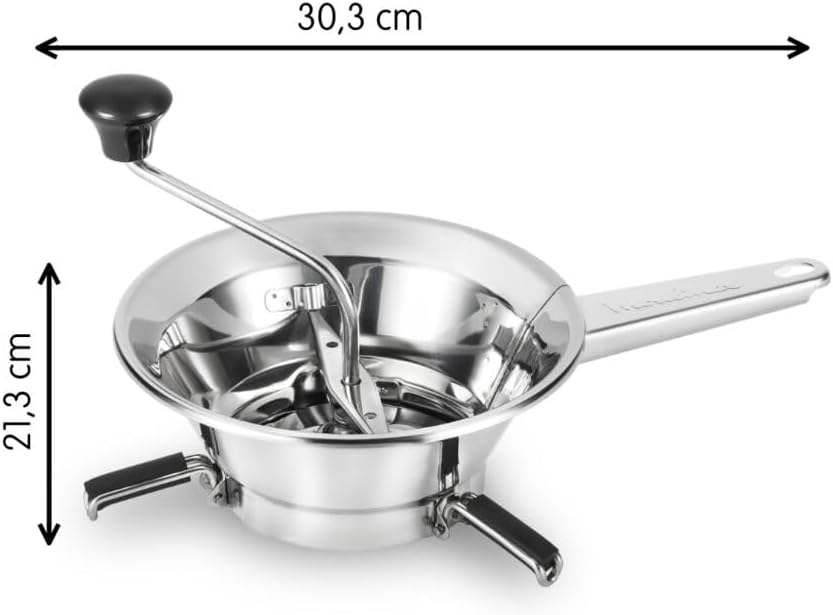

Moulinex Vegetable Mill with dimensions labeled — **Immagine 6:** A diagram showing the Moulinex Vegetable Mill with its key dimensions: 30.3 cm length and 21.3 cm height.

Garanzia e supporto

Moulinex products are designed for durability and ease of repair.

Immagine 7: A circular logo indicating Moulinex's commitment to repairability for 15 years at a fair price, with over 6200 authorized service centers worldwide.

Riparabilità: This product is designed to be repairable for 15 years at a fair price. Moulinex maintains a network of over 6200 authorized service centers globally to support product longevity.

For further assistance, product registration, or to locate a service center, please visit the official Moulinex websito o contattare l'assistenza clienti.

Visit the Moulinex Brand Store per maggiori informazioni e prodotti.

Moulinex A40106
