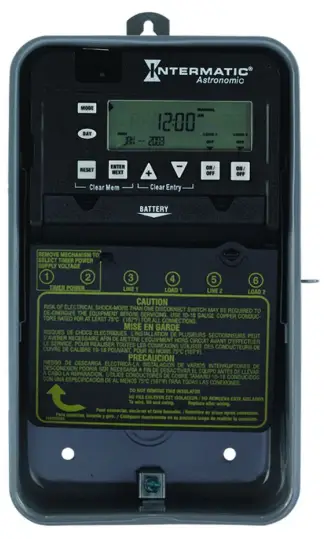

Electronic Timer Control – ET8215C
Electronic Timer Control – Astronomic 7-Day 2-Circuit Electronic Control, 120-277 VAC, 2-SPST, Indoor Metal Enclosure
Item ET8215C
PRODUCT DESCRIPTION
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.
FEATURES
- Selector switch to determine input voltage between 120-277 VAC
- Up to 28 events total
- To-the-minute accuracy
- Temporary override or permanent manual override
- Automatic Daylight Saving Time adjustment
- Astronomic models enable dusk-to-dawn scheduling
APPLICATIONS
- Outdoor Lighting Control
- Timing/Scheduling ON/OFF
- Machinery & Pump Controls
TECHNICAL DATA
| General | |
| Model Number | ET8215C |
| Description | Astronomic 7-Day 2-Circuit Electronic Control, 120-277 VAC, 2-SPST, Indoor Metal Enclosure |
| UPC Code | 78275089761 |
| Brand | Intermatic |
| Country of Origin (Intermatic) | CHINA |
| Warranty Period | 1-Year limited |
| Control Specifications | |
| Minimum ON/OFF Times | 1 min |
| Minimum Pulse Time | 2 sec |
| Maximum Pulse Time | 2 sec |
| Maximum ON/OFF Times | Indefinite |
| Maximum ON/OFF Operations | 28 |
| Setpoint Program Count | 28 |
| ON/OFF Operations | 28 |
| Operation Features | Astronomic |
| Operation Mode | 7 day |
| Daylight Savings Adjustment | Automatic |
| Backup Type | Battery |
| Battery Type | AAA |
| Battery Service Type | Field Serviceable |
| Mechanical Specifications | |
| Enclosure Type | Indoor type 1 metal |
| Dimensions | |
| Product Dimensions (H x W x D) in | 7.875 x 5.125 x 3.4375 in |
| Wire Size Min | #14 AWG |
| Wire Size Max | #8 AWG |
| Load Ratings | |
| Magnetic Ballast Range(s) | 20 A, 120-277 VAC |
| Tungsten Range(s) | 5 A, 120-240 VAC |
| Electronic Ballast Load Ratings Ranges | 1 A, 120-277 VAC |
| Resistive Load Ratings Ranges | 20 A, 28 VDC; 30 A, 120/240 VAC |
| Inductive Load Ratings Ranges | 30 A, 120/240 VAC |
| Motor Load Ratings Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC |
| Electrical Specifications | |
| Voltage Selection Type | Selector Switch |
| Wiring Option | Terminals |
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Number of Circuits | 2 |
| Switch Type | 2xSPST, 1xDPST or Pulse |
| Maximum Power Consumption (W) | 6 W |
| Electronic Series | ET8000 Series |
| Packaging | |
| Shipping Weight (lbs) | 2.994 |
| Unit Carton Dimensions (H x W x L) in | 8.001 x 3.251 x 5.251 in |
| Environmental Specifications | |
| Temperature (operation) | -40 °F to 104 °F / (-40 °C to 40 °C) |
| Standards and Certifications | |
| CSA Certification | cCSAus |
| Other Certifications and Compatibilities | Title 20 |
| California Proposition 65 | Lead |
DRAWINGS AND DIAGRAMS
ACCESSORIES
product Image Not Available
124ET2582
(DPST) Insulator for ET Series controls (ET1125C, ET1125CR, ET1725C, ET1725CR, ET8215C and ET8215CR)
Technical specifications and other information are subject to change without notice. Images can vary from original.
