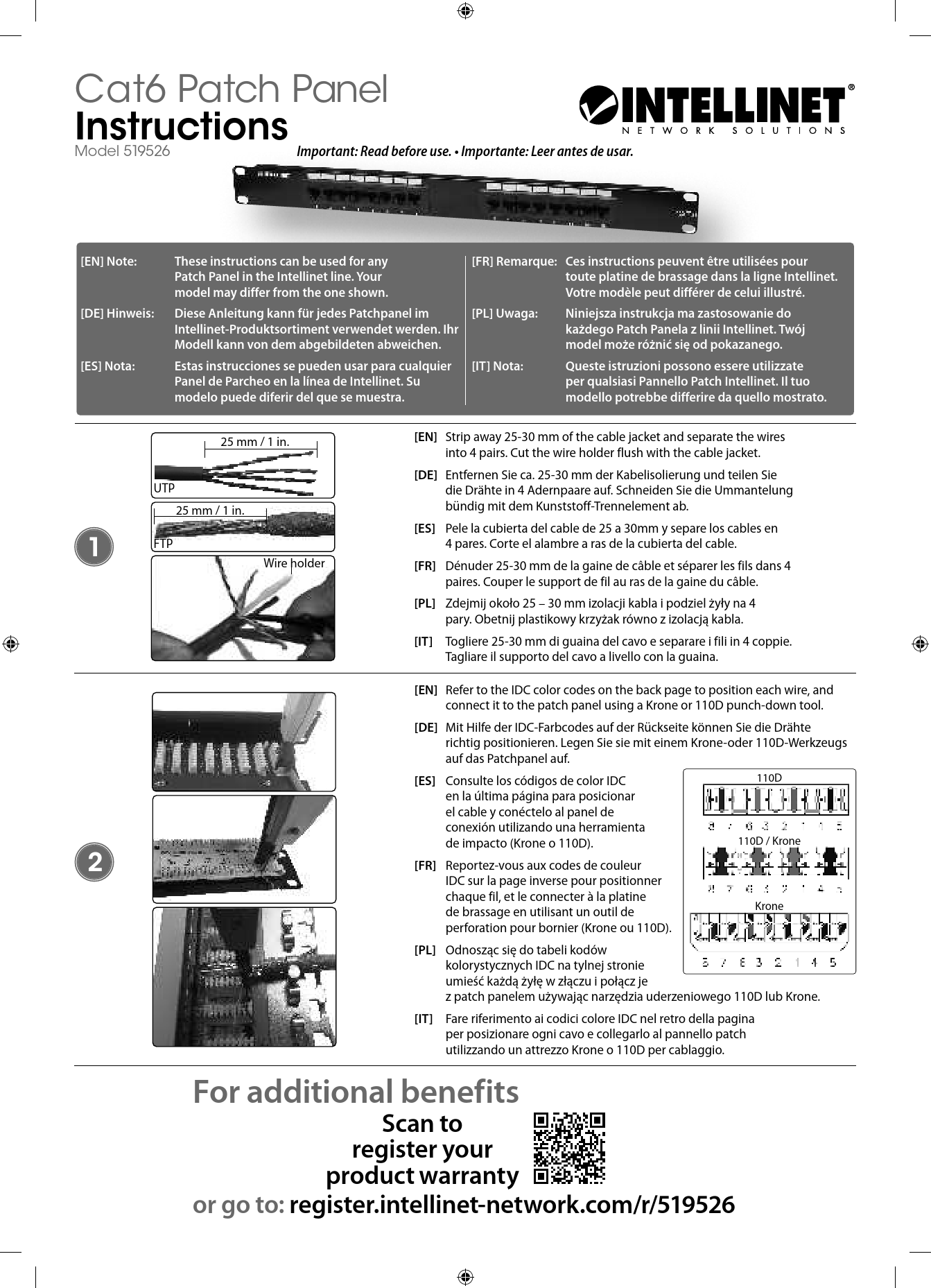

INTELLINET 519526 Cat6 Patch Panel Instructions

Instructions

Note: These instructions can be used for any Patch Panel in the Intellinet line. Your model may differ from the one shown.

Strip away 25-30 mm of the cable jacket and separate the wires into 4 pairs. Cut the wire holder flush with the cable jacket.

Refer to the IDC color codes on the back page to position each wire, and connect it to the patch panel using a Krone or 110D punch-down tool.

Attach the cables to a cable manager using cable ties, then position the patch panel as desired.
