1. Okwu mmalite

The CURRENT USA Satellite Color RGBW Full-Spectrum LED Aquarium Light (Model 4511) is designed to provide comprehensive lighting for freshwater aquariums ranging from 24 to 36 inches. This light features advanced RGBW LEDs, allowing for a wide spectrum of colors to enhance the visual appeal of your aquatic environment and support plant growth. It includes an intuitive remote control for adjusting colors, selecting preset modes, and creating dynamic lighting effects. This manual will guide you through the installation, operation, and maintenance of your new aquarium light.

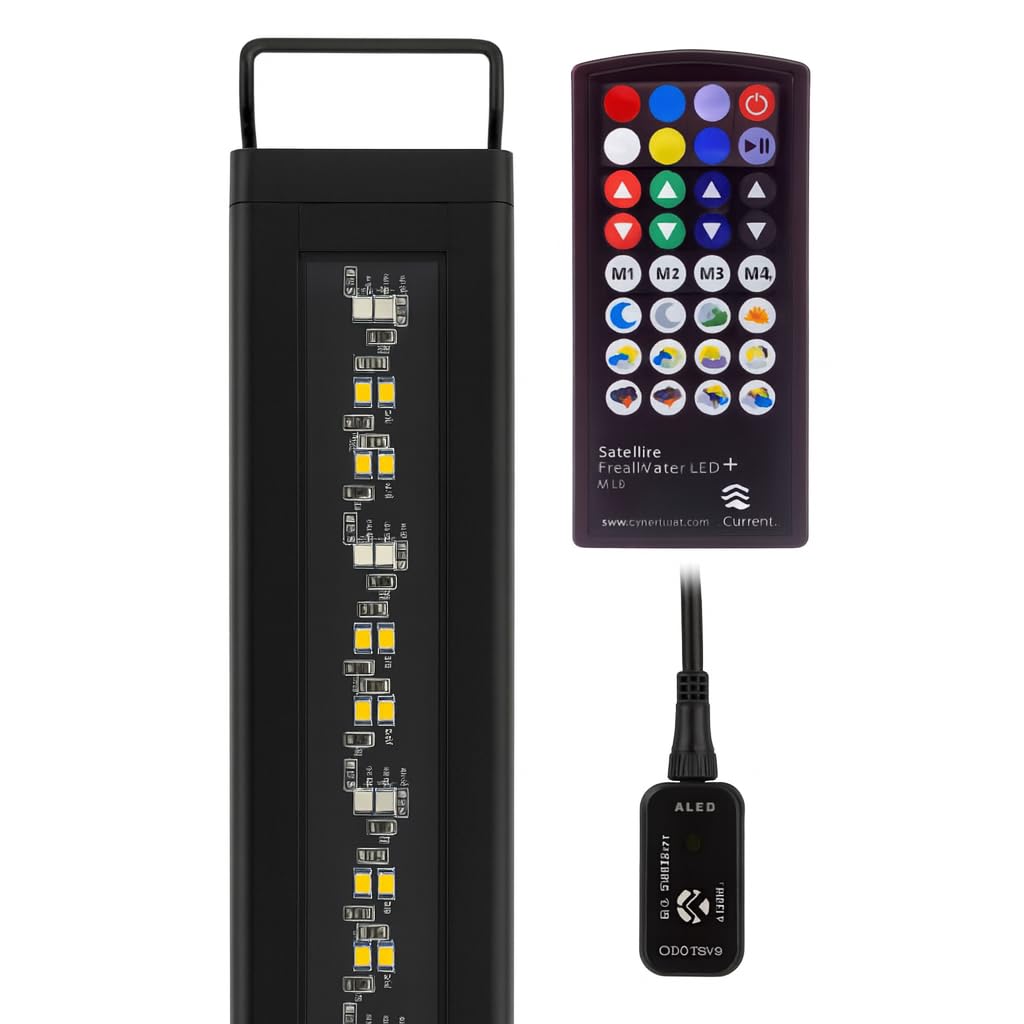

Image: The CURRENT USA Satellite Color RGBW LED Aquarium Light, showcasing ya sleek imewe.

2. Ntuziaka nchekwa dị mkpa

• Gụọ ntuziaka niile tupu i jiri ngwaahịa a.
• Ejila ngwaọrụ ọ bụla rụọ ọrụ ma ọ bụrụ na eriri ma ọ bụ plọg ya mebiri emebi, ma ọ bụ ọ bụrụ na ọ mebiri emebi ma ọ bụ daa ma ọ bụ mebie n'ụzọ ọ bụla.
• Ka ịzenarị ohere nke plọg ma ọ bụ ihe nkwụnye ngwa ga-adaba mmiri, dobe akwarium na tank n'otu akụkụ nke ihe nkwụnye mgbidi nwere mgbidi ka mmiri ghara ịdaba n'ime ihe nkwụnye ma ọ bụ plọg.
• A "drip loop" should be arranged by the user for each cord connecting an aquarium appliance to a receptacle. The drip loop is the part of the cord below the level of the receptacle, or the connector if an extension cord is used, to prevent water from traveling along the cord and coming into contact with the receptacle.
• Wepụ ihe niile dị na ngwa ahụ mgbe ọ bụla ị na-anaghị eji ya, tupu i tinye ma ọ bụ wepụ ihe ndị ọzọ, nakwa tupu ị hichaa ya. Ejila eriri dọpụta ihe ahụ na oghere ahụ. Jide plọg ahụ ma dọpụta ya ka ọ ghara ịrụ ọrụ.
• Awụnyela ma ọ bụ chekwaa ngwa ahụ ebe a ga-ekpughere ya na ihu igwe ma ọ bụ na okpomọkụ dị n'okpuru oyi.
• Ensure the light fixture is securely mounted to prevent accidental submersion.
• Ngwaahịa a bụ naanị maka ime ụlọ.

3. Kedu ihe dị na Igbe ahụ

Upon unpacking your CURRENT USA Satellite Color RGBW LED Aquarium Light, please ensure all components are present:

• Satellite Color RGBW LED Light Fixture
• Adjustable Docking Legs (pre-attached or separate)
• IR Remote Control (with battery and spare battery)
• Power Supply (AC Adapter and DC connector with IR receiver)

Foto: Ofeview of the light fixture and its components.

4. Ntọala na nwụnye

1. Mepee ọkụ ahụ: Jiri nlezianya wepụ ihe niile dị na nkwakọ ngwaahịa. Nyochaa maka mmebi ọ bụla.
2. Attach/Adjust Docking Legs: If the docking legs are not pre-attached, slide them into the channels on each end of the light fixture. Adjust the legs to fit the width of your aquarium. The light is designed for tanks between 24 and 36 inches.
3. Ugwu ọkụ: Place the light fixture securely on the rim of your aquarium. Ensure the light is stable and centered over the tank.
4. Jikọọ ọkọnọ ike:
   • Connect the DC connector from the light fixture to the power supply's IR receiver module.
   • Plug the AC adapter into a standard electrical outlet. Create a drip loop with the power cord to prevent water from reaching the outlet.
5. Ike izizi: The light should illuminate once connected to power. Use the remote control to turn it on/off and adjust settings.

Image: The light fixture securely mounted on the edge of an aquarium.

Image: Close-up of the adjustable docking leg for tank mounting.

5. Ọrụ

The Satellite Color LED light is controlled using the included IR remote. Ensure the remote is pointed towards the IR receiver module on the power cord for optimal response.

5.1 Ọrụ njikwa anya

Image: The remote control for the Satellite Color LED light.

• bọtịnụ ike (⬤): Gbanyụọ ma ọ bụ gbanyụọ ọkụ.
• Color Selection Buttons: Directly select various colors (Red, Green, Blue, White, Yellow, Cyan, Magenta, etc.).
• Brightness Adjustment (v / ▼): Adjust the intensity of the selected color or overall brightness.
• Custom Color Buttons (M1, M2, M3, M4): Save and recall your preferred custom color settings. To save a custom color, adjust the light to your desired color and brightness, then press and hold one of the M buttons until the light flashes. To recall, simply press the corresponding M button.
• Dynamic Fade Modes: Buttons with sun, moon, and cloud icons activate pre-programmed lighting scenarios such as:
  • Sunrise/Sunset simulations
  • Moonlight effects
  • Cloud cover simulations
  • Storm effects (with lightning simulation)

5.2 Full Spectrum Color Options

The RGBW LEDs allow for a broad range of colors. Experiment with different combinations to highlight your fish and plants, or to create specific moods within your aquarium.

6. Nlekọta

Regular maintenance ensures the longevity and optimal performance of your LED aquarium light.

• Cleaning the Fixture: Periodically wipe the light fixture with a soft, damp cloth to remove dust, water spots, and algae buildup. Ensure the light is unplugged before cleaning. Do not use abrasive cleaners or solvents.
• Lelee njikọ: Routinely inspect all electrical connections (power cord, DC connector) for any signs of wear, corrosion, or loose fittings.
• Ụdị LED: Avoid touching the LED diodes directly. If cleaning is necessary, use a soft, dry cloth.

7. Nchọpụta nsogbu

8. Nkọwapụta

• Nọmba nlereanya: Satellite Color (4511)
• Tank Size Compatibility: 24" - 36" Tanks
• Ụdị isi iyi ọkụ: RGBW LED
• Isi mmalite ike: Igwe ọkụ eletrik
• Ụdị mgbanwe: Ime ime
• Ụdị ihe: Ọla, plastik
• Agba: Nwa
• Ojiji ime ụlọ/n'èzí: Ime ụlọ
• Ngwa gụnyere: LED Light Fixture, Power Supply, Remote Control
• GTIN (UPC): 842959045110

9. Akwụkwọ ikike na nkwado

9.1 Akwụkwọ ikike nke onye nrụpụta

This CURRENT USA Satellite Color RGBW LED Aquarium Light (Model 4511) is covered by a Akwụkwọ ikike onye nrụpụta afọ 1 from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair.

Biko dowe ihe akaebe nke ịzụrụ ihe maka akwụkwọ ikike.

9.2 Nkwado ndị ahịa

For technical assistance, warranty inquiries, or replacement parts, please contact CURRENT USA Customer Support:

• Websaịtị: www.current-usa.com
• Email: support@current-usa.com
• Ekwentị: (Nọmba ekwentị efu, ọ bụrụ na ọ dị)

Mgbe ị na-akpọtụrụ nkwado, biko nwee nọmba nlereanya ngwaahịa gị (4511) yana akaebe nke ịzụrụ dị ngwa ngwa.
