1. Pendahuluan
This manual provides essential information for the safe and efficient operation of your PowMr 4000W Hybrid Solar Inverter. This device is designed to convert 24VDC battery power into 110/120VAC pure sine wave electricity, integrating a 140A MPPT charge controller for optimal solar energy utilization. It supports various battery types and off-grid system configurations. Please read this manual thoroughly before installation and use, and retain it for future reference.

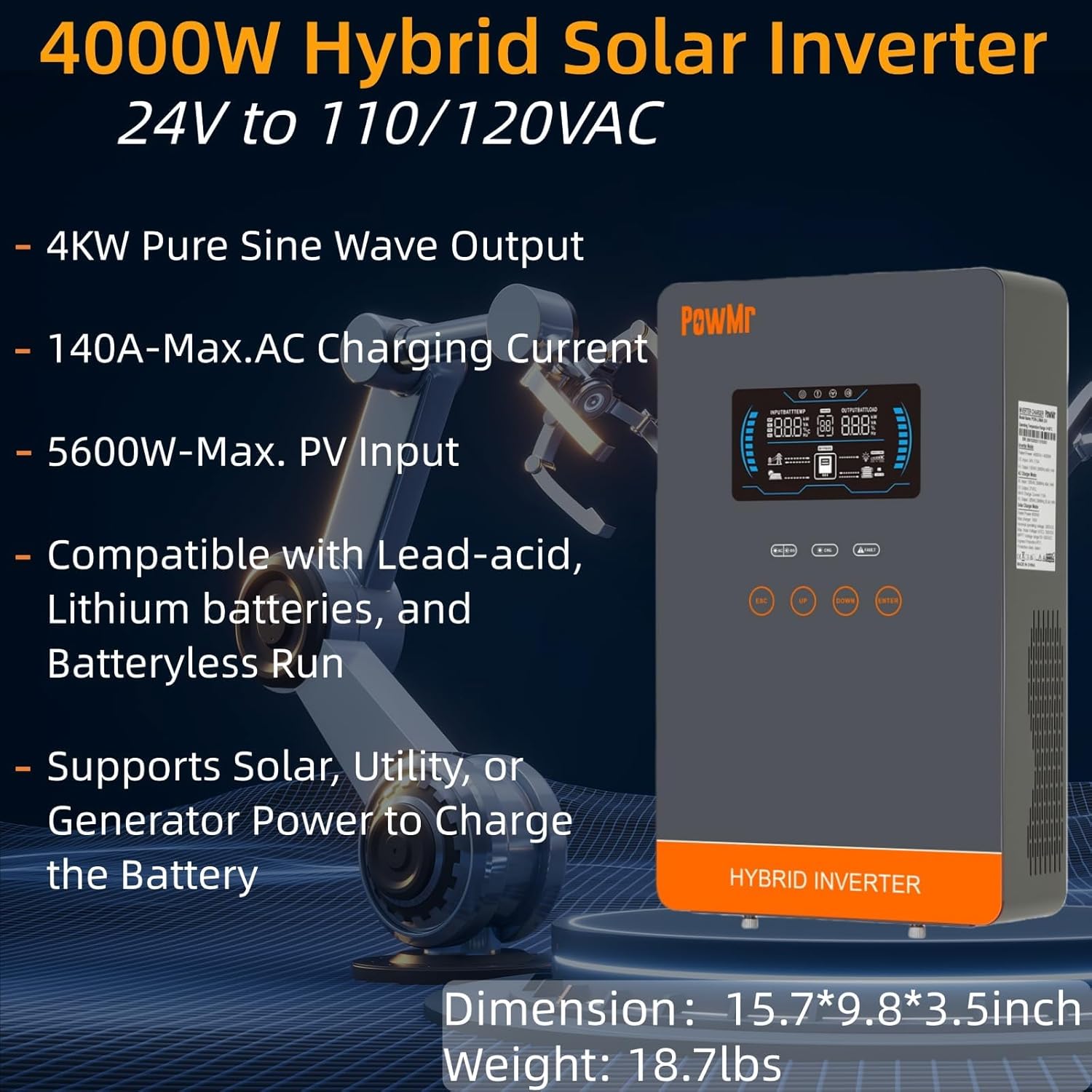

Image: The PowMr 4000W Hybrid Solar Inverter, highlighting its 4KW pure sine wave output, 140A max AC charging current, 5600W max PV input, compatibility with various batteries, and support for solar, utility, or generator power to charge the battery. Dimensions are 15.7"L x 9.8"W x 3.5"H and weight is 18.7lbs.
2. Petunjuk Keselamatan
Selalu perhatikan tindakan pencegahan keselamatan berikut untuk mengurangi risiko sengatan listrik, kebakaran, atau cedera:
- Pemasangan harus dilakukan oleh personel yang berkompeten.
- Pastikan semua kabel memiliki ukuran yang tepat dan terisolasi dengan benar.
- Jangan membongkar inverter. Tidak ada komponen di dalamnya yang dapat diperbaiki oleh pengguna.
- Jauhkan inverter dari bahan yang mudah terbakar, kelembapan, dan sinar matahari langsung.
- Pastikan ventilasi yang memadai di sekitar inverter untuk mencegah panas berlebih.
- Selalu putuskan semua sumber daya (PV, baterai, input AC) sebelum melakukan perawatan atau pemasangan kabel apa pun.
- Gunakan alat pelindung diri (APD) yang sesuai selama pemasangan dan perawatan.
3. Produk Lebihview
3.1. Fitur
- Keluaran Gelombang Sinus Murni: Provides stable and clean power suitable for sensitive electronics.
- Pengontrol Pengisian MPPT Terintegrasi: 140A MPPT for efficient solar charging.
- Kompatibilitas Baterai yang Luas: Supports AGM, Gel, Lead-acid, Lithium-ion, and LiFePO4 batteries.
- Batteryless Mode: Can power loads directly from PV/AC grid without a connected battery.
- Beberapa Mode Pengisian Daya: Solar Only, Mains Only, Mains & Solar Hybrid.
- Multiple Load Output Modes: Utility Priority, Solar Priority, Solar and SBU Priority.
- Perlindungan Lanjutan: Hubungan pendek, lebih dari voltage, di bawah voltage, overload, reverse polarity, over-temperature, and backfill protection.
- Antarmuka yang Ramah Pengguna: 6.25-inch LCD screen with touch controls for real-time data display.
- Port komunikasi: RS485 and RS232 for monitoring and control.
3.2. Identifikasi Komponen
Image: A detailed diagram of the PowMr Hybrid Solar Inverter, showing its front panel and connection ports. Key components labeled include: 1. LCD display, 2. Status indicator, 3. Charging indicator, 4. Fault indicator, 5. Function touch buttons, 6. On/off switch, 7. AC input, 8. AC output, 9. PV input, 10. Battery input, 11. RS485/RS232 communication port.
3.3. Fitur Perlindungan
Image: An illustration detailing the comprehensive protection features of the inverter, including Short Circuit Protection, Over-Load Protection, Over Current Protection, Backfill Protection, Over Voltage Protection, Over-Temperature Protection, Under Voltage Protection, and Over Charge Protection.
4. Isi Paket
Saat membongkar, harap verifikasi bahwa semua barang ada dan tidak rusak:
- PowMr 4000W Hybrid Solar Inverter
- Instruksi Manual (dokumen ini)
- Communication Cables (if applicable, check packaging)
- Perlengkapan Pemasangan (jika ada, periksa kemasan)
5. Instalasi dan Pengaturan
5.1. Memasang Inverter
Select a suitable location for mounting the inverter. It should be:
- Di dalam ruangan, terlindungi dari sinar matahari langsung, hujan, dan debu.
- Berventilasi baik untuk memungkinkan pembuangan panas.
- Close to the battery bank to minimize cable length and voltagjatuh.
- On a solid, non-flammable surface.
5.2. Diagram Pengkabelan
Follow the wiring diagram carefully. Incorrect wiring can cause damage to the inverter, batteries, or connected loads, and may pose a safety hazard.
Image: A comprehensive wiring diagram illustrating connections for PV input, Mains/Generator input, AC output, and Battery input. It specifies voltage ranges, current ratings, and recommended wire gauges for each connection point.
5.3. Sambungan Baterai
The inverter is compatible with various 24V battery types. Ensure your battery bank matches the inverter's voltagpersyaratan e.
Image: An illustration showing the inverter's compatibility with various battery types including AGM, GEL, FLD (Flooded), LI (Lithium-ion), SLD (Sealed Lead-Acid), and USER-defined settings. It also indicates a maximum battery charging current of 140A (utility charging + solar charging).
- Connect the battery cables to the inverter's battery terminals, ensuring correct polarity (positive to positive, negative to negative).
- Kencangkan semua koneksi dengan aman.
5.4. PV Array Connection
- Connect the solar panel array to the PV input terminals, observing correct polarity.
- Ensure the PV array's open circuit voltage and power are within the inverter's specifications.
5.5. AC Input/Output Connection
- Connect the AC utility grid or generator to the AC input terminals.
- Hubungkan beban AC Anda ke terminal keluaran AC.
- Ensure all AC connections are properly grounded.
6. Petunjuk Pengoperasian
6.1. Menghidupkan/Mematikan
- Untuk menghidupkan: Ensure all connections are secure. First, connect the battery, then the PV array, and finally the AC input. Press the On/Off switch.
- Untuk mematikan: Disconnect the AC input, then the PV array, and finally the battery. Press the On/Off switch.
6.2. Layar LCD dan Kontrol
The LCD screen displays real-time system data. Use the touch buttons to navigate menus and adjust settings.
6.3. Setting Charging and Output Modes
The inverter offers flexible charging and output modes to suit various energy management needs.
Image: An illustration detailing the three charging modes (1. Only Solar, 2. Only Utility, 3. Solar+Utility) and three output modes (1. Utility First, 2. Solar First (default), 3. SBU priority). Steps to set programs are also provided: 1. Long press and hold ENTER button for 3s, 2. Press UP and DOWN to select setting programs, 3. Press ENTER to confirm or ESC to exit.
6.3.1. Mode Pengisian Daya
- Hanya Tenaga Surya: Charges batteries exclusively from solar panels.
- Hanya Listrik: Charges batteries exclusively from the AC utility grid or generator.
- Mains & Solar Hybrid: Prioritizes solar charging, supplementing with AC utility/generator if solar power is insufficient.
6.3.2. Load Output Modes
- Prioritas Utilitas: Loads are primarily powered by the AC utility grid. Inverter switches to battery/solar if utility fails.
- Prioritas Tenaga Surya: Loads are primarily powered by solar and battery. Inverter switches to utility if solar/battery power is insufficient.
- Prioritas SBU (Tenaga Surya-Baterai-Utilitas): Loads are primarily powered by solar, then battery, and finally by utility as a last resort.
7. Pemeliharaan
Perawatan rutin memastikan kinerja optimal dan umur panjang inverter Anda.
- Pembersihan: Periodically clean the inverter's exterior with a dry cloth. Do not use liquid cleaners.
- Ventilasi: Ensure cooling fan vents are clear of dust and obstructions. The triple cooling fan design helps dissipate heat efficiently.
- Koneksi: Periksa semua sambungan listrik setiap tahun untuk memastikan kekencangannya dan tanda-tanda korosi.
- Lingkungan: Maintain a clean, dry, and well-ventilated environment around the inverter. The dust-proof design helps prevent dust ingress.
8. Penyelesaian masalah
If you encounter issues, refer to the following common problems and solutions. For persistent issues, contact customer support.
| Masalah | Kemungkinan Penyebab | Larutan |
|---|---|---|
| Inverter tidak menyala | Tidak ada koneksi baterai; Tegangan baterai rendahtage; On/Off switch off | Check battery connections; Charge battery; Turn on switch |
| Tidak ada keluaran AC | Overload; Short circuit; Inverter fault | Reduce load; Check for short circuits; Restart inverter |
| PV charging not working | Panel surya terputus; Sinar matahari tidak mencukupi; Tegangan panel suryatage terlalu rendah/tinggi | Check PV connections; Ensure adequate sunlight; Verify PV array specifications |
| Peringatan kelebihan beban | Connected loads exceed inverter capacity | Disconnect some loads; Ensure total load is within 4000W |
| Peringatan suhu tinggi | Poor ventilation; Ambient temperature too high | Clear vents; Improve airflow; Relocate inverter if necessary |
9. Spesifikasi
Technical specifications for the PowMr 4000W Hybrid Solar Inverter:
| Parameter | Nilai |
|---|---|
| Nomor Model | POW-LVM4K-24V-FBA2 |
| Nilai Output Daya | 4000W |
| Masukan Voltagdan (DC) | Tegangan 24VDC |
| Volume Keluarantagdan (AC) | Tegangan 110/120 VAC |
| Bentuk Gelombang Keluaran | Gelombang Sinus Murni |
| Maks. PV Sirkuit Terbuka Voltage | Tegangan 350VDC |
| Array PV MPPT Voltage Rentang | Tegangan 55-350VDC |
| Daya Masukan PV Maks. | 5600W |
| Rated Grid Input Voltage | Tegangan 110/120 VAC |
| Max. Hybrid Charging Current (AC+PV) | 140A |
| Komunikasi | RS485, RS232 |
| Jenis Tampilan | Layar LCD |
| Dimensi (P x L x T) | 15.7"P x 9.8"L x 3.5"T |
| Berat | 18.7 lbs (approximate, derived from image) |
10. Garansi dan Dukungan
10.1. Informasi Garansi
The PowMr 4000W Hybrid Solar Inverter comes with an Garansi 18 bulan Terhitung sejak tanggal pembelian. Garansi ini mencakup kerusakan material dan pengerjaan dalam penggunaan normal. Garansi ini tidak mencakup kerusakan yang disebabkan oleh pemasangan yang tidak tepat, penyalahgunaan, kecelakaan, modifikasi tanpa izin, atau bencana alam.
10.2. Dukungan Pelanggan
For technical assistance, warranty claims, or any questions regarding your PowMr inverter, please contact PowMr customer support through the retailer's platform or the official PowMr website. Please have your model number (POW-LVM4K-24V-FBA2) and purchase date available when contacting support.
