Yardenaler 10x8 FT Manual Retractable Patio Awning Instruction Manual

1. Pendahuluan

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Yardenaler 10x8 FT Manual Retractable Patio Awning. Please read all instructions carefully before assembly and use to ensure proper function and longevity of the product.

2. Informasi Keselamatan

• Always retract the awning during storms, heavy rain, or high winds (exceeding 30 MPH) to prevent damage to the awning and property.
• Do not install the awning on ceilings, RVs, or any inclined walls. Installation is only recommended for vertical solid hard siding walls.
• Pastikan semua perangkat keras pemasangan terpasang dengan aman pada permukaan yang kokoh secara struktural.
• Jauhkan anak-anak dan hewan peliharaan dari tenda selama pengoperasian.
• Regularly inspect the awning for any signs of wear, damage, or loose components.

3. Isi Paket

Pastikan semua komponen tersedia sebelum memulai instalasi. Jika ada komponen yang hilang atau rusak, hubungi dukungan pelanggan.

• Awning frame assembly (aluminum supports and arms)
• Polyester canopy fabric
• Pegangan engkol
• Braket pemasangan (x2)
• Wall mounting hardware (screws, anchors, etc.)
• Manual instruksi

4. Spesifikasi

5. Pengaturan dan Instalasi

This awning is designed for installation on vertical solid hard siding walls. Do not attempt to install on ceilings, RVs, or inclined surfaces. All necessary hardware for wall mounting is included.

5.1 Pemeriksaan Pra-Instalasi

• Ensure the installation surface is a vertical, solid hard siding wall capable of supporting the awning's weight and operational forces.
• Verify that the recommended installation height of more than 8.2 feet is met.
• Pastikan semua isi paket lengkap dan tidak rusak.

5.2 Memasang Tenda

1. Tentukan Lokasi Pemasangan: Choose a location on a vertical solid hard siding wall that provides adequate clearance and desired shade coverage.
2. Titik Bor Markus: Use the mounting brackets as a template to mark the precise drilling points on the wall. Ensure the marks are level and correctly spaced according to the awning frame.
3. Lubang Pilot Bor: Drill pilot holes at the marked locations. Use a drill bit appropriate for your wall material and the provided hardware.
4. Pasang Braket Pemasangan: Securely fasten the two mounting brackets to the wall using the provided wall mounting hardware. Ensure they are firmly attached and can support the awning's weight.

Image: Mounting brackets securely attached to a vertical solid wall. Note that trailers, RVs, roof-mounting, or inclined walls are not recommended for installation.

5. Attach Awning Frame: Carefully lift the awning frame and attach it to the mounted brackets. Secure the frame to the brackets using the appropriate fasteners.
6. Cara Memasang Pegangan Engkol: The crank handle can only be installed on the left side of the awning. Attach the crank handle mechanism as per the diagram.

Image: Illustration of the adjustable pitch mechanism and the crank handle, which must be installed on the left side.

5.3 Menyesuaikan Sudut (Kemiringan) Tenda

The angle of the awning can be adjusted during installation to customize shading coverage. The adjustable range is between 45 and 85 degrees.

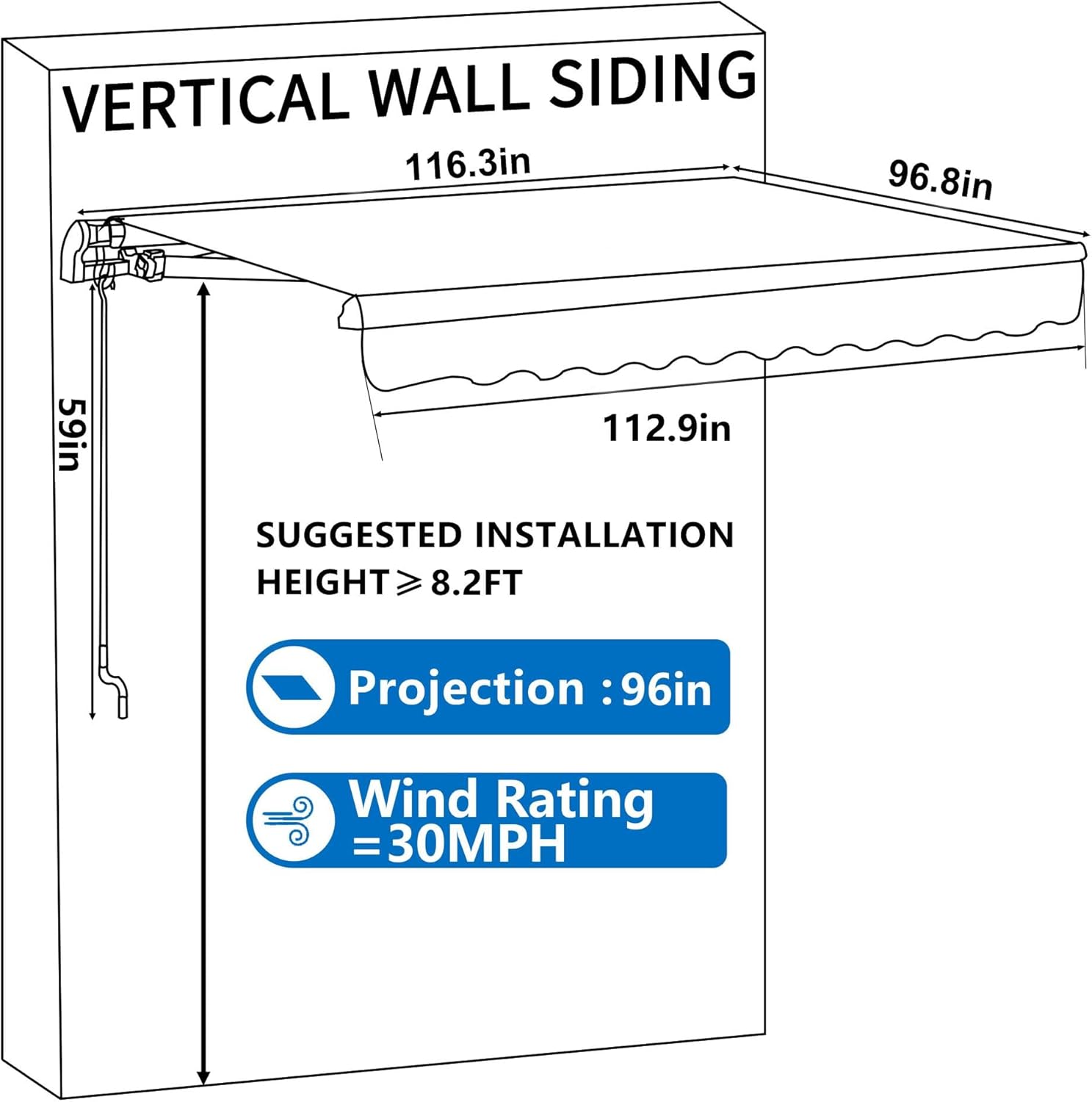

Image: Technical diagram illustrating the awning's dimensions (116.3in width, 96.8in projection, 59in height) and the suggested installation height of 8.2 feet or more.

6. Petunjuk Pengoperasian

6.1 Extending the Awning

To extend the awning, turn the crank handle clockwise. Continue turning until the awning reaches the desired extension. The awning can be extended to any length with tension.

6.2 Retracting the Awning

To retract the awning, turn the crank handle counter-clockwise. Continue turning until the awning is fully retracted against the wall. This protects the canopy from weather elements when not in use.

Image: The Yardenaler awning fully extended, providing shade over an outdoor deck area.

7. Pemeliharaan

7.1 Canopy Care

• The canopy is made of water-resistant, UV-protected, and fading-resistant polyester fabric (280 GSM yarn-dyed with PU coating).
• Clean the canopy regularly with mild soap and water. Avoid harsh chemicals or abrasive cleaners.
• Allow the canopy to dry completely before retracting to prevent mildew growth.
• The canopy is replaceable. Contact customer support for replacement options.

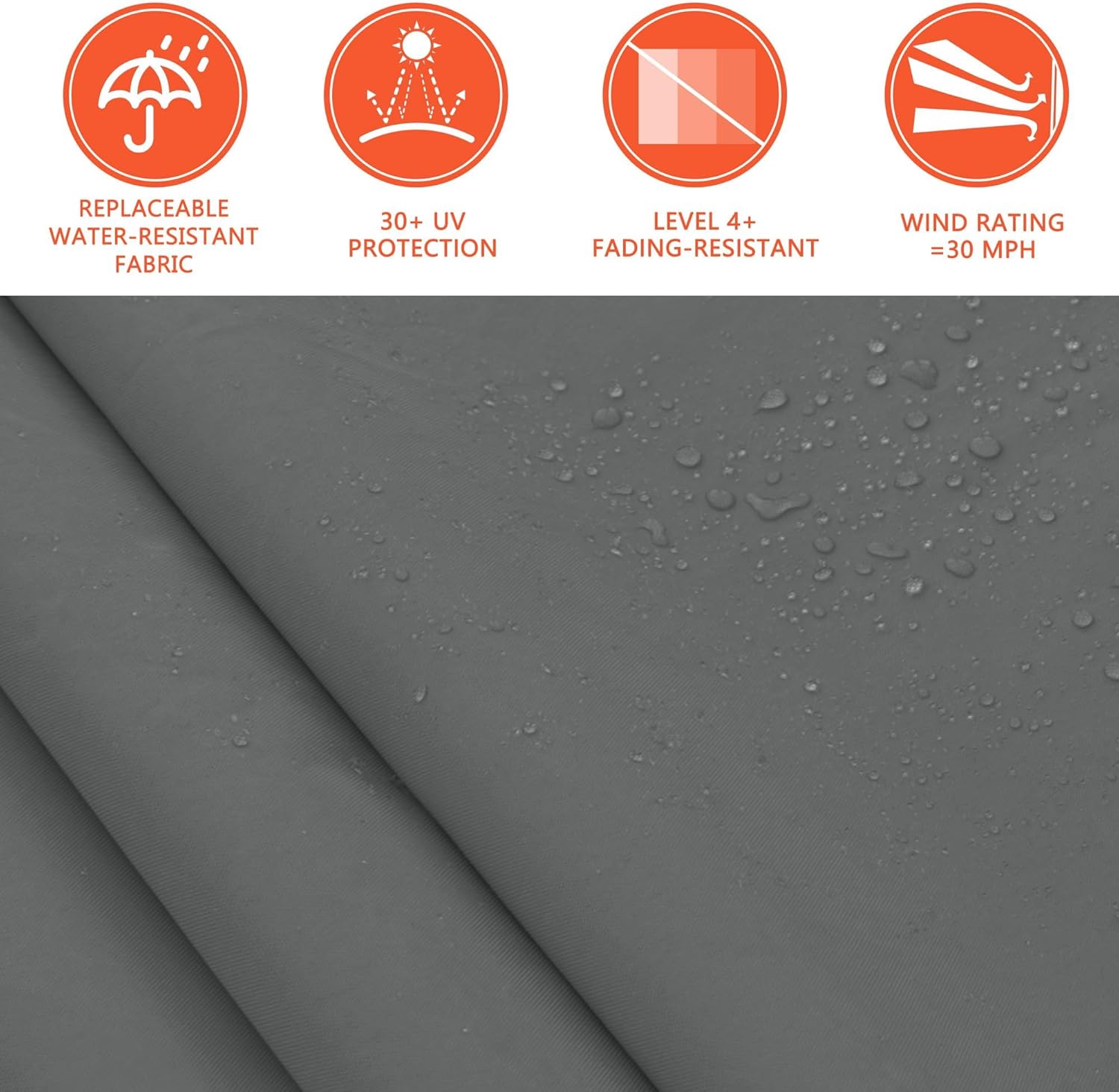

Image: Features of the awning fabric, highlighting its water-resistant, 30+ UV protection, Level 4+ fading-resistant, and 30 MPH wind rating properties.

7.2 Perawatan Bingkai

• The frame is constructed with heavy-duty aluminum supports and arms.
• Bersihkan rangka aluminium dengan iklanamp kain untuk menghilangkan kotoran dan debu.
• Periodically check all bolts and fasteners to ensure they remain tight. Tighten any loose connections.

Gambar: Detail view of the heavy-duty aluminum supports and arms, designed for durability.

8. Penyelesaian masalah

9. Garansi dan Dukungan

For warranty information, replacement parts, or technical assistance, please contact Yardenaler customer support through the retailer where the product was purchased or visit the official Yardenaler store online.

Please have your model number (PG0205-01GY-K) and purchase date available when contacting support.
