Superior Popcorn Company Carnival Popcorn Machine with Cart (Model 82-P558)

1. Pendahuluan

This manual provides important information for the safe operation, assembly, maintenance, and troubleshooting of your Superior Popcorn Company Carnival Popcorn Machine with Cart. Please read all instructions carefully before use and retain this manual for future reference.

Informasi Keselamatan Penting

• Always unplug the machine from the power outlet when not in use or before cleaning.
• Do not immerse the power cord, plug, or machine in water or other liquids.
• Jauhkan anak-anak dan hewan peliharaan dari mesin selama pengoperasian.
• Gunakan hanya aksesori dan pelengkap yang direkomendasikan.
• Do not operate the machine if it has a damaged cord or plug, or if it malfunctions or has been damaged in any way.
• Letakkan mesin pada permukaan yang stabil dan rata.
• Hindari kontak dengan permukaan panas. Gunakan gagang atau kenop.

2. Fitur Produk

Your Carnival Popcorn Machine is designed to bring a classic movie theater experience to your home or event. Key features include:

• 8-Ounce Stainless Steel Kettle: Produces approximately 3 gallons of popcorn per batch.
• Heated Warming Deck: Keeps popcorn fresh and warm after popping.
• Old Maids Drawer: Collects unpopped kernels for easy disposal and cleaning.
• 3-Switch Control Panel: Independent controls for kettle heater/stirrer, overhead light, and warming deck.
• Mobile Serving Cart: Equipped with 16-inch bicycle-style tires for easy transport, adjustable feet for stability, a working platform shelf, and a storage cabinet.
• Panel Kaca Tempered: Tahan lama dan aman viewing of the popping process.

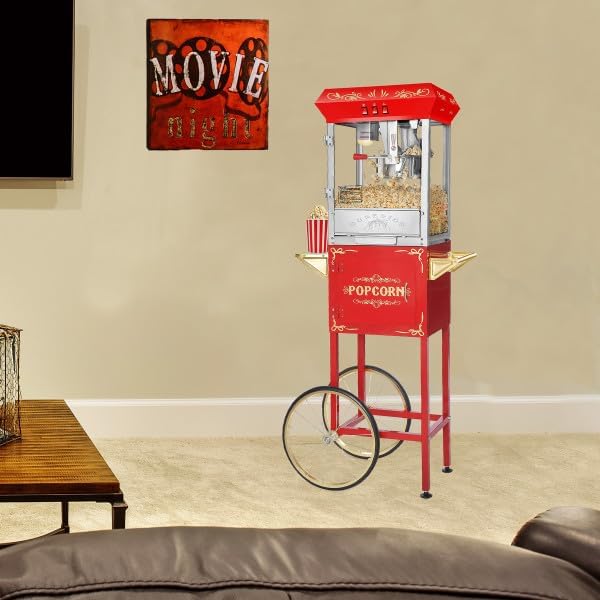

Gambar 2.1: Depan view of the popcorn machine.

3. Isi Paket

Bukalah semua komponen dengan hati-hati dan pastikan Anda telah menerima barang-barang berikut:

• Popcorn Machine Head Unit (with 8oz kettle)
• Serving Cart (with wheels and storage cabinet)
• sendok popcorn
• Measuring Cups (for oil and kernels)
• 3 Plastic Popcorn Cups
• 25 Popcorn Bags
• Manual Instruksi

Figure 3.1: Included accessories and measuring tools.

4. Petunjuk Perakitan

Assembly is required for the cart and attaching the popcorn machine head unit. Follow these steps:

1. Assemble the Cart Base: Attach the legs to the cart base, ensuring all screws are tightened securely.
2. Pasang Roda: Secure the 16-inch bicycle-style wheels to the designated axles on the cart. Ensure they rotate freely.
3. Install Handle and Shelf: Attach the side handle and the working platform shelf to the cart using the provided hardware.
4. Place Machine Head: Carefully lift and place the popcorn machine head unit onto the top of the assembled cart. Ensure it is seated securely and aligned with any locking mechanisms.
5. Hubungkan Daya: Plug the machine into a standard 120V AC outlet.

Figure 4.1: Assembled cart base with wheels.

Figure 4.2: Detail of the working platform shelf.

5. Petunjuk Pengoperasian

Ikuti langkah-langkah ini untuk membuat popcorn yang lezat:

1. Panaskan ketel terlebih dahulu: Ensure the kettle is clean and dry. Close the kettle lid. Turn on the "Pot Heater" switch (usually the rightmost switch) and the "Stirrer" switch (middle switch). Allow the kettle to preheat for 3-5 minutes.
2. Tambahkan minyak: Using the provided measuring cup, add the recommended amount of popcorn oil to the kettle. (Refer to your popcorn kernel packaging for specific ratios, typically 1/3 cup oil for 8oz kernels).
3. Add Kernels: Once the oil is hot (a few test kernels should pop), add 8 ounces of popcorn kernels to the kettle.
4. Pop Popcorn: Keep the "Pot Heater" and "Stirrer" switches on. The popcorn will begin to pop.
5. Ketel Kosong: Once popping slows significantly (about 3-5 seconds between pops), turn off the "Pot Heater" and "Stirrer" switches. Carefully pull the red handle to tilt the kettle and empty the popped corn into the warming deck below.
6. Melayani: Use the popcorn scoop to serve fresh popcorn. The "Warmer" switch (leftmost switch) can be kept on to maintain popcorn temperature and illuminate the interior.

Figure 5.1: The 8oz stainless steel kettle.

Figure 5.2: Interior light for illumination and warming.

Figure 5.3: Popcorn machine in operation.

6. Pembersihan dan Pemeliharaan

Regular cleaning ensures optimal performance and longevity of your popcorn machine.

1. Cabut: Selalu cabut steker mesin dan biarkan dingin sepenuhnya sebelum membersihkan.
2. Empty Old Maids Drawer: Slide out the old maids drawer at the bottom of the machine to remove unpopped kernels and debris.
3. Clean Kettle:
   • Remove the kettle from its hangers.
   • Wipe the interior and exterior of the kettle with a damp cloth. For stubborn residue, a mild detergent can be used, but ensure it is thoroughly rinsed.
   • Do not immerse the kettle's electrical components in water.
   • Keringkan sepenuhnya sebelum dipasang kembali.
4. Interior Bersih: Wipe down the tempered glass panels and stainless steel surfaces inside the machine with a damp cloth. A non-abrasive glass cleaner can be used for the glass.
5. Eksterior Bersih: Wipe the exterior of the machine and cart with a damp kain.
6. Penyimpanan: Simpan mesin di tempat yang kering dan sejuk saat tidak digunakan.

7. Penyelesaian masalah

If you encounter issues with your popcorn machine, refer to the following common solutions:

8. Spesifikasi

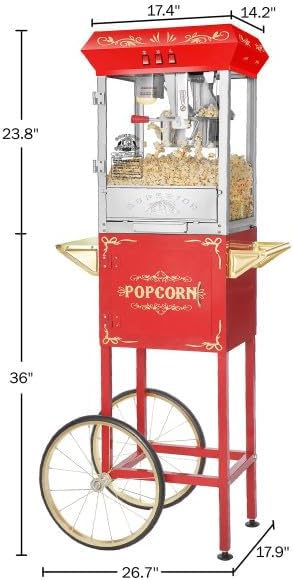

Gambar 8.1: Dimensi produk.

9. Garansi dan Dukungan

Your Superior Popcorn Company Carnival Popcorn Machine is covered by a manufacturer's warranty.

• Machine Warranty: 5 Tahun
• Kettles and Light Bulbs: 30 Hari

For technical support, warranty claims, or replacement parts, please contact Superior Popcorn Company customer service. Refer to the contact information provided on the product packaging or the official brand weblokasi.

Pabrikan: Perusahaan Popcorn Great Northern

Merek: Superior Popcorn Company
