Panduan Pengguna Jam Tangan Pria SKMEI Model 2004

Perkenalan

This user manual provides comprehensive instructions for the SKMEI Men Watch, Model 2004. Please read this manual carefully before using your watch to ensure proper operation, maintenance, and to maximize its lifespan. Keep this manual for future reference.

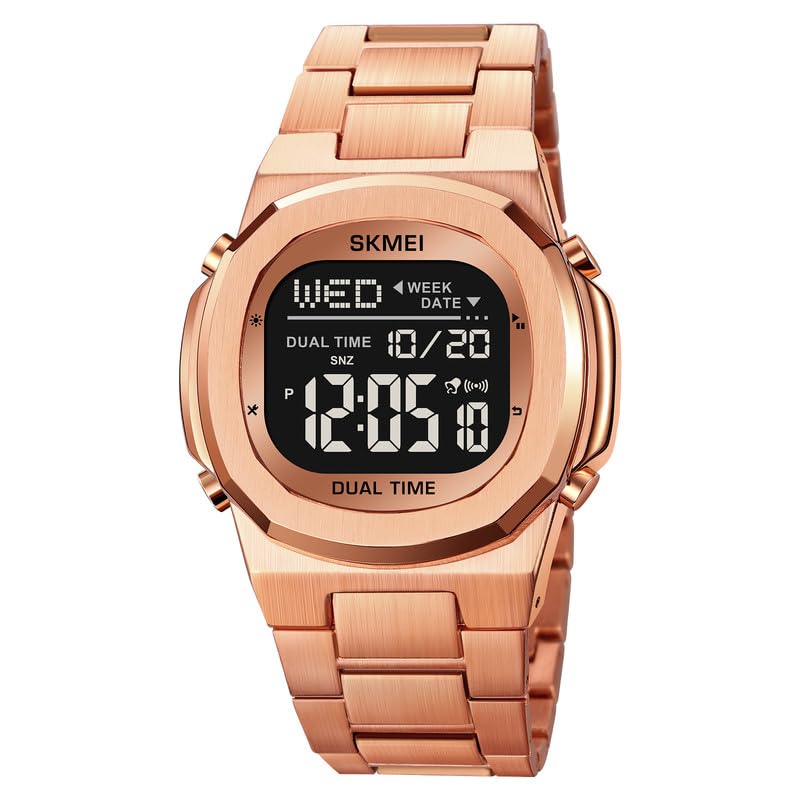

Figure 1: SKMEI Men Watch Model 2004 (Rose Gold Black)

Produk Selesaiview

Fitur Utama

• Menampilkan: Single digital display.
• Fungsi: Time (dual time), Date, Day of the week, Alarm, EL Light.
• Tahan Air: 30 meters (3ATM), suitable for daily splashes and light rain. Not suitable for swimming or diving.
• Bahan: Zinc alloy case, glass crystal, stainless steel buckle.
• Pergerakan: Mesin jam kuarsa yang andal untuk ketepatan waktu.
• Kenyamanan: Lightweight design with an adjustable band for a secure and comfortable fit.

Figure 2: Key Features of SKMEI Model 2004

Komponen

The SKMEI Model 2004 watch consists of the following main components:

1. Tampilan digital: Shows time, date, day, and other indicators.
2. Mode Button (Left-Bottom): Used to cycle through different modes (Time, Alarm, Stopwatch, Dual Time).
3. Light Button (Left-Top): Mengaktifkan lampu latar EL untuk visibilitas dalam kondisi cahaya redup.
4. Start/Set Button (Right-Top): Used to start/stop functions or adjust settings in setting mode.
5. Reset/Adjust Button (Right-Bottom): Used to reset functions or move to the next setting option.
6. Kotak Jam Tangan: Houses the internal components.
7. Tali Jam Tangan: Adjustable metal strap for securing the watch to the wrist.
8. Bagian Belakang Casing: Rear cover indicating model number (2004), water resistance (3ATM), and battery type (CR2032).

Figure 3: Watch Case Back with Model and Battery Information

Pengaturan

Inspeksi Awal

Upon unboxing, inspect the watch for any visible damage. Ensure all buttons are functioning correctly by pressing them gently. The watch should display the time immediately.

Gambar 4: Kemasan Produk

Menyesuaikan Tali Jam Tangan

The metal strap of your SKMEI watch is adjustable to fit various wrist sizes. A small tool is typically provided to assist with this adjustment. If you are unsure, it is recommended to seek assistance from a professional jeweler or watch repair service to avoid damaging the band.

• Locate the small arrows on the inside of the band links. These indicate the direction to push the pin out.
• Use the provided tool or a small, pointed object to push the pin in the direction of the arrow.
• Remove the desired number of links to achieve a comfortable fit.
• Reinsert the pin in the opposite direction to secure the band.

Figure 5: Watch Dimensions for Band Adjustment Reference

Petunjuk Pengoperasian

Pengaturan Waktu dan Tanggal

1. Dari tampilan waktu normal, tekan tombol Mode button (left-bottom) repeatedly until the seconds start flashing. This indicates you are in time setting mode.
2. Tekan tombol Atur Ulang/Sesuaikan button (right-bottom) to cycle through the settings: seconds, hour, minute, month, date, day of the week.
3. Gunakan Mulai/Atur button (right-top) to adjust the flashing value.
4. Setelah semua pengaturan sudah benar, tekan tombol Mode button (left-bottom) to exit the setting mode and return to the normal time display.

Mengatur Alarm

1. Dari tampilan waktu normal, tekan tombol Mode button (left-bottom) until "AL" (Alarm) appears on the display.
2. Tekan tombol Mulai/Atur button (right-top) to activate or deactivate the alarm.
3. Untuk mengatur waktu alarm, tekan tombol Atur Ulang/Sesuaikan button (right-bottom) to make the hour digits flash.
4. Gunakan Mulai/Atur button (right-top) to adjust the hour.
5. Tekan tombol Atur Ulang/Sesuaikan button (right-bottom) again to make the minute digits flash.
6. Gunakan Mulai/Atur button (right-top) to adjust the minutes.
7. Tekan tombol Mode button (left-bottom) to exit the alarm setting mode.

Menggunakan Lampu Latar EL

Untuk menerangi layar dalam kondisi gelap, tekan tombol Lampu button (left-top). The backlight will remain on for a few seconds.

Figure 6: Watch Display with EL Backlight Activated

Water Resistance Guidelines (30M / 3ATM)

Your SKMEI Model 2004 watch is rated for 30 meters (3ATM) water resistance. This means it is protected against accidental splashes, rain, and handwashing. It is bukan designed for:

• Renang
• Mandi atau berendam
• Menyelam atau snorkeling
• Any activity involving prolonged water immersion

Avoid pressing buttons while the watch is wet or submerged, as this can compromise the water seal.

Pemeliharaan

Membersihkan Jam Tangan Anda

Regular cleaning helps maintain the appearance and longevity of your watch. Use a soft, dry cloth to wipe the watch case and band. For stubborn dirt, a slightly damp cloth can be used, but ensure no water enters the watch. Avoid using harsh chemicals or abrasive materials.

Penggantian Baterai

The SKMEI Model 2004 uses a CR2032 button cell battery. When the display becomes dim or the watch stops functioning, it may be time to replace the battery. Battery replacement should ideally be performed by a qualified watch technician to ensure the water resistance seal is properly re-installed.

Penyimpanan

When not in use, store your watch in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. Keeping it in its original packaging or a watch box can protect it from dust and scratches.

Penyelesaian Masalah

Spesifikasi

• Nomor Model: 2004
• Dimensi Produk: Ukuran 20x3.6x0.82 cm
• Berat Barang: 61.9 gram
• Diameter Kasus: 3.6 Sentimeter
• Ketebalan casing: 0.82 Centimetres (approx)
• Jenis Bahan Pita: Zinc (often refers to the case material, while the band is stainless steel as per features)
• Warna Pita: Rose Gold Black (for this specific variant)
• Jenis Gerakan Jam Tangan: Kuarsa
• Kedalaman Tahan Air: 30 Meter (3ATM)
• Jenis Baterai: CR2032
• Negara Asal: India
• Pabrikan: SKMEI

Garansi dan Dukungan

Informasi Garansi

Your SKMEI watch comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage details and duration. The warranty typically covers manufacturing defects but does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.

Dukungan Pelanggan

For any questions, technical assistance, or warranty claims, please contact SKMEI customer support through the official channels provided on the manufacturer's website or the retailer from whom you purchased the watch. Ensure you have your purchase receipt and watch model number (2004) ready when contacting support.
