Baseus A2 Pro Handheld Vacuum Cleaner Instruction Manual

1. Pendahuluan

Thank you for choosing the Baseus A2 Pro Handheld Vacuum Cleaner. This compact and powerful cordless vacuum is designed for efficient cleaning in various environments, from your car to your home or office. Its lightweight design, strong suction, and versatile attachments make it an ideal tool for quick clean-ups and reaching tight spaces. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Apa yang ada di dalam kotak

Your Baseus A2 Pro package includes the following components:

• Baseus A2 Pro Handheld Vacuum Cleaner Unit
• 2-in-1 Brush and Crevice Nozzle
• Nozel Blower
• Kabel Pengisian Daya USB-C
• Panduan Pengguna

Figure 2.1: Baseus A2 Pro Handheld Vacuum Cleaner with included accessories.

3. Produk Lebihview

Familiarize yourself with the components of your Baseus A2 Pro vacuum cleaner:

• Unit Utama: Berisi motor, baterai, dan tombol kontrol.
• Piala Debu: Transparent compartment for collecting debris.
• Filter HEPA: Terletak di dalam wadah debu, menyaring partikel halus.
• Tombol Daya: Turns the vacuum on/off.
• Tombol Mode: Adjusts suction power levels.
• Port Pengisian Daya USB-C: Untuk mengisi ulang baterai internal.
• Nosel 2-in-1: Features a brush for agitation and a crevice tool for narrow gaps.
• Nosel Peniup: Attaches to the exhaust port for blowing dust.

Figure 3.1: Close-up of the versatile 2-in-1 nozzle and the blower nozzle.

4. Pengaturan

4.1 Perakitan

1. Ensure the HEPA filter is correctly seated inside the transparent dust cup.
2. Align the dust cup with the main unit and twist clockwise until it locks securely into place.
3. Attach the desired nozzle (2-in-1 or blower) to the appropriate port. For vacuuming, attach the 2-in-1 nozzle to the suction inlet. For blowing, attach the blower nozzle to the exhaust port at the rear of the unit.

4.2 Pengisian daya

Sebelum digunakan pertama kali, isi daya penuh penyedot debu.

1. Connect the USB-C charging cable to the charging port on the vacuum cleaner.
2. Plug the other end of the USB-C cable into a compatible 5V/2A USB power adapter (not included) or a car USB port.
3. The charging indicator light will illuminate during charging. A full charge typically takes approximately 3-4 hours.
4. Setelah terisi penuh, lampu indikator dapat berubah warna atau mati, tergantung pada modelnya.

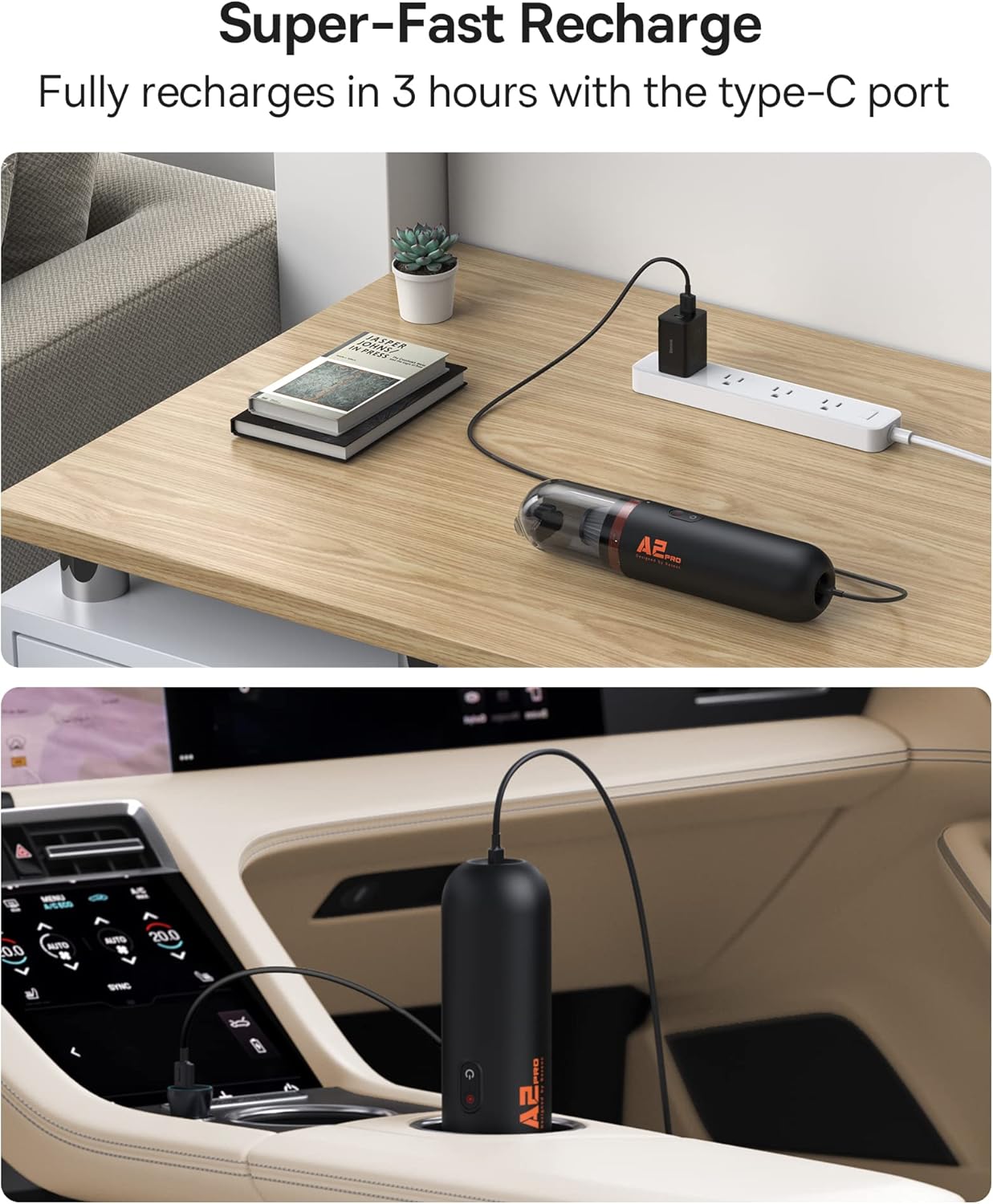

Figure 4.1: Charging the Baseus A2 Pro in different environments.

5. Petunjuk Pengoperasian

5.1 Daya Hidup/Mati

Press and hold the Power Button (usually marked with a power symbol) to turn the vacuum cleaner on or off.

5.2 Menyesuaikan Daya Hisap

The Baseus A2 Pro features two power levels. While the vacuum is on, press the Mode Button (often located near the power button) to switch between low and high suction modes. The indicator lights will show the current power level.

5.3 Penyedotan debu

1. Attach the 2-in-1 nozzle to the suction inlet.
2. For general cleaning, use the brush attachment to agitate debris on surfaces like car seats, carpets, or keyboards.
3. For tight corners, crevices, or between seats, slide the brush back to expose the crevice tool.
4. Move the vacuum slowly over the area to be cleaned, ensuring the nozzle makes good contact with the surface.

Figure 5.1: Vacuuming a couch with the Baseus A2 Pro, highlighting its low noise level.

Figure 5.2: Effective cleaning of car interiors, including hard-to-reach areas.

5.4 Fungsi Tiup

The Baseus A2 Pro can also be used as a blower to clear dust from hard-to-reach areas.

1. Remove the dust cup and any attached nozzle from the suction inlet.
2. Attach the blower nozzle to the exhaust port located at the rear of the main unit.
3. Turn on the vacuum cleaner and direct the airflow to blow away dust from keyboards, car vents, or other delicate surfaces.

6. Pemeliharaan

Perawatan rutin memastikan kinerja optimal dan memperpanjang umur penyedot debu Anda.

6.1 Mengosongkan Wadah Debu

1. Pastikan penyedot debu dimatikan.
2. Putar wadah debu berlawanan arah jarum jam untuk melepaskannya dari unit utama.
3. Carefully empty the collected debris into a waste bin.

6.2 Membersihkan Filter HEPA

The HEPA filter is washable and reusable. Clean it regularly, especially when suction power decreases.

1. Setelah mengosongkan wadah debu, lepaskan filter HEPA.
2. Rinse the HEPA filter under running water until it is clean. Do not use detergents or hot water.
3. Allow the filter to air dry completely for at least 24 hours before reinserting it into the dust cup. Ensure it is completely dry to prevent mold or damage.
4. Reassemble the filter into the dust cup and attach the dust cup back to the main unit.

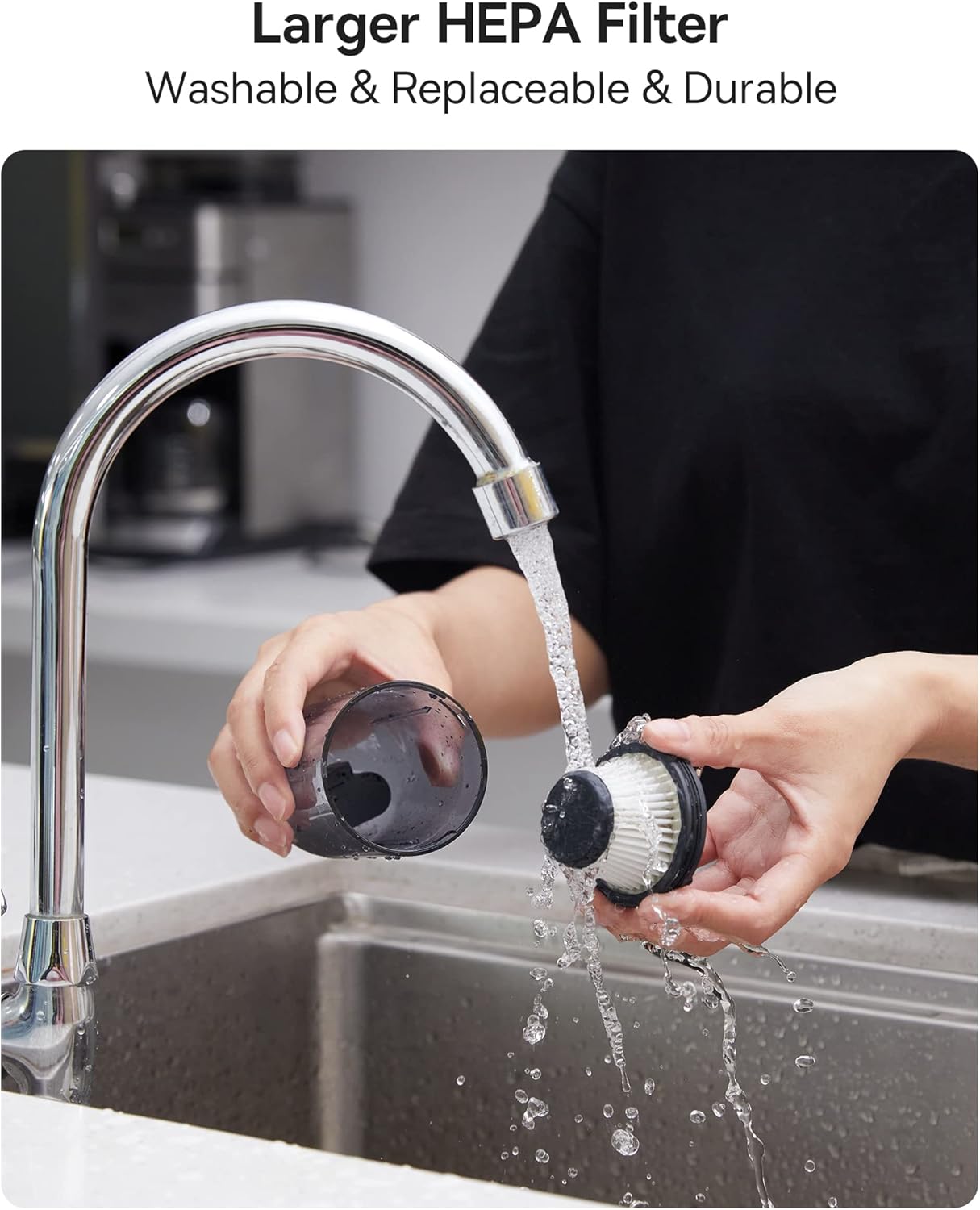

Figure 6.1: Cleaning the washable HEPA filter.

7. Penyelesaian masalah

If you encounter any issues with your Baseus A2 Pro, refer to the following troubleshooting guide:

8. Spesifikasi

9. Garansi & Dukungan

Baseus products are manufactured to the highest quality standards. For warranty information, technical support, or any questions regarding your Baseus A2 Pro Handheld Vacuum Cleaner, please refer to the warranty card included in your package or contact Baseus customer support directly. Keep your purchase receipt as proof of purchase for warranty claims.
