Buku Panduan Pengguna Jam Dinding Kontrol Radio Acctim Parona 74312

Perkenalan

Thank you for choosing the Acctim Parona 74312 Radio-Controlled Wall Clock. This clock is designed to automatically set and maintain accurate time by receiving a radio signal. Please read this manual carefully to ensure proper setup and operation of your new clock.

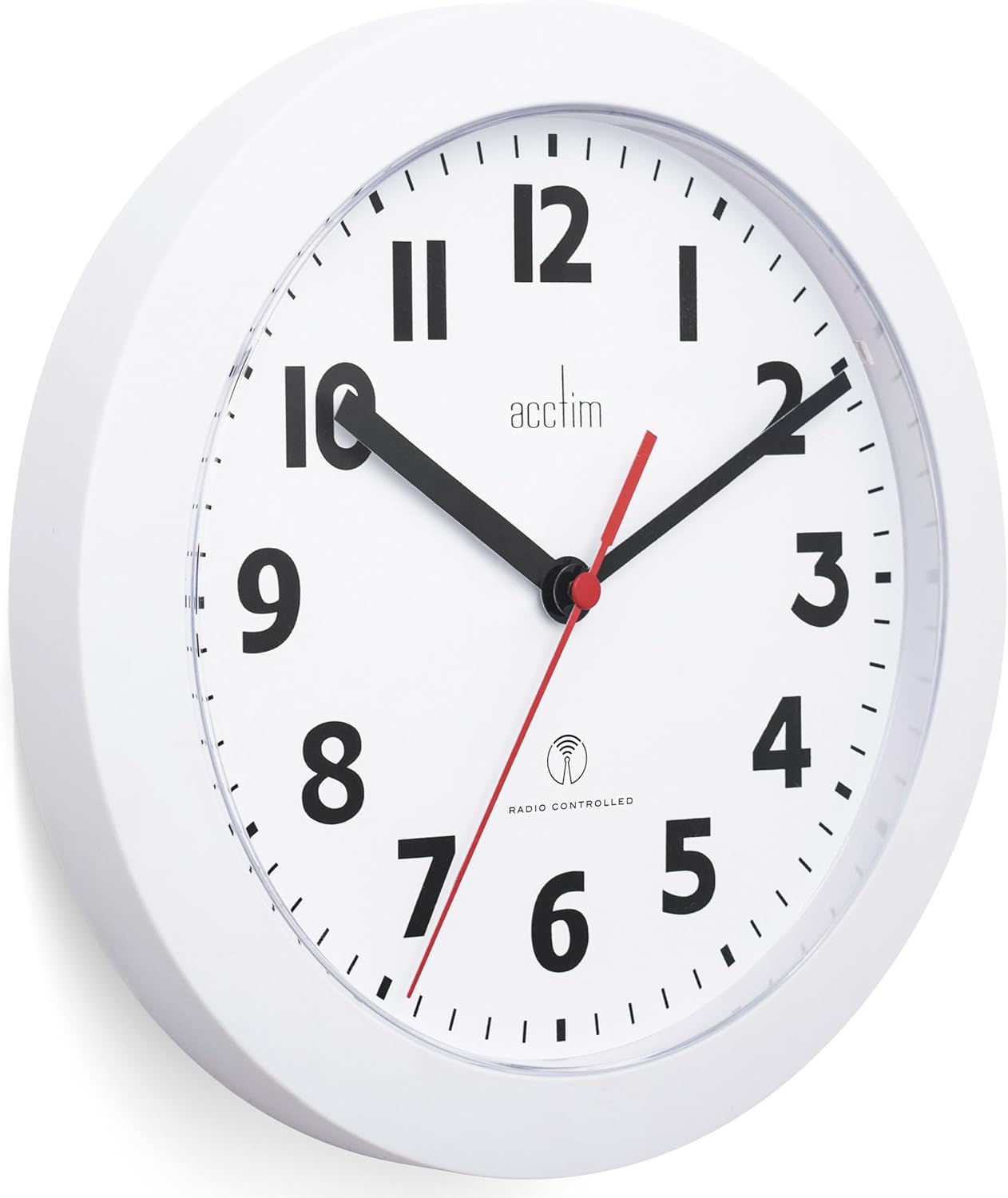

Depan view of the Acctim Parona 74312 Radio-Controlled Wall Clock, white with black numbers and hands.

Gambar 1: Depan view of the Acctim Parona 74312 Radio-Controlled Wall Clock. This image shows the clock's clean white face, clear black Arabic numerals, and black hour and minute hands with a red second hand. The "Acctim" logo is visible below the 12 o'clock position, and "RADIO CONTROLLED" with a signal icon is above the 6 o'clock position.

Pengaturan

Follow these steps to set up your radio-controlled wall clock:

Pemasangan Baterai:
Locate the battery compartment on the back of the clock. Insert one (1) AA alkaline battery, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
Gambar 2: Kembali view of the clock, highlighting the battery compartment. This image displays the rear casing of the clock, with a clear view of the circular battery slot and its polarity indicators.
Pengaturan Waktu Awal:
After battery insertion, the second hand will begin to rotate clockwise and stop at the 12 o'clock position. Within approximately 3 minutes, the minute and hour hands will also move to the 12 o'clock position. This indicates that the clock is in signal reception mode.
Penerimaan Sinyal:
The clock will then attempt to receive the MSF radio signal and automatically adjust to the correct time. Please be patient, as this process can take some time. For optimal signal reception, it is recommended to leave the clock undisturbed overnight, as signal transmission is often stronger during nighttime hours.

Once the clock successfully receives the signal, it will periodically search for the signal at 1 AM, 3 AM, 5 AM, 1 PM, 5 PM, and 9 PM to maintain accuracy.

Petunjuk Pengoperasian

Your Acctim Parona 74312 clock is designed for fully automatic operation once the initial setup is complete.

Sinkronisasi Waktu Otomatis: The clock continuously monitors the MSF radio signal, which broadcasts the precise time from Anthorn, Cumbria, UK. This ensures your clock is always accurate, including automatic adjustments for Daylight Saving Time (DST).
Kekuatan Sinyal: The strength of the radio signal can be affected by geographical location, atmospheric conditions, and interference from electronic devices or large metal objects. For best reception, place the clock near a window and away from other electronics.

Pemeliharaan

Penggantian Baterai: When the clock stops or the second hand begins to jump erratically, it is time to replace the battery. Always use a fresh AA alkaline battery.
Pembersihan: To clean the clock, wipe it with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these may damage the clock's finish or internal components.
Lingkungan: Avoid exposing the clock to extreme temperatures, direct sunlight, or high humidity, which can affect its performance and lifespan.

Penyelesaian Masalah

Masalah	Kemungkinan Penyebab / Solusi
Jam tidak menunjukkan waktu yang tepat.	Sinyal lemah: The clock may be in an area with poor radio signal reception. Try moving the clock to a different location, preferably near a window and away from electronic devices or large metal objects. Initial Setup Time: Allow sufficient time (up to 24 hours) for the clock to receive the signal, especially during initial setup or after battery replacement. Baterai: Ensure the battery is fresh and inserted with correct polarity.
Clock shows incorrect time, specifically one hour off.	Zona Waktu: The Acctim Parona 74312 clock receives the MSF signal, which broadcasts the time for the UK (Greenwich Mean Time / British Summer Time). If you are located outside the UK time zone, the clock will display the UK time. This model does not have a manual time zone adjustment feature. Waktu Musim Panas (DST): The clock automatically adjusts for UK DST. If your region observes DST differently or not at all, this may cause a discrepancy.
Clock stops or runs intermittently.	Baterai Lemah: Ganti baterai dengan baterai alkaline AA baru. Faktor Lingkungan: Ensure the clock is not exposed to extreme temperatures or humidity.

Spesifikasi

Fitur	Detil
Merek	Acctim
Nomor Model	74312
Warna	Putih
Dimensi Produk (P x L x T)	23 x 3.81 x 23 cm (9.06 x 1.5 x 9.06 inci)
Berat Barang	300 gram (0.66 pon)
Bahan	Plastik
Fitur Khusus	Radio-controlled (MSF signal)
Sumber Daya	Battery Powered (1 x AA required)
Jenis Tampilan	Analog

Garansi dan Dukungan

Acctim products are manufactured to high-quality standards. For information regarding warranty coverage or technical support, please refer to the warranty card included with your purchase or visit the official Acctim websitus. Simpan struk pembelian Anda sebagai bukti pembelian.

For further assistance, you may contact Acctim customer service through their official channels. Details are typically available on the product packaging or the brand's official weblokasi.
