HydroFlow - logo TMCT15 Terminator
Owner’s Manual

Contents hide
1 INSTALL TO THE RIGHT POSITION FIRST TIME – EVERYTIME!
2 Documents / Resources
2.1 References
3 Related Posts

INSTALL TO THE RIGHT POSITION FIRST TIME – EVERYTIME!

The innovative design of the rotating nut means the outlet is always in the desired position for ease of connection.
The cone washer seals on the inside of the brass nipple, meaning Teflon Tape or Hemp is not required, minimizing the risk of leakage.

  • Quick to install
  • Rotatable and compact
  • No Teflon tape or Sealant required
  • Great for confined spaces

SIMPLE 2 STEP INSTALL

HydroFlow TMCT15 Terminator Owner's - INSTALL 1HydroFlow TMCT15 Terminator Owner's - INSTALL 2
Align stop outlet to the correct positionScrew on Swivel nut (with cone washer) to the threaded nipple. Then tighten with a wrench.

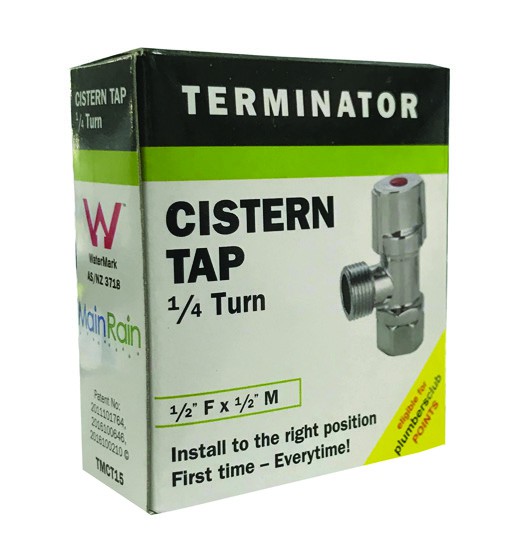

HydroFlow TMCT15 Terminator Owner's - overview 1CISTERN TAP 1/4 TURN
CODE: TMCT15 Cistern Tap		HydroFlow TMCT15 Terminator Owner's - overview 2

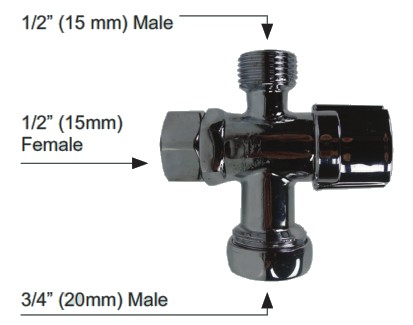

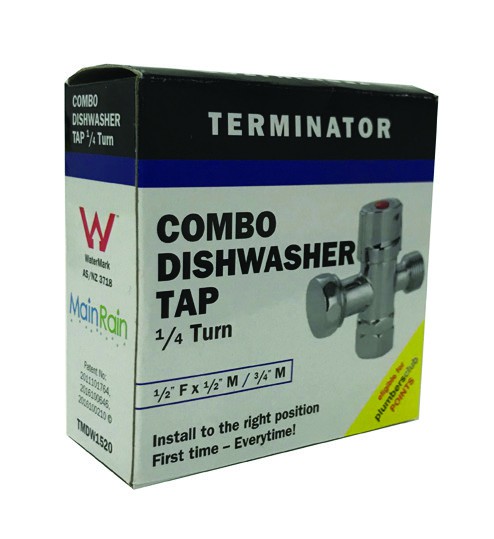

HydroFlow TMCT15 Terminator Owner's - overview 3COMBO DISHWASHER TAP 1/4 TURN
CODE: TMDW1520
Outlet connection for Dishwasher and sink mixer		HydroFlow TMCT15 Terminator Owner's - overview 4

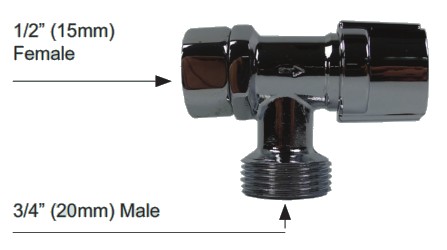

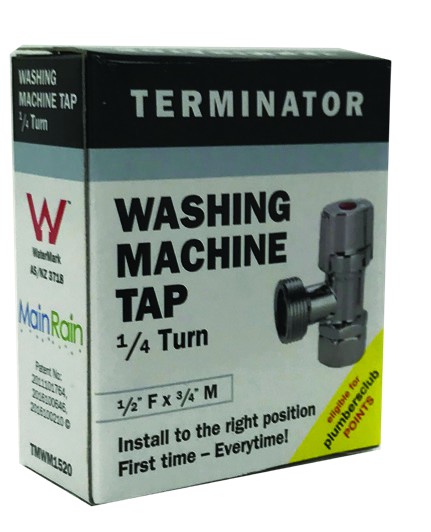

HydroFlow TMCT15 Terminator Owner's - overview 5WASHING MACHINE TAP 1/4 TURN
CODE: TMWM1520
Dishwasher or Washing Machine		HydroFlow TMCT15 Terminator Owner's - overview 6

HydroFlow - logowww.hydroflow.co.nz

Documents / Resources

HydroFlow TMCT15 Terminator [pdf] Owner's Manual
TMCT15 Terminator, TMCT15, Terminator
