Duramax DH 1.7 (770 L) Metal Garden Storage Box User Manual

1. Ներածություն

Welcome to your new Duramax DH 1.7 Metal Garden Storage Box. This manual provides essential information for the safe assembly, operation, and maintenance of your storage unit. Please read these instructions carefully before beginning assembly or use to ensure proper function and longevity of your product.

The Duramax DH 1.7 is a waterproof and easy-to-maintain outdoor storage solution, crafted from hot-dip galvanized steel with a realistic wood grain finish. It offers approximately 770 liters of storage space, ideal for garden cushions, tools, and other outdoor equipment. Key features include hydraulic gas struts for easy lid operation and a locking eyelet for added security.

Figure 1: Duramax DH 1.7 Metal Garden Storage Box (closed view).

2. Անվտանգության տեղեկատվություն

Հավաքման և օգտագործման ընթացքում պահպանեք հետևյալ անվտանգության կանոնները.

• Երկու անձից բաղկացած ժողով. Assembly requires at least two adults. Some parts may be heavy or awkward to handle alone.
• Կրեք պաշտպանիչ միջոցներ՝ Always wear work gloves to protect hands from sharp edges during assembly. Safety glasses are also recommended.
• Կայուն մակերես. Assemble the storage box on a flat, level, and stable surface to prevent warping or instability.
• Ապահով տեղադրում. Ensure the assembled box is placed on a firm, level surface. If used on uneven ground, the structure may become unstable.
• Երեխաներ և կենդանիներ. Keep children and pets away from the assembly area. Do not allow children to play inside or on the storage box.
• Քաշի բաշխում. Distribute contents evenly inside the box. Do not overload the box or place excessively heavy items on the lid.
• Օդափոխում: Do not store flammable liquids, chemicals, or other hazardous materials inside the box without proper ventilation and safety precautions.
• Կափարիչի գործողություն. Be cautious when opening and closing the lid. The hydraulic gas struts assist, but ensure hands and fingers are clear of pinch points.

3. Փաթեթի բովանդակությունը

Before beginning assembly, unpack all components and verify that all parts are present and undamaged. Refer to the parts list provided in your packaging. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

Figure 2: The Duramax DH 1.7 storage box integrated into an outdoor environment.

Տիպիկ բաղադրիչները ներառում են.

• Side Panels (Front, Back, Left, Right)
• Կափարիչի ժողով
• Base Plate
• Hydraulic Gas Struts (2 units)
• Handles (2 units)
• Փական ակնոց
• Hardware Kit (screws, nuts, washers, bolts)
• Հրահանգների ձեռնարկ

4. Տեղադրման և հավաքման հրահանգներ

Պահանջվող գործիքներ. Phillips head screwdriver, adjustable wrench, measuring tape, work gloves, safety glasses.

1. Prepare the Assembly Site: Choose a flat, level, and clear area for assembly. Ensure sufficient space around the box for maneuvering parts.
2. Հավաքեք բազան. Connect the base plate sections according to the diagrams in your specific assembly guide. Ensure all connections are secure. The integrated corrugated floor provides stability.
3. Կողային վահանակների միացում. Securely fasten the front, back, and side panels to the assembled base. Ensure the panels are correctly oriented and aligned. Use the provided screws and fasteners, tightening them firmly but not excessively.
4. Install the Lid and Hinges: Attach the lid assembly to the top edge of the back panel using the provided hinges. Ensure the lid opens and closes smoothly before proceeding.


Figure 3: Detail of the lid hinge mechanism.

5. Install Hydraulic Gas Struts: Attach the hydraulic gas struts to the designated mounting points on the lid and the side panels. These struts are designed to assist in opening and holding the lid open. Test the lid operation after installation.

Figure 4: Hydraulic gas strut for assisted lid opening.
6. Կցեք բռնակները և կողպման մեխանիզմը՝ Secure the handles to the front or sides of the box as indicated in your specific instructions. Install the locking eyelet, ensuring it aligns with the lid for future padlock use.


Figure 5: Ergonomic handle for easy movement.

7. Վերջնական ստուգում. Double-check all fasteners to ensure they are tight. Verify that the lid opens and closes smoothly and that the box is stable.

Figure 6: The storage box with its lid open, revealing the spacious interior.

5. Գործառնական հրահանգներ

Your Duramax DH 1.7 storage box is designed for straightforward operation.

• Կափարիչի բացումը՝ Gently lift the lid. The hydraulic gas struts will engage to assist in opening and holding the lid in the open position, preventing it from slamming shut.
• Կափարիչի փակում. Apply gentle downward pressure on the lid. The gas struts will smoothly guide the lid back to the closed position. Ensure no objects or body parts are in the path of the closing lid.
• Տուփի կողպումը. For added security, align the locking eyelet on the lid with the corresponding point on the box and insert a padlock (not included).
• Պահպանման հզորություն: The box has a capacity of 770 liters. When storing items, distribute weight evenly to maintain stability. Avoid placing sharp objects directly against the interior walls to prevent damage.

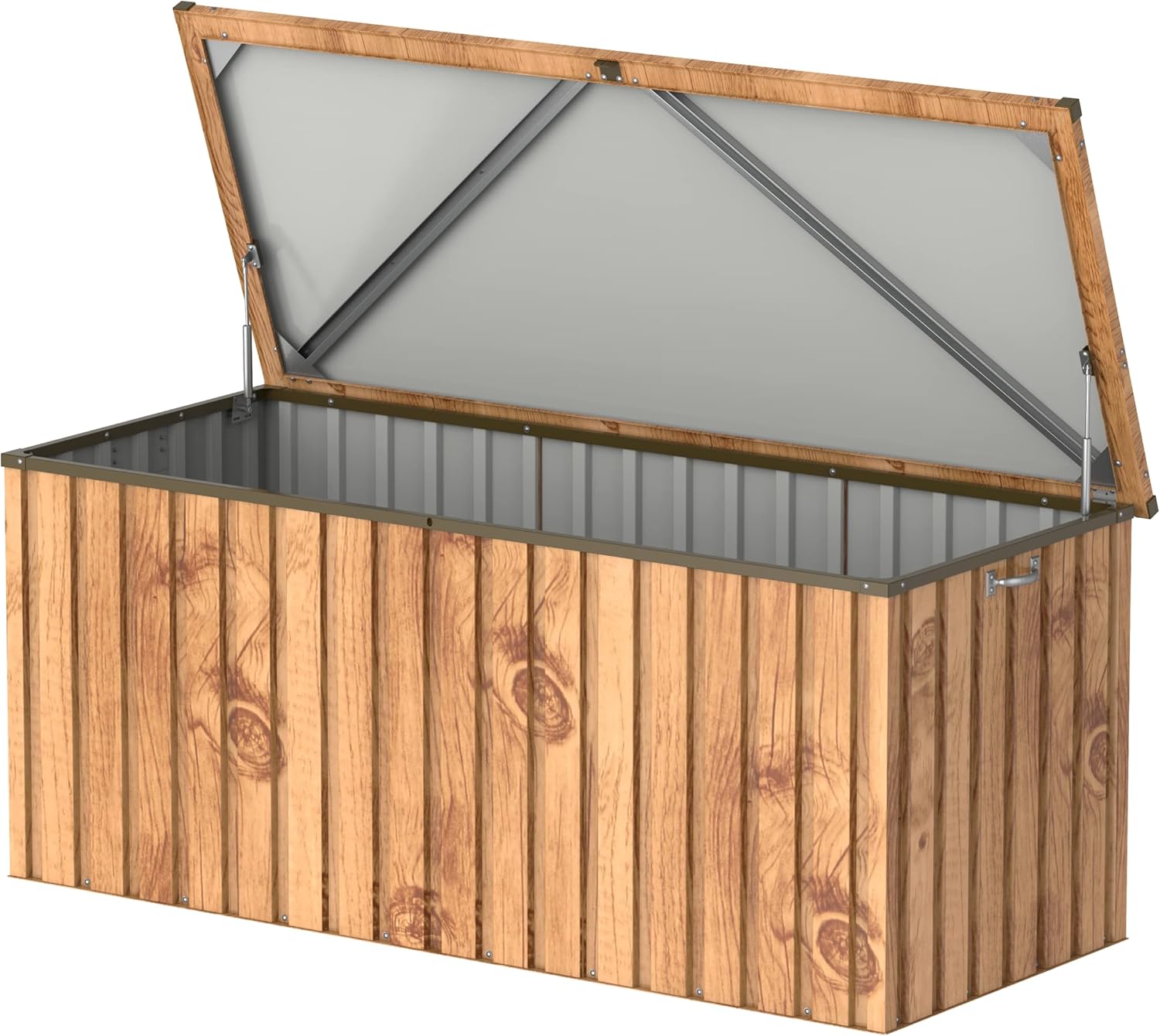

Նկար 7. Ինտերիեր view ցույց տալով ample storage space and lid mechanism.

6. Պահպանում

Regular maintenance will ensure your Duramax storage box remains in optimal condition for years.

• Մաքրում: Clean the exterior and interior surfaces periodically with a soft cloth, mild soap, and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners or harsh chemicals, which can damage the finish.
• Ստուգում: Annually inspect all fasteners, hinges, and hydraulic gas struts for tightness and signs of wear or corrosion. Tighten any loose screws and replace worn parts as necessary.
• Քսում: Apply a silicone-based lubricant to the hinges and gas strut pivot points once a year to ensure smooth operation.
• Դրենաժային: Ensure the area around the base of the box is clear of debris to allow for proper drainage and prevent water accumulation.
• Ձմեռային խնամք. While weather-resistant, consider removing cushions and other sensitive items during harsh winter conditions to prolong their lifespan.

7: Անսարքություն

Հաճախակի խնդիրների և դրանց լուծումների համար դիմեք ստորև բերված աղյուսակին։

8. Տեխնիկական պայմաններ

9. Երաշխիք և աջակցություն

Duramax products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official Duramax website. In case of missing parts, damage, or technical assistance, please contact Duramax customer support directly. Have your model number and purchase date ready when contacting support.
