Comfort Stretch Power Recliner Sectional Sofa

Bevezetés

This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your Comfort Stretch Power Recliner Sectional Sofa. Please read all instructions carefully before use and retain this manual for future reference.

Biztonsági információk

A biztonságos működés és a károk elkerülése érdekében kérjük, tartsa be az alábbi biztonsági utasításokat:

• Always read and understand all instructions before assembling or operating the sofa.
• Tartsa távol a gyermekeket és a háziállatokat az összeszerelési területtől. A kis alkatrészek fulladásveszélyt okozhatnak.
• Do not stand on the sofa or armrests.
• Ensure all electrical connections are secure and properly grounded.
• Unplug the sofa from the power outlet before cleaning or performing any maintenance.
• Avoid spilling liquids near electrical components, including the control panels and USB ports.
• Kizárólag a mellékelt tápkábelt és adaptert használja.
• Keep hands and feet clear of the reclining mechanism during operation to prevent injury.

A csomag tartalma

Az összeszerelés megkezdése előtt ellenőrizze, hogy minden alkatrész megvan-e:

• Sectional Sofa Units (various pieces forming the L-shape)
• Console Units with Cup Holders and Controls
• Power Cords and Adapters
• Összeszerelő hardverek (csavarok, alátétek stb.)
• Használati útmutató

Összeszerelési útmutató

Assembly of the Comfort Stretch Power Recliner Sectional Sofa is designed to be straightforward and can typically be completed within 30 minutes. Follow these steps:

1. Alkatrészek kicsomagolása: Carefully remove all parts from their packaging. Place them on a clean, soft surface to prevent scratches.
2. Retrieve Console Backrests: The backrests for the console units are packaged inside the console itself. Lay the console unit down and access the bottom to retrieve the backrest.
3. Connect Sectional Units: Align the metal brackets on the sides of the sectional pieces and slide them together until they lock securely.
4. Háttámlák rögzítése: Slide the backrests onto their corresponding bases until they click into place. Ensure they are firmly seated.
5. Csatlakoztassa az áramot: Locate the power input on the back of the sofa. Connect the power cord to the sofa and then plug it into a standard electrical outlet.

Kezelési útmutató

Your sectional sofa is equipped with several features for enhanced comfort and convenience:

Power Recliner Function

The sofa features power recliners on both end seats. To operate:

• Fekszik: Locate the control buttons on the side of the console. Press and hold the recline button (often indicated by a reclining figure) to extend the footrest and recline the backrest. The recliner can adjust from 90° to 160°.
• Vissza az Uprighthoz: Press and hold the upright button (often indicated by an upright figure) to retract the footrest and return the backrest to its original position.

LED világítás

The sofa includes integrated LED strip lighting along its base for ambient illumination.

• Aktiválás/deaktiválás: Press the light button on the console to turn the LED lights on or off.

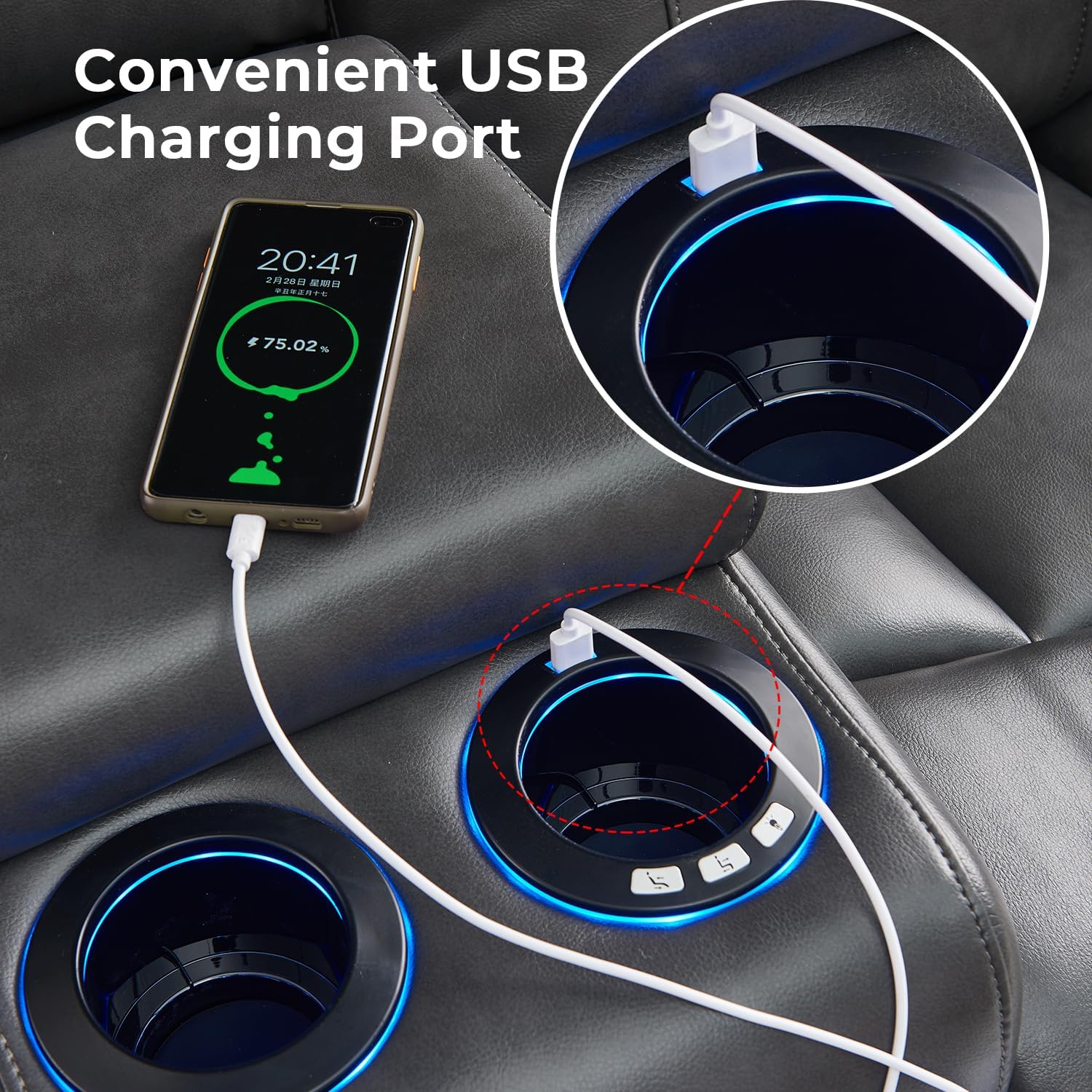

USB töltőport

Each console unit is equipped with a USB charging port.

• Töltő eszközök: Plug your electronic device's USB cable into the port to charge it while relaxing on the sofa.

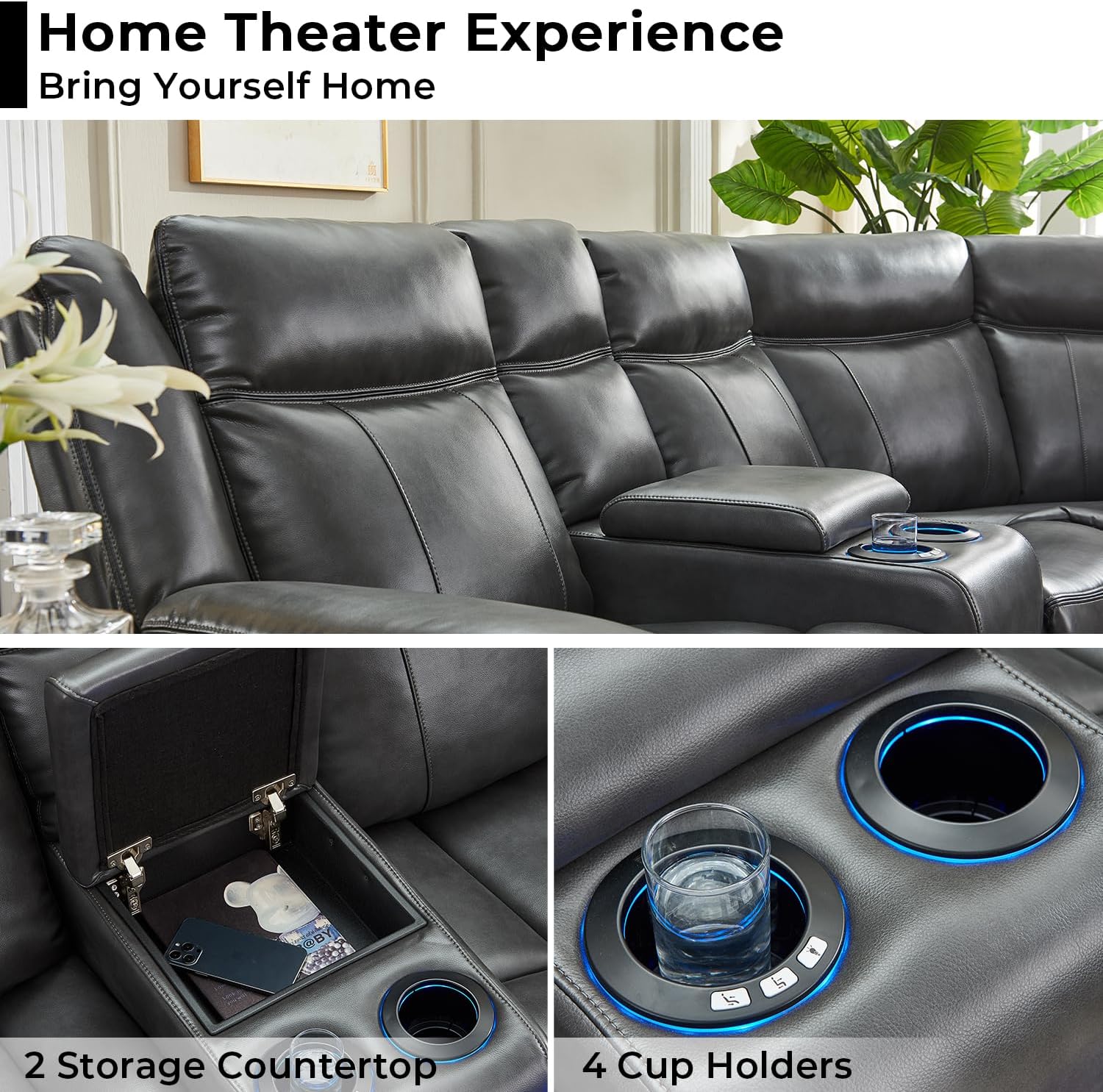

Storage Console and Cup Holders

The console units provide convenient storage and cup holders.

• Tárolás: Lift the padded lid of the console to access a spacious storage compartment for remotes, books, or other small items.
• Pohártartók: Use the built-in cup holders to securely hold beverages.

Product Feature Demonstration Video

Videó: This video demonstrates the key features of the Power Recliner Sectional Sofa, including connecting power, activating LED lights, utilizing the storage console, adjusting the recliner, and using the USB charging port.

Videó: Ez a videó átfogó képet adview of the Power Recliner Sectional Sofa, showcasing its wall-hugger design, reclining functionality, LED strip lighting, storage console, USB charging, and overall comfort.

Karbantartás

Proper care will extend the life and appearance of your sectional sofa:

• Tisztítás: The upholstery cleaning code is 'W', indicating that only water-based cleaning agents should be used. Test any cleaning solution on an inconspicuous area first. Do not saturate the fabric.
• Általános gondozás: Avoid direct sunlight to prevent fading. Keep sharp objects away from the upholstery to prevent tears or punctures. Regularly dust and vacuum the sofa to remove debris.
• Mechanizmus gondozása: Periodically check and tighten any loose bolts on the reclining mechanism. Do not lubricate the mechanism unless specifically instructed by customer support.

Hibaelhárítás

If you encounter issues with your sofa, refer to the following common problems and solutions:

• Recliner Not Operating:
  • Ensure the power cord is securely plugged into both the sofa and the wall outlet.
  • Check if the power switch on the sofa (if present) is in the 'ON' position.
  • Ellenőrizze a fali aljzat működését egy másik eszköz csatlakoztatásával.
• LED lámpák nem működnek:
  • Confirm the power is connected and the light button on the console has been pressed.
• USB port nem töltődik:
  • Ensure the sofa is powered on.
  • Try a different USB cable or device to rule out a faulty cable/device.
• Recliner Movement is Not Smooth:
  • Ensure there are no obstructions around or under the reclining mechanism.
  • Ha a probléma továbbra is fennáll, forduljon az ügyfélszolgálathoz.

For any shipping damage on arrival or defects during use not covered by these troubleshooting steps, please contact Comfort Stretch customer service for assistance.

Műszaki adatok

Garancia és támogatás

Comfort Stretch is committed to customer satisfaction. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any product inquiries, warranty claims, or technical support, please contact Comfort Stretch customer service through the retailer where the product was purchased.
