EAZYRC 1/18 Colorado RC Monster Truck felhasználói kézikönyv

Bevezetés

Thank you for choosing the EAZYRC 1/18 Colorado RC Monster Truck. This high-performance 4x4 brushless remote control truck is designed for thrilling off-road experiences, reaching speeds of 45+ KPH. This manual provides essential information for the safe operation, maintenance, and optimal performance of your new RC vehicle. Please read it thoroughly before first use.

Biztonsági információk

• Az RC teherautót mindig nyílt terepen, emberektől, háziállatoktól és akadályoktól távol üzemeltesse.
• Do not operate near public roads, water, or in adverse weather conditions.
• Tartsa távol az ujjait, a haját és a laza ruházatot a mozgó alkatrészektől.
• Minden használat előtt győződjön meg róla, hogy az akkumulátor teljesen fel van töltve, és húzza ki, ha nem használja.
• 14 év alatti felhasználók számára felnőtt felügyelete ajánlott.
• Do not attempt to modify the vehicle or its components, as this may void the warranty and cause damage.

A csomag tartalma

Ellenőrizze, hogy az alább felsorolt ​​összes tétel megtalálható-e a csomagban:

• EAZYRC 1/18 Colorado RC Monster Truck (Red)
• 2.4 GHz-es távirányító adó
• 7.4V 1050mAh Li-Po akkumulátor
• USB töltőkábel
• Wheelie bár
• Csavarhúzó
• Imbuszkulcs
• Spare Body Pins
• Használati utasítás (ez a dokumentum)

Image: The EAZYRC 1/18 Colorado RC Monster Truck shown with its remote control, battery, charger, tools, and wheelie bar.

Termék végeview

Familiarize yourself with the main components of your RC truck and remote control.

Járműalkatrészek

Kép: Felrobbantva view diagram highlighting key internal components such as the front crash kit with LED, upper and lower swing arm suspension, full metal oil-hydraulic shock absorbers, CVD tyre rotation assembly, 7.4V 1050mAh battery, honeycomb flat bottom nylon chassis, 45A ESC, 17g metal steering servo, cooling fan, and 2845 Brushless motor.

• Front Crash Kit (with LED): Provides protection and illumination.
• Upper and Lower Swing Arm Suspension: For flexible and durable handling.
• Full Metal Oil-Hydraulic Shock Absorbers: Ensures smooth rides over rough terrain.
• CVD Tyre Rotation Assembly: Durable drive system for efficient power transfer.
• 7.4V 1050mAh Battery: Hajtja a járművet.
• Honeycomb Flat Bottom Nylon Chassis: Lightweight and robust base.
• 45A ESC (Electronic Speed Controller): Manages motor speed and direction.
• 17g Metal Steering Servo: Provides precise steering control.
• Hűtőventilátor: Helps dissipate heat from electronic components.
• 2845 Brushless Motor: High-performance motor for speed and power.

Kép: Egy részletes view of the internal electronics and suspension system of the EAZYRC Colorado RC truck.

Távirányító adó

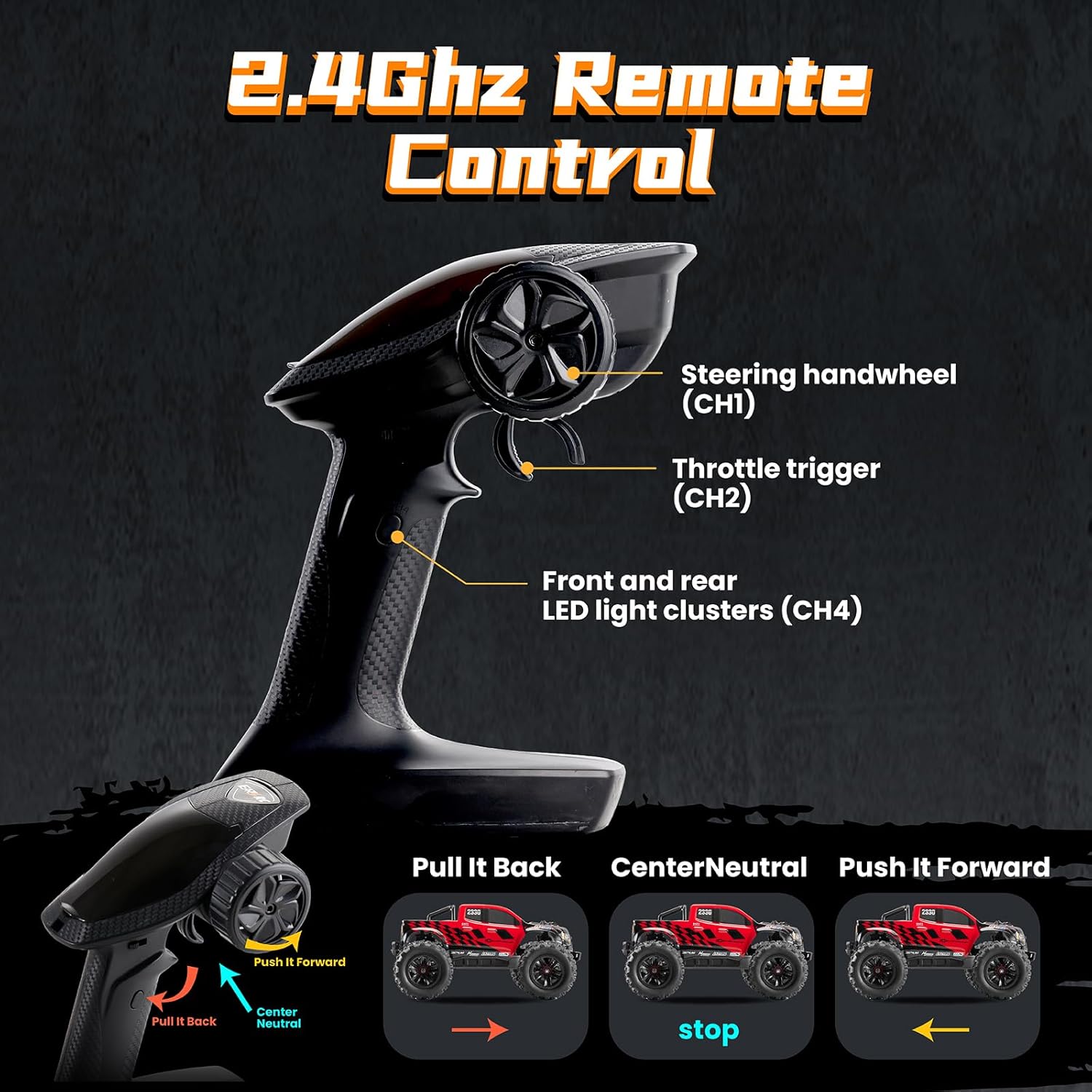

Image: Diagram illustrating the functions of the 2.4GHz remote control, including the steering handwheel (CH1), throttle trigger (CH2), and front and rear LED light clusters (CH4) control.

• Steering Handwheel (CH1): Bal és jobb kormányt vezérel.
• Gázkar (CH2): Húzd a gyorsításhoz előre, nyomd a fékezéshez/hátramenethez.
• Front and Rear LED Light Clusters (CH4): A jármű lámpáit vezérli.

Beállítás

1. Charging the Li-Po Battery

Connect the provided USB charger cable to a USB power source (e.g., computer USB port, USB wall adapter). Connect the battery to the charger. The indicator light on the charger will show charging status (typically red for charging, green for fully charged). A full charge takes approximately 2-3 hours. Do not overcharge the battery.

2. A jármű akkumulátorának beszerelése

1. Remove the body pins and lift the truck body.
2. Keresse meg az elemtartó rekeszt.
3. Insert the fully charged 7.4V 1050mAh Li-Po battery into the compartment.
4. Connect the battery connector to the vehicle's power connector. Ensure the connection is secure.
5. Carefully tuck the wires to avoid pinching and replace the truck body, securing it with the body pins.

3. A távirányító elemeinek behelyezése

The remote control requires 4 AA batteries (not included). Open the battery compartment on the back of the remote control and insert the batteries, observing the correct polarity (+/-). Close the compartment cover securely.

4. Attaching the Wheelie Bar

The wheelie bar helps prevent the truck from flipping backward during rapid acceleration. To install:

1. Locate the two screw holes on the rear bumper of the truck.
2. Align the wheelie bar's mounting points with these holes. Note that the mounting piece on the wheelie bar can pivot to align with the bumper's angle. Adjust as necessary.
3. Use the provided screws and screwdriver to secure the wheelie bar firmly to the bumper.

Image: The EAZYRC Colorado truck demonstrating its front LED lights, with a separate image of the wheelie bar component.

Kezelési útmutató

1. A távirányító párosítása

1. Turn on the remote control transmitter. The indicator light will blink.
2. Turn on the RC truck by pressing the power button on the ESC.
3. The remote control and truck should automatically pair. The indicator light on the remote will become solid when paired.

2. Basic Driving Controls

• Előre: Pull the throttle trigger towards you.
• Fék/Hátramenet: Push the throttle trigger away from you.
• Kormányzás: Rotate the steering handwheel left or right.

3. Advanced Maneuvers and Terrain

The EAZYRC Colorado is built for various terrains and stunts:

Kép: Kollázsbemutatóasing the EAZYRC Colorado performing various stunts such as violent drifting, backflips, jumping, head lifts, hill climbs, and handstands.

• Violent Drifting: Achieved by combining steering and throttle control on loose surfaces.
• Backflip & Jumping: Használja az r-tamps or natural inclines with full throttle. The wheelie bar can assist with controlled backflips.
• Head Lifts & Handstands: Requires precise throttle control and weight transfer.
• Hill Climb: The 4x4 drivetrain and powerful brushless motor allow for effective climbing on inclines.

Image: Three EAZYRC Colorado RC trucks (red, white, blue) displayed on a sandy, outdoor terrain, highlighting their ready-to-run (RTR) nature, 2.4GHz remote control, metal shock absorbers, soft plastic body, and stiff chassis.

4. Tippek az optimális teljesítményhez

• Always ensure the battery is fully charged for maximum run time and power.
• Practice in open spaces to get accustomed to the truck's speed and handling.
• Adjust steering trim on the remote control if the truck does not drive straight.
• Avoid prolonged operation in wet conditions to protect electronics.

Karbantartás

1. Cleaning the Vehicle

After each use, especially in dirty or dusty conditions, clean the truck to maintain performance and longevity. Use a soft brush or compressed air to remove dirt and debris from the chassis, suspension, and motor area. Wipe the body with a damp szövet.

2. Akkumulátor gondozása és tárolása

• Store Li-Po batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
• Do not store fully charged or completely depleted batteries for extended periods. Charge to storage voltage (around 3.8V per cell) if storing for more than a few days.
• Inspect batteries for any swelling or damage before and after each use. Discontinue use immediately if damaged.

3. Checking for Wear and Tear

Regularly inspect the following components for signs of wear or damage:

• Gumiabroncsok: Check for punctures, tears, or excessive wear on the treads.
• Felfüggesztés: Ensure shock absorbers are functioning correctly and no links are bent or broken.
• Gears & Drivetrain: Listen for unusual noises during operation, which may indicate worn gears.
• Vezetékek és csatlakozók: Verify all wires are securely connected and free from fraying or damage.

Hibaelhárítás

Műszaki adatok

• Termék méretei: 12 x 8.7 x 5.5 hüvelyk
• Tétel súlya: 4.84 font
• Modellszám: 12101
• Gyártó: EAZYRC
• Legnagyobb sebesség: 45+ km/h
• Hajtásrendszer: 4x4
• Motor típusa: kefe nélküli
• Akkumulátor: 7.4V 1050mAh Li-Po
• Távirányító frekvenciája: 2.4 GHz

Kép: Elölről és oldalról view of the EAZYRC Colorado RC truck with dimensions: 222mm width, 140mm height, and 310mm length.

Garancia és támogatás

For warranty information, technical support, or replacement parts, please contact EAZYRC customer service through their official weba weboldalon vagy a kereskedőnél, ahol a terméket vásárolta. Őrizze meg a vásárlást igazoló bizonylatot garanciális igények esetén.
