TrophyRak LLRK32096 12-inch Large Digital Wall Clock Instruction Manual

1. Entwodiksyon

This manual provides detailed instructions for the setup, operation, and maintenance of your TrophyRak 12-inch Large Digital Wall Clock. This clock features a large LED display with multiple color options, automatic brightness adjustment, Daylight Saving Time functionality, and a practical night light. Please read this manual thoroughly before use to ensure proper function and longevity of your device.

2. Pwodwi Features

Gwo ekspozisyon: 11.2-inch width and 4-inch height for clear visibility.
Opsyon koulè vibran: Up to 8 color modes, including solid and RGB shades.
Limyè lannwit: Soft night light with 10 adjustable brightness levels.
Lè varè (DST): One-click adjustment for DST.
Auto-Klate: Built-in light sensor automatically adjusts screen brightness.
Sovgad memwa: Preserves settings during power interruptions (requires CR2032 battery, not for clock operation).

3. Enstalasyon

3.1 Debake

Carefully remove all components from the packaging. Ensure you have the digital wall clock, 5V power adapter, power cable, remote control, and mounting hardware (screws and anchors).

3.2 Koneksyon pouvwa

This clock is corded electric and requires continuous power. Connect the provided power cable to the DC 5V/1A input port on the back of the clock and then plug the 5V power adapter into a standard electrical outlet. The clock will power on automatically.

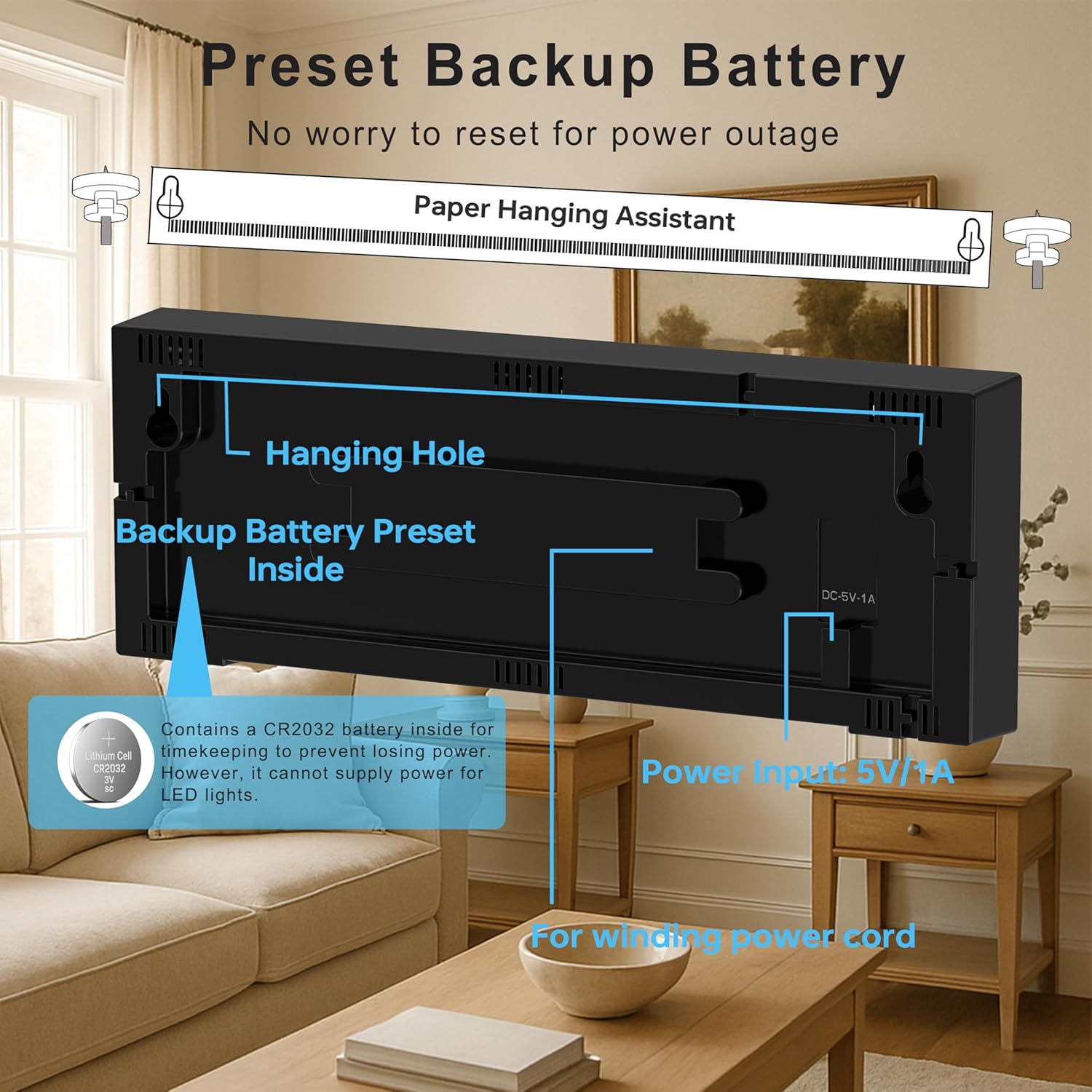

Back of the TrophyRak digital clock showing power input and hanging holes — Imaj: Dèyè view of the clock, highlighting the DC 5V/1A power input and the integrated hanging holes for wall mounting. A small compartment for the CR2032 backup battery is also visible.

A built-in CR2032 battery (pre-installed) provides memory backup for settings during power outages. This battery does not power the LED display.

3.3 Montaj Opsyon

The clock can be wall-mounted using the integrated hanging holes on the back. Use the provided screws and anchors suitable for your wall type. A paper hanging assistant is included to aid in precise placement.

4. Operasyon Enstriksyon

All functions are controlled via the included remote control.

4.1 Anviwònman Tan

Peze a TAN SET bouton sou kontwòl remote la.
Sèvi ak la + epi - bouton pou ajiste lè a ak minit la.
Peze TAN SET ankò pou konfime.
Pou chanje ant fòma 12 èdtan ak 24 èdtan, peze bouton an 12H/24H bouton.

4.2 Display Colors

The clock offers 8 color modes for the time display. Press the Montre Koulè button on the remote control to cycle through the available color options, including solid colors and dynamic RGB shades.

TrophyRak digital clock displaying time in various colors — Image: The digital clock showcasing its 8-in-1 color modes, with the time displayed in different solid and gradient RGB colors.

4.3 Brightness and Dimming

The clock features both manual and automatic brightness control:

Manual Dimmer: Peze a DIMMER button to adjust the screen brightness from high to low.
Auto Dimmer: Peze a OTOMODOMÈ button to activate the built-in light sensor. The clock will automatically adjust its screen brightness according to the ambient light, ensuring optimal visibility day and night.

TrophyRak digital clock with auto-dimming feature — Image: The digital clock displaying time with an illustration of its auto-dimming capability, adapting to ambient light conditions.

4.4 Lè Ete (DST)

To adjust for Daylight Saving Time, press the DST button on the remote control. This feature allows for a quick one-click adjustment in spring and autumn.

TrophyRak digital clock with one-click DST feature — Image: The digital clock displaying time with an illustration of the one-click DST function, showing how time is adjusted for Spring Forward and Fall Back.

4.5 Fonksyon Limyè Lannwit

The clock includes a soft night light feature. Press the Limyè button on the remote control to turn the night light on or off. Use the + epi - buttons to adjust its 10 brightness levels.

TrophyRak digital clock with warm night light feature — Image: The digital clock displaying time with a warm night light illuminating the area below it, demonstrating its adjustable brightness.

5. Antretyen

Netwayaj: Sèvi ak yon twal mou epi sèk pou netwaye ekran an ak casing. Evite pwodui netwayaj oswa solvan abrazif.
Pouvwa: Ensure the clock is connected to a stable 5V power source. Disconnect power during electrical storms or prolonged periods of non-use.
Ranplasman batri: The internal CR2032 battery is for memory backup only. If settings are lost after a power outage, replace the CR2032 battery. Refer to the diagram on the back of the clock for battery compartment access.

NAN. Depanaj

Clock not powering on: Check if the power adapter is securely plugged into both the clock and the electrical outlet. Ensure the outlet is functional.
Ekran twò fèb/klere: Adjust the brightness using the DIMMER buttons or activate AUTO DIMMER mode.
Settings lost after power outage: The internal CR2032 backup battery may need replacement.
Kontwòl remote pa travay: Ensure there are no obstructions between the remote and the clock. Check the remote control battery.

7. Espesifikasyon

Karakteristik	Spesifikasyon
Mak	TrophyRak
Nimewo Modèl	LLRK32096
Kalite ekspozisyon	Dijital dirije
Dimansyon pwodwi	11.2" lajè x 4" wotè
Sous pouvwa	Corded Electric (5V/1A adapter included)
Karakteristik espesyal	Adjustable Brightness, Daylight Saving, Large Display, RGB Colors, Night Light
Pwa atik	1.08 liv
Kalite chanm	Bedroom, Classroom, Living Room

8. Garanti ak sipò

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official TrophyRak websit. Kenbe resi acha ou pou reklamasyon garanti.
