Range Stove Burner Infinite Switch User Manual

1. Entwodiksyon

This manual provides essential information for the installation, operation, and maintenance of your new Range Stove Burner Infinite Switch. This component is a replacement part designed for a wide range of GE electric ranges and stoves, ensuring precise temperature control for your cooking elements. Please read this manual thoroughly before installation and keep it for future reference.

2. Enfòmasyon sou Sekirite

AVÈTISMAN: Risk pou chòk elektrik. Dekonekte kouran an anvan ou fè antretyen.

• Always disconnect power to the appliance at the circuit breaker or fuse box before attempting any installation, repair, or maintenance.
• Installation should only be performed by a qualified technician or a person with adequate electrical knowledge.
• Mete ekipman pwoteksyon pèsonèl (PPE) ki apwopriye, tankou gan izole ak linèt sekirite.
• Ensure all wiring connections are secure and correctly matched to prevent electrical hazards.
• Do not operate the appliance if the switch or any other component is damaged.

3. Pwodwi souview

The Infinite Switch controls the heat output of your range's surface burner elements. It regulates the power supplied to the element, allowing for variable heat settings from low to high. This replacement part is compatible with numerous GE range and stove models, including but not limited to those listed in the product description.

Figi 3.1: Devan view of the Infinite Switch, showing the control shaft and mounting points. This is the primary side visible when installed behind the control knob.

Figi 3.2: Retounen view of the Infinite Switch, displaying electrical specifications (240Vac/15A) and terminal labels (L1, L2, 2, 4, 4A, S2). These terminals are where the electrical connections are made.

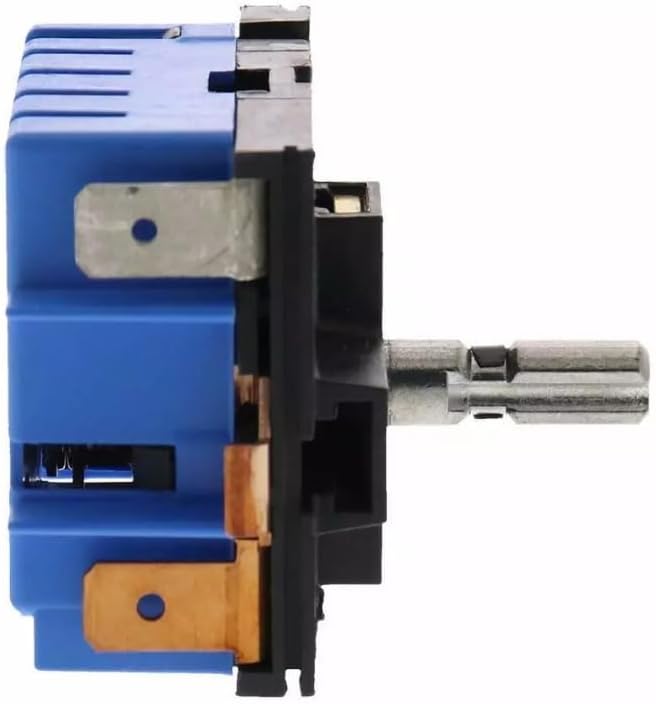

Figi 3.3: Side view of the Infinite Switch, showing its compact profile and the arrangement of the electrical terminals and mounting tabs.

Figi 3.4: Top view of the Infinite Switch, highlighting the robust construction and the central shaft for the control knob.

4. Enstalasyon ak Enstalasyon

This section outlines the general steps for replacing an Infinite Switch. Specific procedures may vary slightly depending on your appliance model. Always refer to your appliance's service manual for detailed instructions.

1. Dekonekte pouvwa: Before beginning, ensure the range/stove is completely disconnected from its power source by unplugging it or turning off the circuit breaker.
2. Aksè nan Panèl Kontwòl la: Depending on your model, you may need to remove the back panel, top panel, or front control panel to access the existing infinite switches. This usually involves removing screws.
3. Idantifye switch ki gen pwoblèm nan: Locate the infinite switch that needs replacement. It will be connected to the burner element and the control knob.
4. Kablaj Dokiman: ETAP KRITIK: Before disconnecting any wires, take clear photos or draw a diagram of the existing wiring connections to the old switch. Note which wire connects to which terminal (e.g., L1, L2, 2, 4, 4A, S2).
5. Dekonekte fil yo: Carefully disconnect all wires from the old switch. Use needle-nose pliers if terminals are tight.
6. Retire ansyen switch la: Unscrew or unclip the old infinite switch from the control panel.
7. Enstale nouvo switch la: Mount the new Infinite Switch in the same position as the old one. Ensure it is securely fastened.
8. Konekte fil yo: Using your photos or diagram, connect the wires to the corresponding terminals on the new switch. Double-check each connection for security and accuracy.
9. Ransanble aparèy la: Carefully reassemble the control panel and any other parts removed. Ensure no wires are pinched.
10. Retabli pouvwa ak tès: Plug the appliance back in or turn on the circuit breaker. Test the new switch by turning the corresponding burner knob through its settings to ensure proper operation and heat control.

5. Operasyon Enstriksyon

The Infinite Switch operates in conjunction with your range's control knob. Once installed, its operation is seamless and identical to the original part.

• Turn the corresponding burner knob clockwise or counter-clockwise to select the desired heat level for the surface element.
• The switch provides a continuous range of heat settings, allowing for precise cooking control from a low simmer to a high boil.
• Ensure the knob is fully turned to the "OFF" position when not in use.

6. Antretyen

The Infinite Switch is a sealed component and requires no internal maintenance. To ensure its longevity and proper function, follow these general maintenance guidelines for your range:

• Keep the control panel area clean and free of grease and food debris. Use a mild, non-abrasive cleaner.
• Avoid spilling liquids directly onto the control knobs or behind the control panel, as this can damage electrical components.
• Periodically check the control knobs for any looseness or damage.
• If you notice any unusual smells, sounds, or erratic behavior from your range, disconnect power immediately and consult a qualified technician.

NAN. Depanaj

If you experience issues after replacing the Infinite Switch, consider the following common troubleshooting steps:

If these steps do not resolve the issue, it is recommended to consult a professional appliance technician.

8. Espesifikasyon

9. Garanti ak sipò

This product is a replacement part. For specific warranty information, please refer to the terms and conditions provided by the seller at the time of purchase. Typically, replacement parts carry a limited warranty against manufacturing defects.

For technical support or assistance with installation, it is recommended to consult a qualified appliance repair professional. If you believe the part is defective upon arrival, please contact your seller directly for return or replacement procedures.
