Entwodiksyon
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your DeerValley DV-1F52626A One Piece Toilet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Keep this manual for future reference.

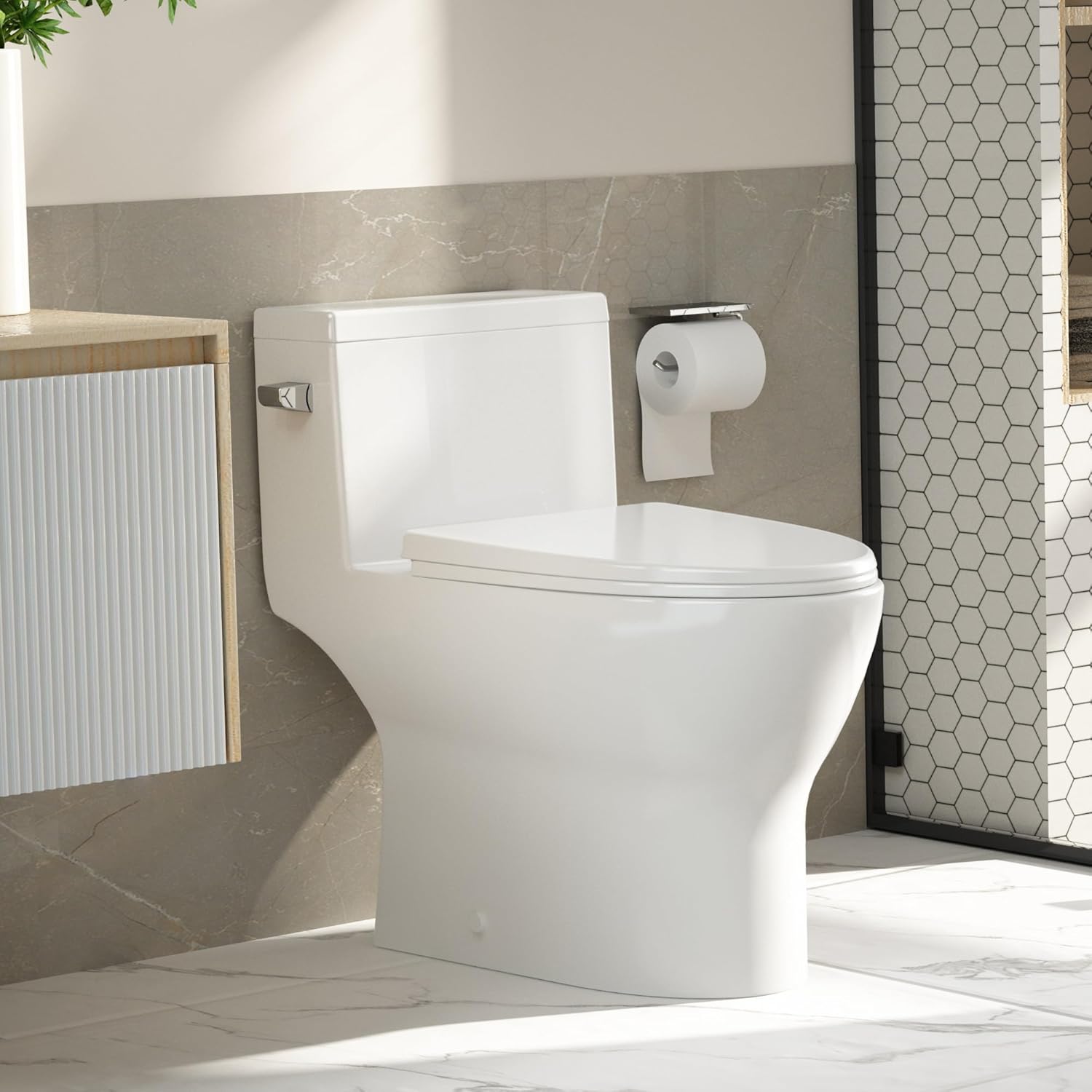

Image: The DeerValley DV-1F52626A One Piece Toilet, showcasing its sleek, modern design in a bathroom setting.
Enfòmasyon sou Sekirite
Tanpri obsève prekosyon sekirite sa yo pandan enstalasyon ak itilizasyon:
- Toujou fèmen prensipal ekipman pou dlo a anvan ou kòmanse nenpòt enstalasyon oswa antretyen.
- Mete ekipman pwoteksyon pèsonèl apwopriye, tankou linèt sekirite ak gan.
- Si ou pa sèten sou nenpòt etap, konsilte yon plonbye kalifye.
- Manyen konpozan seramik yo avèk prekosyon pou evite yo fann oswa kraze.
- Asire w tout koneksyon yo byen fèm epi pa gen flit anvan ou retabli rezèv dlo a.
Lis Pati
Verify that all components are present and undamaged before starting installation.
- One Piece Toilet Bowl and Tank Assembly
- Soft-Closing Elongated Toilet Seat
- Wax Ring with Flange
- Floor Bolts and Washers
- Side-Mount Trip Lever (pre-installed)
- Supply Line Inlet Hose Adapters (1/2" and 7/8")
Enstalasyon ak Enstalasyon
1. Prepare Zòn Enstalasyon an
- Shut off the water supply to the bathroom.
- Remove the old toilet (if applicable) and clean the flange area thoroughly.
- Ensure the floor flange is level and in good condition.
2. Rough-In Measurement
Confirm your rough-in measurement is 12 inches from the wall to the center of the drain pipe. Refer to the diagram for detailed dimensions.
Image: Diagram illustrating the 12-inch rough-in measurement and other critical dimensions for the toilet installation.
3. Install Floor Bolts and Wax Ring
- Insert the floor bolts into the flange slots and secure them.
- Place the wax ring over the flange, ensuring it is centered.
4. Set the Toilet
- Carefully lower the toilet onto the floor bolts, pressing down firmly to compress the wax ring.
- Ensure the toilet is level. Use shims if necessary.
- Secure the toilet to the floor using the washers and nuts provided. Do not overtighten.
5. Konekte Pwovizyon Dlo
Connect the water supply line to the toilet's fill valve. Use the appropriate adapter (1/2" or 7/8") for your supply line.
Image: Illustration showing the two available sizes (1/2" and 7/8") for the supply line inlet hose adapters.
Ensure the supply valve is in the recommended position for optimal connection.
Image: Diagram indicating the recommended position for the water supply inlet valve relative to the toilet.
- Hand-tighten the connection, then use a wrench for a final quarter-turn. Do not overtighten.
- Louvri tiyo prensipal dlo a dousman epi tcheke si gen flit.
6. Install the Toilet Seat
- Align the seat hinges with the mounting holes on the toilet bowl.
- Insert the seat bolts and tighten them securely.
Enstriksyon Operasyon
Flushing twalèt la
The DeerValley DV-1F52626A features an efficient single flush system. To flush, simply press down the left-hand trip lever located on the side of the tank. The toilet uses 1.28 gallons per flush (GPF) for effective waste removal.
Imaj: A view of the toilet bowl during a siphon flush, demonstrating the powerful and efficient water flow.
The fully glazed siphon flushing system ensures a quiet and powerful flush, preventing clogs and leaks.
Soft-Closing Seat
The toilet is equipped with a soft-closing seat and lid. This feature allows the seat and lid to close slowly and quietly, preventing slamming and reducing noise.
Image: Close-up of the soft-closing toilet seat, illustrating its gentle and quiet operation.
The bumper design ensures silent opening and closing without impact.
Image: Detail of the toilet seat's bumper design, which facilitates silent and smooth movement.
Videyo pwodwi ofisyèl la
Video: An official product video from DeerValley showcasing the features of the ADA Comfortable Height One Piece Toilet, including its design, soft-close seat, and powerful flush.
Antretyen
Netwaye twalèt la
- Use a soft cloth and mild, non-abrasive cleaners to clean the ceramic surfaces.
- Avoid harsh chemicals or abrasive pads, as these can damage the finish.
- For the toilet seat, use a damp twal ak savon modere.
Quick Release Seat for Cleaning
The toilet seat features a quick-release mechanism for easy removal, allowing for thorough cleaning of the bowl and seat area.
Imaj: Gwo plan view of the quick-release buttons on the toilet seat hinges, demonstrating how to easily remove the seat for cleaning.
- To remove: Press the quick-release buttons located near the hinges and lift the seat straight up.
- To re-install: Align the seat posts with the hinge pins and press down until they click into place.
Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Twòlèt la pa tire dlo a oubyen li tire dlo a fèb. | Water supply valve closed; clogged siphon jet or rim holes; low water level in tank. | Open water supply valve fully; clean siphon jet and rim holes; adjust fill valve to raise water level. |
| Toilet runs continuously. | Flapper not sealing properly; fill valve malfunction; float ball misaligned. | Check flapper for debris or wear, replace if necessary; inspect fill valve for proper operation; adjust float ball. |
| Fwit nan baz twalèt la. | Loose floor bolts; damaged wax ring; cracked toilet base. | Tighten floor bolts (do not overtighten); replace wax ring; if cracked, the toilet may need replacement. |
| Noisy fill valve. | High water pressure; worn fill valve components. | Install a water pressure regulator; replace the fill valve. |
Espesifikasyon
| Karakteristik | Detay |
|---|---|
| Nimewo Modèl | DV-1F52626A |
| Dimansyon pwodwi (D x W x H) | 28.86" x 16.34" x 27.48" |
| Materyèl | Fireclay (Ceramic) |
| Materyèl chèz | Plastik |
| Kalite enstalasyon | Floor monte |
| Flush Kalite | Single Flush |
| Konsomasyon Dlo | 1.28 GPF (Gallons Per Flush) |
| Ki graj-nan | 12 pous |
| Wotè chèz | ADA Comfortable Height (approx. 17") |
| Fòm bòl | Long |
| UPC | 751313648075 |
Enfòmasyon sou Garanti
DeerValley toilets are warranted to be free of defects for one year from the date of purchase. This includes a one-year limited warranty on the flushing mechanism and the Soft-Closing toilet seat lid. DeerValley also provides lifetime after-sale service and 24-hour online support.
For warranty claims or service, please retain your proof of purchase and contact customer support.
Sipò pou Kliyan
If you have any questions, require assistance with installation, or need to report a problem, please contact DeerValley customer support. Refer to your purchase documentation or the DeerValley websit la pou jwenn enfòmasyon kontak ki pi resan yo.
Please have your model number (DV-1F52626A) and date of purchase ready when contacting support.
