1. Entwodiksyon ak pwodwi aview
Thank you for choosing the DeerValley DV-1F0070 Wall-Mounted Elongated Toilet Bowl. This product is designed for modern bathrooms, offering a space-saving solution with an elegant, seamless design. It features a soft-close seat and a dual-flush system for efficient water usage. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new toilet bowl.
Nòt enpòtan: This package includes only the toilet bowl and its seat. The in-wall water tank system and wall actuator are sold separately and are required for complete installation.
Image 1.1: DeerValley Wall-Mounted Toilet Bowl in a modern bathroom setting.
2. Enfòmasyon sou Sekirite
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage, personal injury, or product malfunction.
- Enstalasyon pwofesyonèl rekòmande: Due to the complexity of wall-mounted toilet systems, professional plumbing installation is highly recommended.
- Manyen ak Swen: The toilet bowl is made of ceramic and can be heavy and fragile. Handle with care to prevent damage or injury.
- Pwovizyon dlo: Asire w ke ekipman prensipal pou dlo a fèmen anvan ou kòmanse nenpòt travay enstalasyon oswa antretyen.
- Limit pwa: The toilet is designed to support a maximum load capacity of 400 kg (approximately 880 lbs). Do not exceed this weight.
- Pwodwi chimik: Avoid using harsh abrasive cleaners or chemicals that may damage the ceramic glaze or seat material.
3. Pake kontni
Verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer service immediately.
- DeerValley DV-1F0070 Elongated Toilet Bowl
- Soft-Close Toilet Seat (Model: DV-F0070S11)
- Toilet Seat Installation Kit (Model: DV-F0070S01)
- Toilet Installation Kit (Model: DV-F0069P41)
- Installation Instruction Manual (Model: DV-F0069M01)
Nòt: The toilet seat is typically located at the bottom of the packaging. The concealed water tank and wall actuator are pa enkli epi yo dwe achte separeman.

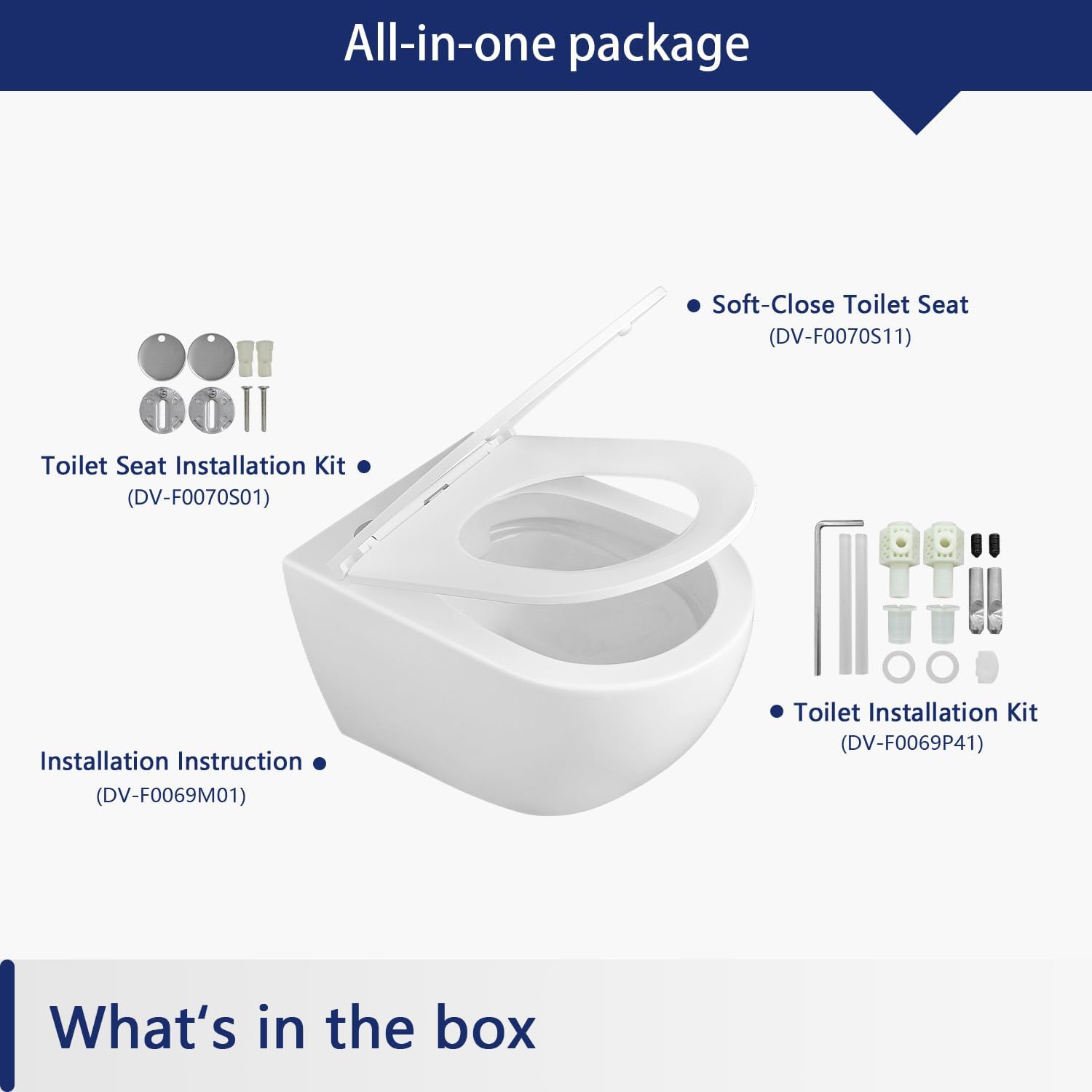

Image 3.1: Contents of the DeerValley DV-1F0070 package.
4. Espesifikasyon
| Karakteristik | Spesifikasyon |
|---|---|
| Nimewo Modèl | DV-1F0070 |
| Koulè | Blan |
| Dimansyon pwodwi (D x W x H) | 19.88" x 14.37" x 13.98" |
| Materyèl bòl | Seramik |
| Materyèl chèz | Polypropylène (PP) |
| Kalite enstalasyon | Mi monte |
| Flush Kalite | Dual Flush (1.6 GPF Full / 1.1 GPF Partial) |
| Fòm bòl | Long |
| Kapasite chaj maksimòm | 400 kg (880 liv) |
| UPC | 751313647092 |
Image 4.1: Product dimensions and technical drawing.
5. Enstalasyon ak Enstalasyon
Installation of a wall-mounted toilet requires specific plumbing knowledge and the prior installation of a compatible in-wall tank carrier system. It is strongly recommended that installation be performed by a qualified professional plumber.
5.1 Kondisyon pou Pre-Enstalasyon
- A compatible in-wall tank carrier system (sold separately) must be installed and secured according to its manufacturer's instructions.
- Ensure all necessary water supply and drainage connections are in place and meet local plumbing codes.
- The wall structure must be adequately reinforced to support the toilet bowl and user weight.

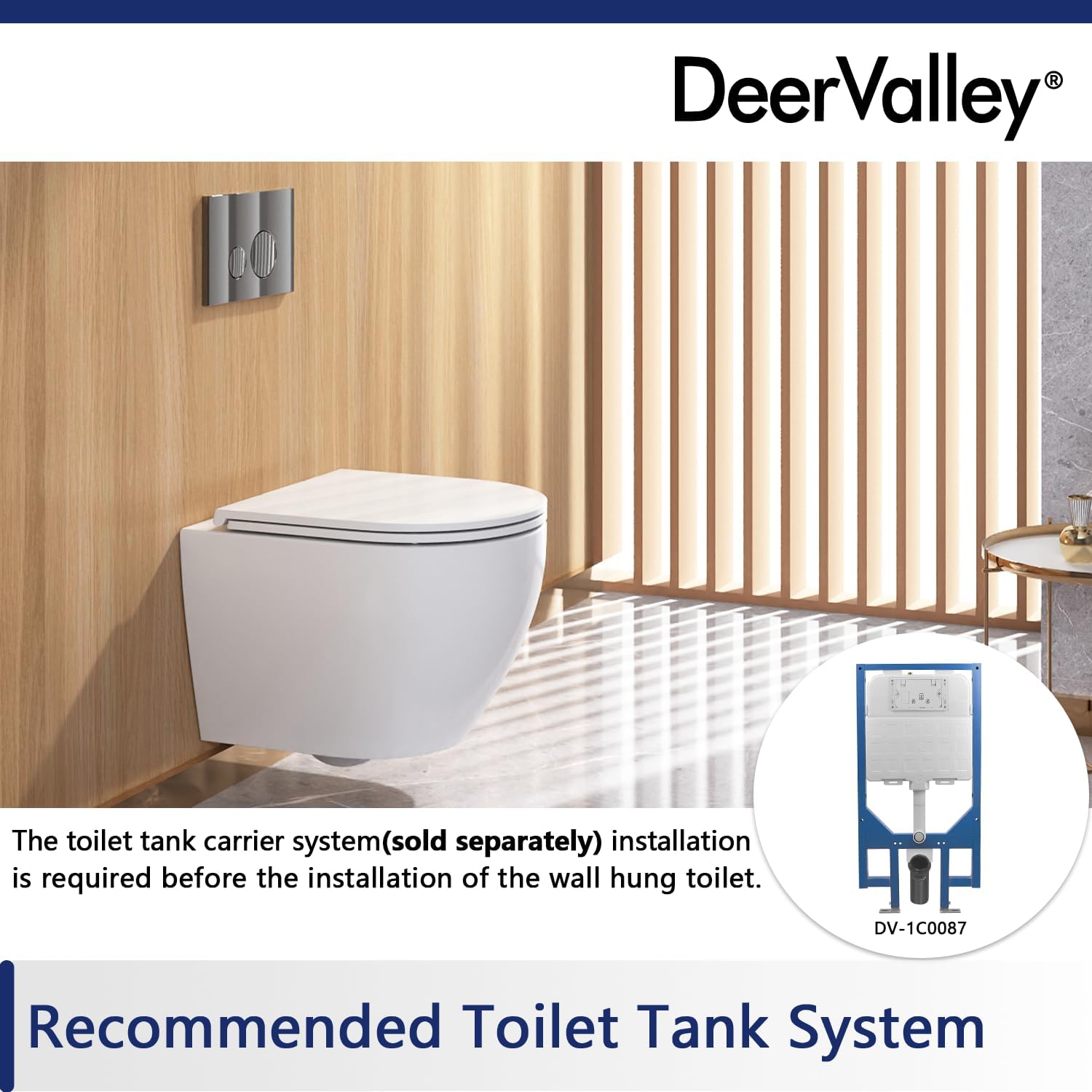

Image 5.1: Illustration of the required in-wall tank carrier system (sold separately).
5.2 Etap enstalasyon yo
- Refer to the detailed installation instructions (Model: DV-F0069M01) included in your package for step-by-step guidance.
- The wall-mounted design allows for adjustable installation height to suit individual needs. Consult the in-wall tank system manual for height adjustment procedures.
- Securely attach the toilet bowl to the installed carrier system using the provided Toilet Installation Kit (DV-F0069P41).
- Install the soft-close toilet seat using the Toilet Seat Installation Kit (DV-F0070S01).
- Konekte rezèv dlo a epi teste pou koule.
6. Operasyon Enstriksyon
6.1 Dual Flush System
Your DeerValley toilet features a dual-flush mechanism, allowing you to choose between two flush volumes for water conservation.
- Partial Flush (1.1 GPF): Press the smaller button on the wall actuator for liquid waste.
- Full Flush (1.6 GPF): Press the larger button on the wall actuator for solid waste.
This system is designed for powerful flushing without clogging, while saving water.
Image 6.1: Dual flush operation for water efficiency.
6.2 Syèj ki fèmen dousman
The toilet seat is equipped with a soft-close mechanism to prevent slamming and reduce noise. Simply push the seat or lid down gently, and it will close slowly and quietly on its own.
7. Antretyen
Regular cleaning and proper maintenance will ensure the longevity and hygienic performance of your toilet bowl.
7.1 Cleaning the Toilet Bowl
- The ceramic bowl features an easy-clean, non-porous glaze that resists dirt and stains.
- Use a soft cloth or sponge with a mild, non-abrasive bathroom cleaner.
- Avoid abrasive pads, harsh chemicals, or strong acids, as these can damage the glaze.
- Rense byen avèk dlo pwòp apre netwayaj.

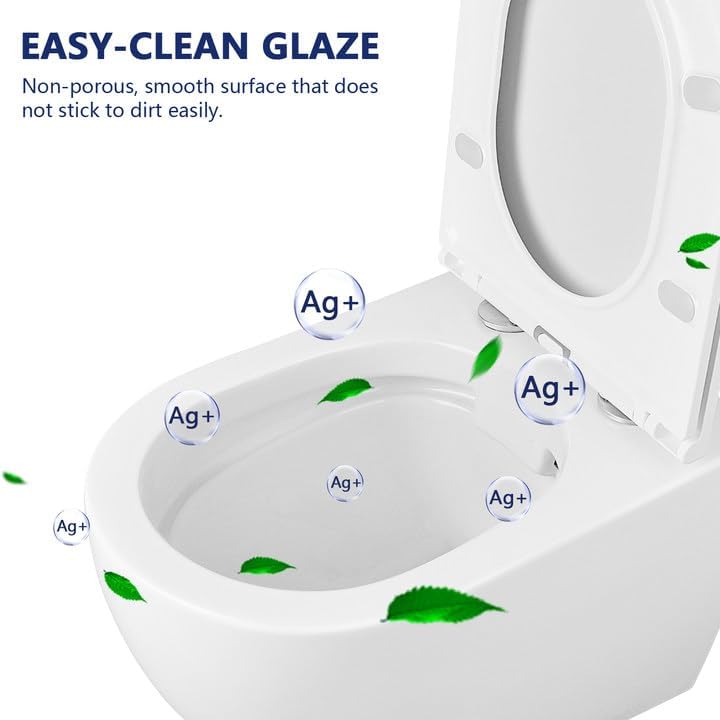

Image 7.1: Easy-clean glaze for hygienic maintenance.
7.2 Cleaning the Toilet Seat
- The quick-release seat design allows for easy removal, facilitating thorough cleaning of the seat and the bowl area.
- To remove the seat, locate the quick-release buttons (usually near the hinges) and press them to detach the seat.
- Clean the seat with a mild soap and water solution. Avoid harsh chemicals.
- Reattach the seat by aligning it with the hinges and pressing down until it clicks into place.
Image 7.2: Quick-release seat for easy cleaning.
NAN. Depanaj
This section addresses common issues you might encounter. For problems not listed here or if solutions do not resolve the issue, please contact customer support.
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Fèb Flush | Insufficient water pressure; partial clog in drain; flush valve issue in concealed tank. | Check water supply valve; clear any visible clogs; consult concealed tank manual or a plumber. |
| Toilet Leaks | Loose connections; damaged seals; issue with concealed tank components. | Tighten connections; inspect and replace seals if necessary; consult concealed tank manual or a plumber. |
| Seat Does Not Soft-Close | Hinge mechanism obstruction or damage. | Ensure hinges are clean and free of debris; if damaged, contact customer service for replacement parts. |
9. Garanti ak Sipò Kliyan
9.1 12-mwa garanti limite
DeerValley provides a 12-month limited warranty from the date of purchase against defects in materials and workmanship under normal use. This warranty covers the toilet bowl and included components. It does not cover damage resulting from improper installation, misuse, abuse, accident, or normal wear and tear. Please retain your proof of purchase for warranty claims.
9.2 Sipò pou Kliyan
For any questions, concerns, or assistance with your DeerValley product, please contact our customer service team. You can reach us through the platform where you purchased the product. Our dedicated team is committed to providing timely and effective solutions.
Image 9.1: DeerValley Customer Support information.
For more information about DeerValley products, visit the official DeerValley Store.
