1. Entwodiksyon
Thank you for choosing the Bedz King Twin Over Full Bunk Bed with Twin Trundle. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
This bunk bed features a twin bed over a full bed, with an additional twin trundle bed for extra sleeping capacity. It is constructed from solid Brazilian pine with a child-safe, lead-free honey finish.
2. Enfòmasyon sou Sekirite
AVÈTISMAN: Si ou pa swiv avètisman ak enstriksyon sa yo, sa ka lakòz blesi grav oswa lanmò.
- Read all instructions before using the bunk bed. Kenbe manyèl sa a pou referans nan lavni.
- Rekòmandasyon pou pwa maksimòm: The top bunk is designed for a maximum weight of 275 pounds. The bottom bunk and trundle also have similar weight limits. Do not exceed these limits.
- Top Bunk Age Restriction: Children under 6 years of age should not be allowed on the top bunk.
- Guardrails: Always use the guardrails on the top bunk. Ensure they are properly installed and secured.
- Sekirite Nechèl: Always use the ladder for entering and exiting the top bunk. Do not use substitute parts.
- Gwosè matla: Use only mattresses that are 8 inches thick or less for the trundle. Standard twin size (39 x 75 inches) and full size (54 x 75 inches) mattresses are required for the main bunks.
- Ouvèti yo: Ensure there are no openings in the bunk bed structure that could trap a child's head or body.
- Asanble: This product requires assembly. Ensure all parts are correctly assembled and tightened before use. Periodically check and tighten all fasteners.
- Vantilasyon: Provide proper ventilation around the bunk bed.
- Pa gen jwèt cheval: Entèdi jwèt cheval sou oswa anba kabann nan.
- Pa gen sote: Prohibit jumping on the bed.
- Kote: Do not place the bunk bed near windows where cords from blinds or drapes could strangle a child.
- Limyè lannwit: Use a night light for children using the top bunk.
3. Lis Pati
Anvan asanblaj la, verifye ke tout konpozan yo prezan epi yo pa domaje. Si gen nenpòt pyès ki manke oswa ki domaje, pa kontinye ak asanblaj la. Kontakte sèvis kliyan pou asistans.
Eleman ki enkli:
- (4) Ray Side
- (2) Head Boards
- (2) Foot Boards
- (1) Ladder
- (26) Wood Slats
- (1) Center Slat Support Rail for Full Bed
- Guard Rails for top twin bunk (both sides)
- (1) Trundle unit
- Hardware and assembly tools
Note: Mattresses, pillows, and bed coverings are not included.
4. Enstalasyon ak Asanblaj
Assembly requires at least two adults. Clear a large area for assembly. Follow the numbered steps provided in the separate assembly instructions included with your hardware kit. Ensure all fasteners are securely tightened.
4.1. Konsèy pou Asanble Jeneral la
- Identify all parts before starting.
- Do not fully tighten screws until instructed, or until the entire section is assembled.
- Use the provided tools. Do not use power tools unless specifically instructed, as this may overtighten and damage components.
- The ladder rungs are flat for comfort and can be permanently attached with screws or hooked on and off.
4.2. Gid Vizyèl

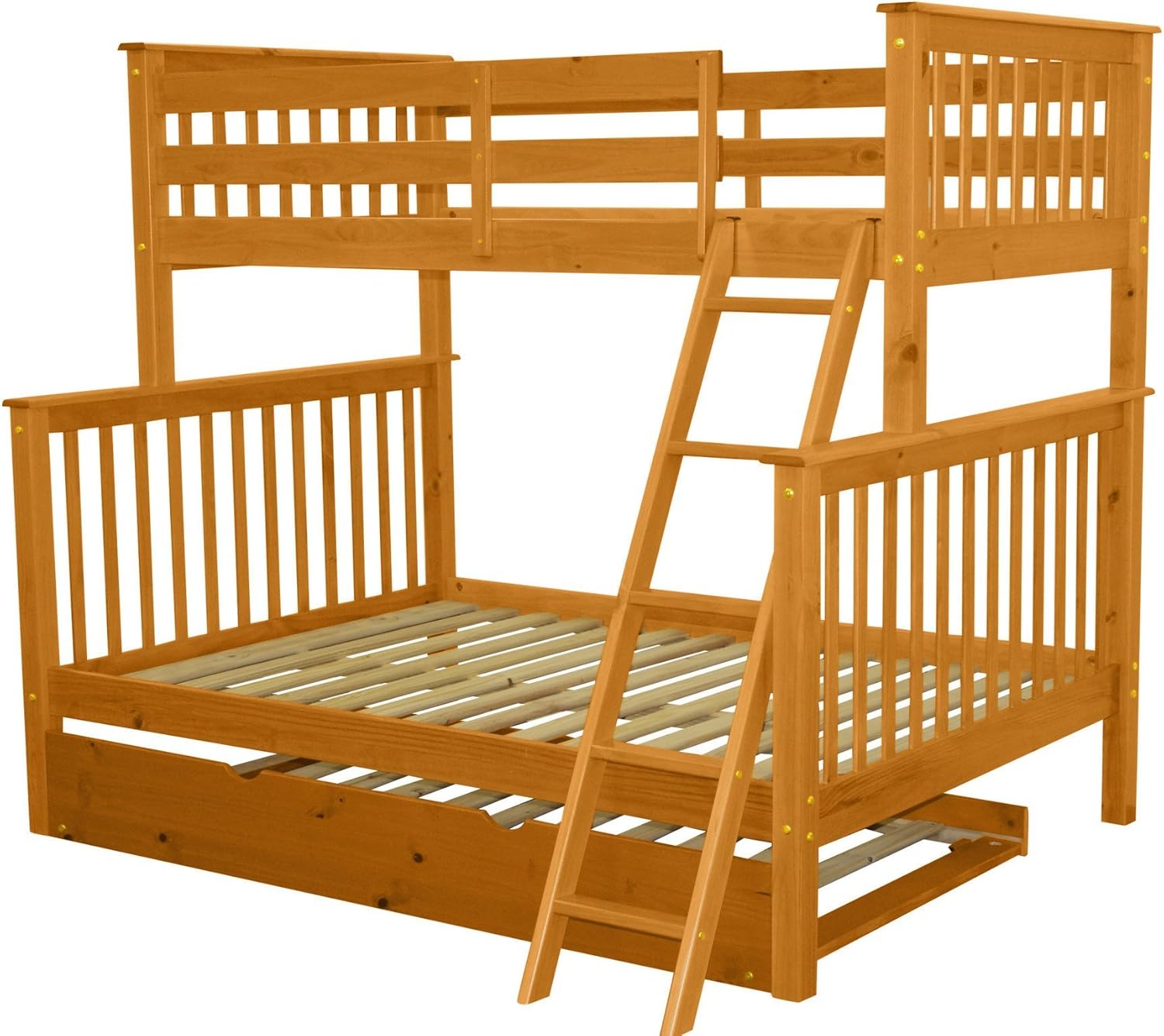

Figure 1: Fully assembled bunk bed frame with trundle pulled out, without mattresses. This image illustrates the overall structure and components.

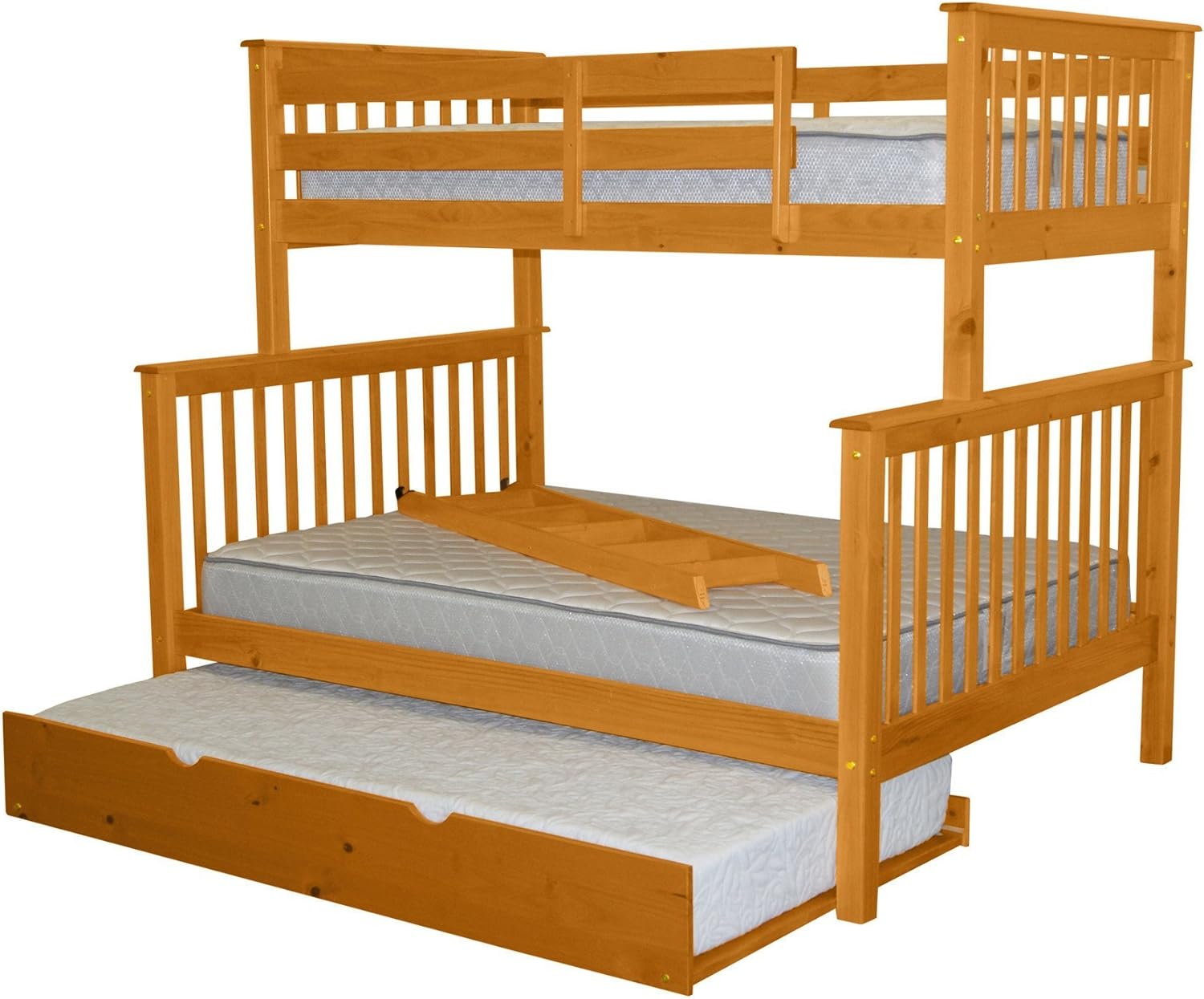

Figure 2: Assembled bunk bed with mattresses on the top twin, bottom full, and trundle beds. This view demonstrates the bed in a ready-to-use configuration.

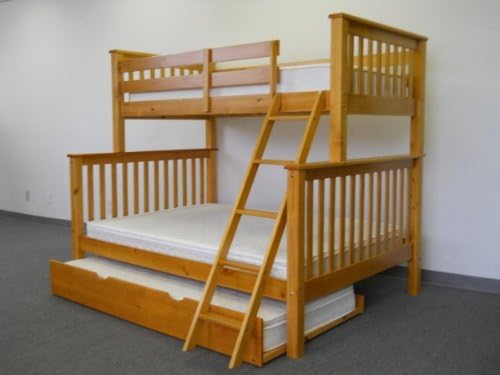

Figure 3: A different angle of the assembled bunk bed with mattresses and the ladder in place. This image provides another perspective of the bed's design and functionality.
5. Itilizasyon
5.1. Plasman Matla a
Place a standard twin size mattress (39 x 75 inches) on the top bunk. Place a standard full size mattress (54 x 75 inches) on the bottom bunk. For the trundle, use a mattress up to 8 inches thick. No bunkie board or bunkie mattress is required due to the included slat system.
5.2. Operasyon Trundle
The trundle unit slides out from under the bottom bunk to provide an additional sleeping surface. To use, gently pull the trundle unit forward until it is fully extended. To store, push it back under the bunk bed until it is flush with the frame.
6. Antretyen
- Netwayaj: Siye sifas bwa yo ak yon twal mou,amp twal. Evite pwodui chimik ki agresif oswa pwodui netwayaj abrazif ki ka domaje fini an.
- Fastener: Periodically check all bolts, screws, and other fasteners to ensure they are tight. Re-tighten as necessary to maintain structural integrity and safety.
- Swen bwa: The Brazilian pine is protected with a smooth coating. Avoid exposing the bed to extreme temperature changes or humidity, which can cause wood to warp or crack.
NAN. Depanaj
| Pwoblèm | Kòz posib | Solisyon |
|---|---|---|
| Kabann nan santi l ap tranble oswa enstab. | Fastener ki lach. | Tcheke epi sere tout boulon ak vis yo. Asire w tout koneksyon yo byen fèm. |
| Pati yo pa aliyen pandan asanblaj la. | Oryantasyon pyès ki pa kòrèk; domaj fabrikasyon. | Review assembly instructions carefully. Ensure parts are oriented correctly. If parts are defective, contact customer support. |
| Trundle does not slide smoothly. | Obstruction; dirty wheels; uneven floor. | Check for objects blocking the trundle path. Clean trundle wheels. Ensure the bed is on a level surface. |
| Bri k'ap kriye. | Koneksyon ki lach; friksyon ant pati an bwa yo. | Tighten all fasteners. Apply a small amount of paraffin wax or silicone spray to contact points between wood components if necessary. |
8. Espesifikasyon
- Modèl: BK301
- Kalite: Twin Over Full Bunk Bed with Twin Trundle
- Materyèl: Solid Brazilian Pine Wood
- Fini: Honey, Child-Safe, Lead-Free
- Dimansyon jeneral (apeprè): 62 inches (H) x 80 inches (L) x 59 inches (D) (Full bed depth)
- Top Twin Bunk Dimensions (Approximate): 31 inches (H) x 80 inches (L) x 43 inches (D)
- Bottom Full Bunk Dimensions (Approximate): 31 inches (H) x 80 inches (L) x 59 inches (D)
- Trundle Dimensions (Approximate): 10 inches (H) x 74 inches (L) x 41 inches (D)
- Space between bunks (slats to slats, excluding mattress): Apeprè 37.5 pous
- Bottom Bunk Height from Floor: Apeprè 11 pous
- Recommended Mattress Size (Top Bunk): Twin (39 x 75 inches)
- Recommended Mattress Size (Bottom Bunk): Full (54 x 75 inches)
- Recommended Mattress Thickness (Trundle): Jiska 8 pous
- Maximum Weight Recommendation (Top Bunk): 275 liv
- Asanble obligatwa: Wi
9. Garanti & Sipò
For warranty information, missing parts, or technical support, please contact Bedz King customer service. Refer to your purchase documentation for specific warranty terms and contact details.
Enfòmasyon pou kontakte:
- Mak: Kabann Wa
- Manifakti: Bedz King - DROPSHIP
- Websit: Visit the Bedz King Store on Amazon
- Sèvis Kliyan: Refer to your purchase receipt or the Bedz King websit la pou jwenn enfòmasyon kontak ki pi resan yo.
