11B Basic Motorcycle Bluetooth Communication System For HJC Helmet
User Guide

SMART HJIC 11B
2nd GEN BASIC MOTORCYCLE BLUETOOTH®
COMMUNICATION SYSTEM FOR HJC HELMETSQUICK START GUIDE

Downloadable Software

Download the SMART HJC BT App on Google Play Store or App Store.

SMART HJC BT

• Device Configuration Setting

Download the following items at www.smarthjc.com

SMART HJC Device Manager

• Firmware upgrade
• Device configuration setting

Quick Start Guide, User’s Guide

Product Details

Installation

SMART HJC 11B compatible HJC helmets can be found at www.smarthjc.com

• For more information about installation, refer to the User’s Guide.

1. Modular Chin Bar / Open & Full Face Visor Opening
2. Helmet Module Cover Removing

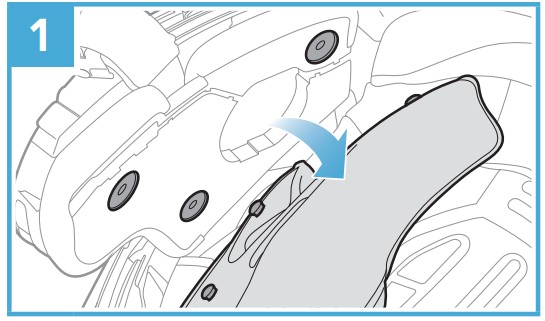

3. Helmet’s Cheek Pad Take Off
4. Button Module Installation
5. Bluetooth Module Installation
6. Microphone Installation
   6.1 Modular or Open Face Microphone Installation6.2 Full Face Microphone Installation
7. Speaker Module Installation
8. Wire Arrangement

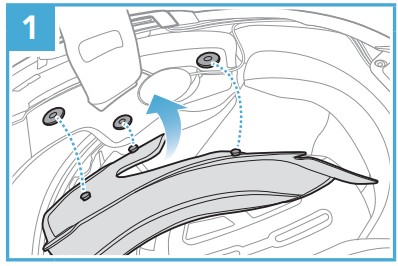

9. Cheek Pad Fasten Up
10. Modular Chin Bar / Open & Full Face Visor Closing

Icon Legend

	Tap button the specified number of times
	Press and Hold button for the specified amount of time
	“Hello” Audible prompt

Basic Operations

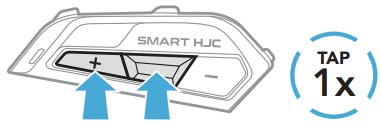

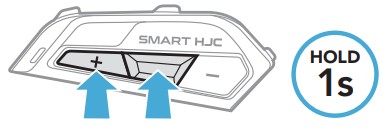

Powering On	Powering Off
Volume Up	Volume Down

Checking the Battery Level

Phone Pairing

1. “Configuration menu”
2. Blinking   “Phone pairing”
3. Select SMART HJC 11B in the list of Bluetooth devices detected.

• The headset will enter the Phone Pairing mode automatically when you initially turn on the headset.
• For more information on phone pairing, refer to the User’s Guide.

Using the Phone

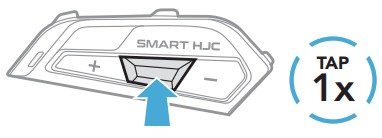

Answer a Call	End a Call
Reject a Call	Voice Dial

Music Control

Play/Pause	Track Forward
Track Backward

Bluetooth Intercom

Up to three other people can be paired with the headset for Bluetooth intercom conversations.

Intercom Pairing
There are two ways to pair the headset.
Using the Smart Intercom Pairing (SIP)
SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the SMART HJC BT App without remembering the button operation.

1. Pair the mobile phone with the headset.
2. Open the SMART HJC BT App and tap (Smart Intercom Pairing Menu).
3. Scan the QR code displayed on your friend (B)’s mobile phone.
   • Your friend (B) can display the QR code on the mobile phone by tapping  > QR code () on the SMART HJC BT App.
4. Tap Save and check that your friend (B) is paired with you (A) correctly.
5. Tap Scan () and repeat steps 3-4 to pair with Intercom Friends (C) and (D).

Note: The Smart Intercom Pairing (SIP) is not compatible with SMART HJC headsets that use Bluetooth 3.0 or below.

Using the Button

1. Each user simultaneously presses and holds the TAP Button for 5 seconds until users hear the voice prompt, “Intercom Pairing.”
2. Tap the TAP Button on either headset.
3. Repeat the steps above to pair with other headsets (C and D).

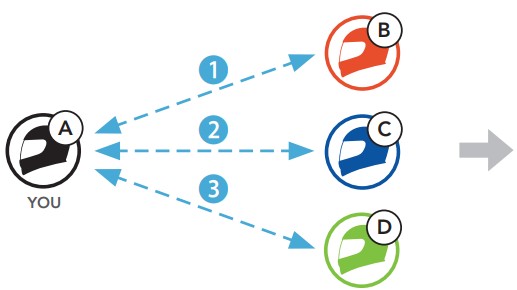

Last-Come, First-Served

If the headset has multiple paired headsets for intercom conversations, the last paired headset is set as the First Intercom Friend.

Intercom Pairing Order	Last-Come, First-Served

Two-way Intercom

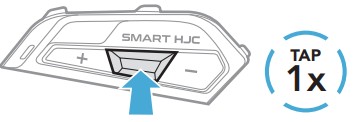

Start/End Conversation with the First Intercom Friend DStart/End Conversation with the Second Intercom Friend CStart/End Conversation with the Third Intercom Friend B

Configuration Menu

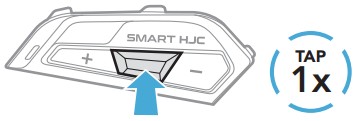

Accessing the Configuration MenuNavigating Between Menu OptionsExecute Menu Options

Troubleshooting

Fault Reset

Note:

• Fault Reset will not restore the headset to factory default settings.
• The charging LED is not the Pinhole Fault Reset Button. Do not press it.

Factory Reset

1. “Configuration menu”
2. “Factory reset”
3. “Headset reset, good-bye”

Quick Reference

TYPE	OPERATION	BUTTON COMMANDS
Basic Operations	Power on/ Power off
	Volume up/Volume down
Mobile Phone	Answer phone call
	End phone call
	Reject phone call
	Voice Dial
Intercom	Intercom pairing
	Start/End intercom
Music	Play/Pause music
	Track forward
	Track backward

HJC Corporation
www.smarthjc.com
1.0.0_EN_May2023
