Jocisland King Size Bed Frame User Manual

1. Gabatarwa

This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your Jocisland King Size Bed Frame. This bed frame features a built-in bookcase with RGB LED lighting, a charging station, velvet upholstery, and hydraulic lift storage. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.

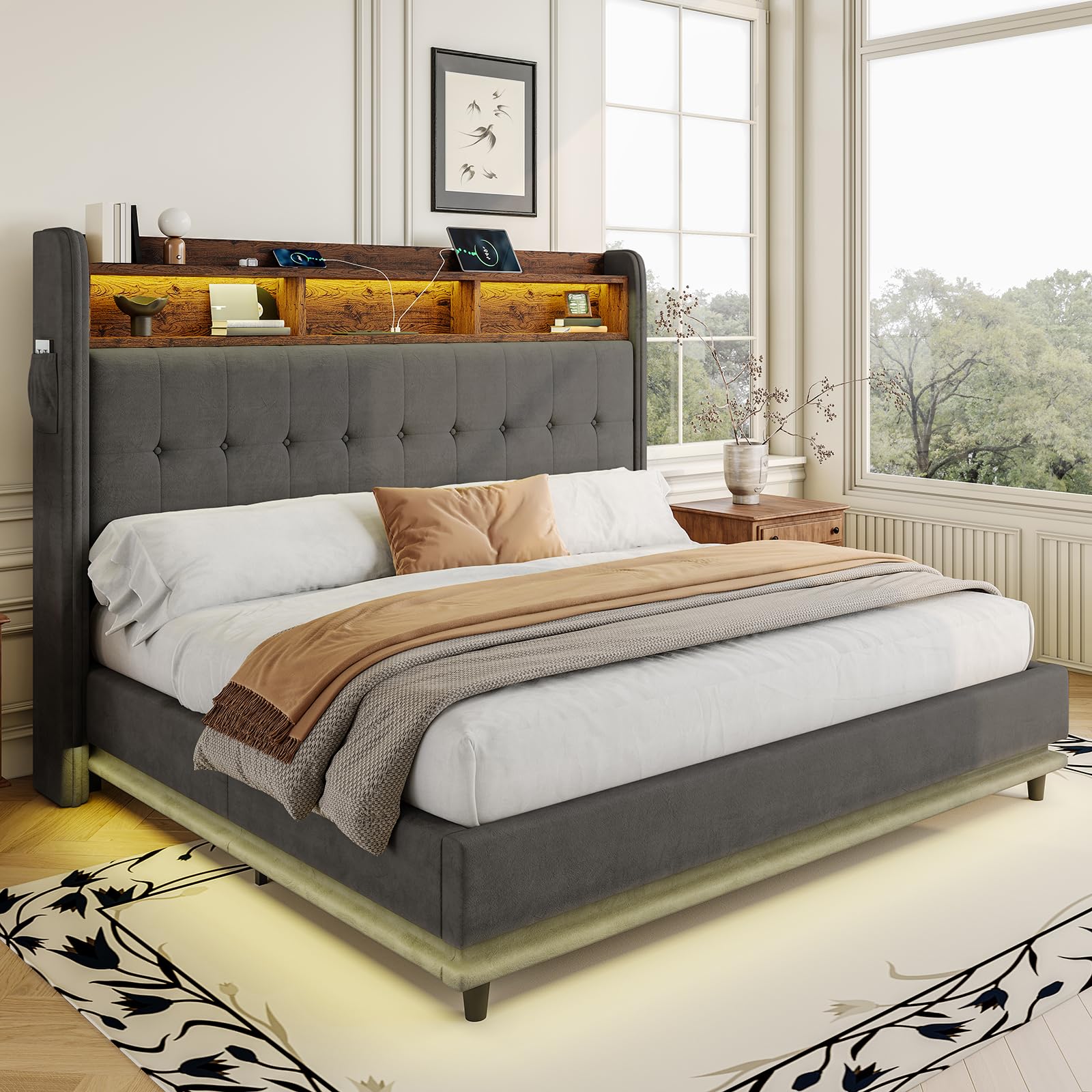

Hoto na 1.1: Ƙarsheview of the Jocisland King Size Bed Frame.

2. Bayanin Tsaro

Koyaushe ku bi waɗannan jagororin aminci don hana rauni ko lalacewar samfurin:

• Koyaushe bi umarnin taro da aka bayar.
• Kada ku wuce iyakar shawarar nauyi na fam 1000 (kilogram 453).
• Keep the bed away from heat sources and ensure proper ventilation to prevent fire hazards.
• Never place the bed near windows or other potential fall hazards, especially if children are present.
• Always use appropriate bedding materials.
• Ensure all connections for the charging station and LED lights are secure and properly grounded.
• Exercise caution when operating the hydraulic lift mechanism to avoid pinching or injury. Keep hands clear of moving parts.

3. Abubuwan Kunshin

Before beginning assembly, carefully unpack all components and verify them against the packing list included in your package. Ensure all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.

4. Saita da Majalisa

Assembly of the Jocisland King Size Bed Frame is required. It is recommended that two adults perform the assembly. Please refer to the detailed step-by-step assembly guide included in your product packaging for specific instructions and diagrams.

4.1 Siffofin Haɗa Maɓalli

• Tsari Mai Dorewa: The frame is constructed with metal supports and wooden slats for stability.
• Saita Sauƙi: Features unique adhesive Velcro slats for simplified mattress support installation.
• Noise-free Design: EVA strip design helps to prevent creaking and noise.
• Tsara Tsara: Engineered to firmly hold the mattress in place.

Image 4.1: Structural features for assembly and stability.

4.2 Dimensions and Weight Capacity

Ensure you have adequate space for the assembled bed frame. The overall dimensions and weight capacity are critical for proper setup.

Image 4.2: Bed frame dimensions and weight capacity.

5. Umarnin Aiki

5.1 RGB LED Headboard and Under-bed Lighting

The bed frame features integrated RGB LED lighting in the headboard bookcase and under the bed. These lights can be controlled via a remote control or a dedicated mobile application.

• Launuka masu yawa: Select from a wide spectrum of colors to match your mood or decor.
• Ayyukan Lokaci: Set timers for the lights to turn on or off automatically.
• Yanayin Kiɗa: Lights can synchronize with music, reacting to beats and rhythms.
• Yanayin Tsayi: Choose from various pre-programmed dynamic lighting effects.

Image 5.1: RGB LED lighting features and control options.

5.2 Ginin Tashar Caji

The headboard includes a convenient charging station to power your devices.

• 1x Type-C Port: 5V/2A output.
• 1x USB Port: 5V/2A output.
• 2x Wutar AC: 125V/12A output.

Ensure the bed frame is connected to a power source for the charging station and LED lights to function.

Image 5.2: Details of the integrated charging station.

5.3 Hydraulic Lift Storage

The bed frame features a hydraulic lift mechanism, providing access to a large storage space underneath the mattress platform.

• Don Buɗe: Locate the hidden drawstring at the foot of the bed. Pull the drawstring firmly upwards to engage the hydraulic lift and raise the mattress platform.
• Don Rufewa: Gently push the mattress platform downwards until it locks into place. Ensure no objects or body parts are in the way of the closing mechanism.
• Anti-Fall Device: The hydraulic system includes an anti-fall device to safely hold the platform in the open position.

Image 5.3: Hydraulic lift mechanism details.

Image 5.4: Under-bed storage capacity.

5.4 Bookcase Headboard and Side Pockets

The headboard features a two-tier bookcase for convenient storage of books, devices, and other personal items. Additionally, practical pockets are located on both sides of the headboard for extra storage.

Image 5.5: Rechargeable bookcase headboard.

Image 5.6: Velvet upholstery and side pockets.

6. Kulawa

• Tsabtace Kayan Aiki: For the velvet fabric, gently spot clean with a damp cloth and mild detergent. Avoid harsh chemicals or excessive moisture.
• Tsabtace Firam: Wipe down the wooden and metal components with a soft, dry cloth.
• Duba Hardware: Periodically check all bolts and screws to ensure they are tight. Re-tighten as necessary to maintain stability.
• Fitilar LED: If LED lights malfunction, check the power connection and remote control battery.
• Tashar Caji: Ensure the power cord for the charging station is securely plugged into a wall outlet.

7. Shirya matsala

• Fitilar LED ba ta aiki: Check if the power adapter is properly connected to a working outlet and the bed frame. Ensure the remote control battery is not depleted.
• Tashar Cajin Baya Aiki: Verify the bed frame's main power connection. Test with different devices and cables.
• Hydraulic Lift Difficulty: If the lift is stiff or not holding, ensure the bed is not overloaded. Check for any obstructions in the mechanism. If issues persist, contact customer support.
• Surutu Masu Maƙarƙashiya: Re-check all assembly bolts and tighten any loose connections. Ensure the mattress is properly seated on the slats.
• Abubuwan da suka ɓace: If any parts were missing upon delivery, refer to Section 3 and contact customer support.

8. Ƙayyadaddun bayanai

Image 8.1: Recommended mattress thickness.

9. Garanti da Tallafawa

The Jocisland King Size Bed Frame comes with a limited warranty. Please refer to the warranty card included with your product for specific terms and conditions. For any questions, missing parts, or technical support, please contact Jocisland customer service through the retailer where the product was purchased or visit the official Jocisland website.
