VECHTEL 9-inch Android 15 Car Stereo User Manual

1. Introdución

Grazas pola compraasing the VECHTEL 9-inch Android 15 Car Stereo. This manual provides detailed instructions for installation, operation, and troubleshooting to ensure optimal performance and a safe user experience. Please read this manual thoroughly before installation and use, and retain it for future reference.

Precaucións de seguridade:

• Ensure the vehicle's ignition is off and the battery is disconnected before beginning installation to prevent electrical shorts and damage.
• Professional installation is recommended. If you choose to install it yourself, ensure you have the necessary tools and technical knowledge.
• Non manexes o dispositivo dun xeito que te distraia da condución. Prioriza sempre a seguridade viaria.
• Evite expoñer a unidade a temperaturas extremas, á luz solar directa durante períodos prolongados ou a humidade excesiva.

2. Compatibilidade do vehículo

This car stereo is designed for specific Chrysler 200 models. It is compatible with:

• Chrysler 200 (2015-2019)
• Chrysler 200C (2015-2019)
• Chrysler 200S (2015-2019)

Importante: Antes da compraasing or installing, carefully compare your vehicle's center console and dashboard with the images provided below to confirm compatibility. If your dashboard matches Figure D, this product is not suitable.

Image: Dashboard comparison for Chrysler 200, 200C, 200S models (2015-2019). Figures A, B, C show compatible dashboards, while Figure D shows an incompatible one. Ensure your car's dashboard matches A, B, or C.

3. Contido do paquete

Verifique que todos os elementos que se indican a continuación estean incluídos no seu paquete:

• VECHTEL 9-inch Android 15 Car Stereo Unit
• Cámara de respaldo
• Micrófono externo
• Antena GPS
• Cable USB (x2)
• Cable de alimentación
• Cables de entrada/saída RCA
• Reversing Camera Input Cable
• Radio Antena
• CANbus Box
• Ferramenta de instalación
• Manual de usuario (este documento)

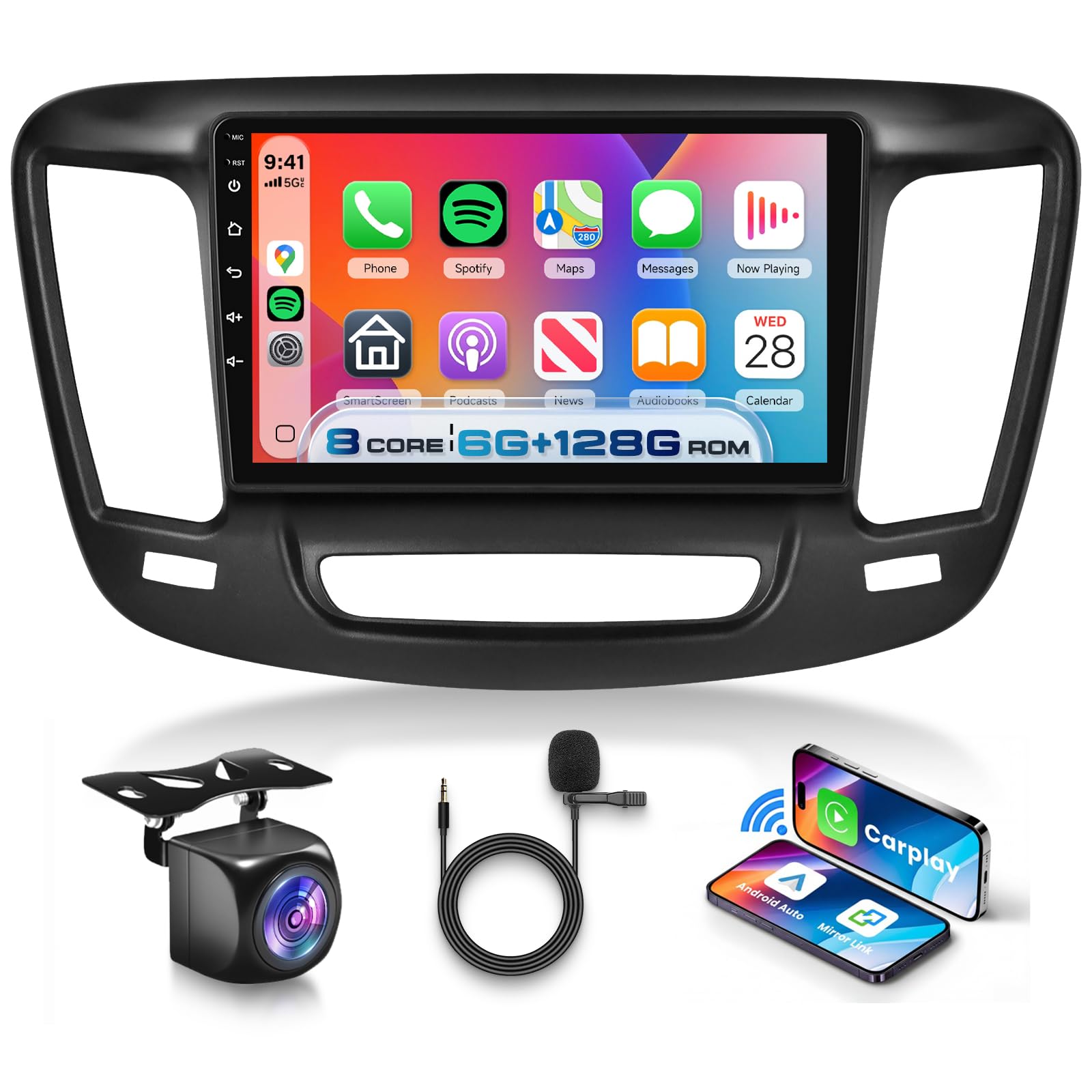

Image: Visual representation of all components included in the VECHTEL car stereo package, including the main unit, cables, and accessories.

4. Configuración e instalación

This section outlines the general steps for installing your new car stereo. Specific vehicle disassembly instructions are not included and may vary by model year. Refer to a professional installer or a vehicle-specific guide if needed.

4.1. Pasos previos á instalación

1. Desconectar batería: Turn off the vehicle's ignition and disconnect the negative terminal of the car battery.
2. Eliminar a unidade antiga: Carefully remove the existing car radio and trim panels from your dashboard.
3. Inspeccionar o cableado: Familiarize yourself with the vehicle's wiring harness and the provided cables.

4.2. Conexións de cableado

• Cable de alimentación: Connect the provided power cable to the car stereo and the vehicle's wiring harness. Ensure all connections are secure.
• CANbus Box: Connect the CANbus box as shown in the attached photo (if applicable). This is crucial for features like steering wheel control and air conditioning integration.
• Antena GPS: Conecte a antena GPS e móntea nun lugar con visión clara view of the sky (e.g., on the dashboard, away from metal obstructions).
• Cables USB: Connect the USB cables. These can be routed to the glove compartment or center console for easy access.
• Micrófono externo: Connect the external microphone for improved call quality and voice commands. Mount it in a suitable location (e.g., near the rearview mirror or on the A-pillar).
• Cámara de respaldo: Connect the backup camera cable to the designated input on the stereo. Route the camera cable to the rear of the vehicle and install the camera.
• Antena de radio: Connect the vehicle's radio antenna to the stereo.
• Cables RCA: Connect any additional RCA input/output cables for external amplifiers, subwoofers, or video sources as needed.

4.3. Comprobacións posteriores á instalación

1. Volver conectar a batería: Volve conectar o terminal negativo da batería do coche.
2. Funcionalidade de proba: Turn on the ignition and test all functions of the car stereo (power, audio, touch screen, radio, GPS, Bluetooth, etc.) before reassembling the dashboard.
3. Control de aire acondicionado: If the air conditioning control does not work after installation, ensure the power cable and CANbus box are correctly connected. Enter the Car Info app, then Factory Setup (password: 1234), navigate to CAN Setting, select 'Raise', and choose the corresponding model and year of your car.
4. Unidade segura: Once all functions are verified, securely mount the car stereo and reassemble all trim panels.

Image: Comparison of a Chrysler 200 dashboard before and after the installation of the VECHTEL 9-inch Android 15 Car Stereo, showing the integrated appearance.

5. Instrucións de funcionamento

This section details the operation of the VECHTEL Android 15 Car Stereo and its various features.

5.1. Android 15 Operating System & Performance

The unit runs on the latest Android 15 operating system, powered by an 8-core CPU, 6GB RAM, and 128GB ROM. This configuration ensures fast processing and smooth operation for all applications.

• 5G WiFi & Hotspot: Connect to 5G WiFi networks or use your phone's hotspot to access online content, download apps, and browse the internet.
• Google Play Store: Download and install your favorite apps like Waze, Spotify, YouTube, and Facebook directly from the Google Play Store.

Image: Illustrates the 8-core processor, 6GB RAM, and 128GB ROM, highlighting the high-performance specifications of the Android 15 car stereo.

5.2. CarPlay sen fíos e Android Auto

Enjoy seamless integration with your smartphone using wireless or wired CarPlay and Android Auto. This feature provides instant access to navigation, calls, messages, and music.

• Conexión: Connect your iPhone via Wireless CarPlay or Android phone via Wireless Android Auto. Follow the on-screen prompts for initial setup.
• Control de voz: Utilize Siri (for CarPlay) or Google Assistant (for Android Auto) for hands-free control of navigation, calls, and music.

Image: Displays the user interface for Wireless CarPlay and Android Auto, showing various apps like Spotify, YouTube Music, and navigation.

Image: Illustrates the voice control functionality, showing a user interacting with Siri or Google Assistant for tasks like playing music or making calls.

5.3. Navegación GPS

The unit supports both online and offline navigation. The included GPS antenna ensures accurate positioning.

• Mapas en liña: Use pre-installed map applications or download others from the Play Store (e.g., Google Maps, Waze) with an internet connection.
• Mapas sen conexión: Download map data for offline use, allowing navigation without an internet connection.

Image: Shows the GPS navigation interface with both offline and online map options, alongside the 5G WiFi connectivity icon.

5.4. Bluetooth 5.0

Connect your smartphone via Bluetooth 5.0 for hands-free calling and audio streaming.

• Emparejamento: Enable Bluetooth on your phone and search for the car stereo. Select the device and confirm the pairing code.
• Chamadas mans libres: Make and receive calls directly from the stereo screen.
• Transmisión de audio: Play music from your phone through the car's speakers.

5.5. Radio FM/RDS

Access your favorite radio stations with the built-in FM/RDS tuner.

• Escaneado automático: Use a función de busca automática para atopar e gardar emisoras dispoñibles.
• Funcionalidade RDS: Receive station information, song titles, and traffic announcements where available.

Image: Displays the Bluetooth 5.0 interface for calls and music, along with the FM/RDS radio tuner showing frequency selection and station presets.

5.6. DSP with 32-Band EQ

Customize your audio experience with the Digital Sound Processor (DSP) and 32-band equalizer.

• Equalizer: Adjust audio frequencies to match your preferences or vehicle acoustics.
• Saída do subwoofer: Connect an external subwoofer for enhanced bass.

Image: Shows the DSP interface with a 32-band graphic equalizer, allowing fine-tuning of audio output for various sound profiles.

5.7. Ligazón de espello

Mirror your smartphone's screen directly onto the car stereo display.

• Conexión: Use the 'CarbitLink' app or similar functionality to connect your Android or iOS device.
• Visualización: View your phone's apps, videos, and content on the larger car stereo screen.

Image: Depicts the Mirror Link function, showing a smartphone screen being mirrored onto the car stereo display, compatible with both Android and iOS systems.

5.8. Control do volante (SWC)

Control essential functions of the car stereo using your vehicle's existing steering wheel buttons for convenience and safety.

• Configuración: Access the SWC settings in the stereo's menu to map your steering wheel buttons to specific functions (e.g., volume up/down, track skip, mode change).

5.9. HD Rear Camera

The included waterproof night vision backup camera provides clear reversing images, assisting with parking and enhancing safety.

• Visualización automática: A cámara traseira view will automatically display on the screen when the vehicle is shifted into reverse gear.
• Static Trackline: If the reverse trackline is not displayed, navigate to the Car Info app > About > Custom Set, and enable 'Show static trackline'.

Imaxe: Mostra a cámara de marcha atrás view with parking guidelines and an illustration of steering wheel controls for safe and convenient operation.

5.10. IPS HD Touch Screen & UI

The 9-inch IPS HD touchscreen features a 1280x720 ultra-high resolution, offering clear visuals and a wide viewángulo de ing.

• Pantalla dividida: Use two applications simultaneously on the screen, such as navigation and music playback.
• Customizable UI Themes: Choose from 59 different UI themes to personalize the look and feel of your stereo interface.
• Xestión de aplicacións: Customize your home screen by deleting or rearranging app icons.

Image: Highlights the features of the IPS HD screen, including 1280x720 resolution, 178-degree wide viewing angle, 2.5D curved glass, and split-screen capability.

Image: Showcases the variety of 59 UI themes available, allowing users to customize the visual appearance of their car stereo interface.

Image: Demonstrates the screen partitioning feature, allowing two applications (e.g., FM Radio and Music, or Navigation and other apps) to be displayed simultaneously.

6 Solución de problemas

Esta sección aborda problemas comúns cos que podes atoparte e ofrece solucións.

7. Especificacións

8. Garantía e soporte

Información da garantía:

This VECHTEL car stereo comes with a 2 ano de garantía desde a data de compra, que cobre defectos de fabricación e avarías de funcionamento en condicións de uso normal. Conserve o comprobante de compra para reclamacións de garantía.

Atención ao cliente:

If you encounter any issues, have questions about installation, or require technical assistance, please contact the VECHTEL customer support team. You can typically find contact information on the product packaging or by visiting the VECHTEL store page on Amazon (click 'VECHTEL' and then 'Ask a question').

When contacting support, please provide your product model number (A8026A3476NA59) and a detailed description of the issue.
