Wefomey COB LED Strip Light (Model WF-COBWW-N10M) - 32.8ft 3000K Warm White Dimmable Instruction Manual

1. Produto rematadoview

The Wefomey COB LED Strip Light (Model WF-COBWW-N10M) provides uniform, dimmable 3000K warm white illumination. This 32.8ft flexible LED tape light is designed for various indoor lighting applications, offering high brightness and color accuracy (CRI>90). It includes an RF remote control and a UL-listed power supply for convenient operation and safe use.

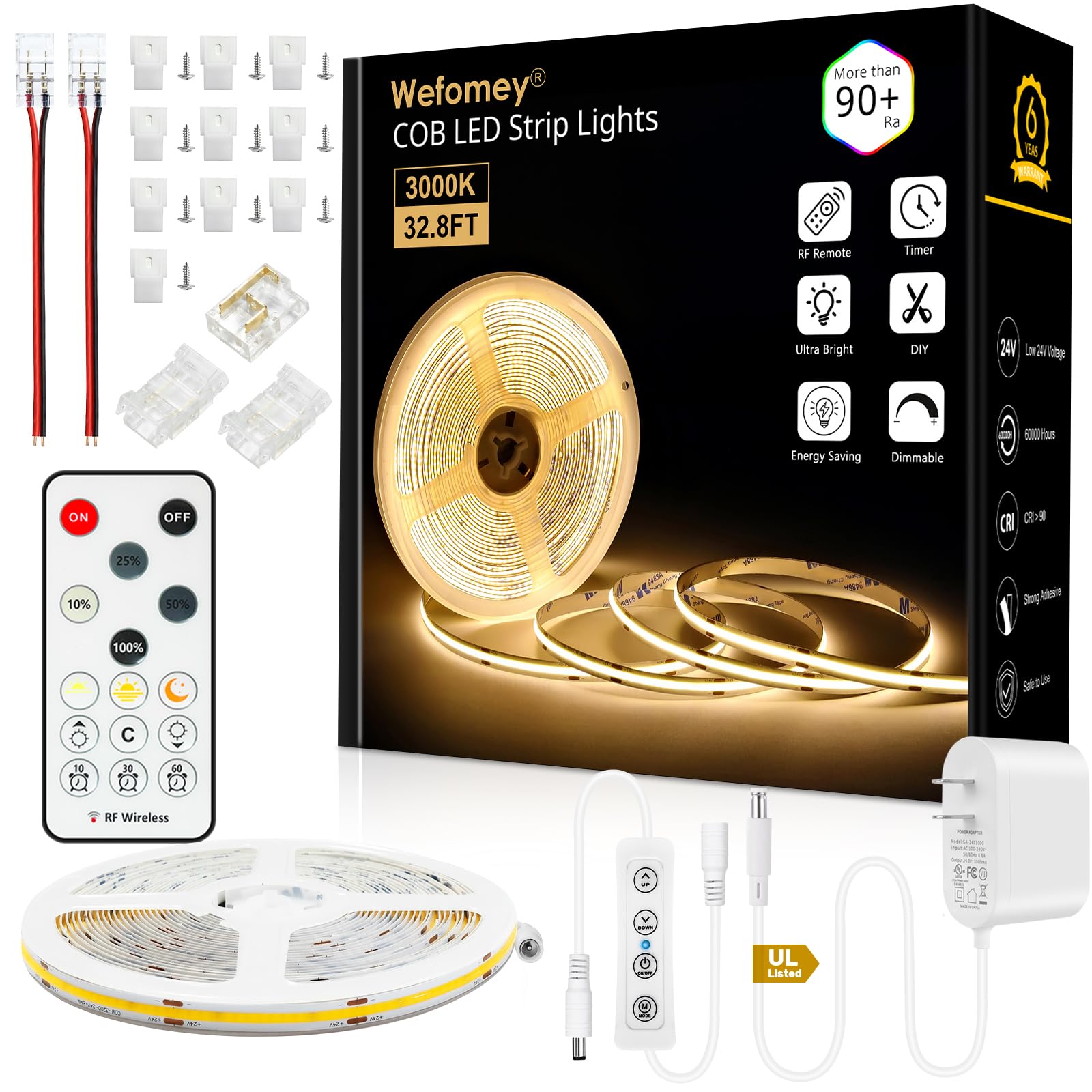

Figure 1: Wefomey COB LED Strip Light Kit Contents

Características principais:

• Ultra Bright & Uniform Light: 32.8ft (10.06 meters) COB LED strip with 3240 LEDs, 3000K warm white, CRI>90 for rich and accurate colors.
• Iluminación regulable: Control brightness with the included RF remote (6 levels, 10%/25%/50%/100% fixed levels) and controller. Features memory function and 3 timing functions (10min/30min/60min).
• Flexible & Cuttable: The strip can be bent and cut every 50mm (1.97 inches) at designated marks for custom lengths. Cut sections can be reconnected.
• Fácil instalación: Equipped with strong adhesive tape and includes mounting screws for secure placement on clean, dry surfaces.
• Seguro de usar: Operates at 24V with a UL Listed DC 24V 24W power supply.

2. Que hai na caixa

Comprobe que todos os compoñentes estean presentes e en bo estado ao desembalar.

• 1 x 32.8ft (10.06m) 24V COB LED Strip Light (3000K Warm White)
• 1 x mando a distancia RF
• 1 x Controller (Receiver)
• 1 x UL Listed DC 24V 24W Power Supply
• COB LED Strip Connectors (2-Pin 8mm)
• Strip & Wire LED Strip Connectors (2-Pin 8mm)
• Soportes de montaxe

Figura 2: detallada view de compoñentes incluídos

3. Información de seguridade

• Asegúrese de que a fonte de alimentación estea desconectada antes da instalación ou mantemento.
• Este produto está deseñado para só para uso interiorNon o expoña á auga nin a humidade elevada.
• Use only the provided UL Listed 24V power supply. Using an incompatible power supply may damage the product or pose a fire hazard.
• Do not connect the LED strip directly to AC power.
• Avoid bending the strip sharply or at angles less than 90 degrees to prevent damage to the LEDs or circuit.
• Manter fóra do alcance dos nenos.
• The LED strip and power supply may become warm during operation; this is normal. Ensure adequate ventilation.

Figure 3: The LED strip operates at a safe 24V, making it safe to touch.

4. Configuración e instalación

4.1 Planificación da instalación

• Measure the desired length for your lighting application.
• Identify cutting points on the LED strip (marked every 50mm/1.97 inches) if custom lengths are needed.
• Asegúrese de que a superficie de instalación estea limpa, seca e lisa para un rendemento óptimo do adhesivo.

4.2 Conectar os compoñentes

1. Connect the LED strip to the controller. Ensure the arrows or polarity markings align correctly.
2. Connect the controller to the 24V power supply.
3. Plug the power supply into a standard electrical outlet.

4.3 Cutting and Reconnecting (Optional)

• To cut the strip, locate the copper cutting marks (usually indicated by a scissor icon or copper dots) every 50mm. Cut only at these designated points.
• To reconnect cut sections or create corners, use the provided 2-Pin 8mm COB LED strip connectors.

Figure 4: Instructions for using 2-pin COB LED strip connectors for various configurations.

• Uso do conector: Open the cap of the connector, insert the COB light strip inside the clip, ensuring positive (+) and negative (-) poles align. Close the clip firmly.
• The red and black wires at the end of the strip allow for powering from both ends, which can be useful for longer installations or if you need to extend the strip beyond the included power supply's capacity (requires a higher output 24V power supply).

4.4 Montaxe da tira de LED

1. Peel off the backing from the adhesive tape on the back of the LED strip.
2. Carefully press the strip onto the desired clean, dry surface. Apply firm, even pressure along the entire length.
3. For added security, especially on rough or vertical surfaces, use the included mounting brackets and screws.

5. Instrucións de funcionamento

The Wefomey COB LED Strip Light can be controlled using the included RF remote control or the inline controller.

5.1 RF Remote Control Functions

Figure 5: RF Remote Control Layout

• ON/OFF: Acende ou apaga as luces.
• Axuste de brillo: Use the dedicated brightness buttons (up/down arrows) or fixed percentage buttons (10%, 25%, 50%, 100%) to adjust light intensity. There are 6 levels of brightness adjustment.
• Funcións de temporización: Set the lights to turn off automatically after 10, 30, or 60 minutes using the timer buttons.
• Selección de modo: Cycle through 3 dynamic lighting modes: Jump, Gradient, and Flicker.
• Función de memoria: The controller remembers the last brightness and mode setting when turned off and on.

Figure 6: Dimmable Brightness Control

Figura 7: Funcionalidade do temporizador

5.2 Inline Controller Functions

The inline controller provides basic control if the remote is not available.

• Botón de encendido: Acende ou apaga as luces.
• Brillo arriba/abaixo: Adjusts the brightness levels.
• Botón de modo: Cycles through the dynamic lighting modes.

6. Mantemento

• Limpeza: Ensure the power is off before cleaning. Gently wipe the LED strip with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Comprobación do adhesivo: Periodically check the adhesive backing for secure attachment. Reapply or use mounting clips if necessary.
• Almacenamento: If storing the LED strip, ensure it is rolled neatly to prevent kinks or damage. Store in a cool, dry place.

7 Solución de problemas

8. Especificacións

Figura 8: Diagrama das especificacións do produto

9. Información da garantía

This Wefomey COB LED Strip Light comes with a 2 anos de garantía do fabricante. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or modifications.

10. Atención ao cliente

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Wefomey customer support through the retailer where the product was purchased.

Please have your model number (WF-COBWW-N10M) and purchase date available when contacting support.
