1. Introdución
This manual provides detailed instructions for the assembly, operation, and maintenance of your EBELLO Power Recliner Chair. Please read this manual thoroughly before use to ensure safe and correct operation. Keep this manual for future reference.
Image 1.1: Two EBELLO Power Recliner Chairs in a modern living room.
2. Instrucións de seguridade
Observe as seguintes precaucións de seguridade para evitar lesións ou danos no produto:
- Asegúrese de que todos os compoñentes estean ben montados antes do uso.
- Keep hands and feet clear of the reclining mechanism during operation.
- Do not allow children or pets to play on or around the recliner, especially when it is in motion.
- Non exceda a capacidade de peso máxima de 220 lb (aproximadamente 100 kg).
- Only use the recliner on a stable, level surface.
- Unplug the power cord from the wall outlet before cleaning or performing maintenance.
- Avoid spilling liquids on the control buttons or USB port.
3. Contido do paquete
Comprobe que estean presentes todas as pezas antes de comezar a montaxe. Se falta algunha peza ou está danada, póñase en contacto co servizo de atención ao cliente.
- Recliner Chair Base (2 units for a set)
- Recliner Chair Backrest (2 units for a set)
- Power Adapter and Cord (2 units for a set)
- Installation Manual (1 unit)
4. Configuración e montaxe
The EBELLO Power Recliner Chair is designed for quick and easy assembly. Most users can complete assembly within 10-15 minutes without requiring additional tools.
- Desembalar coidadosamente todos os compoñentes da embalaxe.
- Place the recliner chair base in the desired location, ensuring sufficient space for reclining.
- Align the backrest with the metal brackets on the chair base. Slide the backrest down firmly until it clicks into place. Ensure both sides are securely engaged.
- Connect the power adapter to the chair's power input, typically located at the rear or underneath the chair.
- Conecte o cable de alimentación a unha toma de parede estándar.
Imaxe 4.1: Acabadoview of the recliner chair from various perspectives.
5. Instrucións de funcionamento
Your EBELLO Power Recliner Chair features an electric reclining mechanism and a convenient USB charging port.
5.1 Función reclinable
- Locate the control button on the side of the recliner.
- Press and hold the button to smoothly adjust the reclining angle to your desired position, from upright (approximately 90 degrees) to fully reclined (approximately 150 degrees).
- Release the button to stop the recliner at any angle.
- To return to the upright position, press and hold the button again until the chair fully retracts.

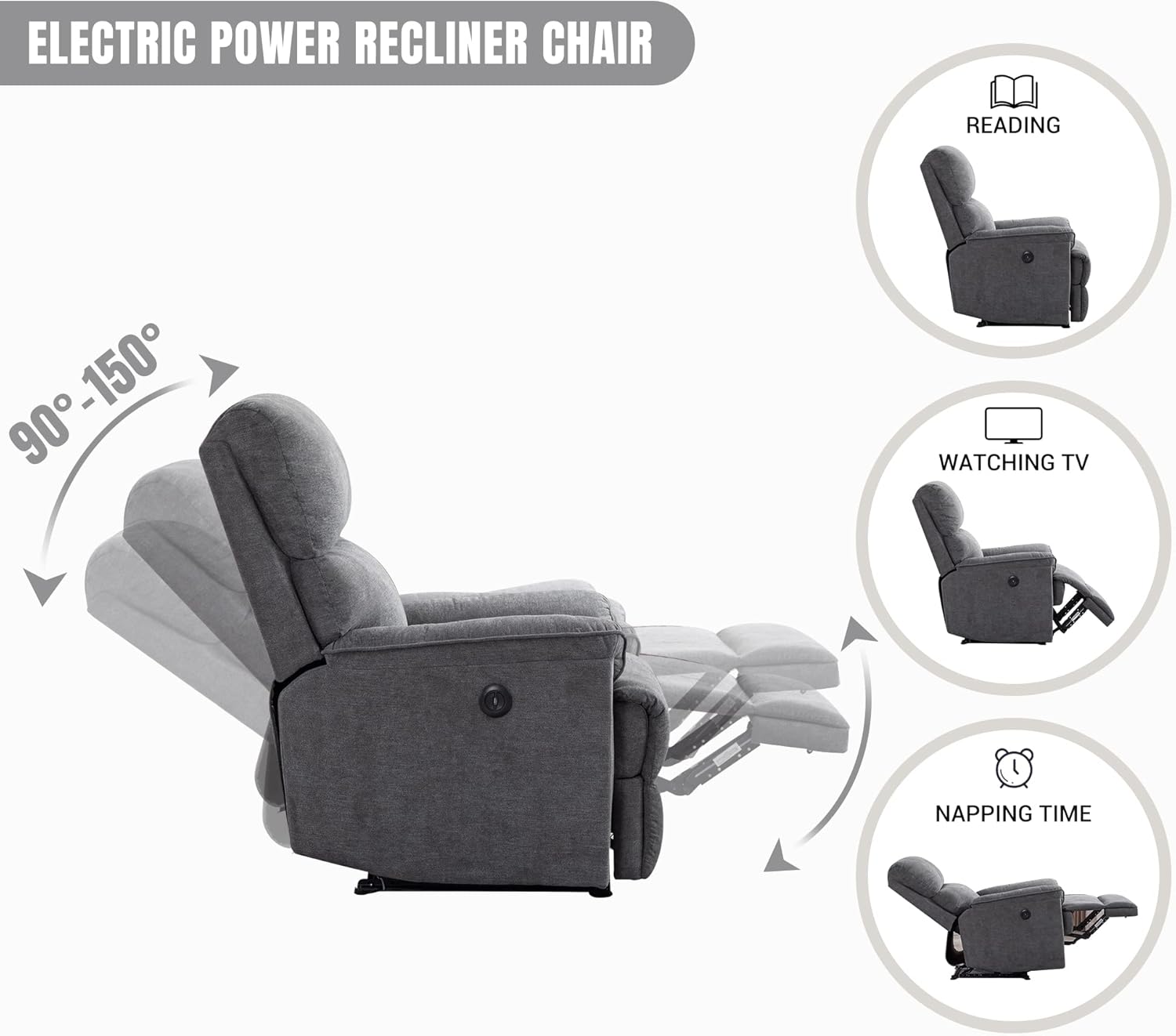

Image 5.1: Reclining range and suggested uses for the EBELLO Power Recliner Chair.
5.2 porto de carga USB
- A USB charging port is integrated into the side control panel.
- Connect your compatible electronic devices (e.g., smartphones, tablets) to the USB port for convenient charging while seated.
Image 5.2: Detail of the control button and USB port on the recliner.
6. Mantemento
Un coidado axeitado prolongará a vida útil e o aspecto da túa cadeira reclinable.
- Limpeza: The fabric upholstery should be dry cleaned. For minor spills, blot immediately with a clean, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Mecanismo: Periodically check all bolts and screws to ensure they are tight. Do not lubricate the reclining mechanism unless specifically instructed by customer support.
- Cable de alimentación: Inspect the power cord regularly for any signs of damage. If damaged, discontinue use and contact customer support for a replacement.
7 Solución de problemas
Se tes problemas coa túa cadeira reclinable, consulta os seguintes problemas e solucións comúns:
| Problema | Causa posible | Solución |
|---|---|---|
| Recliner does not operate. | Power cord not connected; power outlet not functioning; loose connection. | Ensure power cord is securely plugged into both the chair and a working wall outlet. Check circuit breaker. |
| Recliner makes unusual noises. | Ferraxes soltas; obstrución no mecanismo. | Check and tighten all visible bolts and screws. Inspect for any objects obstructing the reclining mechanism. |
| O porto USB non carga dispositivos. | Device not compatible; cable faulty; recliner not powered. | Ensure the recliner is powered on. Try a different USB cable or device. |
If the problem persists, please contact EBELLO customer support.
8. Especificacións
| Característica | Detalle |
|---|---|
| Marca | EBELLO |
| Nome do modelo | CD0026AF51D-C547-2 |
| Cor | Gris |
| Material | Textile (Fabric), Memory Foam Fill |
| Dimensións do produto (P x A x A) | 38.2" D x 31.1" W x 41.7" H |
| Profundidade do asento | 20.5 polgadas |
| Peso do elemento | 158.29 libras |
| Capacidade de peso | 220 libras |
| Usos recomendados | Gaming, Reading, Relaxing, Sleeping |
| Tipo de habitación | Bedroom, Living Room, Office, Study Room |
| Requírese montaxe | Si |
| Características adicionais | Arm Rest, Ergonomic, Foldable (referring to footrest), Foot Rest, Head Support, USB Charge Port |
Image 8.1: Detailed dimensions of the EBELLO Power Recliner Chair. Note: The image indicates 350 lbs weight capacity, while the product specifications state 220 lbs. Please refer to the product listing for the most accurate weight capacity.
9. Garantía e soporte
Your EBELLO Power Recliner Chair comes with a 1 anos de garantía desde a data de compra. Esta garantía cobre defectos de fabricación en condicións de uso normal.
For any questions, concerns, or warranty claims, please contact EBELLO customer support. Our team is available 24 hours online to assist you.
Información de contacto: Refer to your purchase documentation or the EBELLO brand store on Amazon for current contact details.
