Manual do usuario do kit de bomba de reforzo eléctrica Davies Craig DC-9040 EBP40

1. Introdución

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Davies Craig DC-9040 EBP40 Electric Booster Pump Kit. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

The EBP40 Electric Booster Pump is designed for various automotive and industrial applications requiring efficient fluid transfer. It features a durable nylon housing and is engineered for reliable performance.

2. Información de seguridade

Observe sempre as seguintes precaucións de seguridade para evitar lesións ou danos ao produto e ao equipo que o rodea.

• Ensure the power source is disconnected before performing any installation, maintenance, or troubleshooting.
• Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation and handling.
• Verifique que o volume da bombatage (12-Volt) matches the vehicle's or system's electrical supply.
• Do not operate the pump dry. Ensure fluid is present before activation to prevent damage.
• Mount the pump securely to prevent vibration and movement during operation.
• Keep all electrical connections clean and free from moisture.
• Refer to a qualified technician for complex installations or if you are unsure about any procedure.

3. Contido do paquete

Ao abrir o envase, comprobe que todos os compoñentes estean presentes e sen danos.

• Davies Craig EBP40 Electric Booster Pump (DC-9040)
• Soporte de montaxe
• Wiring Harness (if included in kit)
• Installation Hardware (screws, nuts, washers - if included in kit)
• Manual de usuario (este documento)

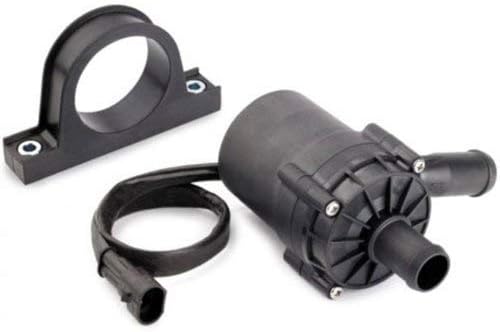

Figure 3.1: EBP40 Electric Booster Pump and Mounting Bracket.

This image displays the main components of the Davies Craig EBP40 Electric Booster Pump Kit. On the right is the black nylon-housed pump with its inlet and outlet ports visible, along with the attached electrical wiring harness. To the left is the black, semi-circular mounting bracket, designed to securely hold the pump in place, with two mounting holes visible at its base.

4. Especificacións

Figure 4.1: EBP40 Pump Dimensions.

This technical drawing provides key dimensions of the EBP40 pump. It shows the overall height of 4.724 inches (120 mm), the main body diameter of 2.283 inches (58 mm), and the inlet/outlet diameter of 0.866 inches (22 mm) with a length of 1.10 inches (28 mm). These measurements are crucial for planning installation space and hose compatibility.

5. Instalación e configuración

Proper installation is critical for the performance and longevity of the EBP40 pump.

5.1 Montaxe da bomba

1. Select a secure, stable location for mounting the pump, away from excessive heat, vibration, and direct exposure to road debris or water spray.
2. Use the provided mounting bracket. Secure the bracket to a flat surface using appropriate fasteners (not always included, refer to kit contents).
3. Insert the pump into the mounting bracket, ensuring it is firmly seated.

Figure 5.1: EBP40 Mounting Bracket.

This image shows a close-up of the black, semi-circular mounting bracket included with the EBP40 pump. It features two pre-drilled holes at its base, designed for securing the bracket to a flat surface using screws or bolts. The robust design ensures stable support for the pump once installed.

5.2 Conexións de fontanería

1. Connect appropriate hoses to the 3/4" (19mm) O.D. inlet and outlet ports of the pump.
2. Asegúrese de que toda a mangueira clampestán aperteadas firmemente para evitar fugas.
3. Orient the pump and hoses to minimize kinks and sharp bends, which can restrict flow.

5.3 Conexións eléctricas

1. Connect the pump's wiring harness to a fused 12-Volt DC power source.
2. Ensure correct polarity: typically, red wire to positive (+), black wire to negative (-). Refer to the wiring diagram if provided with your specific kit.
3. Use appropriate gauge wiring and ensure all connections are insulated and protected from environmental elements.

6. Funcionamento

Once installed, the EBP40 pump is designed for continuous operation within its specified parameters.

• Before initial startup, ensure the system is filled with the appropriate fluid and purged of air. Operating the pump dry can cause damage.
• Activate the pump via its connected power switch or control system.
• Monitor the system for proper fluid flow and pressure.
• Listen for unusual noises, which may indicate air in the system or an obstruction.

7. Mantemento

The EBP40 pump is designed for low maintenance. However, periodic checks can extend its lifespan.

• Inspección periódica: Periodically check hoses, clamps, and electrical connections for signs of wear, leaks, or corrosion.
• Limpeza: Manteña o exterior da bomba limpo e libre de sucidade e residuos.
• Calidade do fluído: Ensure the fluid being pumped is clean and free of contaminants that could damage the pump's internal components.
• Seguridade de montaxe: Verify that the pump remains securely mounted and that mounting hardware is tight.

8 Solución de problemas

If you encounter issues with your EBP40 pump, refer to the following common troubleshooting steps.

If the problem persists after attempting these solutions, contact Davies Craig customer support or a qualified technician.

9. Garantía e soporte

Specific warranty details for the Davies Craig DC-9040 EBP40 Electric Booster Pump Kit are not provided in this manual. Please refer to the product packaging, your purchase receipt, or the official Davies Craig websitio web para obter a información máis actualizada sobre a garantía.

For technical support, parts, or service inquiries, please contact Davies Craig customer service through their official channels.

• Fabricante: Davies Craig
• Websitio: www.daviescraig.com.au (Exampligazón, a ligazón real pode variar)
