1. Introdución
This manual provides essential instructions for the safe and efficient use of your yan AC/DC Adapter. This power supply is designed to provide reliable power to compatible Samsung LED monitors, including models BX2231, BX2050V, BX2031, and BX2031K. Please read this manual thoroughly before installation and operation to ensure proper functionality and safety.
2. Información de seguridade
To prevent electric shock, fire, or damage to the product, please observe the following safety precautions:
- Use the adapter only indoors in a dry environment. Do not expose it to water, rain, or excessive humidity.
- Asegúrese de que o voltaxe da toma de correntetage matches the adapter's input voltage (CA 100V-240V).
- Do not open the adapter casing. Non hai pezas que o usuario poida reparar no interior.
- Keep the adapter away from heat sources and ensure adequate ventilation to prevent overheating.
- Do not use the adapter if the cable or connector is damaged.
- Desconecte o adaptador da toma de corrente cando non o use durante períodos prolongados.
- Manter fóra do alcance dos nenos.
3. Contido do paquete
Verifica que o teu paquete contén o seguinte elemento:
- 1 x yan AC/DC Adapter (14V 3A 42W)
4. Instrucións de configuración
Follow these steps to connect your AC/DC adapter to your Samsung LED monitor:
- Ensure both the monitor and the power outlet are turned off before connecting the adapter.
- Locate the power input port on your Samsung LED monitor. This adapter uses a 6.5mm*4.4mm barrel connector.
- Connect the DC output connector of the yan AC/DC Adapter firmly into the power input port of your monitor.
- Plug the AC input connector (2-pin) of the adapter into a standard AC 100V-240V wall outlet.
- Turn on your monitor. The monitor should now receive power.

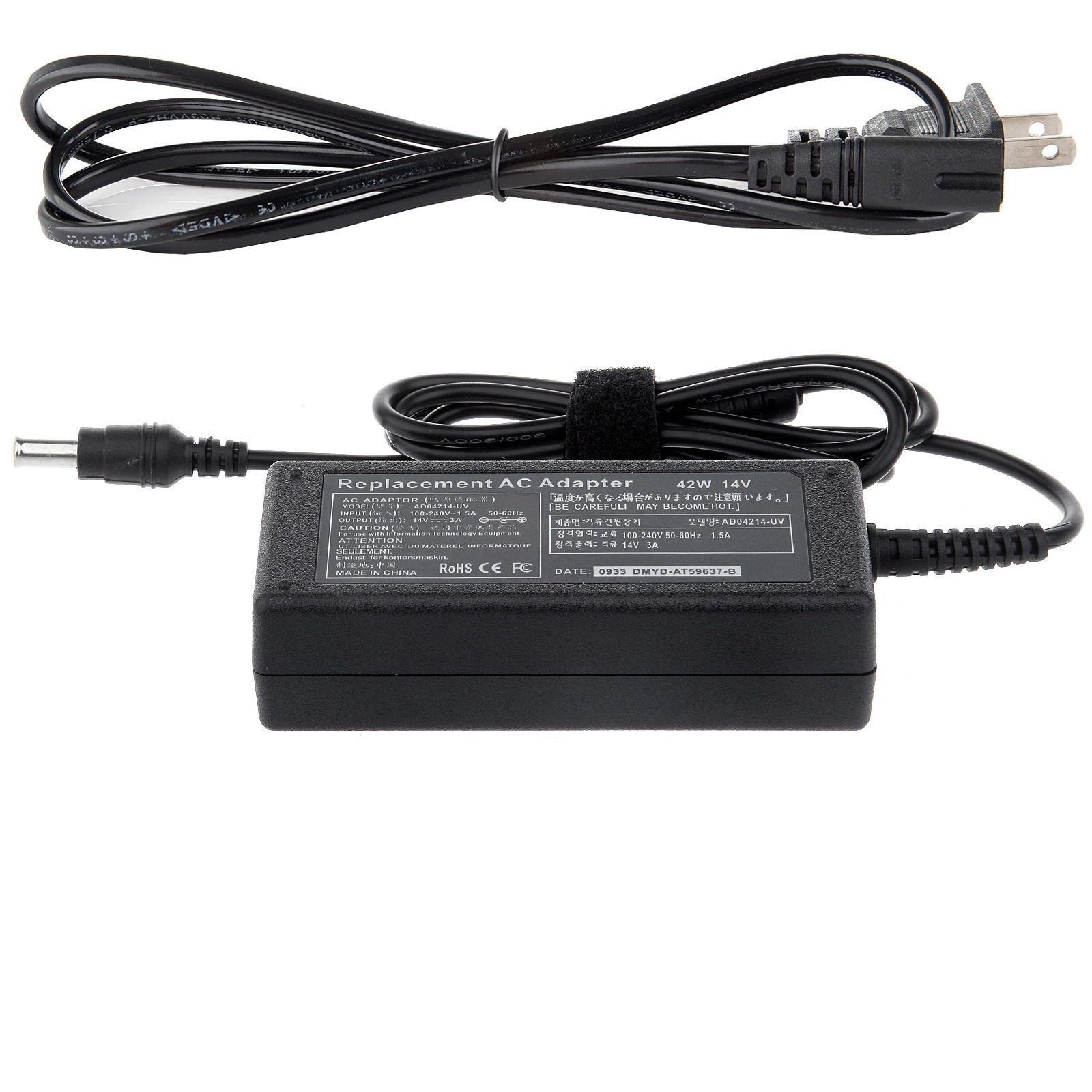

Image: The yan AC/DC Adapter with its barrel connector, ready for connection to a compatible Samsung LED monitor. The adapter features a standard 2-pin AC input for wall outlets.
5. Instrucións de funcionamento
The yan AC/DC Adapter operates as a plug-and-play device. Once correctly connected to your monitor and a power source, it will automatically supply the necessary power. No further user interaction is required for its operation.
6. Mantemento
Proper maintenance ensures the longevity and safe operation of your adapter:
- Limpeza: Disconnect the adapter from all power sources before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or sprays.
- Almacenamento: Store the adapter in a cool, dry place when not in use. Avoid wrapping the cable too tightly around the adapter body.
- Inspección: Periodically inspect the adapter's cable and connectors for any signs of damage, fraying, or loose connections. If damage is found, discontinue use immediately.
7 Solución de problemas
Se tes problemas co adaptador, consulta os seguintes problemas e solucións comúns:
| Problema | Causa posible | Solución |
|---|---|---|
| O monitor non se acende. | O adaptador non está conectado correctamente. A toma de corrente non está activa. Adapter or monitor fault. | Asegúrese de que todas as conexións estean seguras. Proba a toma de corrente con outro dispositivo. Try a different compatible adapter if available. Contact support if issue persists. |
| Monitor screen flickers or shuts off intermittently. | Fonte de alimentación inestable. Damaged adapter cable/connector. | Ensure the adapter is plugged directly into a wall outlet, not a faulty power strip. Inspect the cable for damage. Replace the adapter if damaged. |
| Adapter feels excessively hot. | Ventilación deficiente. Sobrecarga ou fallo interno. | Ensure the adapter is in an open area with good airflow. Do not cover it. Discontinue use immediately and contact support. |
8. Especificacións
| Característica | Detalle |
|---|---|
| Vol. De entradatage | AC 100V - 240V, 50-60Hz |
| Vol. De saídatage | DC 14 V |
| Corrente de saída | 3A |
| Wattage | 42 W |
| Tamaño do conector CC | 6.5 mm x 4.4 mm |
| Conector de entrada de CA | estándar de 2 pines |
| Proteccións | Over-charge, Short Circuit, Over Voltage, Overload (115%-135% rated output voltage) |
| Temperatura de traballo | 0-35°C (32-95°F) at 100% load |
| Material | Copper (internal wiring) |
| Cumprimento | EMC (Compatibilidade Electromagnética) |
9. Garantía e soporte
This product is manufactured by yan. For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase for any warranty claims.
