VANPORE 5.2 Gallon Ash Vacuum Cleaner User Manual

Bathar seachadview

The VANPORE 5.2 Gallon Ash Vacuum Cleaner is designed for efficient and safe cleaning of ash from fireplaces, pellet stoves, wood stoves, log burners, grills, pizza ovens, and fire pits. Its heat-resistant hose and flame-resistant filters ensure compatibility with both warm and cool ash. This versatile unit also functions as a blower and can be used as a regular shop vacuum during the off-season.

Image: The VANPORE Ash Vacuum Cleaner with its various attachments, including the hose, metal suction tube, extension wands, crevice nozzle, floor nozzle, HEPA cartridge filter, and flame retardant filter bag.

Fiosrachadh Sàbhailteachd

Leugh agus tuig a h-uile rabhadh agus stiùireadh sàbhailteachd mus cleachd thu an inneal seo. Ma dh’ fhailicheas tu air na rabhaidhean agus an stiùireadh a leantainn, dh’ fhaodadh sin clisgeadh dealain, teine ​​agus/no dochann dona adhbhrachadh.

• Ensure the vacuum is unplugged before performing any maintenance or assembly.
• Do not vacuum hot ashes. Allow ashes to cool completely before vacuuming.
• Always ensure filters are properly installed before use to prevent dust and ash from escaping.
• Keep hands, face, and clothing away from openings and moving parts.
• Do not use the vacuum in wet conditions or to pick up liquids. This is a dry ash vacuum.
• The appliance features a temperature control safety function. If the unit overheats, it may automatically shut off. Allow it to cool down before resuming operation.

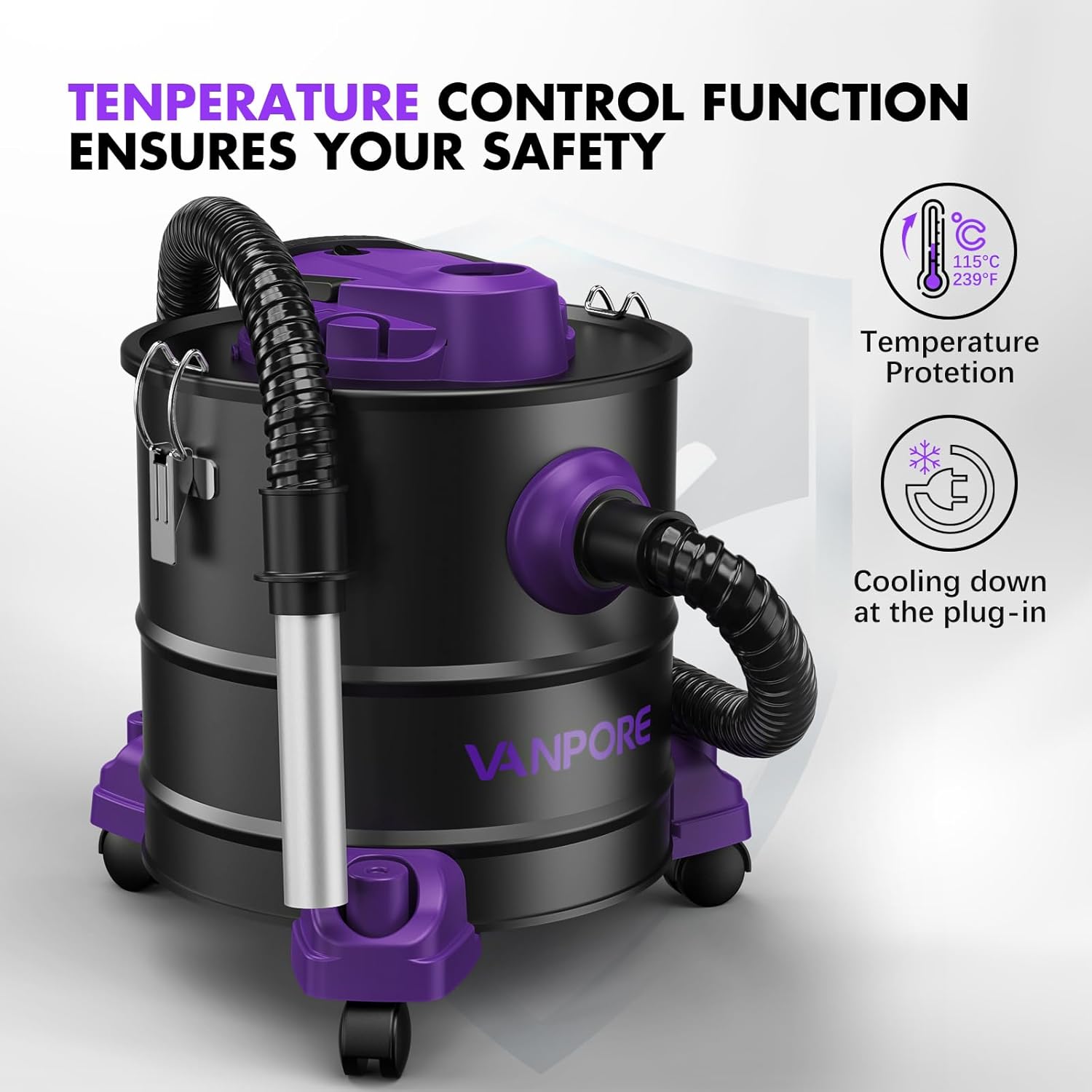

Image: Diagram illustrating the temperature protection feature of the vacuum, indicating it can handle temperatures up to 115°C (239°F) and includes a cooling-down mechanism at the plug-in point.

Co-phàirtean air an toirt a-steach

Your VANPORE Ash Vacuum Cleaner package includes the following items:

• Còmhdach còmhdach
• Container with 157" cable
• Leabhar-làimhe cleachdaiche (an sgrìobhainn seo)
• Hose suidse meatailt
• Tube suidse alùmanum
• Extension wands (x2)
• Wheel holder with wheels
• Gluasaid crevice
• Nozzle ùrlair
• HEPA cartridge filter
• Flame retardant filter Bag

Suidhich

Follow these steps to set up your ash vacuum cleaner for first use:

1. Attach the Wheel Base: Securely attach the wheel holder with wheels to the bottom of the vacuum container.
2. Stàlaich sìoltachain: Open the container lid and ensure the HEPA cartridge filter and flame retardant filter bag are correctly installed inside the canister. Refer to the "Maintenance" section for filter installation details.
3. Connect Hose for Vacuum Function: Insert the metal suction hose into the intake port on the side of the vacuum container. Attach the aluminum suction tube to the end of the hose, and then connect the desired nozzle (crevice or floor nozzle) to the tube.
4. Connect Hose for Blower Function: To use the blower function, connect the metal suction hose to the air outlet port located on the top of the container lid. Attach the aluminum suction tube or appropriate nozzle to the end of the hose.

Stiùireadh Obrachaidh

Vacuuming Ash

1. Ensure the vacuum is set up for the vacuum function as described in the "Setup" section.
2. Verify that the ashes are completely cool before vacuuming. Hot ashes can damage the vacuum and pose a fire hazard.
3. Plug an sreang cumhachd a-steach gu ionad dealain iomchaidh.
4. Press the On/Off switch to start the vacuum.
5. Carefully vacuum the ash from your fireplace, stove, or grill. Use the crevice nozzle for tight corners and the floor nozzle for larger flat surfaces.
6. Once finished, turn off the vacuum and unplug it from the outlet.

Image: A person using the VANPORE Ash Vacuum Cleaner to clean ash from a fireplace, demonstrating its practical application.

Using as a Blower

1. Ensure the vacuum is set up for the blower function as described in the "Setup" section.
2. Plug an sreang cumhachd a-steach gu ionad dealain iomchaidh.
3. Press the On/Off switch to activate the blower.
4. Direct the airflow to clear debris from surfaces. This function is ideal for light outdoor debris like leaves or sawdust.
5. Once finished, turn off the vacuum and unplug it from the outlet.

Image: A split image demonstrating the vacuum's dual functionality: top shows vacuuming ash from a fire pit, bottom shows using the blower function to clear leaves from a lawn.

Cumail suas

Regular maintenance ensures optimal performance and extends the life of your ash vacuum cleaner.

A' falmhachadh a' Chaisteil

1. Thoir a-mach am falamh bhon ionad cumhachd.
2. Release the latches on the side of the container and carefully lift off the motor head (container lid).
3. Thoir air falbh an co-chruinneachadh sìoltachain.
4. Carefully empty the collected ash into a suitable, non-combustible container.
5. Clean the inside of the canister with a damp aodach ma tha sin riatanach.

Glanadh agus Ath-chur Chriathragan

The patented HEPA filter system and flame retardant filter bag are designed to trap fine particles. Regular cleaning is essential.

1. After emptying the canister, gently tap the HEPA filter and filter bag to dislodge accumulated ash.
2. For thorough cleaning, the filters can be washed with water. Ensure they are completely dry before re-installing them into the vacuum.
3. Inspect filters for any damage or wear. Replace filters if they are torn or excessively clogged and cannot be cleaned effectively.

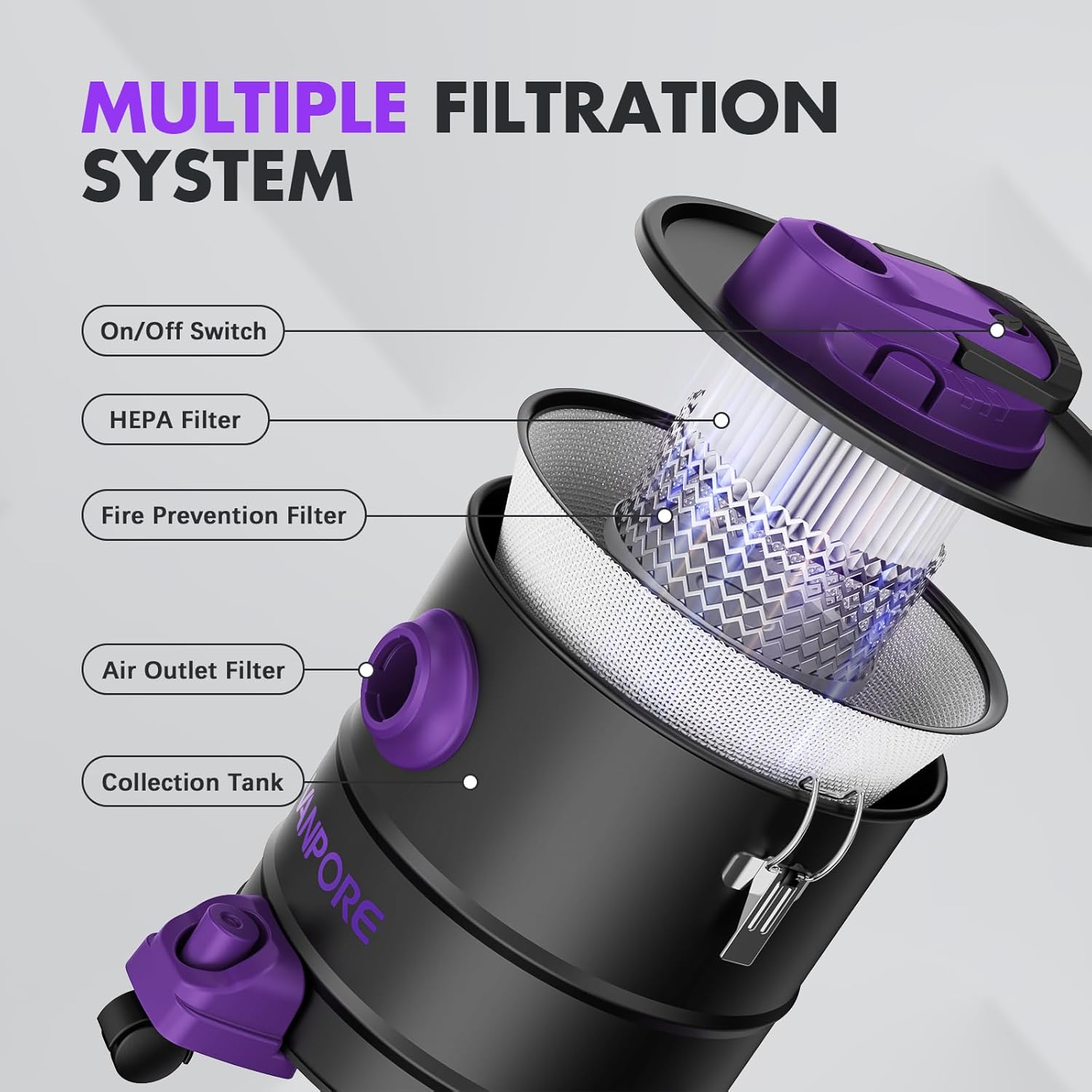

Ìomhaigh: Spreadhadh view diagram of the vacuum's multiple filtration system, showing the On/Off switch, HEPA filter, Fire Prevention Filter, Air Outlet Filter, and Collection Tank components.

Fuasgladh thrioblaidean

If you encounter issues with your VANPORE Ash Vacuum Cleaner, refer to the following common problems and solutions:

For more detailed troubleshooting, please refer to the Stiùireadh airson fuasgladh dhuilgheadasan (PDF).

Sònrachaidhean

Image: A comparison chart highlighting key specifications of the VANPORE vacuum, including 1200W power, 5.2 Gallon capacity, 157-inch cable length, wheeled base, and a 2-year warranty.

Barantas agus Taic

VANPORE Tech provides a 2-Year Industry Leading Warranty for this product, reflecting over 20 years of quality product manufacturing. Your purchase includes a welcome guide, our worry-free 24-month warranty, and friendly customer service.

For warranty claims, technical assistance, or any questions regarding your ash vacuum cleaner, please contact VANPORE customer service. Refer to the contact information provided in your welcome guide or visit the official VANPORE weblàrach.

You can also find additional support documents:

• Leabhar-làimhe Stàlaidh (PDF)
• Stiùireadh airson fuasgladh dhuilgheadasan (PDF)
