1. Ro-ràdh
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Bosch PKS 66 AF Circular Saw. Please read all instructions carefully before using the tool to ensure proper function and user safety. Keep this manual for future reference.
2. Stiùireadh Sàbhailteachd
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Familiarize yourself with all safety warnings and instructions provided.
Sàbhailteachd inneal cumhachd coitcheann
- Sàbhailteachd san raon obrach: Cùm an raon obrach glan agus le deagh shoillseachadh. Bidh àiteachan làn stuth no dorcha a’ toirt cuireadh do thubaistean. Na cleachd innealan cumhachd ann an àile spreadhaidh, leithid nuair a bhios lionntan lasanta, gasaichean no duslach ann.
- Sàbhailteachd dealain: Power tool plugs must match the outlet. Never modify the plug. Avoid body contact with earthed or grounded surfaces.
- Sàbhailteachd Pearsanta: Always wear eye protection, hearing protection, and a dust mask when operating the saw. Dress properly; avoid loose clothing or jewelry. Secure long hair.
- Cleachdadh agus cùram innealan: Na cuir feachd air an inneal cumhachd. Cleachd an inneal cumhachd ceart airson an tagraidh agad. Dì-cheangail am pluga bhon stòr cumhachd mus dèan thu atharrachaidhean sam bith, mus atharraich thu goireasan, no mus stòraich thu innealan cumhachd.
Circular Saw Specific Safety
- Cùm làmhan air falbh bhon àite gearraidh agus an lann. Cùm do dhàrna làmh air an làmh taice, no taigheadas motair. Ma tha an dà làmh a 'cumail an t-sabaid, chan urrainn dhaibh an gearradh leis an lann.
- Na ruig fon phìos obrach. Chan urrainn don gheàrd do dhìon bhon lann fon phìos obrach.
- Atharraich an doimhneachd gearraidh gu tiugh an obair-obrach. Cha bu chòir nas lugha na fiacail slàn den lann a bhith ri fhaicinn fon phìos obrach.
- Na cùm a-riamh am pìos obrach nad làmhan no thairis air do chas fhad ‘s a tha thu a’ gearradh. Dèan tèarainte air a ’phìos-obrach gu àrd-ùrlar seasmhach.
- Always use blades of the correct size and type.
3. Toradh thallview
The Bosch PKS 66 AF is a powerful circular saw designed for precise straight cuts in various wood materials. It features a 1600 Watt motor and is compatible with 190 mm diameter saw blades. The tool comes with a guide rail system and a CleanSystem Box for efficient dust collection.
Figure 1: Bosch PKS 66 AF Circular Saw with included guide rail and packaging.
4. Suidhich
4.1 A’ dì-phapadh
Carefully remove all components from the packaging. Verify that all items listed in the 'Box contents' section are present and undamaged. Retain packaging for storage or transport.
4.2 A’ ceangal an rèile-treòrachaidh
The PKS 66 AF includes a guide rail system for precise, long cuts. Assemble the three guide rail elements (each 35 cm long) by sliding them together until they lock securely. Position the guide rail on the workpiece and secure it firmly to prevent movement during cutting.
Figure 2: The circular saw being used with the guide rail for precise cuts on a large panel.
4.3 A’ stàladh/Atharraich Lann an t-Sàbhaidh
- Dèan cinnteach gu bheil an t-sàbh air a dhì-phlugachadh bhon stòr cumhachd.
- Brùth air a’ phutan glasaidh den spindle gus lann an t-sàbhaidh a dhaingneachadh.
- Cleachd an iuchair a tha air a thoirt seachad gus an sgriubha gleidhidh lann a leigeil ma sgaoil.
- Thoir air falbh an flange a-muigh agus an seann lann-sàbhaidh.
- Install the new 190 mm diameter saw blade, ensuring the rotation direction arrow on the blade matches the arrow on the saw's guard.
- Replace the outer flange and tighten the retaining screw firmly while holding the spindle lock.
4.4 A’ gleusadh doimhneachd gearraidh agus ceàrn a’ bheilbh
The cutting depth can be adjusted to match the workpiece thickness. Loosen the depth adjustment lever, set the desired depth using the scale, and re-tighten the lever. For angled cuts, loosen the bevel adjustment lever, set the desired angle (up to 45 degrees), and re-tighten.

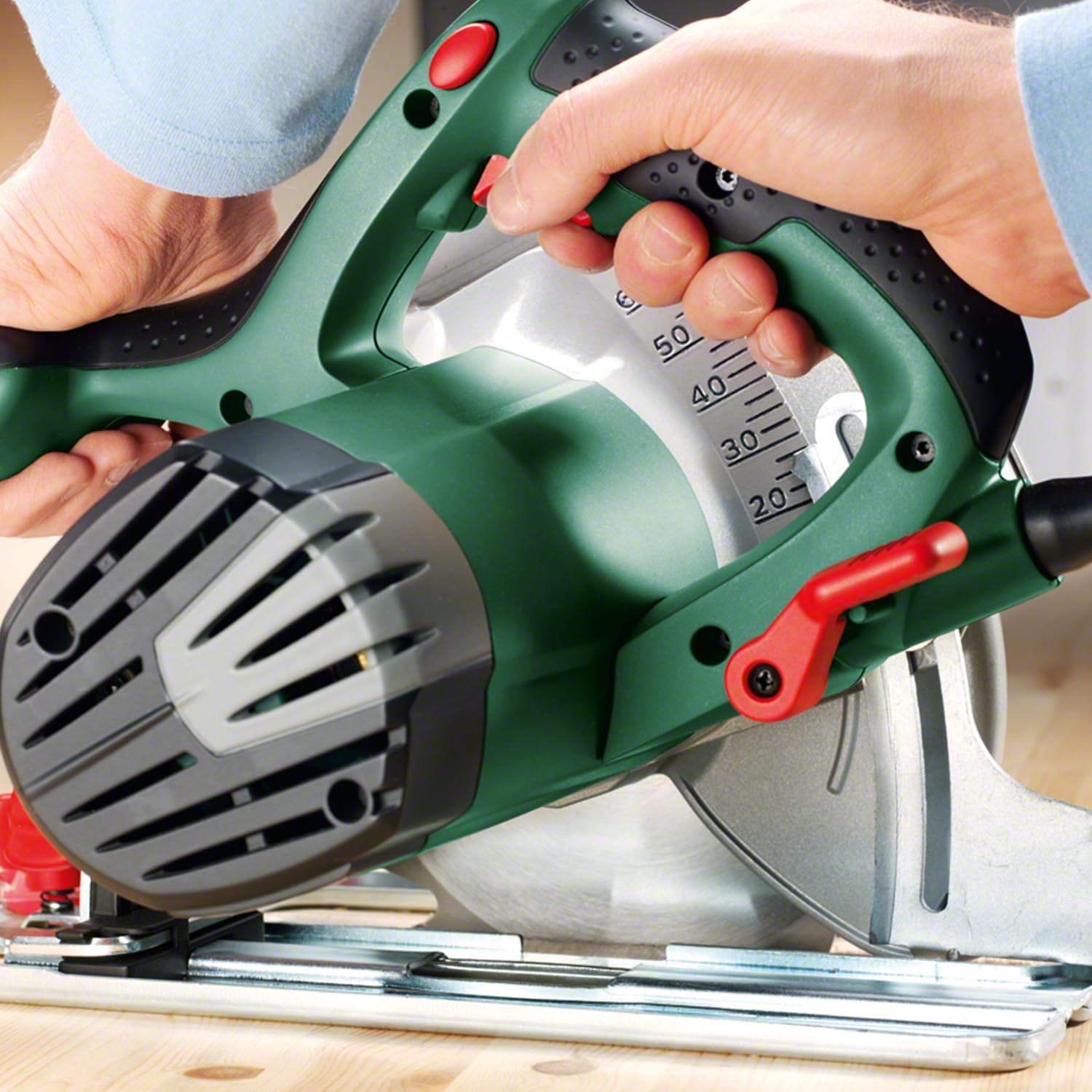

Figure 3: Detail of the saw's handle and the depth adjustment mechanism.
4.5 Connecting the CleanSystem Box
Attach the CleanSystem Box to the dust extraction port on the saw. This box collects up to 80% of chips, ensuring a cleaner work environment. Empty the box regularly.
5. Stiùireadh Obrachaidh
Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and a dust mask before operating the saw.
5.1 A’ cur cumhachd air/dheth
To start the saw, press and hold the safety lock-off button, then press the trigger switch. To stop the saw, release the trigger switch.
5.2 Making Straight Cuts with the Guide Rail
- Secure the workpiece and guide rail.
- Suidhich an doimhneachd gearraidh a tha thu ag iarraidh.
- Place the saw on the guide rail, ensuring it slides smoothly.
- Tòisich an sàbh agus leig leis an lann ruighinn làn astar mus cuir thu an sàs am pìos obrach.
- Push the saw smoothly along the guide rail through the workpiece.
- Once the cut is complete, release the trigger and allow the blade to stop before lifting the saw.
Figure 4: Proper technique for operating the circular saw on a workbench.
5.3 Making Freehand Cuts
For freehand cuts, ensure the workpiece is securely clamped. Use a straight edge or marking line as a guide. Maintain a firm grip on the saw with both hands and guide it steadily through the material.
Figure 5: The circular saw being used to cut wood for a deck installation.

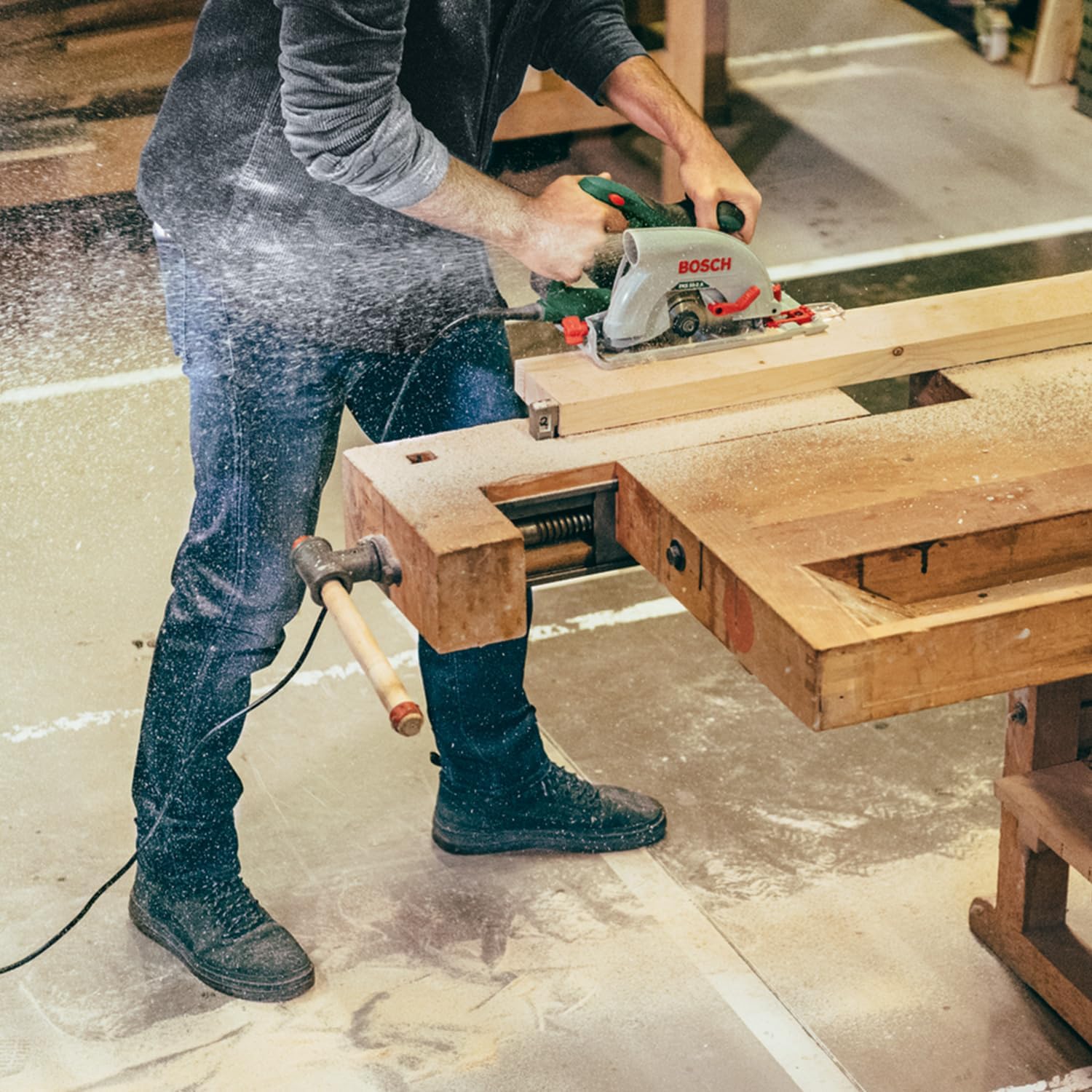

Figure 6: The saw in operation, demonstrating its capability to cut larger wood pieces.
6. Cumail suas
Regular maintenance ensures the longevity and safe operation of your Bosch PKS 66 AF Circular Saw.
- Glanadh: After each use, clean the tool, especially the ventilation slots and the CleanSystem Box, to prevent dust buildup. Use a soft brush or compressed air.
- Sgrùdadh lann: Dèan sgrùdadh cunbhalach air lann an t-sàbhaidh airson geur-leanmhainn, milleadh, no fiaclan a dhìth. Cuir lannan maol no millte nan àite sa bhad.
- Corda cumhachd: Thoir sùil air a’ chorda cumhachd airson comharran milleadh, gearraidhean no sgàineadh sam bith. Ma tha e millte, faigh teicneòlaiche teisteanasach ga chàradh.
- Stòradh: Stòraich an sàbh ann an àite tioram, sàbhailte, a-mach à ruigsinneachd chloinne.
7. A ’dèanamh trioblaid
Tha an earrann seo a’ dèiligeadh ri cùisean cumanta a dh’ fhaodadh tu a thighinn tarsainn leis an t-sàbh chruinn agad.
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Chan eil sàbh a’ tòiseachadh | No power supply; faulty switch; carbon brushes worn | Thoir sùil air a’ cheangal cumhachd; cuir fios chun ionad seirbheis airson suidse/bruise ùr. |
| Poor cut quality / excessive splintering | Dull or incorrect blade; incorrect cutting depth; feeding too fast | Replace blade; adjust cutting depth; reduce feed rate. |
| Excessive dust despite CleanSystem Box | CleanSystem Box full or improperly attached | Empty CleanSystem Box; ensure it is securely attached. |
| Bidh an sàbh a’ ceangal no a’ breabadh air ais | Workpiece not secured; blade pinched; dull blade | Secure workpiece firmly; ensure blade is free; replace blade. |
8. Sònrachaidhean
Key technical data for the Bosch PKS 66 AF Circular Saw:
| Feart | Sònrachadh |
|---|---|
| Modail Àireamh | 0603502000 |
| Cuir a-steach cumhachd | 1600 watt |
| Voltage | 240 Volt |
| Luas gun luchdachadh | 5000 rpm |
| Saw Blade Trast-thomhas | 190 mm |
| Cuideam | 5.4 kg |
| Meudan toraidh (L x W x H) | 46 x 34 x 28.5 cm |
| Ìre fuaim | 103 Deicibeil |
| Stòr cumhachd | Electric Corded |
9. Barantas agus Taic
Bosch provides a manufacturer's warranty for this product. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or warranty claims, please contact Bosch customer service or an authorized Bosch service center. Contact information can typically be found on the Bosch official weblàrach-lìn no ann an sgrìobhainnean an toraidh agad.
