djive Flowmate Tower One User Manual

1. Táirge Tharview

The djive Flowmate Tower One is an innovative 2-in-1 tower fan and air purifier designed to provide a comfortable and clean indoor environment. It features smart control options including the djive home app, Alexa, and Google Home voice commands, as well as an infrared remote control. Equipped with an integrated HEPA 12 filter, it effectively cleans the air by removing pollen and other particles, making it ideal for allergy sufferers. Its bladeless design ensures maximum safety for children and pets and simplifies cleaning.

The fan offers 9 speed levels and multiple operating modes, including a quiet sleep mode and a "Fresh" mode adjustable via the app. With an 80° oscillation function and a height of approximately 105 cm, it circulates air efficiently. Air is compressed through the HEPA 12 filter and then through thin aluminum columns, providing a noticeably cooler airflow. The LED display automatically turns off after 20 seconds, making it suitable for bedrooms, living rooms, offices, or camping.

Image: The djive Flowmate Tower One, a white tower fan with a sleek, modern design.

2. Treoracha Sábháilteachta

• Always ensure the device is placed on a stable, flat surface to prevent tipping.
• Do not insert fingers or objects into the air outlets or inlets. The bladeless design minimizes risk, but caution is still advised.
• Coinnigh an gléas ar shiúl ó uisce agus taise. Ná húsáid é le lámha fliucha.
• Díphlugáil an gléas sula ndéantar aon ghlanadh nó cothabháil air.
• Ensure the power cord is not damaged or pinched. Do not place heavy objects on the cord.
• Níl an fearas seo beartaithe lena úsáid ag daoine (lena n-áirítear leanaí) a bhfuil cumais choirp, céadfacha nó mheabhrach laghdaithe acu, nó a bhfuil easpa taithí agus eolais acu, ach amháin má tá maoirseacht nó treoir tugtha dóibh maidir le húsáid an fhearais ag duine atá freagrach as a sábháilteacht.

3. Socrú

3.1 Díphacáil agus Socrúchán

Carefully remove the Flowmate Tower One from its packaging. Place the unit on a firm, level surface in the desired location. Ensure there is adequate space around the unit for optimal airflow and oscillation.

3.2 Ceangal Cumhachta

Breiseán an corda cumhachta isteach i soicéad leictreach caighdeánach. Rachaidh an t-aonad isteach i mód fuireachais.

3.3 Socrú Cianrialtáin

The remote control requires one CR2025 battery (not included). Open the battery compartment on the back of the remote, insert the battery with the correct polarity (+ up), and close the compartment.

Image: The djive Flowmate Tower One shown with its remote control and a smartphone displaying the djive home app.

3.4 HEPA Filter Installation/Check

The HEPA 12 filter is typically pre-installed. To check or replace, locate the filter compartment (usually at the base or rear of the unit). Open the cover and ensure the filter is correctly seated. Close the compartment securely.

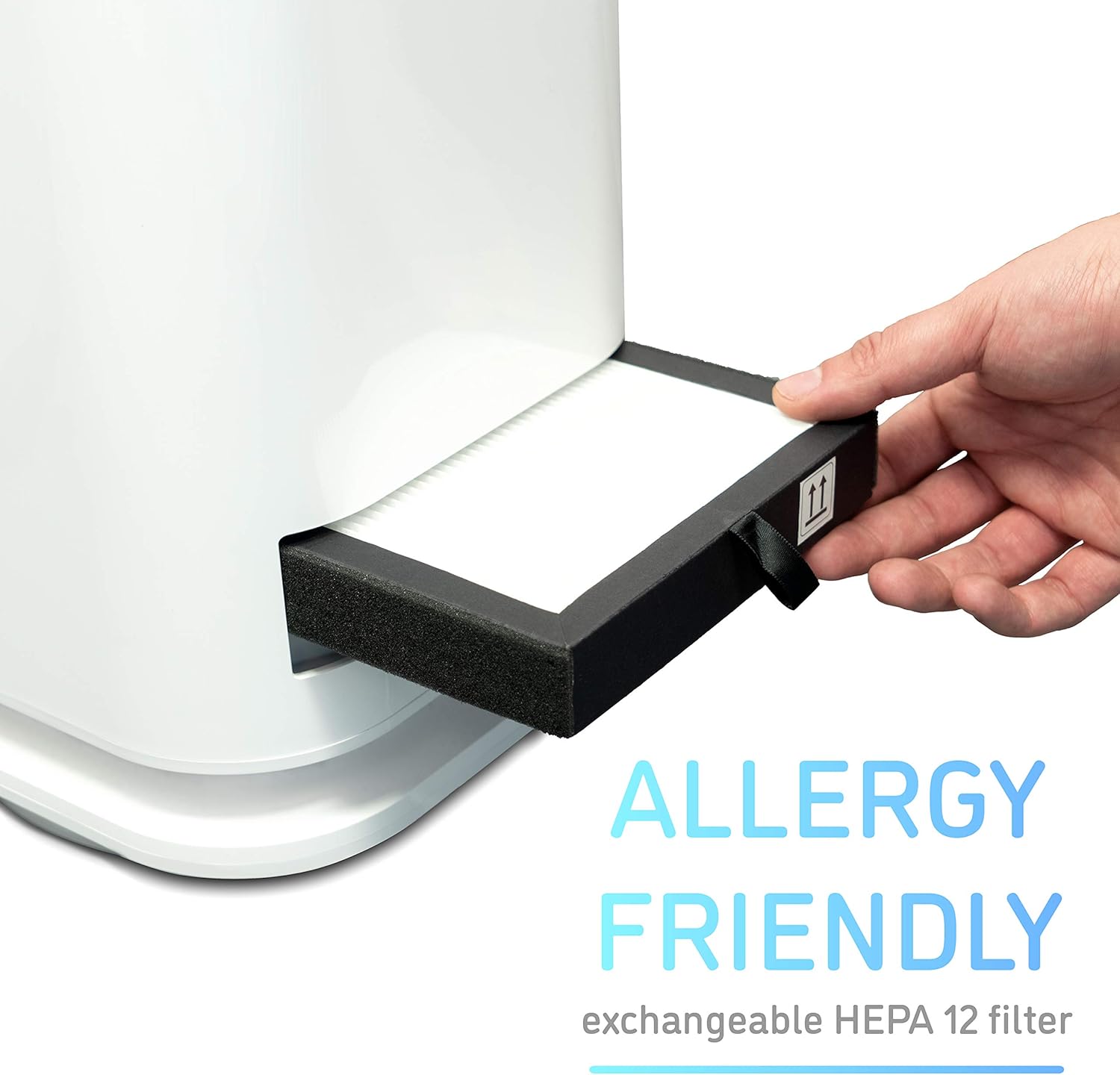

Image: A hand demonstrating the insertion of the HEPA 12 filter into the filter slot of the fan unit.

3.5 App and Wi-Fi Connection

1. Download the "djive home" app from your smartphone's app store (iOS or Android).
2. Register or log in to your djive home account.
3. Cinntigh go bhfuil do ghuthán cliste ceangailte le Líonra Wi-Fi 2.4GHz. The Flowmate Tower One only operates on 2.4GHz. If you have a dual-band router, you may need to temporarily disable the 5GHz band or ensure your phone is specifically connected to the 2.4GHz SSID.
4. In the app, select "Add Device" and follow the on-screen instructions to connect your Flowmate Tower One. This typically involves putting the fan into pairing mode (refer to the fan's display or manual for specific button presses) and entering your Wi-Fi password in the app.
5. Once connected, you can link the djive home app with Alexa or Google Home through their respective apps for voice control.

4. Treoracha Oibriúcháin

4.1 Oibriú an Phainéil Rialaithe

The Flowmate Tower One features a touch-sensitive control panel on the front of the unit.

Image: A finger interacting with the digital display and control button on the front of the fan.

• Cumhacht ar siúl / as: Brúigh an cnaipe cumhachta chun an t-aonad a chasadh air nó as.
• Coigeartú Luais: Use the speed control buttons to cycle through 9 different fan speeds.
• Ascalaithe: Press the oscillation button to activate or deactivate the 80° oscillation function.
• Roghnú Mód: Cycle through available modes (e.g., Normal, Sleep, Max) using the mode button.
• The LED display will show the current speed or mode and will automatically dim after approximately 20 seconds.

4.2 Oibríocht Chianrialaithe

Soláthraíonn an cianrialtán atá san áireamh rochtain áisiúil ar gach feidhm ó chian.

• Cnaipe Cumhachta: Cuireann sé an t-aonad ar siúl nó as.
• Cnaipí Luais: Adjust fan speed up or down.
• Cnaipe Oscillation: Toggles 80° oscillation.
• Cnaipe Uaineadóir: Socraíonn sé an lasc ama uathoibríoch-mhúchta.
• Cnaipe Mód: Cycles through operating modes.

4.3 App Control (djive home)

The djive home app offers comprehensive control and additional features.

Image: A smartphone screen showing the djive home app with controls for fan speed, power, and oscillation.

• Rialú Iomlán: Power on/off, adjust speed (1-9), activate oscillation.
• Móid Ardleibhéil: Access specific modes like "Sleep" (for quiet operation), "Fresh" (variable wind speed), and "Strong Wind" (Max mode).
• Feidhm Uaineadóir: Set precise auto-off timers.
• Sceidealú: Create schedules for automatic operation.
• Monatóireacht Stádais: View current settings and status.

4.4 Voice Control (Alexa, Google Home)

Once linked with the djive home app, you can control your Flowmate Tower One using voice commands.

• "Alexa, turn on/off the fan."
• "Hey Google, set fan speed to 5."
• "Alexa, turn on oscillation for the fan."
• Refer to the Alexa or Google Home app for specific command syntax and device naming.

Image: The djive Flowmate Tower One in a room setting, illustrating its 80-degree oscillation capability.

4.5 Airflow Mechanism

The Flowmate Tower One draws air through its base, where it passes through the HEPA 12 filter. The purified air is then compressed and accelerated through the thin aluminum columns, creating a powerful yet smooth airflow that effectively cools the surrounding area.

Image: A diagram illustrating the internal airflow path within the djive Flowmate Tower One, showing air being drawn in and expelled.

5. Cothabháil

5.1 Glanadh an Aonaid

Due to its bladeless design, the Flowmate Tower One is easy to clean. Use a soft, dry cloth to wipe down the exterior surfaces. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Do not use abrasive cleaners or solvents.

5.2 Athsholáthar Scagaire HEPA

The HEPA 12 filter should be replaced once a year to ensure optimal air purification performance. Replacement filters can be purchased from the official djive online store or authorized retailers. Refer to section 3.4 for filter access instructions.

6. Fabhtcheartú

7. Sonraíochtaí

8. Barántas agus Tacaíocht

For warranty information, technical support, or to purchase replacement parts (such as HEPA filters), please contact djive customer service or visit their official websuíomh. Féadfaidh téarmaí sonracha barántais a bheith éagsúil de réir réigiúin agus miondíoltóra.

Coinnigh do chruthúnas ceannaigh le haghaidh aon éilimh bharántais.
