Fronius RI MOD Compact Com Module

Specifications

Product Name: RI FB PRO/i RI MOD/i CC Ethernet/IP-2P
Vendor: Fronius International GmbH
Device Type: Communication adapter
Product Code: 0320hex (800dez)
Image Type: Standard Image
Instance Type: Producing Instance
Consuming Instance: Consuming Instance
Instance Name: Fronius-FB-Pro-EtherNetIP(TM)

Product Usage Instructions

Setting the IP Address of the Bus Module
The IP address of the bus module can be set using the DIP switches on the interface:

Set the IP address within the range of 192.168.0.xx (where xx corresponds to DIP switch positions from 1 to 63).
DIP switch settings and corresponding IP addresses:

DIP Switch	IP Address
OFF OFF OFF OFF OFF OFF ON	1
OFF OFF OFF OFF OFF ON OFF	2
OFF OFF OFF OFF OFF ON ON	3
ON ON ON ON ON OFF	62
ON ON ON ON ON ON	63

Data Types and Signal Mapping
The product uses the following data types:

UINT16 (Unsigned Integer) – Range: 0 to 65535
SINT16 (Signed Integer) – Range: -32768 to 32767

Address mapping for input and output signals:

Address	Type	Description
0-7	BIT Signal	Signal Mapping Details

General

Safety

WARNING!
Danger from incorrect operation and work that is not carried out properly. This can result in serious personal injury and damage to property.

All the work and functions described in this document must only be carried out by technically trained and qualified personnel.
Read and understand this document in full.
Read and understand all safety rules and user documentation for this equip-ment and all system components.

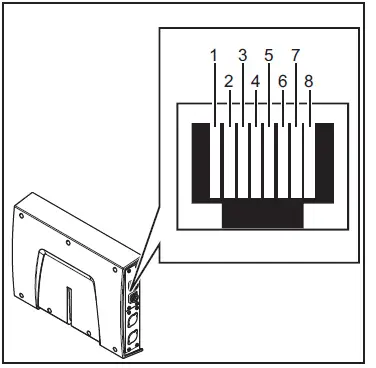

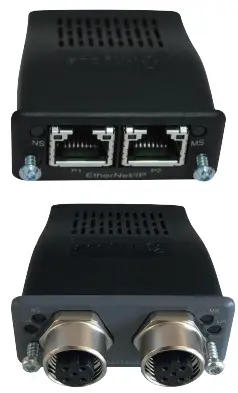

Connections and Displays

1	TX+
2	TX-
3	RX+
6	RX-
4,5,7,	Not normally used; to ensure-
8	re signal completeness, the
	se pins must be Intercon-
	nected and, after passing
	through a filter circuit, must
	terminate at the ground
	conductor (PE).

RJ45 connection

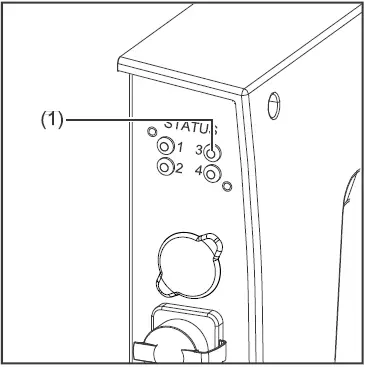

(1) LED MS – Module status

Off:

No supply voltage

Lights up green:

Controlled by a master

Flashes green (once):

Master not configured or master idle

Lights up red:

Major error (exception state, serious fault, …)

Flashes red:

Correctable error

(2) LED NS – Network status

Off:

No supply voltage or no IP address

Lights up green:

Online, one or more connections established (CIP category 1 or 3)

Flashes green:

Online, no connection is established

Lights up red:

Double IP address, serious error

Flashes red:

Overrun of time for one or more connections (CIP category 1 or 3)

Data Transfer Properties

Transfer technology

Ethernet

Medium

When selecting the cables and plugs, the ODVA recommendation for the plan-ning and installation of EtherNet/IP systems must be observed. The EMC tests were carried out by the manufacturer with the cable IE-C5ES8VG0030M40M40-F.

Transmission speed

10 Mbit/s or 100 Mbit/s

Bus connection

RJ-45 Ethernet / M12

Configuration Parameters

In some robot control systems, it may be necessary to state the configuration parameters described here so that the bus module can communicate with the robot.

Parameter	Value	Description
Vendor ID	0534hex (1332dec)	Fronius International GmbH
Device Type	000Chex (12dec)	Communication adapter
Product Code	0320hex (800dec)	Fronius FB Pro Ethernet/IP-2-Port

Product Name Fronius-FB-Pro-EtherNetIP(TM)

Image Type

Instance Type

Instance Name

Instance Description

Instance Number

Size [Byt e]

Standard Image

Produ- coming Instance

Input Data Standard

Data from power source to robot

100

Image Type	Instance Type	Instance Name	Instance Description	Instance Number	Size [Byt e]
	Con- summing Instance	Output Data Standard	Data from robot to power source	150	40

Economy Image	Produ- coming Instance	Input Data Standard	Data from power source to robot	101	16
	Con- summing Instance	Output Data Standard	Data from robot to power source	151	16

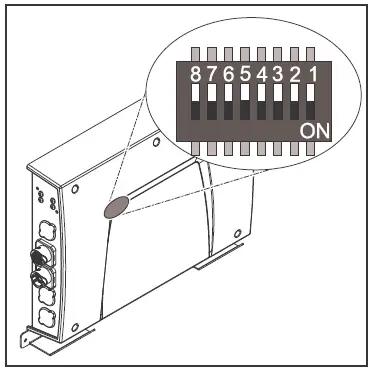

Setting the Bus Module IP Address
Setting the Bus Module IP Address You can set the bus module IP address as follows:

Using the DIP switch in the interface within the range defined by 192.168.0.xx (xx = DIP switch setting = 1 to 63)
- All positions are set to the OFF position at the factory. In this case, the IP address must be set on the website of the welding machine
On the website of the welding machine (if all positions of the DIP switch are set to the OFF position)

The IP address is set using DIP switch positions 1 to 6. The configuration is carried out in binary format. This results in a configuration range of 1 to 63 in decimal format.

Example for setting the IP address of the bus module using the DIP switch in the interface:
Dip switch
8	7	6	5	4	3	2	1	IP address
–	–	OFF	OFF	OFF	OFF	OFF	ON	1
–	–	OFF	OFF	OFF	OFF	ON	OFF	2
–	–	OFF	OFF	OFF	OFF	ON	ON	3
–	–	ON	ON	ON	ON	ON	OFF	62
–	–	ON	ON	ON	ON	ON	ON	63

Instructions for setting the IP address on the website of the welding machine:
Note down the IP address of the welding machine used:

On the welding machine control panel, select “Defaults”
On the welding machine control panel, select “System”
On the welding machine control panel, select “Information”
Note down the displayed IP address (example: 10.5.72.13)

Access the website of the welding machine in the internet browser:

Connect the computer to the network of the welding machine
Enter the IP address of the welding machine in the search bar of the internet browser and confirm
Enter the standard user name (admin) and password (admin)
- The website of the power source is displayed

Set the bus module IP address:

On the power welding machine, select the “RI FB PRO/i” tab
Enter the desired IP address for the interface under “Module configuration”. For example: 192.168.0.12
Select “Set configuration”
Select “Restart module”
- The set IP address is applied

Input and output signals

Data types

The following data types are used:

UINT16 (Unsigned Integer)
- The whole number in the range from 0 to 65535
SINT16 (Signed Integer)
- The whole number ranges from -32768 to 32767

Conversion examples:

for a positive value (SINT16) e. g. desired wire speed x factor 12.3 m/min x 100 = 1230dec = 04CEhex
for a negative value (SINT16) e. g. arc correction x factor -6.4 x 10 = -64dec = FFC0hex

Availability of input signals
The input signals listed below are available from firmware V2.0.0 of the RI FB PRO/i onwards.

Input signals (from robot to power source)

Address				Signal	Activity/data type	Range	Factor	Process image
Relative			Absolu- te					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
0	0	0	0	Welding Start	Increa- sing			ü	ü
		1	1	Robot ready	High
		2	2	Working mode Bit 0	High	See table Value Range for Working Mode on page 35
		3	3	Working mode Bit 1	High
		4	4	Working mode Bit 2	High
		5	5	Working mode Bit 3	High
		6	6	Working mode Bit 4	High
		7	7	—
	1	0	8	Gas on	Increa- sing
		1	9	Wire forward	Increa- sing
		2	10	Wire backward	Increa- sing
		3	11	Error quit	Increa- sing
		4	12	Touch sensing	High
		5	13	Torch blow out	Increa- sing
		6	14	Processing selection Bit 0	High	See table Value range Process li- ne selection on page 36
		7	15	Processing selection Bit 1	High

Address				Signal	Activity/data type	Range	Factor	Process image
Relative			Absolu- te					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
1	2	0	16	Welding simulation	High			ü	ü
		1	17	Welding process MIG/MAG: 1) Synchro pulse on	High
		1	17	Welding process WIG: 2) TAC on	High
		2	18	Welding process WIG: 2) Cap shaping	High
		3	19	—
		4	20	—
		5	21	Booster manual	High
		6	22	Wire brake on	High
		7	23	Torchbody Xchange	High
	3	0	24	—
		1	25	Teach mode	High
		2	26	—
		3	27	—
		4	28	—
		5	29	Wire since start	Increa- sing
		6	30	Wire sense break	Increa- sing
		7	31	—

Address				Signal	Activity/data type	Range	Factor	Process image
Relative			Absolu- te					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
2	4	0	32	TWIN mode Bit 0	High	See table Value Range for TWIN Mode on page 36		ü	ü
		1	33	TWIN mode Bit 1	High	See table Value Range for TWIN Mode on page 36
		2	34	—
		3	35	—
		4	36	—
		5	37	Documentation mode	High	See table Value Range for Docu- mentation Mode on page 36
		6	38	—
		7	39	—
	5	0	40	—
		1	41	—
		2	42	—
		3	43	—
		4	44	—
		5	45	—
		6	46	—
		7	47	Disable process-controlled correction	High

Address				Signal	Activity/data type	Range	Factor	Process image
Relative			Absolu- te					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
3	6	0	48	—				ü	ü
		1	49	—
		2	50	—
		3	51	—
		4	52	—
		5	53	—
		6	54	—
		7	55	—
	7	0	56	ExtInput1 => OPT_Output 1	High
		1	57	ExtInput2 => OPT_Output 2	High
		2	58	ExtInput3 => OPT_Output 3	High
		3	59	ExtInput4 => OPT_Output 4	High
		4	60	ExtInput5 => OPT_Output 5	High
		5	61	ExtInput6 => OPT_Output 6	High
		6	62	ExtInput7 => OPT_Output 7	High
		7	63	ExtInput8 => OPT_Output 8	High
4	8- 9	0–7	64–79	Welding characteristic- / Job number	UINT16	0 to 1000	1	ü	ü
5	10 – 11	0-7	80-95	Welding process MIG/MAG: 1) Constant Wire: Wire feed speed command value	SINT16	-327,68 to 327,67 [m/min]	100	ü	ü
				Welding process WIG: 2) Main- / Hotwire current command value	UINT16	0 to 6553,5 [A]	10
				For job-mode: Power correction	SINT16	-20,00 to 20,00 [%]	100

Address				Signal	Activity/data type	Range	Factor	Process image
Relative			Absolu- te					Standard	Economy
WORD	BYTE	BIT	BIT
6	12 – 13	0-7	96-111	Welding process MIG/MAG: 1) Arclength correction	SINT16	-10,0 to 10,0 [Schritte]	10	ü	ü
				Welding process MIG/MAG Standard-Manuel: Welding voltage	UINT16	0,0 to 6553,5 [V]	10
				Welding process WIG: 2) Wire feed speed command value	SINT16	-327,68 to 327,67 [m/min]	100
				For job-mode: Arclength correction	SINT16	-10,0 to 10,0 [Schritte]	10
				Welding process Constant Wire: Hotwire current	UINT16	0,0 to 6553,5 [A]	10
7	14 – 15	0-7	112-127	Welding process MIG/MAG: 1) Pulse-/dynamic correction	SINT16	-10,0 to 10,0 [steps]	10	ü	ü
				Welding process MIG/MAG Standard-Manuel: Dynamic	UINT16	0,0 to 10,0 [steps]	10
				Welding process WIG: 2) Wire correction	SINT16	-10,0 to 10,0 [steps]	10
8	16 – 17	0-7	128-143	Welding process MIG/MAG: 1) Wire retract correction	UINT16	0,0 to 10,0 [steps]	10	ü
				Welding process WIG: 2) Wire retract end	UINT16	OFF, 1 to 50 [mm]	1
9	18 – 19	0-7	144-159	Welding speed	UINT16	0,0 to 1000,0 [cm/min]	10	ü

Address				Signal	Activity/data type	Range	Factor	Process image
Relative			Absolu- te					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
10	20 – 21	0-7	160-175	Process controlled correction		See table Value range for Process controlled correction on page 36		ü
11	22 – 23	0-7	176-191	Welding process WIG: 2) Wire positioning start				ü
12	24 – 25	0-7	192-207	—				ü
13	26 – 27	0-7	208-223	—				ü
14	28 – 29	0-7	224-239	—				ü
15	30 – 31	0-7	240-255	Wire forward / backward length	UINT16	OFF / 1 to 65535 [mm]	1	ü
16	32 – 33	0-7	256-271	Wire sense edge detection	UINT16	OFF / 0,5 to 20,0 [mm]	10	ü
17	34 – 35	0-7	272-287	—				ü
18	36 – 37	0-7	288-303	—				ü
19	38 – 39	0-7	304-319	Seam number	UINT16	0 to 65535	1	ü

MIG/MAG Puls-Synergic, MIG/MAG Standard-Synergic, MIG/MAG Stan- dard-Manuel, MIG/MAG PMC, MIG/MAG, LSC
WIG cold wire, WIG hotwire

Value Range for Working Mode

Bit 4	Bit 3	Bit 2	Bit 1	Bit 0	Description
0	0	0	0	0	Internal parameter selection
0	0	0	0	1	Special 2-step mode characteristics
0	0	0	1	0	Job mode

Bit 4	Bit 3	Bit 2	Bit 1	Bit 0	Description
0	1	0	0	0	2-step mode characteristics
0	1	0	0	1	2-step MIG/MAG standard manual
1	0	0	0	0	Idle Mode
1	0	0	0	1	Stop coolant pump
1	1	0	0	1	R/L-Measurement

Value range for operating mode

Value Range for Documentation Mode

Bit 0	Description
0	Seam number of welding machine (internal)
1	Seam number of robots (Word 19)

The value range for documentation mode

The value range for Process control-led correction

Process

Signal

Activity/data type

Value range configuration range

Unit

Factor

PMC

Arc length stabilizer

SINT16

-327.8 to +327.7

0.0 to +5.0

Volts

The value range for documentation mode

The value range for Process control-led correction

Process

Signal

Activity/data type

Value range configuration range

Unit

Factor

PMC

Arc length stabilizer

SINT16

-327.8 to +327.7

0.0 to +5.0

Volts

The value range for process-dependent correction

Value range Process line selection

Bit 1	Bit 0	Description
0	0	Process line 1 (default)
0	1	Process line 2
1	0	Process line 3
1	1	Reserved

Value range for process line selection

Value Range for TWIN Mode

Bit 1	Bit 0	Description
0	0	TWIN Single mode
0	1	TWIN Lead mode
1	0	TWIN Trail mode
1	1	Reserved

The value range for the TWIN mode

Availability of the output signals
The output signals listed below are available from firmware V2.0.0 of the RI FB PRO/i onwards.

Output Signals (from Power Source to Robot)

Address				Signal	Activity/data type	Range	Factor	Process image
relative			absolute					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
0	0	0	0	Heartbeat Powersource	High/Low	1 Hz		ü	ü
		1	1	Power source ready	High
		2	2	Warning	High
		3	3	Process active	High
		4	4	Current flow	High
		5	5	Arc stable- / touch signal	High
		6	6	Main current signal	High
		7	7	Touch signal	High
	1	0	8	Collision box active	High	0 = collision- on or cable break
		1	9	Robot Motion Release	High
		2	10	Wire stick workpiece	High
		3	11	—
		4	12	Short circuit contact tip	High
		5	13	Parameter selection in- eternally	High
		6	14	Characteristic number valid	High
		7	15	Torch body gripped	High

Address				Signal	Activity/data type	Range	Factor	Process image
relative			absolute					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
1	2	0	16	Command value out of range	High			ü	ü
		1	17	Correction out of range	High
		2	18	—
		3	19	Limitsignal	High
		4	20	—
		5	21	—
		6	22	Main supply status	Low
		7	23	—
	3	0	24	Sensor status 1	High	See table Assign- ment of Sensor Sta- uses 1–4 on page 40
		1	25	Sensor status 2	High
		2	26	Sensor status 3	High
		3	27	Sensor status 4	High
		4	28	—
		5	29	—
		6	30	—
		7	31	—
2	4	0	32	—				ü	ü
		1	33	—
		2	34	—
		3	35	Safety status Bit 0	High	See table Value ran- ge Safety status on page 41
		4	36	Safety status Bit 1	High	See table Value ran- ge Safety status on page 41
		5	37	—
		6	38	Notification	High
		7	39	System not ready	High
	5	0	40	—
		1	41	—
		2	42	—
		3	43	—
		4	44	—
		5	45	—
		6	46	—
		7	47	—

Address				Signal	Activity/data type	Range	Factor	Process image
relative			absolute					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
3	6	0	48	Process Bit 0	High	See table Value Range for Process Bit on page 41		ü	ü
		1	49	Process Bit 1	High
		2	50	Process Bit 2	High
		3	51	Process Bit 3	High
		4	52	Process Bit 4	High
		5	53	—
		6	54	Touch signal gas nozzle	High
		7	55	TWIN synchronization active	High
	7	0	56	ExtOutput1 <= OPT_In- put1	High
		1	57	ExtOutput2 <= OPT_In- put2	High
		2	58	ExtOutput3 <= OPT_In- put3	High
		3	59	ExtOutput4 <= OPT_In- put4	High
		4	60	ExtOutput5 <= OPT_In- put5	High
		5	61	ExtOutput6 <= OPT_In- put6	High
		6	62	ExtOutput7 <= OPT_In- put7	High
		7	63	ExtOutput8 <= OPT_In- put8	High
4	8- 9	0-7	64-79	Welding voltage	UINT16	0.0 to 655.35 [V]	100	ü	ü
5	10 – 11	0-7	80-95	Welding current	UINT16	0.0 to 6553.5 [A]	10	ü	ü
6	12 – 13	0-7	96-111	Wire feed speed	SINT16	-327.68 to 327.67 [m/ min]	100	ü	ü
7	14 – 15	0-7	112-127	Actual real value for seam tracking	UINT16	0 to 6.5535	10000	ü	ü
8	16 – 17	0-7	128-143	Error number	UINT16	0 to 65535	1	ü
9	18 – 19	0-7	144-159	Warning number	UINT16	0 to 65535	1	ü

Address				Signal	Activity/data type	Range	Factor	Process image
relative			absolute					Standard	Economy
WORD	BYTE	BIT	BIT					Standard	Economy
10	20 – 21	0-7	160-175	Motor current M1	SINT16	-327.68 to 327.67 [A]	100	ü
11	22 – 23	0-7	176-191	Motor current M2	SINT16	-327.68 to 327.67 [A]	100	ü
12	24 – 25	0-7	192-207	Motor current M3	SINT16	-327.68 to 327.67 [A]	100	ü
13	26 – 27	0-7	208-223	—				ü
14	28 – 29	0-7	224-239	—				ü
15	30 – 31	0-7	240-255	—				ü
16	32 – 33	0-7	256-271	Wire position	SINT16	-327.68 to 327.67 [mm]	100	ü
17	34 – 35	0-7	272-287	—				ü
18	36 – 37	0-7	288-303	—				ü
19	38 – 39	0-7	304-319	—				ü

Assignment of Sensor Statuses 1–4

Signal	Description
Sensor status 1	OPT/i WF R wire end (4,100,869)
Sensor status 2	OPT/i WF R wire drum (4,100,879)
Sensor status 3	OPT/i WF R ring sensor (4,100,878)
Sensor status 4	Wire buffer set CMT TPS/I (4,001,763)

Assignment of sensor statuses

Value range Safety status

Bit 1	Bit 0	Description
0	0	Reserve
0	1	Hold
1	0	Stop
1	1	Not installed / active

Value Range for Process Bit

Bit 4	Bit 3	Bit 2	Bit 1	Bit 0	Description
0	0	0	0	0	No internal parameter selection or process
0	0	0	0	1	MIG/MAG pulse synergic
0	0	0	1	0	MIG/MAG standard synergic
0	0	0	1	1	MIG/MAG PMC
0	0	1	0	0	MIG/MAG LSC
0	0	1	0	1	MIG/MAG standard manual
0	0	1	1	0	Electrode
0	0	1	1	1	TIG
0	1	0	0	0	CMT
0	1	0	0	1	Constantine
0	1	0	1	0	ColdWire
0	1	0	1	1	DynamicWire

Value Range for Process Bit

Value Range for Function Status

Bit 1	Bit 0	Description
0	0	Inactive
0	1	Idle
1	0	Finished
1	1	Error

The value range for function status

spareparts.fronius.com
At www.fronius.com/contact you will find the contact details of all Fronius subsidiaries and Sales & Service Partners.Frequently Asked Questions

How do I troubleshoot LED status indications?
If the LED MS is lit red, it indicates a main error. If it blinks red, it signifies a fixable error. For LED NS, a red light could indicate a double IP address or a severe network error.

What are the default configuration parameters for the bus module?
The default configuration parameters include Vendor ID: 0534hex, Device Type: Communication adapter, Product Code: 0320hex, Product Name: Fronius FB Pro Ethernet/IP-2-Port.
