FRITZ 4200 Router AVM Mesh Set User Guide
PORTUGUESE
You can use the following QR code to open the Portuguese version of this quick guide on your smartphone or tablet.
Use your computer or notebook to open the quick guide in Portuguese on our website pt.avm.de/servico/manual.
Package Contents
Safety Instructions
- Operate the FRITZ!Repeaters in a dry place that is free of dust and protected from direct sunlight, and provide for sufficient ventilation.
- The FRITZ!Repeaters are intended for indoor use only. Never let liquids get inside the housing.
- Connect the FRITZ!Repeaters to easily accessible outlets.
- Do not open the FRITZ!Repeaters. Opening and/or repairing the devices can present a hazard.
- Unplug the FRITZ!Repeaters from the outlet before cleaning. Clean the device using a moist cloth.
FRITZ!Mesh Set 4200
The FRITZ!Mesh Set 4200 consists of 3 or 2 FRITZ!Repeaters that you can place around your home to supply your devices with Wi-Fi.
Advantages
- Configuration and operation by app or web browser
- Wi-Fi 6 with up to 4200 MBit/s in 3 Wi-Fi frequency bands
- Beamforming for better range and speed
- Mesh Wi-Fi steering for the best reception for your wireless devices
- Wi-Fi guest access
- Integrated child protection
- Automatic software updates
Device Features
A description of all LED conditions and button functions is presented in the PDF manual at en.avm.service.

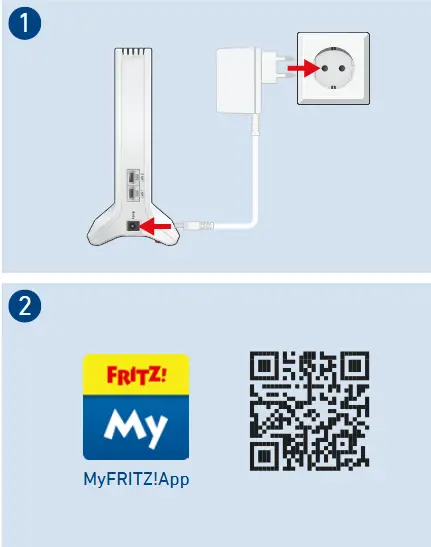

Set up a FRITZ!Mesh Set via app
- Connect a FRITZ!Repeater to a power outlet near the router or modem.
- Set up the FRITZ!Repeater in the MyFRITZ!App on your smartphone or tablet:
If the app isn’t installed yet:
• Scan the QR code 2 with your smartphone or tablet.
The MyFRITZ!App is installed and connects your device to the FRITZ!Repeater.
If the app is already installed:
• Start the app and tap Settings or ⚙️ in the menu.
• Tap “Set up new FRITZ! product“.
Follow the instructions in the app to set up the FRITZ!Mesh Set.
More configuration options, for example setup without an app, can be found in our manual at en.avm.de/service.
Mesh with FRITZ!
Once configuration has been completed, Mesh with FRITZ! offers you stable and comprehensive Wi-Fi coverage in all of your rooms.
The FRITZ!Mesh Set combines the Wi-Fi networks of the individual FRITZ!Repeaters to a large, powerful Wi-Fi network. In the Mesh, there is a shared Wi-Fi network name and network key.
Additional individual FRITZ!Repeaters can be used to extend the FRITZ!Mesh Set. For more information, see en.avm.de/mesh.
Position the FRITZ!Repeaters from the FRITZ!Mesh Set
Once configuration of the FRITZ!Mesh Set is complete, you can check the Mesh connections on all of the FRITZ!Repeaters.
If a FRITZ!Repeater has a weak Mesh connection, select a location with better connection quality. If the LEDs are lit up green, then the Mesh connection is good and the FRITZ!Repeater is ideally positioned.
MyFRITZ!App makes it easy to find the ideal location for the FRITZ!Repeater.
An overview of the LEDs conditions representing the connection quality is printed on the FRITZ! Notes or can be found in the manual available at en.avm.de/service.

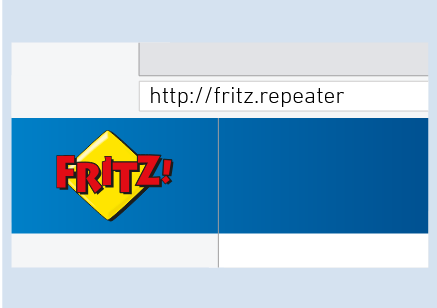

Open User Interface
The FRITZ!Mesh Set has a user interface which can be opened with MyFRITZ!App or in your web browser.
- Start a web browser on your computer, tablet or smartphone.
- Enter the address http://fritz.repeater
(or: http://fritzrepeater.local).
The user interface of the FRITZ!Mesh Set appears - Enter the FRITZ!Repeater password.
You can find the FRITZ!Repeater password on your FRITZ! Notes and on the bottom of the FRITZ!Repeaters.
The “Overview” page of the user interface shows you the most important information about your FRITZ!Mesh Set. Various menu items offer settings options such as name of the Wi-Fi network, Wi-Fi guest access, parental controls, and LED brightness.
Radio Frequencies and Transmitter Power
- 2.4 GHz – 2.483 GHz, maximum 100 mW
- 5.15 GHz – 5.35 GHz, maximum 200 mW
- 5.47 GHz – 5.725 GHz, maximum 1000 mW
In AT, BE, BG, CY, CZ, DE, DK, EE, EL, ES, FI, FR, HR, HU, IE, IT, LT, LU, LV, MT, NL, PL, PT, RO, SE, SI, SK, and UK (NI), Wi-Fi between 5.15 GHz and 5.35 GHz may only be used indoors.
Legal Notice
EU Declaration of Conformity
AVM declares herewith that the FRITZ!Repeaters 3000 AX are compliant with Directive 2014/53/EU. The full text of the declaration of EU conformity is available at en.avm.de/service/declarations.
Diagnostics data
To improve the product and ensure safe operation on your connection, AVM uses error reports and diagnostic data where needed.
These settings can be changed in the user interface under Help and Info > AVM Services.
Legal Notice
Legal information and licensing conditions are presented in the help of the user interface.
