UPHA 42-inch Outdoor Propane Gas Fire Pit Table Instruction Manual

Model: B0FT38LRFB | Brand: UPHA

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and setup of your UPHA 42-inch Outdoor Propane Gas Fire Pit Table. Please read all instructions carefully before assembly and use.

2. Informations importantes sur la sécurité

AVERTISSEMENT: Usage extérieur uniquement. Une installation, un réglage, une modification, une réparation ou un entretien incorrects peuvent entraîner des blessures ou des dommages matériels. Veuillez lire attentivement les instructions d'installation, d'utilisation et d'entretien avant d'installer ou d'entretenir cet équipement.

  • Ensure the fire pit table is placed on a stable, non-combustible surface.
  • Tenez les enfants et les animaux domestiques éloignés du foyer pendant son fonctionnement.
  • Ne stockez pas et n’utilisez pas d’essence ou d’autres vapeurs et liquides inflammables à proximité de cet appareil ou de tout autre appareil.
  • Always connect the propane hose to a standard 20-pound tank (not included).
  • If using natural gas, ensure proper conversion with appropriate accessories (not included).
  • The fire pit table is CSA certified for safety.
  • Always use the included oxford rain cover when not in use or during inclement weather to protect the table and prolong its lifespan.

3. Contenu du colis

Your UPHA fire pit table is shipped in two packages. Please verify all components are present:

  • Concrete Fire Pit Table (1 pc)
  • Propane Tank Cover Table (1 pc)
  • Propane Tank Base Ring (1 pc)
  • Rain Cover (1 pc)
  • Propane Hose (1 pc)
  • Glass Rocks (1 bag)
  • Manuel d'utilisation (1 pièce)
  • Pieds réglables (6 pièces)
Diagram showing all components included in the UPHA fire pit table package, divided into two boxes.
Figure 1: Package Contents. The fire pit table and accessories are delivered in two separate boxes.

4. Instructions de configuration

  1. Déballage: Carefully remove all components from the two packages. Place them on a soft, clean surface to prevent scratches.
  2. Positionnement : Place the fire pit table in your desired outdoor location, ensuring it is on a level, stable surface. The adjustable balance feet can be used to stabilize the unit.
  3. Propane Tank Placement: Position the propane tank cover table near the fire pit. Open the cover and place a standard 20-pound propane tank (not included) inside, securing it with the propane tank base ring.
  4. Raccordement du tuyau de propane : Connect the provided propane hose from the fire pit table to the propane tank. Ensure all connections are tight and secure.
  5. Add Glass Rocks: Carefully distribute the blue glass rocks over the burner area of the fire pit table. Ensure the igniter and burner holes are not completely covered to allow for proper ignition and flame distribution.
  6. Optional Wind Guard: If using a wind guard (not included with this specific model but shown in some product images), place it around the burner area according to its instructions.
UPHA 42-inch round fire pit table with blue glass rocks and a propane tank cover table on a patio.
Figure 2: Fully set up UPHA 42-inch Outdoor Propane Gas Fire Pit Table with propane tank cover.
Détaillé view of the UPHA fire pit table showing the blue glass rocks and the burner ring.
Figure 3: Close-up of the fire pit burner area with blue glass rocks.

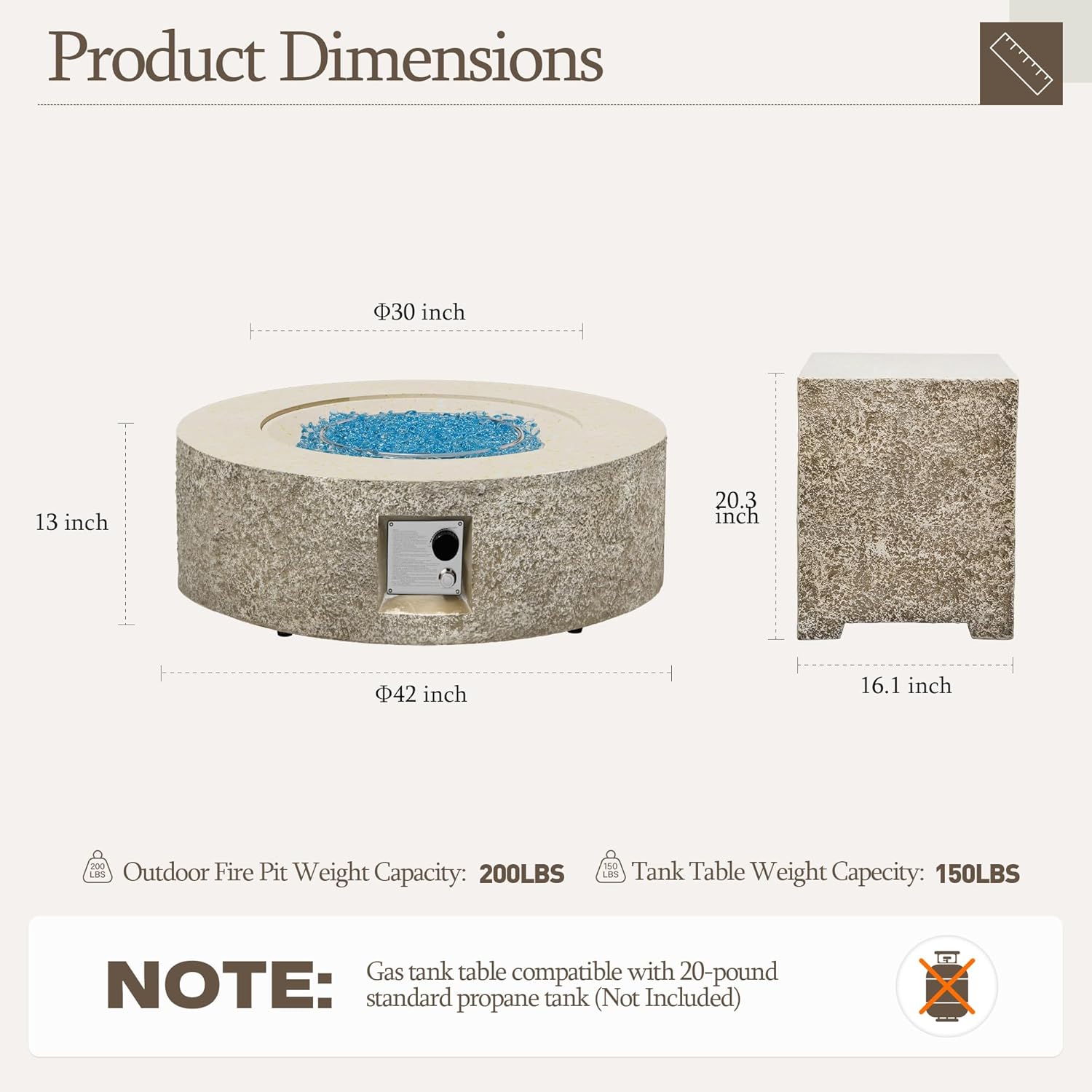

Image showing the dimensions of the UPHA 42-inch round fire pit table and the propane tank cover table.
Figure 4: Product Dimensions for the fire pit table (42"D x 42"W x 13"H) and the propane tank cover table (16.1"W x 16.1"D x 20.3"H).

5. Mode d'emploi

  1. Ouvrir la vanne du réservoir de propane : Ouvrez lentement la vanne de votre bonbonne de propane.
  2. Allumage: Locate the electronic ignition system on the side of the fire pit table. Press and hold the ignition button while slowly turning the control knob to the "LOW" position. You should hear a click and see the flame ignite.
  3. Ajuster la flamme : Once ignited, continue to hold the ignition button for a few seconds, then release. Rotate the control knob to adjust the flame height and heat output (up to 50,000 BTUs) to your desired level.
  4. Éteindre: Turn the control knob to the "OFF" position. Close the valve on the propane tank.
Close-up of the control knob and electronic ignition system on the UPHA fire pit table, with flames visible.
Figure 5: Control knob for adjusting flame temperature and electronic ignition.

Video 1: UPHA Outdoor Concrete Fire Pit Table in operation, demonstrating flame adjustment and overall ambiance.

6. Entretien

  • Nettoyage: When stains or dirt are noticed, wipe them away with a soft, damp cloth for quick cleaning. Do not use abrasive cleaners.
  • Storage/Protection: For periods of non-use or during inclement weather, it is recommended to utilize the included oxford rain cover to protect the table and prolong its lifespan.
  • Inspection: Regularly inspect the propane hose and connections for any signs of wear, damage, or leaks.
UPHA fire pit table covered with its beige oxford rain cover on a patio.
Figure 6: UPHA fire pit table protected by its oxford rain cover.

7. Dépannage

ProblèmeCause possibleSolution
Fire pit does not ignite.Propane tank valve is closed.
L'allumeur ne produit pas d'étincelles.
Niveau de propane bas.		Open propane tank valve fully.
Check igniter battery (if applicable) or ensure igniter is clean.
Remplacez ou remplissez la bonbonne de propane.
Flamme faible ou flamme irrégulière.Niveau de propane bas.
Obstruction in burner holes.
Gas pressure issue.		Remplacez ou remplissez la bonbonne de propane.
Clear any debris from burner holes.
Consultez un technicien qualifié.
Odeur de gaz détectée.Fuite de gaz.Immediately turn off gas at the tank. Check all connections for leaks using soapy water. If smell persists, do not operate and contact emergency services.

8. Spécifications

  • Modèle: B0FT38LRFB
  • Dimensions: 42"P x 42"L x 13"H
  • Matériel: Artificial Premium Concrete, Stainless Steel
  • Type de carburant : Liquefied Petroleum Gas (Propane) - Natural Gas conversion kit available (not included)
  • La production de chaleur: 50,000 XNUMX BTU
  • Poids de l'article : 127.5 livres
  • Couleur: Beige Striped Texture
  • Certification de sécurité : Certifié CSA

9. Garantie et assistance

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official UPHA store on Amazon:

Visit the UPHA Store

The product typically includes a 30-day easy return policy and customer support from the seller, UManager.
