Manuel d'utilisation du piano numérique LEADZM, modèle Piano126

1. Introduction

Thank you for choosing the LEADZM Digital Piano Model Piano126. This instrument is designed to provide a realistic piano playing experience with its 88 fully weighted keys and advanced sound technology. This manual will guide you through the setup, operation, and maintenance of your new digital piano, ensuring you get the most out of its features.

2. caractéristiques du produit

• 88 Fully Weighted Keys: Provides a realistic touch and response, mimicking an acoustic piano.
• European Dream Sound Source: Delivers high-quality, authentic piano tones.
• Rich Sound Palette: Features 128 polyphony, 128 demo songs, 128 rhythms, and 380 timbres.
• Haut-parleurs intégrés : Two built-in 20W stereo speakers for clear and powerful sound output.
• Triple Pedal System: Includes Soft, Sustain, and Sostenuto pedals for expressive playing.
• Double connectivité Bluetooth : Supports both Audio Bluetooth for streaming and MIDI Bluetooth for wireless connection to apps.
• Interface MIDI USB : Connects to computers or tablets for multimedia interaction and use with music software (e.g., Cubase, FL Studio, Logic, Live).
• Fonction d'enregistrement : Built-in MIDI sequencer for recording and playback.
• Métronome: Seven types of metronome for practice.
• Panneau de contrôle: Simple control panel with LED display for easy navigation of functions.

3. Contenu du colis

Veuillez vous assurer que tous les articles sont présents dans le colis :

• 1 x LEADZM Digital Piano
• 1 x adaptateur secteur
• 1 x Triple Pedal Unit
• 1 x casque
• 1 x Headphone Adapter
• 1 x câble USB
• 1 x Android Cable
• 1 x Piano Cloth
• 1 x Housse de piano
• 1 x Keyboard Sticker
• 1 x Music Clip
• 1 x Screwdriver and Screw Accessories
• 1 x Manuel d'utilisation (ce document)

4. Guide de configuration

4.1 Assemblage

Refer to the included assembly instructions and use the screwdriver and screw accessories to attach the metal stand to the digital piano. Ensure all connections are secure before proceeding.

Un plusview of the LEADZM Digital Piano, showcasing its elegant white finish, metal stand, triple pedal unit, headphones, power adapter, and included user manual.

4.2 Connexion d'alimentation

1. Connect the power adapter to the DC 15V input port located at the rear of the piano.
2. Branchez l'adaptateur secteur sur une prise électrique standard.

4.3 Connexion du pédalier

Connect the triple pedal unit cable to the dedicated pedal input port at the rear of the piano.

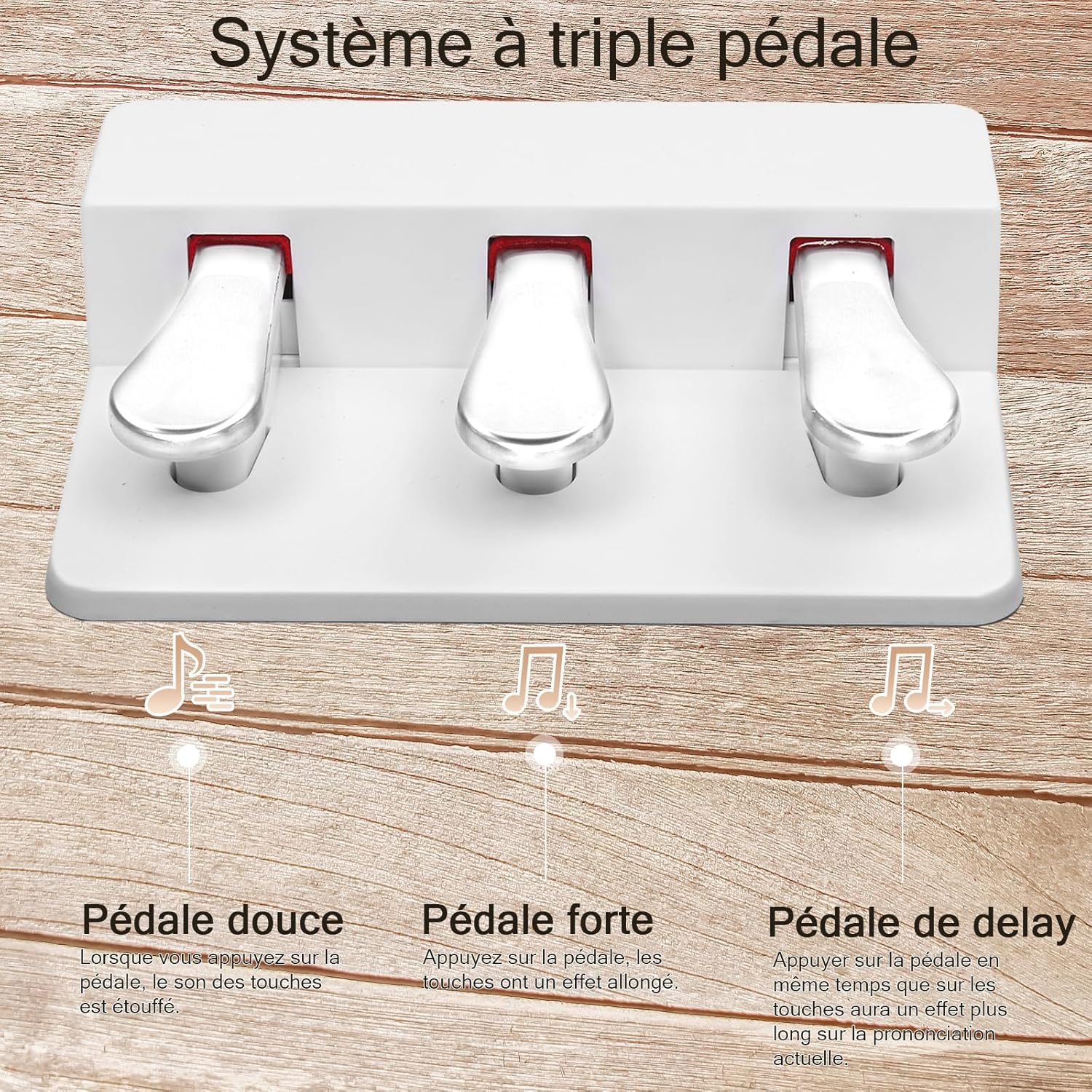

A close-up of the three-pedal unit, explaining the function of each pedal: the Soft pedal for a muted tone, the Sustain pedal for prolonged notes, and the Sostenuto pedal for selective note sustain.

4.4 Connexion casque

To practice privately, connect the included headphones (or your own 1/8" jack headphones) to the headphone jack on the piano. The built-in speakers will automatically mute when headphones are connected.

This image shows headphones connected to the piano, indicating the headphone jack feature that allows for private practice without disturbing others, as the built-in speakers are automatically muted.

5. Mode d'emploi

5.1 Mise sous/hors tension

Press the 'POWER' button on the control panel to turn the piano on or off. The LED display will illuminate when the piano is on.

Un détail view of the piano's control panel, featuring an LED display and buttons for functions like power, volume, metronome, rhythm, timbre selection, recording, and Bluetooth connectivity.

5.2 Fonctions de base

• Contrôle du volume : Utilisez le bouton « VOLUME » pour régler le niveau sonore global.
• Timbre Selection: Press the 'FUNCTION' button, then use the '+' and '-' buttons to cycle through the 380 available timbres.
• Sélection de rythme : Press the 'RHYTHM' button, then use the '+' and '-' buttons to select from 128 rhythms.
• Morceaux de démonstration : Press the 'DEMO' button to play through the 128 built-in demo songs. Use 'PREV' and 'NEXT' to navigate.
• Métronome: Press the 'METRONOME' button to activate the metronome. Use the '+' and '-' buttons to adjust tempo or select different metronome types.

5.3 Utilisation des pédales

• Pédale souple (gauche) : Reduces the volume and softens the tone.
• Pédale de sostenuto (milieu) : Sustains only the notes held down at the moment the pedal is pressed, allowing subsequent notes to remain unaffected.
• Pédale de sustain (droite) : Sustains all notes played while the pedal is held down, allowing them to ring out longer.

5.4 Connectivité Bluetooth

The piano features dual Bluetooth for audio and MIDI. Bluetooth automatically activates when the piano is powered on.

• Bluetooth audio : Rechercher the piano's Bluetooth name on your mobile device to stream audio through the piano's speakers.
• MIDI Bluetooth: On your mobile device or computer, open a compatible music app (e.g., learning apps, DAWs) and search for the piano's MIDI Bluetooth signal to establish a wireless connection for MIDI data transfer.

5.5 Connexion MIDI USB

Connect the piano to a computer or tablet using the provided USB cable. This allows for MIDI data transfer, enabling you to use the piano as a controller for various music software applications such as Cubase, FL Studio, Logic, and Live.

The digital piano is shown connected to a laptop, illustrating its MIDI functionality for use with music production software like Cubase, FL Studio, Logic, and Live, enabling advanced learning and composition.

5.6 Enregistrement et lecture

Use the 'RECORD' button to start recording your performance. Press 'PLAY' to listen to your recorded sequence. The piano features a MIDI sequencer for this function.

5.7 fonctions avancées

• Transposer: Ajustez la hauteur du clavier vers le haut ou vers le bas.
• Diviser: Divide the keyboard into two sections, each with a different voice.
• Double: Layer two different voices across the entire keyboard.
• Accord: Enable chord accompaniment styles.
• Synchronisation: Synchronize rhythm playback.

6. Entretien

• Nettoyage: Use the provided piano cloth to gently wipe the surface of the piano and keys. Avoid abrasive cleaners or solvents.
• Stockage: When not in use, cover the piano with the provided piano cover to protect it from dust and spills.
• Environnement: Keep the piano away from direct sunlight, extreme temperatures, and high humidity to prevent damage.
• Transport: When moving the piano, ensure it is powered off and all cables are disconnected. Handle with care to avoid impact.

7. Dépannage

• Pas de son :
  • Vérifiez que l'adaptateur secteur est bien branché et que le piano est allumé.
  • Assurez-vous que le bouton du volume est réglé au maximum.
  • Si des écouteurs sont connectés, débranchez-les pour activer la sortie haut-parleur.
• Les touches ne répondent pas :
  • Vérifiez que le piano est allumé.
  • Check if any specific function (e.g., Split, Dual) is active that might affect key response.
• Problèmes de connexion Bluetooth :
  • Ensure Bluetooth is enabled on your mobile device or computer.
  • Restart the piano and your device, then try pairing again.
  • Ensure no other devices are currently connected to the piano via Bluetooth.
• Pédales non fonctionnelles :
  • Verify the pedal unit cable is securely connected to the correct port.

8. Spécifications

9. Garantie et assistance

LEADZM is committed to providing quality products and customer satisfaction. For any technical assistance, warranty claims, or product inquiries, please refer to the contact information provided with your purchase or visit the official LEADZM webVeuillez conserver votre preuve d'achat pour faire valoir la garantie.

For specialized customer support, please visit the LEADZM Brand Store.
