bjlysk 1080P Thumb Camera User Manual

1. Introduction

Thank you for choosing the bjlysk 1080P Thumb Camera. This compact and versatile action camera is designed to capture your life's moments in high definition with ease. Featuring a 180° rotatable lens, magnetic design, and Wi-Fi connectivity, it offers a unique and convenient way to record your adventures from a first-person perspective. Please read this manual carefully to understand the camera's functions and ensure optimal performance.

2. Contenu du colis

Upon unpacking your bjlysk Thumb Camera, please verify that all the following items are included:

• D70 Device (Thumb Camera)
• Recharging Cable (USB-C)
• Manuel d'utilisation
• Magnetic Halterneck
• Cordon

Figure 2.1 : Contents of the bjlysk Thumb Camera package. This image displays the camera unit, charging cable, user manual, magnetic halterneck, and lanyard, which are all included in the gift box.

Figure 2.2 : The bjlysk Thumb Camera, often bundled with a 128GB MicroSD card and a USB card reader for data transfer. Note that the MicroSD card and card reader may be sold separately or included depending on the specific product variant.

3. Produit terminéview & Traits

The bjlysk Thumb Camera (Model S70) is a lightweight and portable device designed for capturing high-quality video and images. Key features include:

• Lentille rotative à 180° : Capture multi-angle perspectives with ease.
• Enregistrement vidéo 2.7K HD : Ensures clear and detailed footage.
• 1.47" IPS HD Display: Pré en temps réelview et la lecture.
• Conception ultra-légère : Weighing only 35g for maximum portability.
• Fixation magnétique puissante : Pour des options de montage polyvalentes.
• Mobile APP Connectivity (Wi-Fi): Remote control, live view, and sharing.
• Hands-Free First-Person Perspective: Ideal for sports, travel, and daily activities.
• Batterie longue durée : Up to 60 minutes of continuous recording.
• Loop Recording & Interval Recording: Advanced recording modes.

Figure 3.1 : Surview of the bjlysk Thumb Camera's main features, including its video resolution, lens rotation capability, magnetic design, screen size, app connectivity, and lightweight nature.

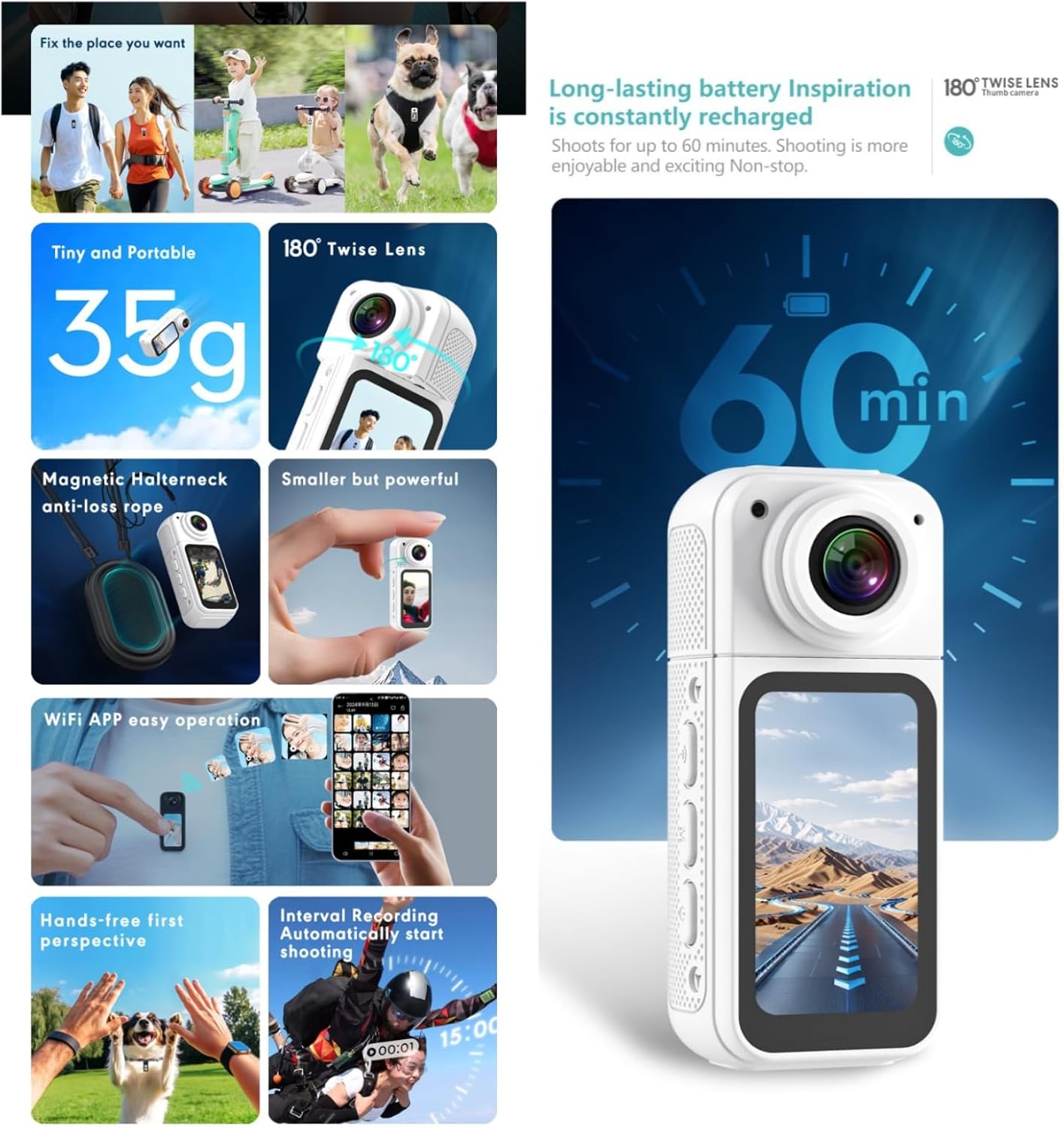

Figure 3.2 : A visual summary of the camera's practical benefits, such as its portability, rotating lens, secure magnetic attachment, easy app control, hands-free operation, advanced recording modes, and battery endurance.

4. Mise en route

4.1 Chargement de l'appareil photo

Before first use, fully charge the camera. Connect the provided USB-C cable to the camera's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status and turn off when fully charged.

4.2 Insertion/Retrait de la carte microSD

The camera requires a MicroSD card (up to 128GB, U1 recommended) for storing recordings. Locate the MicroSD card slot on the side of the camera. Gently insert the card with the gold contacts facing down until it clicks into place. To remove, push the card in slightly until it springs out.

4.3 Mise sous/hors tension

To power on the camera, press and hold the Power button for a few seconds until the screen lights up. To power off, press and hold the Power button again until the screen turns off.

5. Fonctionnement de base

5.1 Enregistrement vidéo

Once the camera is powered on, press the Record button once to start video recording. The recording indicator will flash. Press the Record button again to stop recording. Videos are saved automatically to the MicroSD card.

5.2 Prendre des photos

While in standby mode, a short press of the Mode button may switch to photo mode (if available). Press the Shutter button to take a photo.

5.3 Utilisation de l'écran

The 1.47" IPS HD display provides a real-time preview of your footage. You can also use it to navigate menus and review recorded content. Use the navigation buttons (if present) to browse through options.

5.4 Rotation de l'objectif

The camera features a 180° rotatable lens. Gently twist the lens module to adjust the shooting angle, allowing for front-facing, rear-facing, or any angle in between. This flexibility is ideal for capturing selfies or diverse perspectives.

Figure 5.1 : The 180° degree twist lens allows for free rotation to discover the perfect angle for precise composition.

6. Fonctionnalités avancées

6.1 Connecting to the Mobile App (Wi-Fi)

The bjlysk Thumb Camera can connect to a dedicated mobile application via Wi-Fi for enhanced control and sharing. Download the app from your smartphone's app store. Enable Wi-Fi on the camera and connect your phone to the camera's Wi-Fi network. The app allows for remote control of recording, live view, playback, and direct sharing of content.

6.2 Magnetic Design & Hands-Free Use

The camera's magnetic design allows it to be easily attached to metallic surfaces. For hands-free recording, use the included magnetic halterneck or lanyard to wear the camera, capturing a first-person perspective during various activities like cycling, hiking, or daily commutes.

Figure 6.1 : Examples of hands-free usage and the magnetic halterneck accessory. The sturdy rope design with magnetic and wearable double insurance helps avoid dropping and losing the camera.

6.3 Loop Recording & Interval Recording

The camera supports advanced recording functions:

• Enregistrement en boucle : Records video in segments (e.g., 1, 3, or 5 minutes). When the MicroSD card is full, the camera automatically overwrites the oldest files.
• Enregistrement à intervalles : Allows the camera to automatically start recording at set intervals, useful for time-lapse or monitoring.

7. Entretien

7.1 Nettoyage

Utilisez un chiffon doux et sec pour nettoyer le boîtier de l'appareil photo. Pour l'objectif, utilisez un chiffon et une solution de nettoyage spécifiques. Évitez d'utiliser des produits chimiques agressifs ou des matériaux abrasifs.

7.2 Stockage

Rangez l'appareil photo dans un endroit frais et sec, à l'abri de la lumière directe du soleil et des températures extrêmes. En cas de stockage prolongé, assurez-vous que la batterie est partiellement chargée (environ 50 %) afin d'en prolonger la durée de vie.

8. Dépannage

• La caméra ne s'allume pas : Assurez-vous que la batterie est chargée. Branchez-la à une source d'alimentation et réessayez.
• Impossible d'enregistrer : Check if a MicroSD card is inserted and properly formatted. Ensure there is sufficient storage space.
• Mauvaise qualité vidéo : Assurez-vous que l'objectif est propre. Vérifiez les paramètres de résolution d'enregistrement.
• Problèmes de connexion Wi-Fi : Ensure the camera's Wi-Fi is enabled. Restart both the camera and your smartphone.
• La caméra se fige : Use a thin object (like a paperclip) to press the reset button (if available) or hold the power button for an extended period to force a shutdown and restart.

9. Spécifications

Below are the technical specifications for the bjlysk Thumb Camera (Model S70):

Figure 9.1 : Detailed technical specifications of the bjlysk Thumb Camera, including its dimensions, video capabilities, and other hardware parameters.

10. Garantie et assistance

The bjlysk Thumb Camera comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact the retailer or manufacturer directly through their official support channels. Keep your purchase receipt as proof of purchase.
