Disaenvir 3200W Ceramic Hob User Manual

Introduction

Thank you for choosing the Disaenvir 3200W Ceramic Hob. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions carefully before use and keep them for future reference.

Consignes de sécurité

Respectez toujours les consignes de sécurité de base lors de l'utilisation d'appareils électriques afin de réduire les risques d'incendie, d'électrocution, de brûlures ou de blessures.

• Assurez-vous que l'appareil est correctement mis à la terre.
• Ne touchez pas les surfaces chaudes. Utilisez les poignées ou les boutons.
• Une surveillance étroite est nécessaire lorsqu’un appareil est utilisé par ou à proximité d’enfants.
• Débranchez l'appareil de la prise lorsqu'il n'est pas utilisé et avant de le nettoyer. Laissez-le refroidir avant d'ajouter ou de retirer des pièces.
• N’utilisez pas d’appareil dont le cordon ou la fiche est endommagé, ou après un dysfonctionnement de l’appareil ou après qu’il a été endommagé de quelque manière que ce soit.
• Ne pas utiliser à l'extérieur.
• Ne pas placer sur ou à proximité d'un brûleur à gaz ou électrique chaud, ni dans un four chaud.
• N'utilisez pas l'appareil à d'autres fins que celles prévues.
• Use only cookware with flat bottoms and a diameter of 4.7 to 9 inches (12 to 23 cm).
• The ceramic surface is durable but can be damaged by sharp impacts. Avoid dropping heavy objects on the cooktop.
• Protection contre la surchauffe : The hob is equipped with an overheat protection system that automatically shuts down the unit if it detects excessively high temperatures.
• Protection anti-débordement : Designed to prevent damage from liquid spills.

Produit terminéview

The Disaenvir 3200W Ceramic Hob features two independent heating zones, offering a total power output of 3200W. It is designed for both built-in and countertop use, providing flexibility for various kitchen setups. The intuitive knob controls and multiple power levels make cooking efficient and precise.

Configuration et installation

The Disaenvir Ceramic Hob offers two installation methods: built-in or freestanding on a countertop. Ensure proper ventilation and clearance around the appliance regardless of the chosen method.

1. Freestanding Countertop Installation

• Placez la plaque de cuisson sur une surface stable, plane et résistante à la chaleur.
• Ensure the four rubber feet are securely attached to the bottom of the unit for stability and heat dissipation.
• Ensure adequate space around the hob for air circulation.

2. Installation intégrée

• Prepare a cutout in your countertop with the following dimensions: 56 cm (Longueur) x 31 cm (Largeur).
• Ensure there is sufficient clearance below the hob for ventilation and to avoid contact with other appliances or combustible materials.
• Carefully lower the hob into the cutout.
• Connect the appliance to a suitable 220V electrical outlet. Professional installation is recommended for built-in applications to ensure proper wiring and grounding.

Mode d'emploi

1. Mise sous/hors tension

Turn the main power knob to the "On" position to activate the hob. Turn it to "Off" when cooking is complete.

2. Réglage des niveaux de puissance

Each heating zone has an independent control knob. Rotate the knob to select one of the 9 niveaux de puissance, from low heat for simmering to high heat for boiling or searing.

3. Power Distribution

The hob has a total power output of 3200W. When both burners are in use, the power is distributed. If one burner is set to maximum power (1600W), the power available for the other burner will be reduced accordingly to stay within the 3200W total limit. If only one burner is active, it can reach a maximum of 1600W.

4. Fonction de minuterie

The integrated timer allows you to set a cooking duration of up to 99 minutes. Once the set time expires, the heating zone will automatically switch off. This feature is ideal for precise cooking control and preventing overcooking.

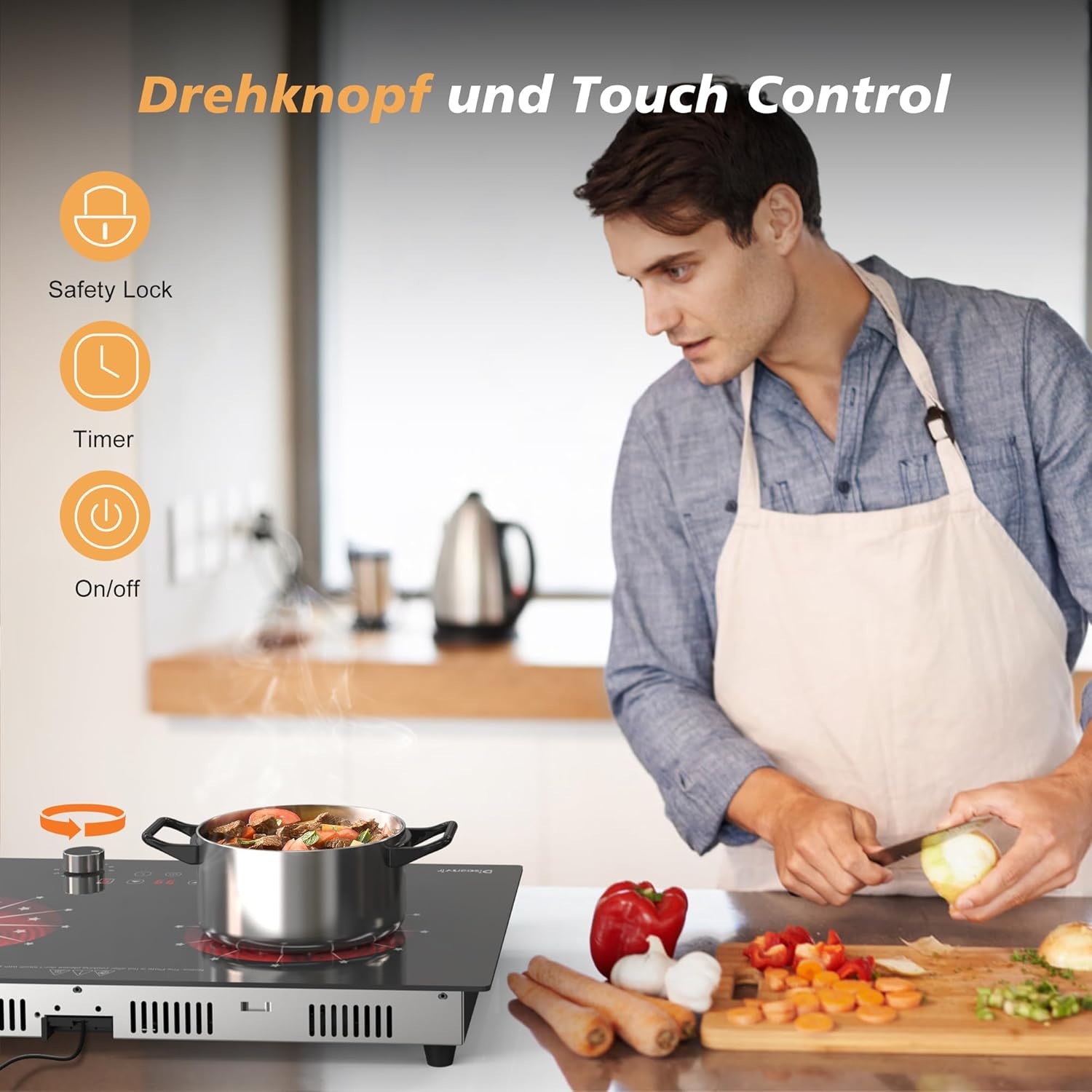

5. Safety Lock Function

To prevent accidental changes to settings during cooking, activate the safety lock. This locks the control panel, ensuring cooking safety and stability, especially useful in households with children.

6. Compatibilité des ustensiles de cuisine

The ceramic hob is compatible with all types of flat-bottomed cookware, including iron, stainless steel, glass, and ceramic pots and pans. For optimal performance, use cookware with a diameter between 4.7 and 9 inches (12 to 23 cm).

Entretien et nettoyage

Un nettoyage et un entretien réguliers garantiront la longévité et les performances optimales de votre plaque de cuisson vitrocéramique.

• Avant le nettoyage : Always ensure the hob is switched off and completely cooled down before cleaning.
• Surface en céramique : Essuyez la surface en vitrocéramique avec adamp cloth and a mild detergent. For stubborn stains, use a specialized ceramic hob cleaner. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the surface.
• Boutons de contrôle : The control knobs can be removed for easier cleaning. Wipe them with a damp Essuyez soigneusement avec un chiffon et séchez abondamment avant de remettre en place.
• Déversements : Clean up spills immediately, especially sugary spills, as they can burn onto the surface and become difficult to remove if left to cool.
• Ventilation: Ensure that the ventilation openings on the appliance are not blocked to prevent overheating.

Dépannage

If you encounter any issues with your Disaenvir Ceramic Hob, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Disaenvir customer support.

Caractéristiques

Garantie et assistance

Disaenvir products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or contact Disaenvir customer support directly.

For technical assistance, troubleshooting not covered in this manual, or spare parts inquiries, please contact our customer support team:

• Website: [Insert Disaenvir Official Website Here, if available]
• E-mail: [Insert Disaenvir Support Email Here, if available]
• Téléphone: [Insert Disaenvir Support Phone Number Here, if available]

Please have your model number (DE-DSC-PF6022SGB-HS) and purchase date ready when contacting support.
