BIG HORN SRBT063 Portable Stainless Steel Pizza Oven User Manual

1. Introduction

Thank you for choosing the BIG HORN SRBT063 Portable Stainless Steel Pizza Oven. This oven is designed to transform your outdoor grill into a high-performance pizza cooking station. Its durable stainless steel construction and ceramic pizza stone ensure excellent results for pizzas, meats, and vegetables. This manual provides essential information for safe setup, operation, maintenance, and troubleshooting to help you get the most out of your new pizza oven.

The oven features a spacious cooking chamber, a convenient front opening for easy access, and a built-in thermometer for temperature monitoring. While primarily designed for pizza, its versatile nature allows for baking various other foods.

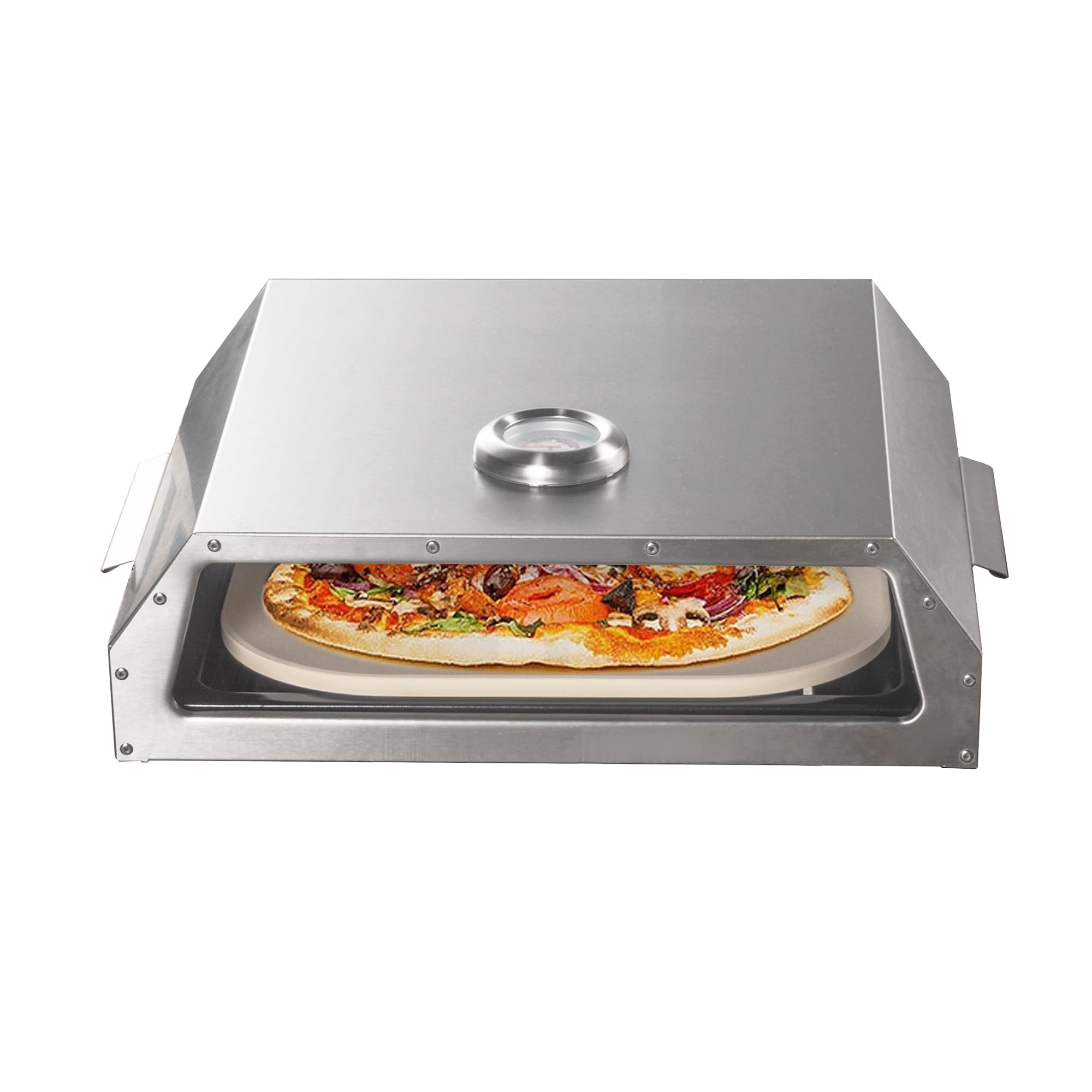

Illustration 1.1 : Avant view of the BIG HORN Portable Stainless Steel Pizza Oven, showing the integrated thermometer and the ceramic pizza stone.

2. Consignes de sécurité

Please read all safety instructions before operating the pizza oven. Failure to follow these instructions may result in property damage, injury, or death.

• Utilisation en extérieur uniquement : This pizza oven is designed for outdoor use only. Do not use it indoors or in enclosed spaces.
• Surfaces chaudes : The oven and surrounding grill surfaces will become extremely hot during operation. Use heat-resistant gloves and appropriate tools when handling.
• Autorisation: Maintain a safe distance from combustible materials, such as walls, fences, and vegetation.
• Surface stable : Always place the pizza oven on a stable, level, and non-combustible surface, such as a gas, charcoal, or wood grill.
• Enfants et animaux domestiques : Keep children and pets away from the hot oven and grill area.
• Ventilation: Ensure adequate ventilation when operating the oven on a grill.
• Type de carburant : This oven is designed to be heated by a gas, charcoal, or wood grill. Do not use other fuel sources directly inside the oven.
• Surveillance: Ne laissez jamais le four sans surveillance pendant son utilisation.

3. Composants du produit

The BIG HORN SRBT063 Portable Stainless Steel Pizza Oven includes the following components:

• Stainless Steel Pizza Oven Unit
• Ceramic Pizza Stone (338x278x12 mm)

Please inspect all components upon unpacking to ensure they are present and undamaged. If any parts are missing or damaged, contact customer support.

4. Installation

Setting up your BIG HORN pizza oven is a straightforward process:

1. Déballer: Retirez soigneusement tous les composants de l'emballage.
2. Placement: Place the stainless steel pizza oven unit directly onto the cooking grates of your gas, charcoal, or wood grill. Ensure it is stable and level.
3. Insert Ceramic Stone: Slide the ceramic pizza stone into the designated slot inside the oven unit. Ensure it sits flat and securely.

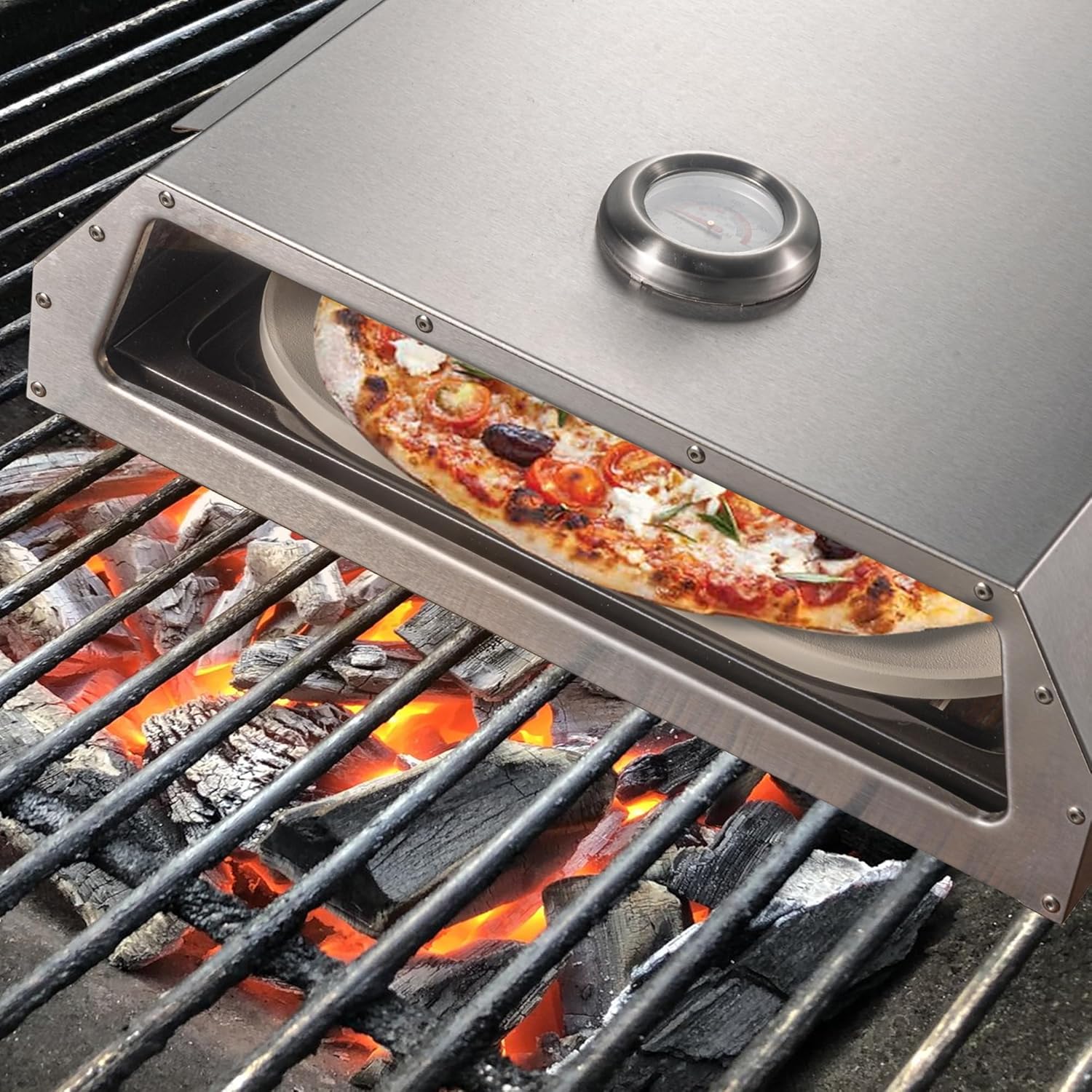

Image 4.1: The pizza oven positioned on a charcoal grill, ready for preheating.

Image 4.2: The pizza oven placed on the grates of a gas grill.

5. Fonctionnement

Follow these steps for optimal cooking results with your pizza oven:

1. Préchauffage : Turn on your grill to a high setting. Allow the pizza oven to preheat for 15-20 minutes, or until the built-in thermometer reaches the desired cooking temperature (typically 600-800°F / 315-425°C for pizza). The ceramic stone needs to be thoroughly heated for a crispy crust.
2. Surveillance de la température : Use the integrated thermometer to monitor the internal temperature of the oven. Adjust your grill's heat settings as needed to maintain the desired temperature.
3. Cuisson de la pizza : Carefully slide your pizza onto the preheated ceramic stone using a pizza peel. The front opening provides easy access.
4. Rotation: For even cooking, rotate the pizza halfway through the cooking process. Cooking times for pizza are typically 2-5 minutes, depending on the temperature and crust thickness.
5. Autres aliments : This oven can also be used to bake other foods. Adjust preheating times and temperatures accordingly.
6. Suppression: Once cooked, use a pizza peel to carefully remove the food from the oven.

Image 5.1: A cooked pizza being carefully removed from the oven using a pizza peel.

6. Entretien et nettoyage

Un entretien régulier garantit la longévité et les performances de votre four à pizza.

• Refroidir: Laissez toujours le four refroidir complètement avant de le nettoyer ou de le ranger.
• Extérieur en acier inoxydable : Essuyez l'extérieur en acier inoxydable avec de la publicitéamp Utilisez un chiffon et un détergent doux. Évitez les nettoyants abrasifs ou les tampons à récurer, qui peuvent rayer la surface.
• Ceramic Pizza Stone: The ceramic stone is porous. Do not use soap or detergent on the pizza stone, as it can absorb chemicals and affect food taste. Scrape off any burnt-on food residue with a spatula or stiff brush. For stubborn stains, you can heat the stone in the oven to burn off residue. Allow it to cool completely before handling.
• Stockage: Store the pizza oven in a dry, protected area when not in use to prevent rust and damage.

7. Dépannage

Voici quelques problèmes courants et leurs solutions potentielles :

• La pizza ne cuit pas uniformément : Ensure the oven is fully preheated. Rotate the pizza halfway through cooking. Check that your grill's heat is distributed evenly.
• Croûte de pizza non croustillante : The ceramic stone may not be hot enough. Allow more time for preheating (20-30 minutes) to ensure the stone reaches optimal temperature.
• Oven not reaching desired temperature: Verify your grill is set to a high enough heat. Ensure the grill lid is closed during preheating to trap heat. Check for any obstructions to airflow on your grill.
• Smoke coming from the oven: This is often due to food residue burning off. Ensure the oven and stone are clean before use.

8. Spécifications

Technical specifications for the BIG HORN SRBT063 Portable Stainless Steel Pizza Oven:

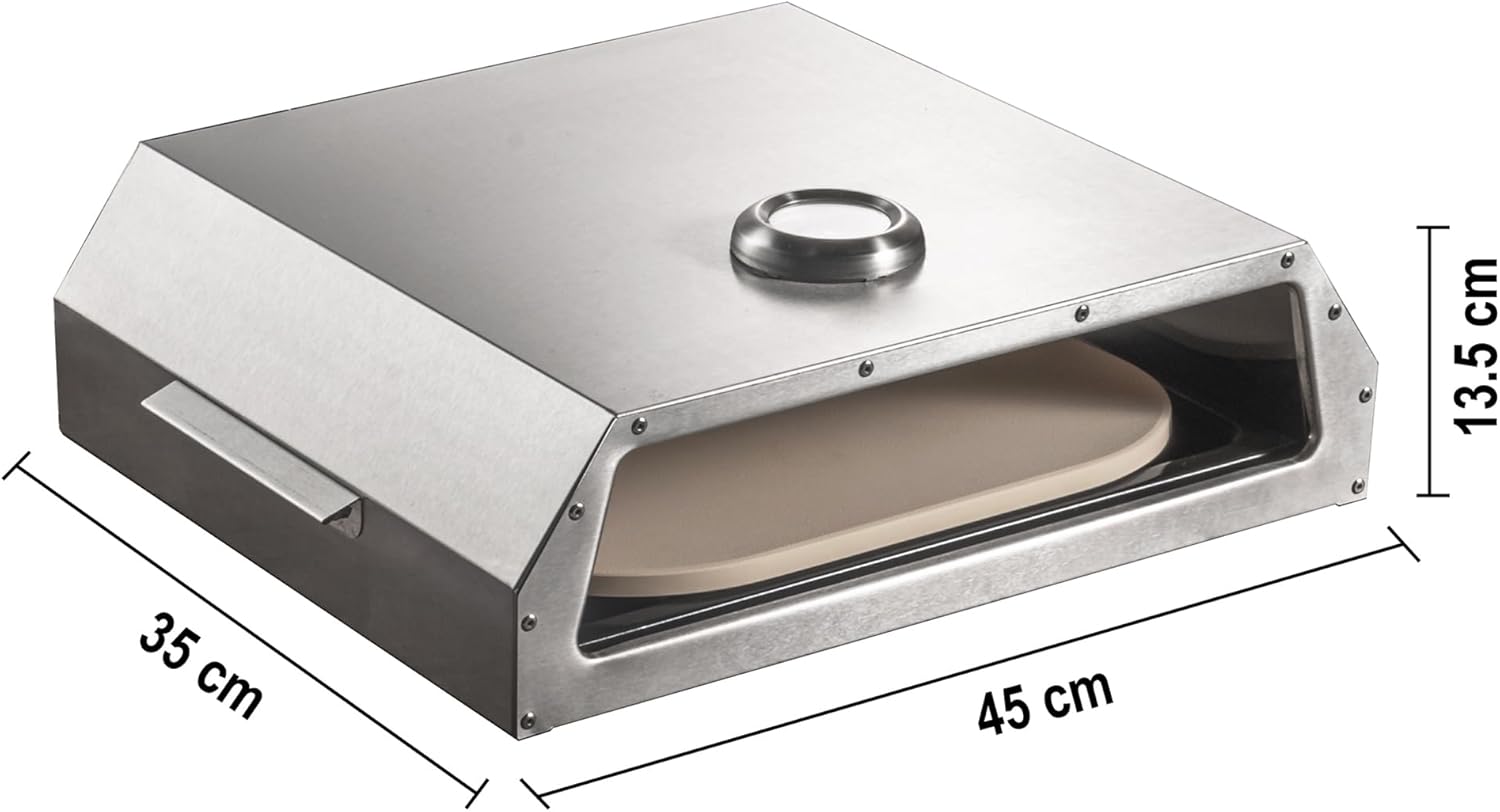

Image 8.1: Dimensions of the BIG HORN Portable Stainless Steel Pizza Oven (approx. 45 cm length, 35 cm width, 13.5 cm height).

9. Garantie et assistance

For warranty information or customer support, please refer to the documentation included with your purchase or contact BIG HORN customer service directly. Keep your proof of purchase for any warranty claims.
