TOKIT T1 Ultra RO Replacement Water Filter Instruction Manual

1. Produit terminéview

This document provides essential instructions for the proper installation, operation, and maintenance of your TOKIT T1 Ultra RO Replacement Water Filter. This filter is designed for use with the TOKIT T1 Ultra water system, providing advanced reverse osmosis filtration to ensure clean and safe drinking water.

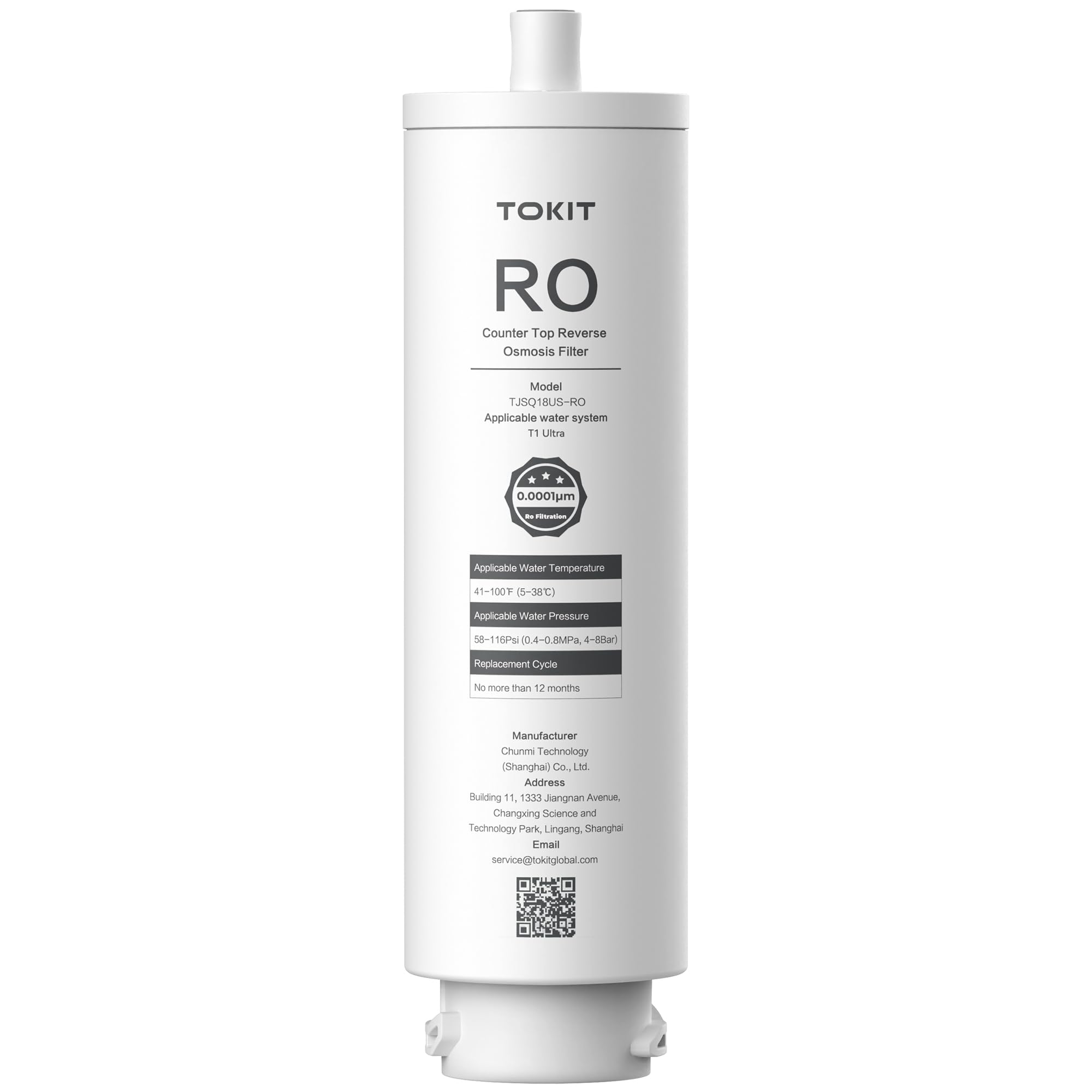

Image 1: The TOKIT T1 Ultra RO Replacement Water Filter shown alongside a TOKIT countertop reverse osmosis water dispenser. The filter is a cylindrical unit, and the dispenser is actively dispensing water into a glass.

2. Spécifications

3. Installation et configuration

This filter is a replacement component for the TOKIT T1 Ultra water system. Refer to your main TOKIT T1 Ultra water system manual for detailed, system-specific filter replacement instructions. The general steps for replacing the RO filter are as follows:

1. Préparez le système : Turn off the water supply to your TOKIT T1 Ultra water system. If applicable, unplug the system from the power outlet.
2. Relâcher la pression : Open a faucet connected to the system or use the system's pressure release button (if available) to relieve any residual water pressure.
3. Supprimer l'ancien filtre : Carefully twist or unlatch the old RO filter cartridge from its housing. Be prepared for some water spillage.
4. Installer un nouveau filtre : Remove the new TOKIT T1 Ultra RO Replacement Water Filter from its packaging. Ensure all protective caps or seals are removed. Insert the new filter into the housing, aligning it correctly, and twist or latch it securely until it is firmly in place.
5. Rétablir l'approvisionnement en eau : Slowly turn on the water supply to the TOKIT T1 Ultra system. Check for any leaks around the newly installed filter.
6. Purger le système : Before consuming water, flush the system according to your TOKIT T1 Ultra water system's manual. This typically involves running water through the system for several minutes to remove air and any carbon fines from the new filter.

4. Mode d'emploi

Once the TOKIT T1 Ultra RO Replacement Water Filter is correctly installed and the system has been flushed, it operates automatically as part of your TOKIT T1 Ultra water system. The system will draw water through the filter for purification as needed.

• Rinçage initial : After installation, ensure the system is thoroughly flushed as described in the installation section. This is crucial for optimal performance and taste.
• Indicateurs système : Pay attention to any filter life indicators or alerts on your TOKIT T1 Ultra water system, which will signal when the filter is nearing the end of its service life.

5. Entretien

The primary maintenance for the TOKIT T1 Ultra RO Replacement Water Filter is timely replacement.

• Cycle de remplacement : The RO filter should be replaced no more than every 12 months. Actual replacement frequency may vary based on water quality and usage volume.
• Surveillance: Monitor your water system's filter life indicator or note the installation date to ensure timely replacement. Replacing the filter on schedule helps maintain optimal water quality and system performance.

6. Dépannage

If you encounter issues after replacing your TOKIT T1 Ultra RO filter, consider the following common troubleshooting steps:

• Débit d'eau réduit :
  • Assurez-vous que le filtre est correctement installé et bien en place.
  • Check for kinks in water lines or closed shut-off valves.
  • If the filter is near or past its replacement cycle, it may be clogged and require replacement.
• Goût ou odeur inhabituels :
  • Thoroughly flush the system for an extended period (e.g., 10-15 minutes) to remove any residual air or carbon fines from the new filter.
  • Ensure the filter is correctly installed and sealed.
  • If the taste/odor persists after flushing, the filter may be defective or the issue might stem from another component of the water system.
• Fuites autour du filtre :
  • Coupez immédiatement l'arrivée d'eau.
  • Ensure the filter is properly seated and tightened in its housing.
  • Check the O-rings or seals for damage or improper placement.

If these steps do not resolve the issue, please contact TOKIT customer support.

7. Garantie et assistance

For warranty information regarding your TOKIT T1 Ultra RO Replacement Water Filter, please refer to the documentation provided with your original TOKIT T1 Ultra water system or contact the manufacturer directly.

Informations sur le fabricant :

Fabricant: Chunmi Technology (Shanghai) Co., Ltd.

Adresse: Building 11, 1333 Jiangnan Avenue, Changxing Science and Technology Park, Lingang, Shanghai

E-mail: service@tokitglobal.com
