Instruction Manual: Genuine OEM Integrated Thermostat Housing Module

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Genuine OEM Integrated Thermostat Housing Module, part numbers 25600-2S000 and 25600-2S001. This component is crucial for regulating engine coolant temperature, ensuring optimal engine performance and longevity.

This product is a direct replacement part, designed to meet the exact specifications of the original equipment manufacturer (OEM) for compatible vehicles.

2. caractéristiques du produit

• Pièce d'origine constructeur : Engineered to precise factory standards for a perfect fit and reliable function.
• Construction durable : Manufactured from high-quality materials to withstand harsh engine bay conditions, including extreme temperatures and vibrations.
• Qualité supérieure : Ensures long-lasting service and consistent performance in engine cooling systems.
• Installation facile : Designed as a direct replacement, simplifying the installation process without requiring modifications.
• Exact Match: Identical to the part originally supplied with your vehicle, ensuring compatibility and performance.

3. Contenu du colis

À l'ouverture du colis, vérifiez que tous les composants sont présents et intacts. Le colis doit contenir :

• One (1) Genuine OEM Integrated Thermostat Housing Module (Part No. 25600-2S000 or 25600-2S001)
• Emballage d'origine du fabricant

Figure 1 : The thermostat housing module as received in its original packaging, showing the part number label.

4. Compatibilité avec les véhicules

This Integrated Thermostat Housing Module is compatible with the following vehicle models:

• Hyundai Sonata (2020-2024 models)

It is recommended to verify the part number on your existing thermostat housing or consult your vehicle's service manual to ensure exact compatibility before installation.

5. Instructions d'installation

Clause de non-responsabilité: Installation of automotive components can be complex and may require specialized tools and knowledge. If you are not confident in your ability to perform this installation, it is highly recommended to seek assistance from a qualified automotive technician.

5.1. Précautions de sécurité

• Ensure the engine is completely cool before beginning work to avoid burns from hot coolant or engine components.
• Débranchez la borne négative de la batterie du véhicule pour éviter les courts-circuits.
• Portez l'équipement de protection individuelle approprié, notamment des lunettes de sécurité et des gants.
• Have a drain pan ready to collect coolant.

5.2. Outils requis (typiques)

• Jeu de clés à douille
• Pinces (pour tuyau clamps)
• Tournevis
• bac de récupération du liquide de refroidissement
• New engine coolant (compatible with your vehicle)

5.3. Étapes d'installation (Guide général)

1. Vidangez le liquide de refroidissement : Locate the radiator drain plug and drain the engine coolant into a suitable container.
2. Localiser le boîtier du thermostat : Identify the existing thermostat housing on the engine. It is typically located near the engine block where the upper radiator hose connects.
3. Disconnect Hoses and Sensors: Carefully disconnect all hoses attached to the thermostat housing. Use pliers for hose clamps. Disconnect any electrical connectors for sensors integrated into the housing.
4. Démolition des anciens logements : Unbolt the old thermostat housing from the engine block. Note the position and orientation of the housing and any gaskets.
5. Nettoyer la surface de montage : Thoroughly clean the engine block's mounting surface to ensure a proper seal with the new housing. Remove any old gasket material.
6. Installation d'un nouveau logement : Position the new Genuine OEM Integrated Thermostat Housing Module (25600-2S000 or 25600-2S001) with its new gasket (if separate) onto the engine block. Ensure correct orientation.
7. Logement sécurisé : Install and tighten the bolts to the manufacturer's specified torque settings. Do not overtighten.
8. Reconnect Hoses and Sensors: Reconnect all coolant hoses and electrical connectors securely. Ensure hose clampsont correctement assis.
9. Remplissage du liquide de refroidissement : Refill the cooling system with the appropriate type and amount of new engine coolant.
10. Purge d'air : Start the engine and allow it to reach operating temperature. Monitor the coolant level and add more as needed to bleed any air from the system. Check for leaks.
11. Rebranchez la batterie : Rebranchez la borne négative de la batterie.

Figure 2 : Haut view of the thermostat housing module, highlighting the various hose connections and sensor ports for proper installation.

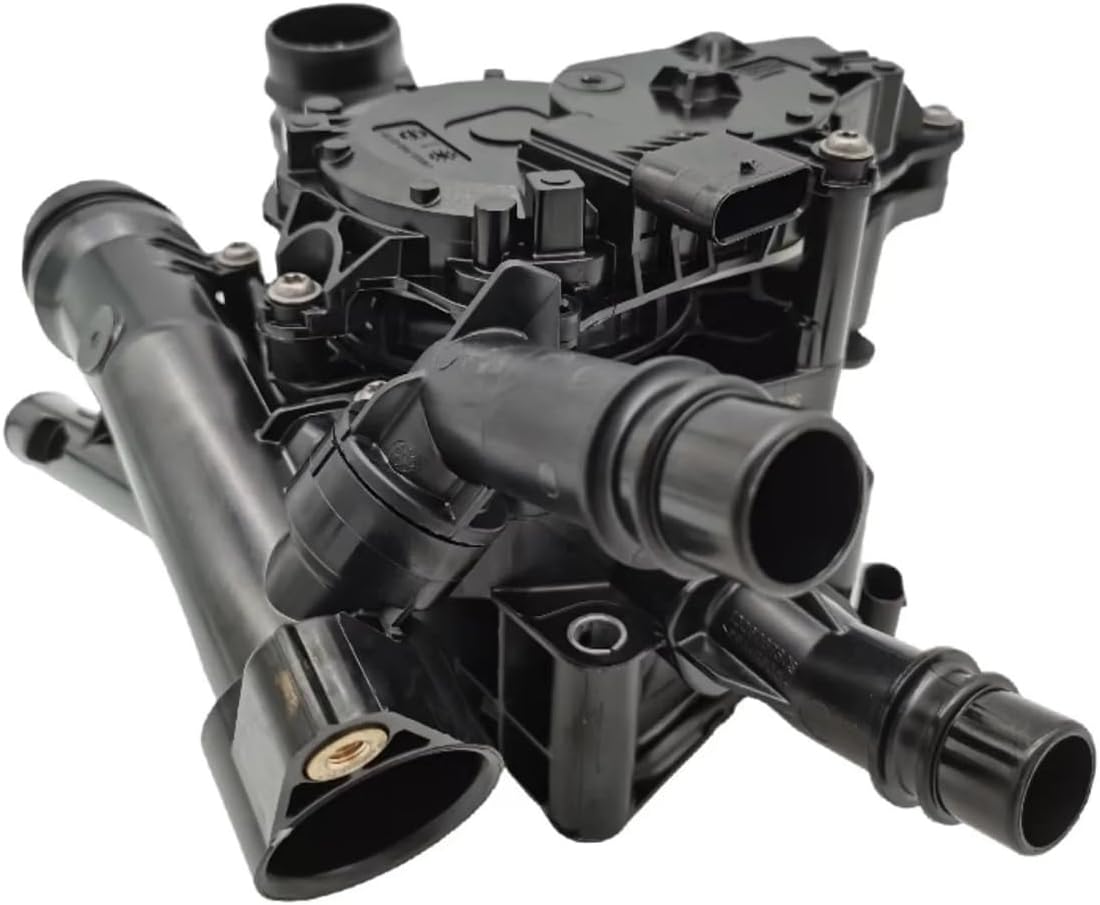

Figure 3 : Côté view of the thermostat housing module, illustrating the mounting points and the general structure of the internal components.

Figure 4 : Incliné view of the thermostat housing module, clearly showing the red gasket and the opening for the thermostat mechanism.

Figure 5 : Bas view of the thermostat housing module, revealing additional ports and mounting points critical for secure installation.

6. Fonctionnement

The integrated thermostat housing module operates automatically to regulate the engine's coolant temperature. When the engine is cold, the thermostat remains closed, allowing the engine to warm up quickly. Once the coolant reaches the optimal operating temperature, the thermostat opens, allowing coolant to flow through the radiator for cooling.

Proper functioning of the thermostat is essential for fuel efficiency, emissions control, and preventing engine overheating or undercooling.

7. Entretien

The thermostat housing module itself requires no routine maintenance. However, regular maintenance of your vehicle's cooling system is crucial for its longevity and proper function:

• Vérification du niveau de liquide de refroidissement : Regularly check the coolant level in the reservoir and top up as needed with the correct type of coolant.
• Purge du liquide de refroidissement : Follow your vehicle manufacturer's recommendations for coolant flush and replacement intervals. This helps prevent corrosion and buildup that can affect thermostat operation.
• Inspection des tuyaux : Periodically inspect all coolant hoses for cracks, leaks, or swelling. Replace any damaged hoses promptly.
• Détection de fuite : Be vigilant for any signs of coolant leaks around the thermostat housing or other cooling system components.

8. Dépannage

If you experience issues with your vehicle's cooling system after installing this part, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, it is recommended to consult a certified automotive technician for further diagnosis and repair.

9. Spécifications

10. Garantie et assistance

Specific warranty information for this product is not provided in the available documentation. For details regarding warranty coverage or technical support, please refer to the seller or the original manufacturer of the part.

For general inquiries or assistance with installation, it is recommended to consult a professional automotive technician or refer to a comprehensive vehicle service manual for your specific Hyundai Sonata model.
