Generic CB9686 STEM Building Blocks Instruction Manual

1. Produit terminéview

The Generic CB9686 STEM Building Blocks kit is designed to foster construction skills and understanding of mechanical concepts through hands-on experimentation. This kit includes 420 pieces, allowing for the construction of 58 different models. It is compatible with major building block brands and features a battery box and motor for dynamic creations. The kit supports learning principles such as gear mechanisms, axle systems, differential gears, and motor operation.

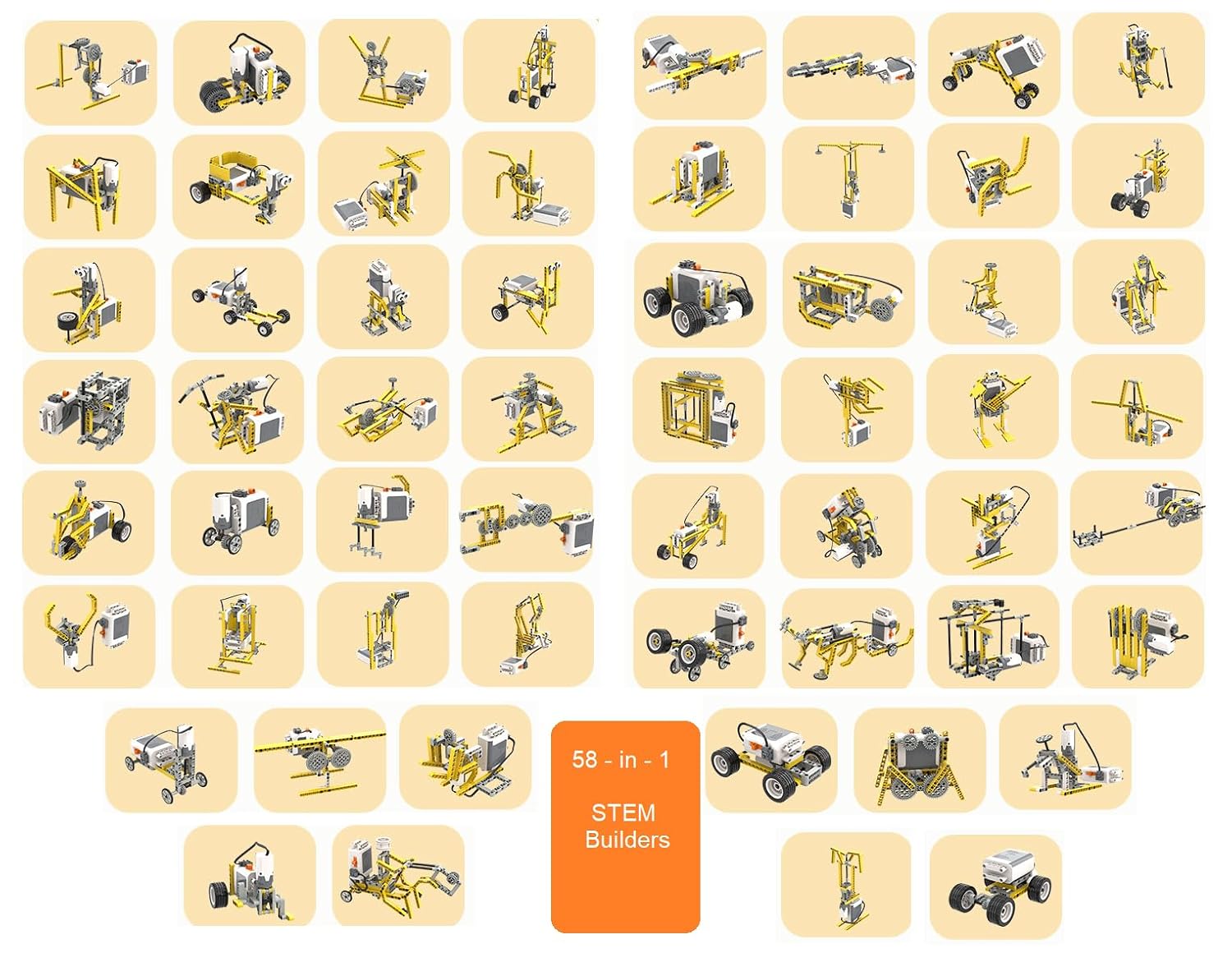

Image: A selection of models that can be constructed using the CB9686 kit, demonstrating its versatility.

Image: The product packaging alongside various completed models, showcasing the kit's potential.

2. Ce qui est inclus

Avant de commencer l'assemblage, veuillez vérifier que tous les composants énumérés ci-dessous sont présents dans votre kit :

• Boîte de rangement en plastique
• Tray to keep blocks organized
• 420 Pieces of building blocks
• 1 Battery Box (requires 6 AA Batteries, not included)
• 1 Medium Sized Motor
• 1 Paper Manual Book
• List of all 420 parts

Image: All components of the CB9686 kit, including the storage box, building pieces, motor, and battery box.

Image : détaillée view of the battery box and motor, essential electronic components of the kit.

3. Assemblage et configuration

The CB9686 kit provides both a physical manual and a mobile application for detailed assembly instructions. It is recommended to follow these guides for constructing the models.

3.1. Installation de la batterie

1. Locate the battery compartment on the Battery Box.
2. Ouvrez le couvercle du compartiment.
3. Insert 6 AA batteries, ensuring correct polarity (+/-). Batteries are not included and must be purchased separately.
4. Fermez soigneusement le couvercle du compartiment à piles.

3.2. Connexion du moteur

1. Identify the connector cable extending from the motor.
2. Plug the motor's connector into the designated port on the Battery Box. Ensure a firm connection.

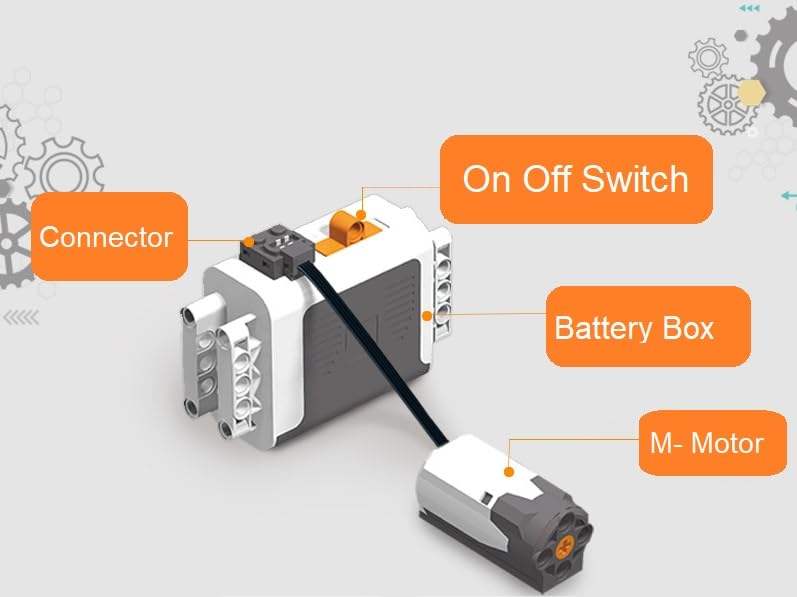

Image: Illustration detailing how to connect the motor to the battery box and identifying key components.

3.3. Using the Manual and Mobile App

The kit includes a paper manual. Additionally, a mobile application is available for Android and Apple devices, providing interactive instructions for all 58 models. Scan the QR code in the paper manual to download the app.

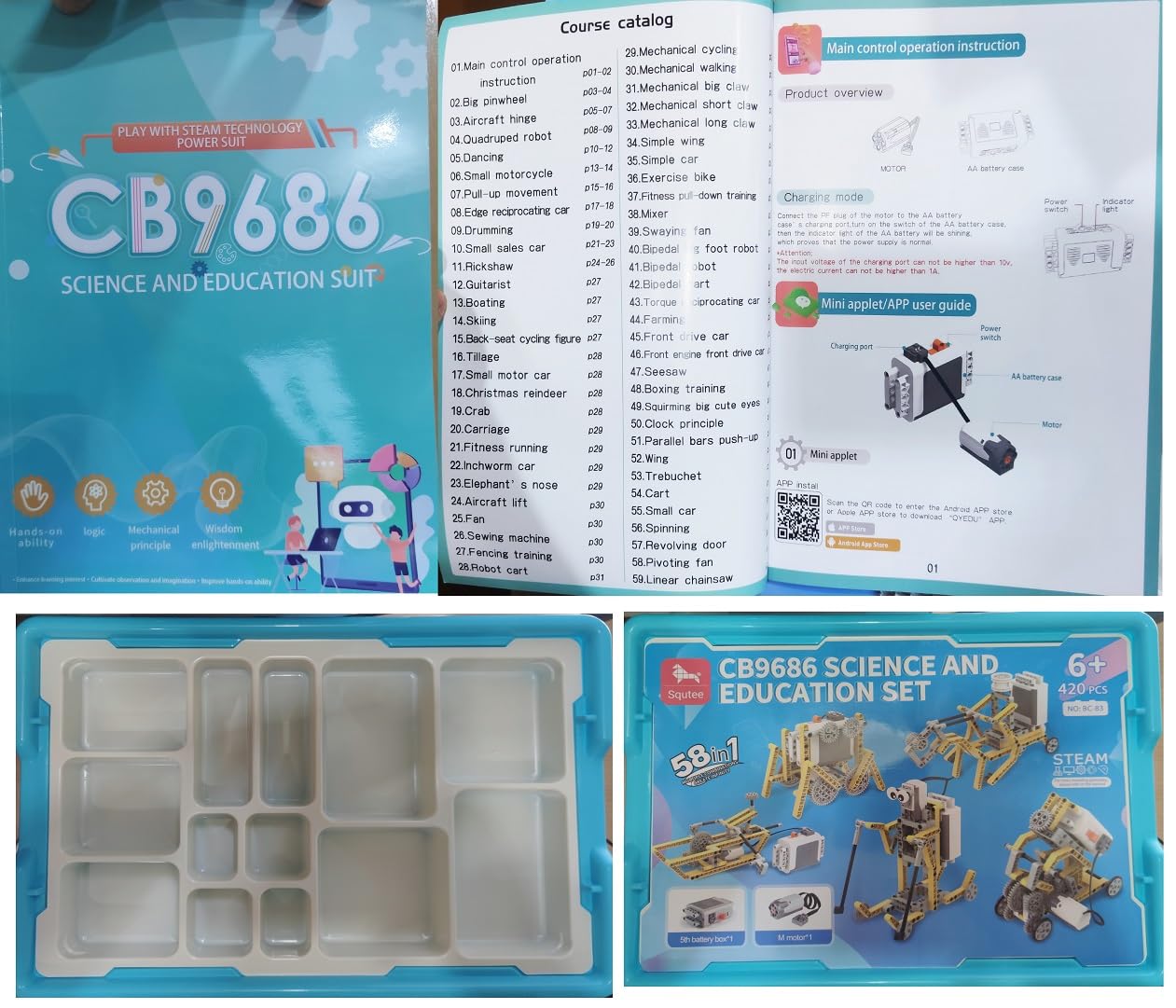

Image: The included paper manual, displaying assembly steps and a QR code for accessing the mobile application.

4. Mode d'emploi

Once a model is assembled and the motor is connected to the battery box with batteries installed, you can operate your creation.

1. Ensure all connections are secure and the model is stable.
2. Locate the On/Off switch on the Battery Box.
3. Flip the switch to the 'On' position to activate the motor and power the model.
4. To stop the model, flip the switch back to the 'Off' position.

Remarque importante :

This kit allows for the construction of 58 different models, but only one model can be built and operated at a time, as it includes a single battery box and motor. If you wish to operate multiple models simultaneously, additional battery boxes and motors can be purchased separately.

5. Entretien

Proper maintenance ensures the longevity and functionality of your building block kit.

• Nettoyage: Wipe the building blocks and electronic components with a dry, soft cloth. Avoid using water or chemical cleaners, as these can damage the electronic parts.
• Stockage: After use, disassemble models and store all pieces in the provided plastic storage box and tray to prevent loss and damage. Keep the kit in a cool, dry place away from direct sunlight.
• Entretien de la batterie: Remove batteries from the Battery Box if the kit will not be used for an extended period to prevent leakage and corrosion.

6. Dépannage

If your model is not functioning as expected, consider the following:

• Modèle immobile :
  • Check if the Battery Box is switched to the 'On' position.
  • Ensure batteries are correctly installed with the proper polarity and are not depleted. Replace if necessary.
  • Verify that the motor is securely connected to the Battery Box.
  • Inspect the model for any mechanical obstructions or incorrectly assembled parts that might be preventing movement.
• Moteur ne répondant pas :
  • Confirm the battery box has fresh batteries and is switched on.
  • Ensure the motor cable is fully inserted into the battery box port.
  • If the motor still does not respond, it may require replacement. Refer to the Warranty and Support section.

7. Spécifications

8. Garantie et assistance

Ce produit est livré avec un Garantie de 90 jours on all electronic parts from the date of purchase. Please retain your proof of purchase for warranty claims.

For any inquiries regarding the product, missing parts, or to purchase additional battery boxes or motors, please contact the manufacturer or seller directly. Contact information can typically be found on the product packaging or through your point of purchase.
