Manuel d'instructions pour l'organisateur d'angle YITAHOME 28 pouces, plateau tournant chromé en forme de rein, à 2 étagères

Introduction

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your YITAHOME 28-Inch Kidney Chrome Pie Cut 2-Shelf Lazy Susan Corner Organizer. Please read this manual thoroughly before installation and retain it for future reference.

Image: The YITAHOME 28-inch Lazy Susan organizer, showcasing its two kidney-shaped shelves filled with various kitchen items like jars, spices, pots, and bowls, demonstrating its storage capacity and design.

Consignes de sécurité

• Assurez-vous que tous les composants sont solidement fixés avant utilisation.
• Do not overload the shelves. Refer to specifications for weight limits.
• Gardez les petites pièces hors de portée des enfants pendant l'assemblage.
• Wear appropriate safety gear (e.g., gloves) during installation if necessary.
• Verify cabinet dimensions and check for obstructions like door hinges or plumbing before installation.

Liste des pièces

Veuillez vous assurer que toutes les pièces sont présentes avant de commencer l'assemblage :

• 2 x Kidney-shaped shelves (Chrome wire)
• 1 x Telescoping center pole (Adjustable height)
• Matériel de montage (vis, rondelles, etc.)
• Plastic sleeves/bushings for shelf attachment
• Top and bottom mounting plates

Configuration et installation

Follow these steps for proper assembly and installation of your Lazy Susan organizer.

1. Prepare the Cabinet

Measure your cabinet's inner height and width to ensure compatibility. The telescoping shaft adjusts to fit 22" - 31.1" inner cabinet height (for the 28" diameter model). The cabinet opening should be at least 31.5" (80cm) wide for proper rotation. Check for any obstructions such as door hinges or plumbing, and ensure no drawers or large appliances are directly above the installation area.

Image: A diagram illustrating the required cabinet dimensions for installing the Lazy Susan, highlighting the minimum width (≥31.5"/80cm) and adjustable height range (22"-31.1"/56-79cm) for the 28-inch diameter unit.

2. Assemble the Shelves to the Pole

1. Attach the bottom mounting plate to the base of the cabinet using appropriate screws.
2. Slide the first kidney-shaped shelf onto the telescoping pole. Secure it at the desired height using the provided plastic sleeves and pins. Ensure it is level.
3. Repeat for the second kidney-shaped shelf, positioning it above the first. Adjust the height to accommodate your items.
4. Insert the top section of the telescoping pole into the upper mounting plate, which will be secured to the top of the cabinet.

Image : Un gros plan view of the telescoping shaft mechanism, showing how the height can be adjusted to fit various cabinet sizes, with arrows indicating upward and downward movement.

Image : Une image détaillée view of the fence structure design on the Lazy Susan shelf, illustrating the raised edges that help prevent items from falling off during rotation.

3. Secure the Unit in the Cabinet

1. Carefully place the assembled Lazy Susan unit into the corner cabinet.
2. Extend the telescoping pole until it firmly presses against the top and bottom of the cabinet.
3. Secure the top mounting plate to the cabinet ceiling using screws.
4. Ensure the entire unit is stable and rotates smoothly without obstruction.

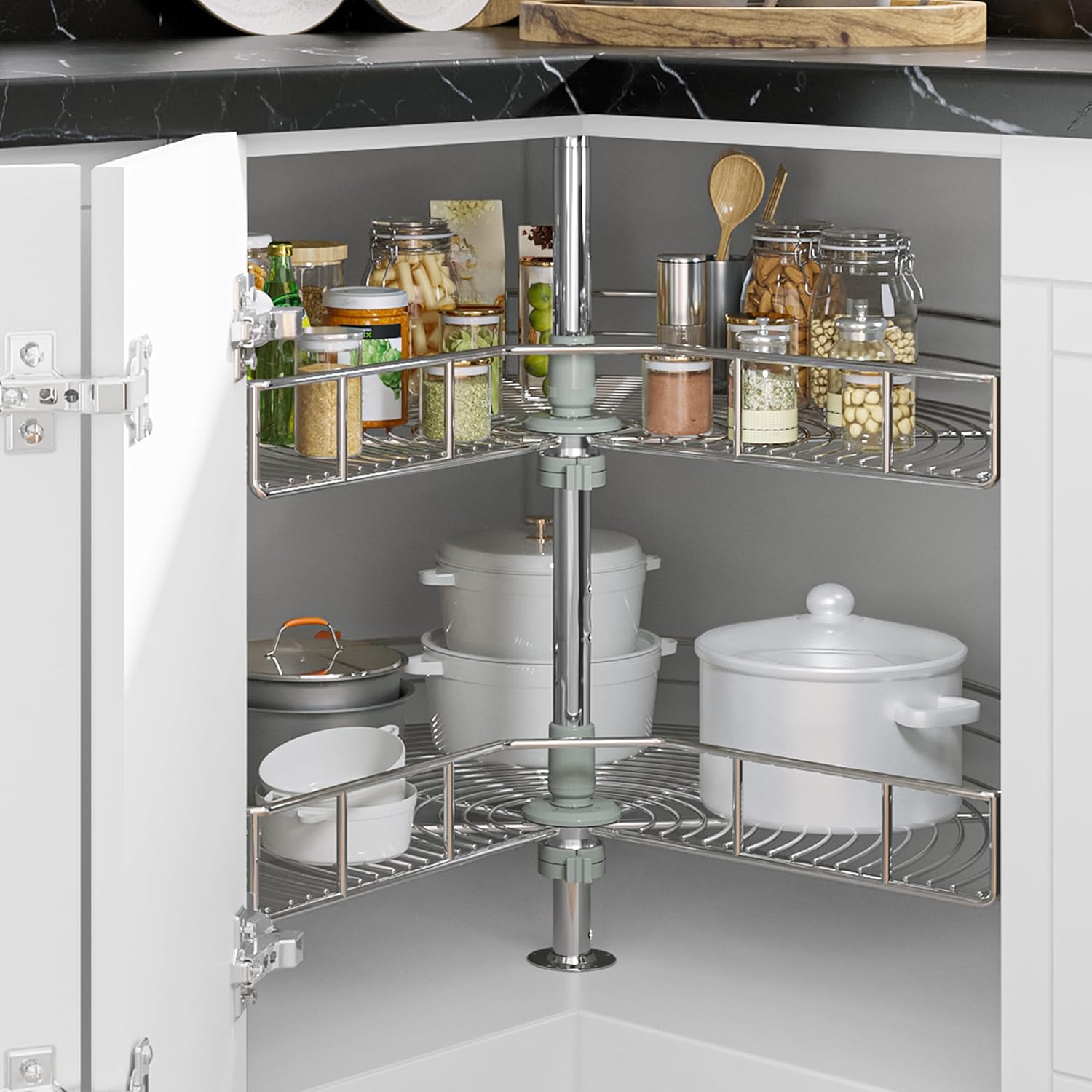

Image: The YITAHOME Lazy Susan organizer fully installed inside a white kitchen corner cabinet, with both shelves visible and ready for storage, demonstrating its fit and functionality.

Guide vidéo d'installation

Pour un guide visuel du processus d'installation, veuillez consulter la vidéo ci-dessous :

Mode d'emploi

The YITAHOME Lazy Susan is designed for ease of use:

• Chargement des éléments : Place items such as pots, pans, spices, or other kitchen essentials onto the kidney-shaped shelves. Distribute weight evenly for optimal balance and smooth rotation.
• Rotation: Gently push or pull the shelves to rotate them. The independent rotation feature allows each shelf to spin freely, providing easy access to items stored in the back of the corner cabinet.
• Accéder: Rotate the shelves until the desired items are within reach. The 270-degree rotation ensures maximum accessibility.

Image: A person kneeling to access items from the lower shelf of the installed YITAHOME Lazy Susan in a kitchen corner cabinet, demonstrating the ease of access and use.

Entretien et soins

• Nettoyage: Essuyez les étagères et le poteau chromés avec un chiffon doux et sec.amp cloth and mild detergent. Avoid abrasive cleaners or scouring pads, which can damage the finish. Dry thoroughly after cleaning.
• Inspection: Periodically check all mounting hardware and connections to ensure they remain tight. Re-tighten any loose screws as needed.
• Lubrification: If rotation becomes stiff, a small amount of silicone-based lubricant can be applied to the rotating mechanisms.

Dépannage

Caractéristiques

• Modèle: MAYIH3HgMN
• Marque: YITAHOME
• Matériel: Stainless Steel (Chrome finish)
• Couleur: Argent
• Diamètre de l'article : 28 pouces
• Hauteur réglable: 22" - 31.1" (inner cabinet height)
• Nombre d'étagères : 2
• Rotation: 270-degree kidney shape, independent shelf rotation
• Poids de l'article : Environ 12.4 livres
• Code à barres : 197839785083

Garantie et assistance

YITAHOME products are manufactured with quality and durability in mind. For specific warranty information or technical support, please refer to the product packaging or contact YITAHOME customer service directly. Keep your purchase receipt for warranty claims.

Coordonnées: Please visit the official YITAHOME webConsultez ce site pour obtenir les coordonnées de contact du service d'assistance les plus récentes.
