Einfeben Galvanized Metal Sawhorse Instruction Manual

1. Introduction

Thank you for choosing the Einfeben Galvanized Metal Sawhorse. This sawhorse is designed to provide a stable and secure platform for cutting firewood with a chainsaw. Its robust construction and galvanized finish ensure durability and resistance to outdoor elements. Please read this manual carefully before assembly and use to ensure safe and efficient operation.

Image 1.1: The Einfeben Galvanized Metal Sawhorse supporting a log, ready for cutting.

2. Consignes de sécurité

Always prioritize safety when operating power tools and handling wood. Failure to follow these instructions may result in serious injury or property damage.

• Lisez toutes les instructions: Familiarize yourself with this manual and your chainsaw's manual before use.
• Portez un équipement de protection individuelle (EPI) approprié : This includes safety glasses, hearing protection, gloves, sturdy footwear, and appropriate clothing.
• Ensure a stable work area: Place the sawhorse on a flat, stable, and non-slip surface. Keep the area clear of obstructions.
• Fixez la pièce à usiner : Always ensure the log is firmly seated in the sawhorse's teeth before cutting.
• Maintenez une distance de sécurité : Keep bystanders, especially children and pets, away from the work area.
• Inspect the sawhorse: Before each use, check the sawhorse for any signs of damage, loose fasteners, or wear. Do not use if damaged.
• Ne surchargez pas : La charge maximale admissible est de 150 kg. Ne dépassez pas cette limite.
• Use caution with sharp edges: The sawhorse features sharp teeth for gripping logs. Handle with care to avoid cuts.

3. Contenu du colis

Vérifiez que tous les composants sont présents avant de commencer l'assemblage.

• 1 x Einfeben Galvanized Metal Sawhorse (disassembled)
• Necessary fasteners (bolts, nuts, washers)

4. Instructions de montage

Assembly is required for this sawhorse. While the process is generally intuitive, careful attention to detail is important. It is recommended to have basic tools such as wrenches or pliers available for tightening fasteners.

1. Déballez tous les composants et disposez-les sur une surface propre et plane.
2. Identify the main frame sections and the cross braces.
3. Begin by attaching the main support legs using the provided bolts, nuts, and washers. Ensure all connections are secure but do not fully tighten until the entire frame is assembled.
4. Attach the cross braces to provide stability to the structure.
5. Install the serrated log supports onto the top of the frame. These are designed to hold the wood firmly.
6. Once all components are in place, carefully check the alignment and then fully tighten all bolts and nuts. Ensure the sawhorse is stable and does not wobble.

Image 4.1: Illustration of sawhorse components during assembly.

Image 4.2: The sawhorse can be folded for compact storage after use.

5. Mode d'emploi

Follow these steps for safe and effective use of your sawhorse.

1. Position the sawhorse: Place the sawhorse on a firm, level surface.
2. Load the log: Carefully place the log onto the serrated supports of the sawhorse. The teeth are designed to grip the wood securely, preventing it from rolling during cutting. Adjust the log's position to ensure maximum stability.
3. Prepare your chainsaw: Ensure your chainsaw is in good working order, fueled, and the chain is sharp and properly tensioned.
4. Begin cutting: With your chainsaw, make cuts through the log. Always maintain a firm grip on the chainsaw and stand in a balanced position. Avoid cutting directly into the metal sawhorse.
5. Remove cut pieces: Once a section is cut, carefully remove it from the sawhorse.

Image 5.1: Sawhorse in use, holding a log for chainsaw cutting.

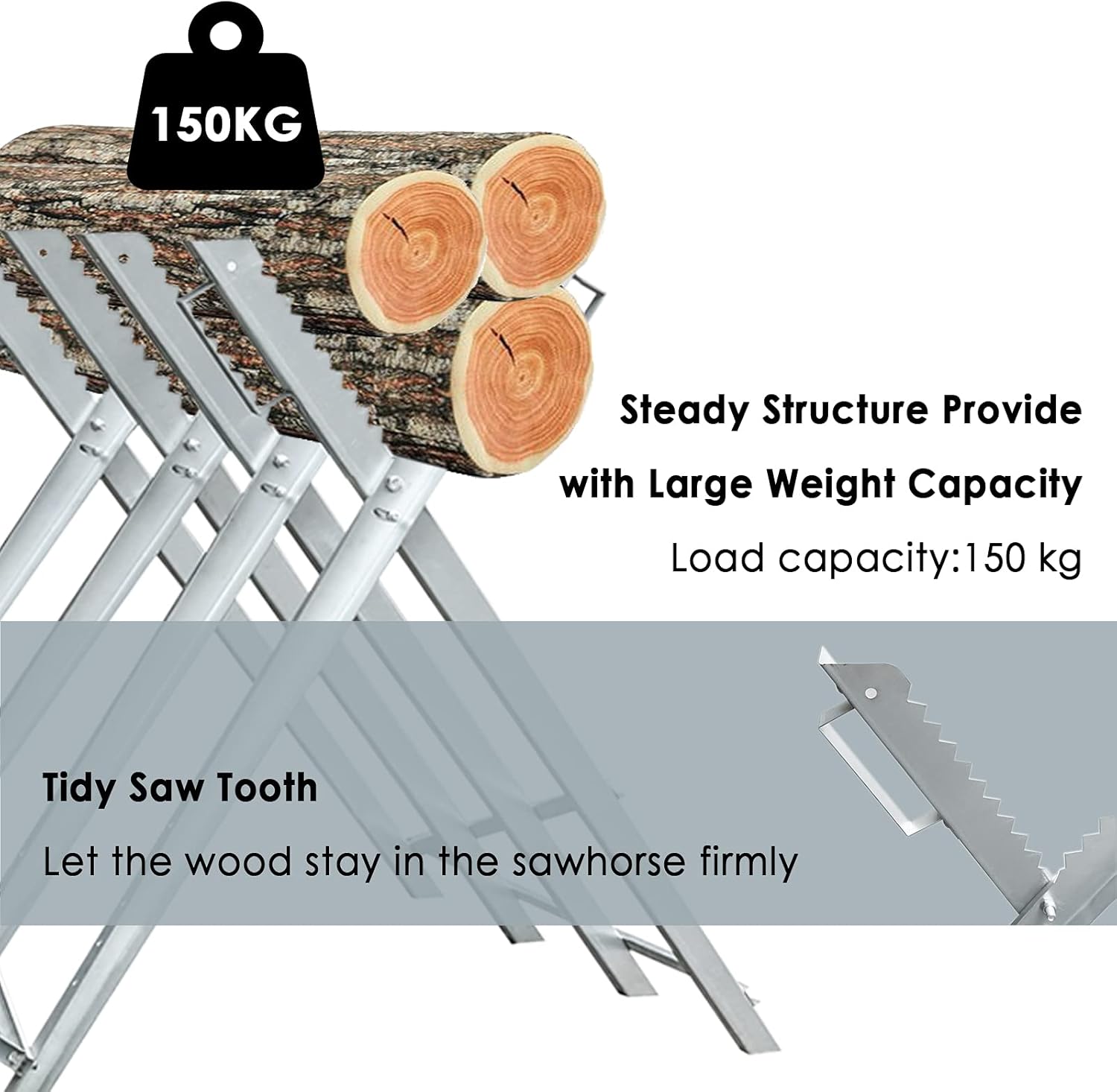

Image 5.2: The serrated teeth provide a firm grip on logs, ensuring stability during cutting.

6. Entretien

Proper maintenance will extend the life of your sawhorse.

• Nettoyage: After each use, remove sawdust, wood chips, and debris from the sawhorse. A stiff brush or compressed air can be used.
• Inspection: Regularly check all bolts and nuts for tightness. Tighten any loose fasteners. Inspect the metal frame for any signs of damage, bending, or excessive wear.
• Protection contre la rouille : The sawhorse is made of galvanized metal, offering good rust resistance. However, for prolonged outdoor storage, it is advisable to cover it or store it in a dry place to further protect it from the elements.
• Stockage: The sawhorse is foldable for convenient, space-saving storage.

7. Dépannage

If you encounter issues with your sawhorse, refer to the following common problems and solutions.

• Sawhorse feels unstable:
  • Assurez-vous que tous les boulons et écrous sont bien serrés.
  • Verify that the sawhorse is placed on a completely flat and level surface. Uneven ground can cause instability.
  • Check for any bent or damaged frame components that might affect stability.
• Log slips during cutting:
  • Ensure the log is properly seated within the serrated teeth.
  • Adjust the log's position to maximize contact with the gripping teeth.
  • Avoid excessive force or improper chainsaw technique that could dislodge the log.

8. Spécifications

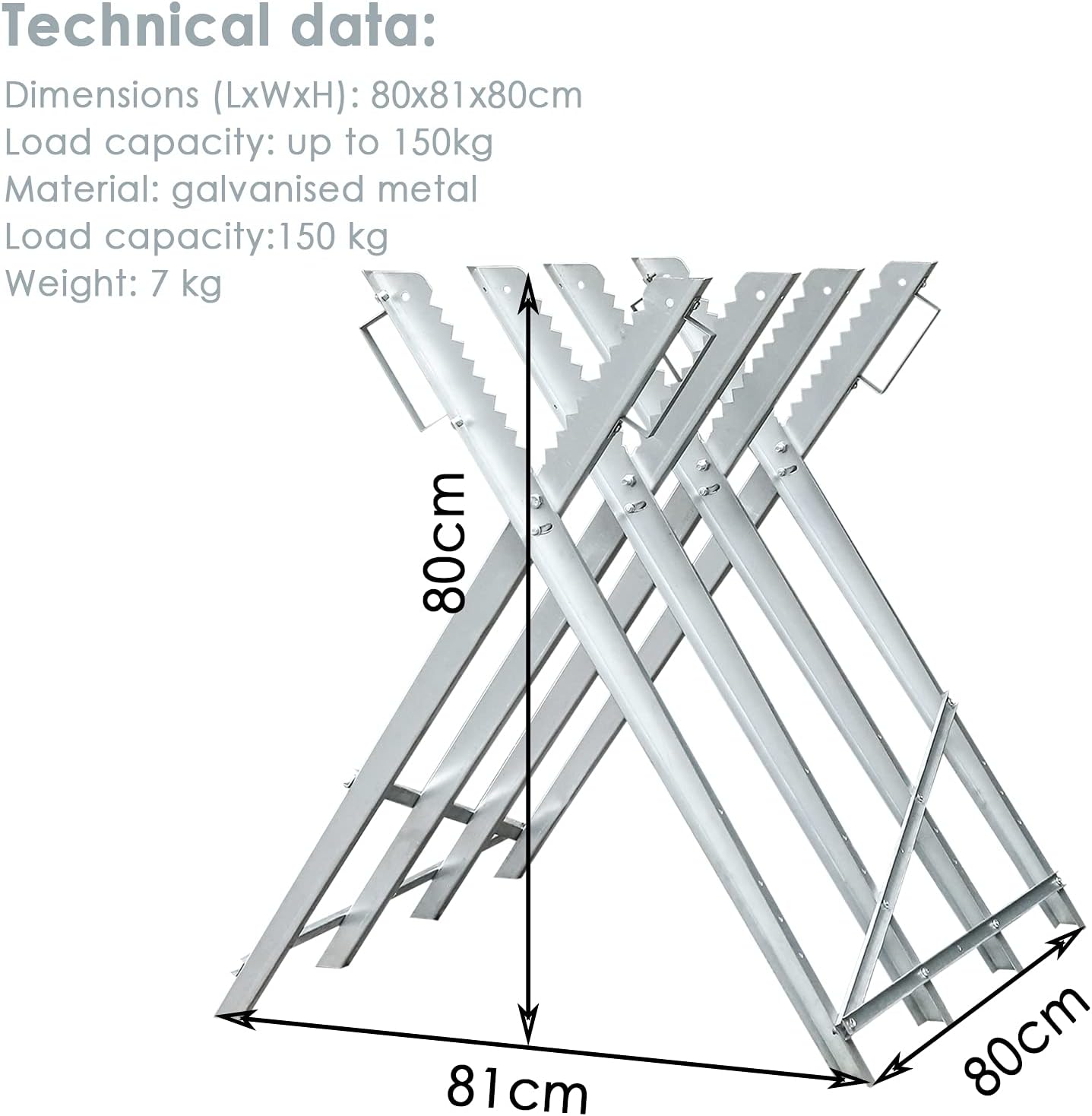

Image 8.1: Technical specifications and dimensions of the sawhorse.

9. Garantie et assistance

For any questions, concerns, or support regarding your Einfeben Galvanized Metal Sawhorse, please contact our customer service. We are committed to ensuring your satisfaction with our products.

Veuillez conserver votre preuve d'achat pour les réclamations au titre de la garantie.
